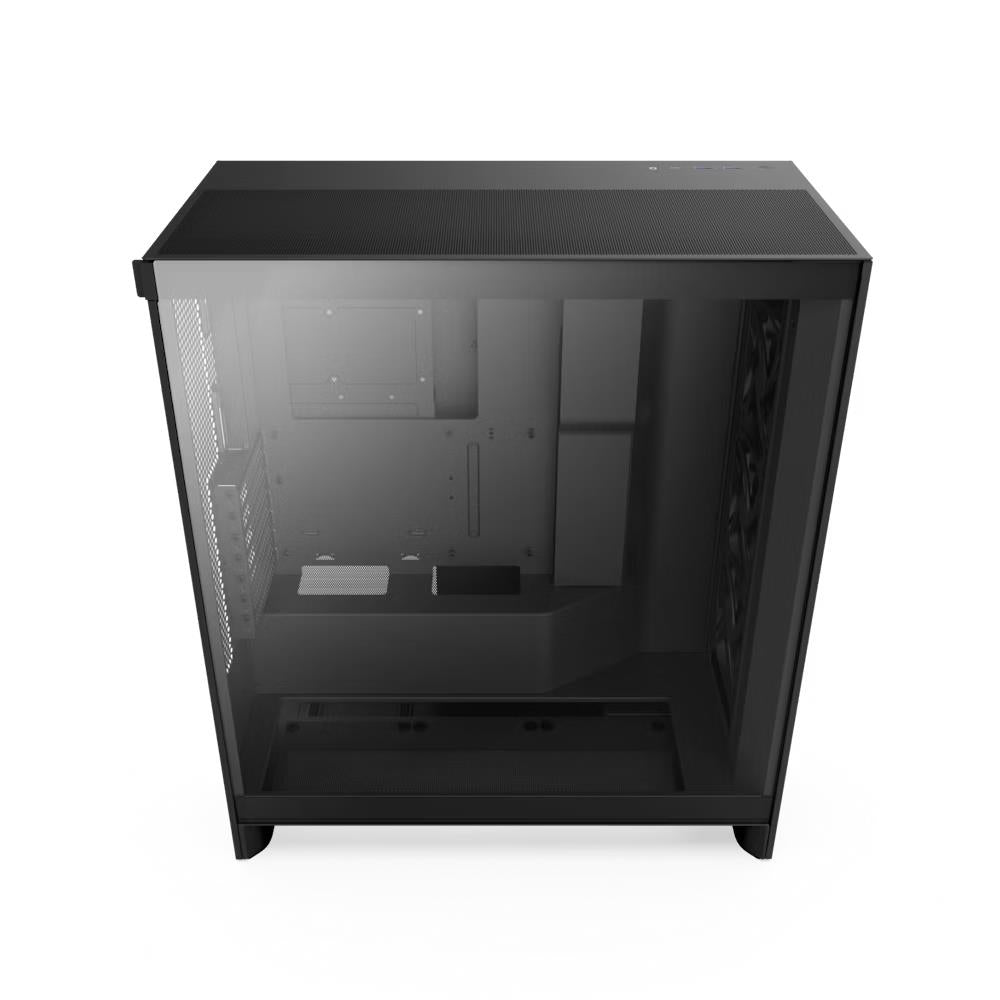

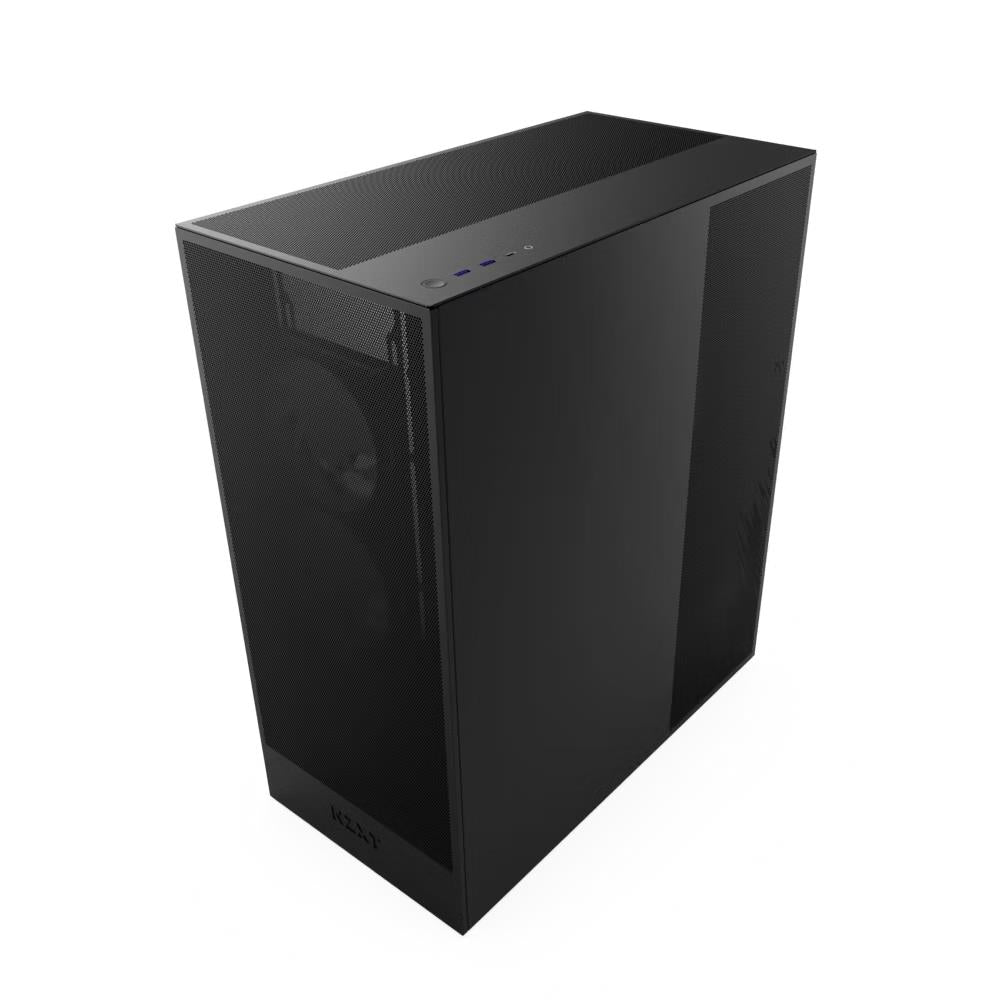

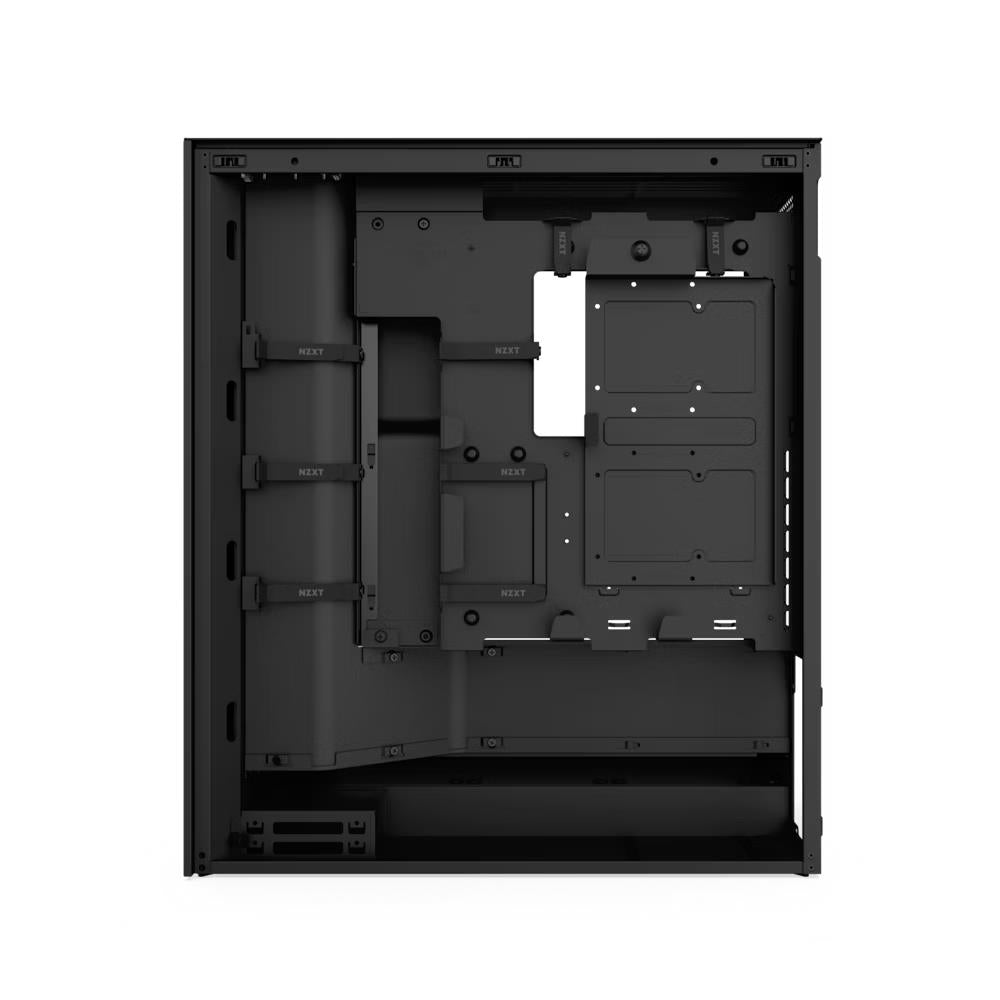

NZXT CM-H72FB-01 H7 Flow Mid Tower ATX Airflow PC Case Steel Temperd Glass Black

Model Number: CM-H72FB-01 (Black)
UPC: 810074845557 (Black)

The H7 Flow revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.

• Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint.
• Comes equipped with three front-mounted 120mm fans for exceptional out-of-the-box cooling.
• High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
• Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential.
• Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
• Capacity for up to 10 fans in total:  3 up top, 3 in front, 3 on bottom, and 1 in the rear.
• Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
• Tool-less access to the front, top, and side panels makes building and upgrading a breeze.

Tech Specs

Key Specs

• Motherboard Support: E-ATX (Up to 277mm), ATX, Micro-ATX, Mini-ITX
• Enclosure Type: Mid-Tower
• Case Material: SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)

Dimensions

• Height (with feet): 544 mm
• Width: 244 mm
• Depth: 468 mm
• Weight: 11.13 kg

Compatibility & Clearance

• CPU Cooler Height: Up to 185 mm
• GPU Length: Up to 410 mm
• PSU Length: Up to 200 mm
• Cable Management: Up to 34.5 mm
• Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness: Up to 57 mm

Front I/O Ports

• USB 3.2 Gen 1 Type-A: 2
• USB 3.2 Gen 2x2 Type-C (20 Gbps): 1
• Headset Audio Jack: 1

Expansion Slots

• Standard: 7
• Vertical: 0

Drive Bays

• 2.5": 2+2
• 3.5": 2

Fan Support

• Front: 3 x 120 mm / 3 x 140 mm (3 x F120Q included)
• Top: 3 x 120 mm / 2 x 140 mm
• Rear: 1 x 120 mm / 1 x 140 mm
• Bottom: 3 x 120 mm
• Filters: High-Performance Mesh

Radiator Support

• Front: Up to 420 mm
• Top: Up to 360mm
• Rear: Up to 140mm

Fan Specs

• Model: F120Q Airflow Fan (Case Version)
• Speed: 1,350 ± 150 RPM
• Airflow: 60.2 CFM
• Static: 1.05 mm - H2O
• Noise: 24.1 dBA
• Fan Connector: 3-pin DC

General

• Warranty: 2 Years from NZXT

Inside the Box

• H7 Flow:  1
• F120Q Airflow Fan (pre-installed, case version):  3
• Installation Accessories:  1
• Manual:  1
