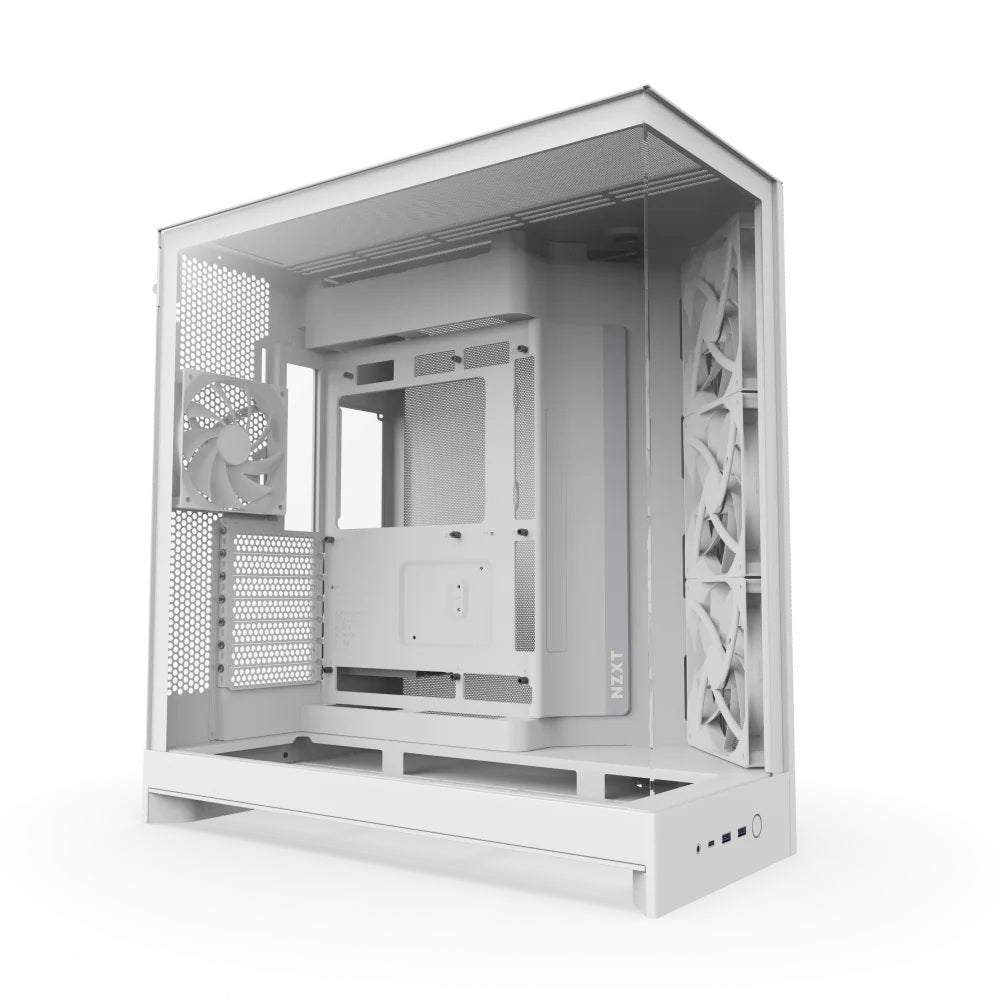

NZXT CM-H92FW-01 Computer Case - H9 FLOW Mid Tower Clear TG White Retail

Marketing Information

• Overview
• The H9 Flow is a spacious mid-tower ATX case built for high-performance builds, balancing airflow and aesthetics. Its dual-chamber design improves cooling and cable management, while perforated panels, angled fans, and ample fan and radiator support deliver optimal thermal performance.
• Dual-Chamber Design: Separates main components from the PSU and drives for improved thermal performance and cable management.
• Optimized Airflow: Perforated steel panels and angled front-right fans ensure efficient cooling for high-performance builds.

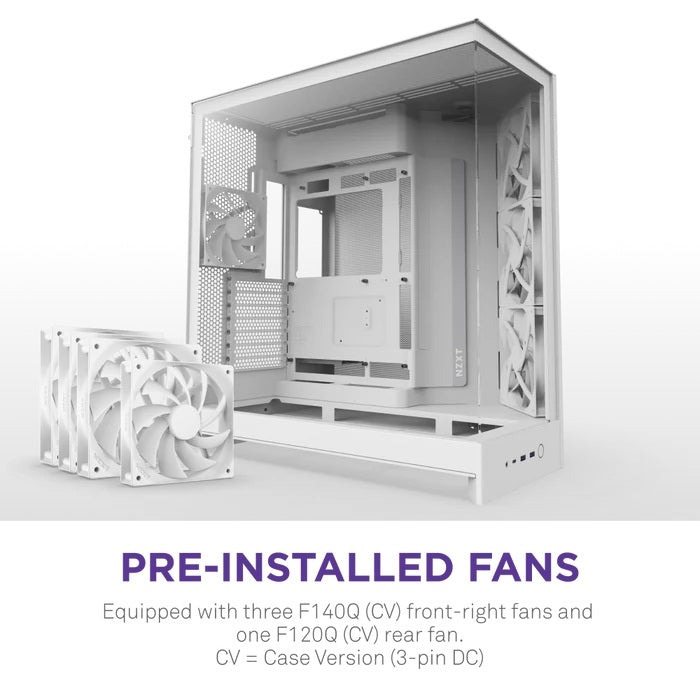

• Pre-Installed Fans: Includes three F140Q (CV) fans in the front-right and one F120Q (CV) fan in the rear. CV Case Version (3-pin DC)
• Ten-Fan Capacity: Supports up to nine 140mm fans across the top, front-right, and bottom, plus one 120mm fan in the rear.
• Panoramic View: Showcase every detail of your build with seamless, wraparound tempered glass paneling.
• Large Radiators and GPUs: Fits up to a 420mm radiator on the top and front-right, with plenty of clearance for high-end graphics cards.
• Easy Cable Management: Extra-wide channels, built-in Velcro straps, and tie-down points make cable routing effortless.
• Back-Connect Ready: Compatible with rear-connecting motherboards like ASUS BTF and MSI Project Zero for a cable-free look.
• Built to Flow. Made to Show.

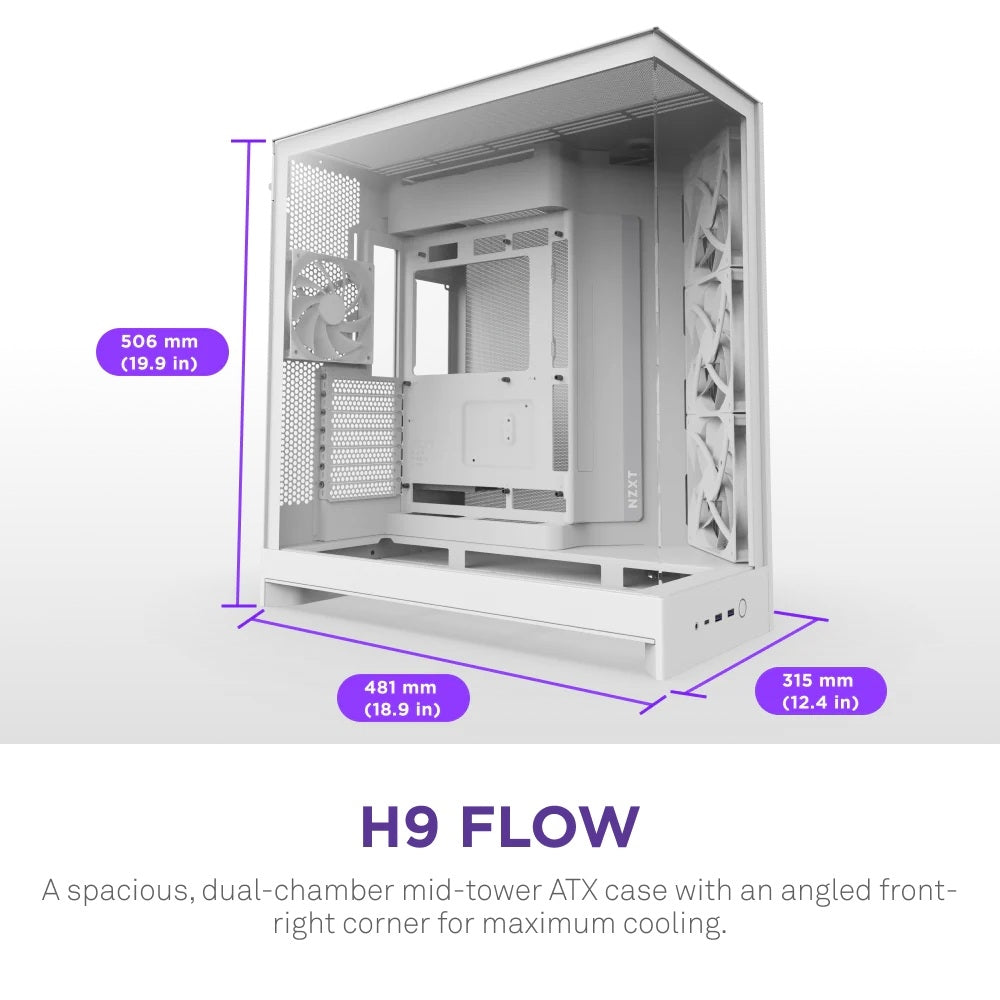

• The H9 Flow is a spacious, dual-chamber case built for high-performance builds, featuring extensive cooling support and wraparound glass panels for an uninterrupted view of your build.
• Optimized Airflow
• Angled front-right fans and an airflow-optimized layout keep temps low and performance steady.
• Mesh Panels
• Ultra-fine, high-airflow mesh panels maximize airflow while filtering dust.

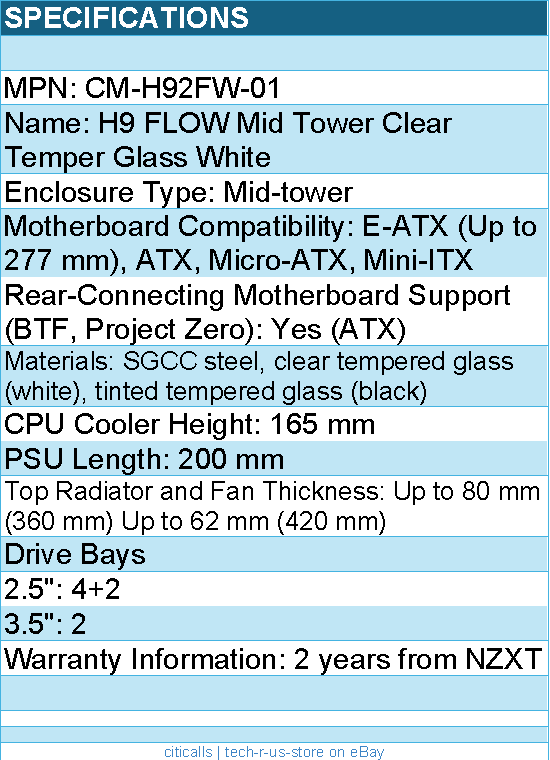

Detail Specifications

• MPN: CM-H92FW-01
• Enclosure Type: Mid-tower
• Motherboard Compatibility: E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX
• Rear-Connecting Motherboard Support (BTF, Project Zero): Yes (ATX)
• Materials: SGCC steel, clear tempered glass (white), tinted tempered glass (black)
• Clearance
  • CPU Cooler Height: 165 mm

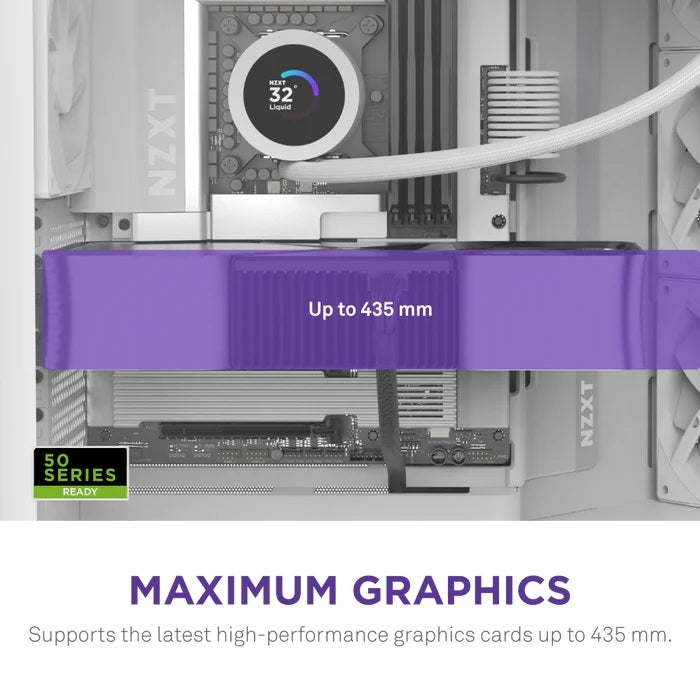

  • GPU Length: Up to 459 mm (with <56 mm thickness fans installed at the front-right) Up to 410 mm (with 56 mm thick 420 mm AIO and fans installed at the front-right)
  • PSU Length: 200 mm
  • Top Radiator and Fan Thickness: Up to 80 mm (360 mm) Up to 62 mm (420 mm)
• Front I/O Ports
  • USB 3.2 Type-A: 2
  • USB 3.2 Gen2x2 Type-C: 1
  • Headset Jack: 1
• Expansion Slots
• Standard: 7
• Vertical: 0
• Drive Bays
  • 2.5": 4+2
  • 3.5": 2

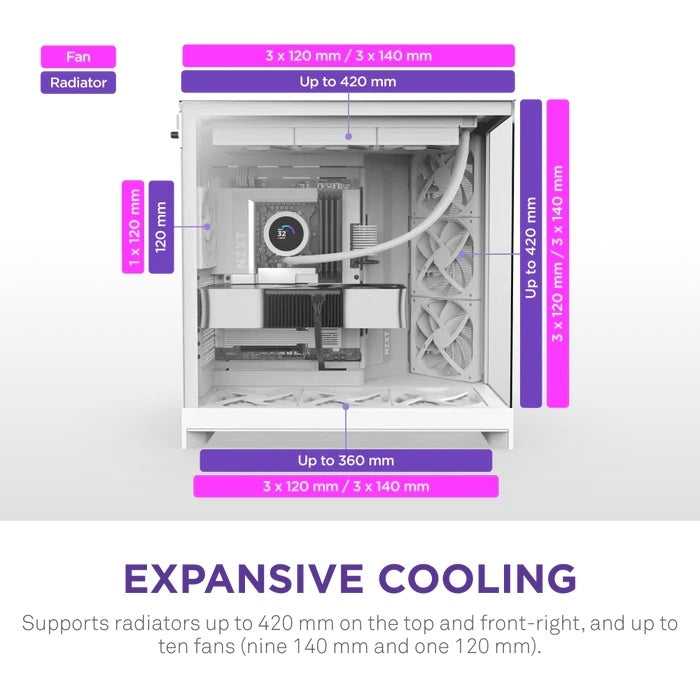

• Fan Support
  • Front-Right: 3 x 120 mm / 3 x 140 mm (3 x F140Q (CV) included)
  • Top: 3 x 120 mm / 3 x 140 mm
  • Bottom: 3 x 120 mm / 3 x 140 mm
  • Rear: 1 x 120 mm (1 x F120Q (CV) included)
• Radiator Support
  • Front-Right: Up to 420 mm
  • Top: Up to 420 mm
  • Bottom: Up to 360 mm
  • Rear: Up to 120 mm
• Fan Specs - F140Q (CV)
• Model: F140Q (CV)
• Speed: 1,350 +/- 150 RPM
• Airflow: 100.25 CFM
• Static Pressure: 1.4 mmH2O
• Noise: 22.9 dBA
• Fan Connector: 3-pin
• Fan Specs - F120Q (CV)
• Model: F120Q (CV)
• Speed: 1,350 +/- 150 RPM
• Airflow: 60.2 CFM
• Static Pressure: 1.05 mmH2O
• Noise: 24.1 dBA
• Fan Connector: 3-pin

Warranty Information

• 2 years from NZXT
