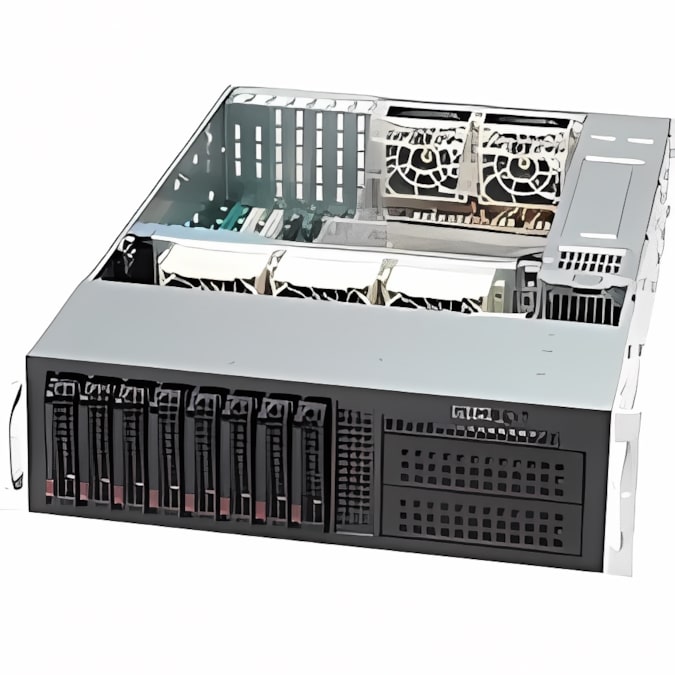

Supermicro CSE-835TQ-R921B SuperChassis 3U 11-Bay 2x 920W Power Supply eATX ATX

FEATURES

• 3U chassis support for motherboard size - E-ATX and ATX.
• 8 x 3.5" hot-swap SAS/SATA, 2 x 5.25" drive bay
• SAS833/835 BACK PANEL WITH AMI MG9072
• 1U 920W Redundant Platinum Super Quiet power supply W/PMbus
• 7 full-height & full-length expansion slot(s)
• 3 x 80mm Hot-swap PWM Fans
• 2 x 80mm rear hot-swap exhaust PWM fan(s)

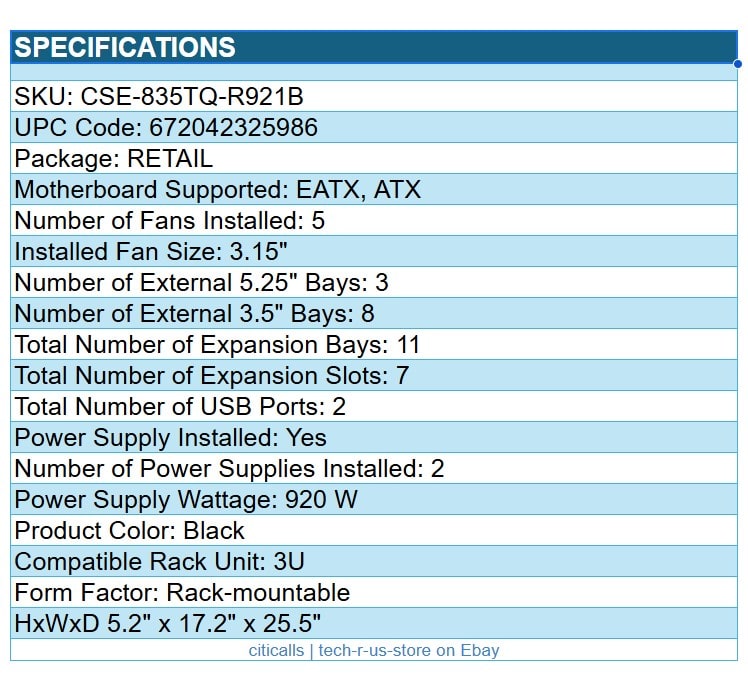

SPECIFICATIONS

• SKU: CSE-835TQ-R921B
• UPC Code: 672042325986
• Package: RETAIL
• Motherboard Supported: EATX, ATX
• Number of Fans Installed: 5
• Installed Fan Size: 3.15"
• Number of External 5.25" Bays: 3
• Number of External 3.5" Bays: 8
• Total Number of Expansion Bays: 11
• Total Number of Expansion Slots: 7
• Total Number of USB Ports: 2
• Power Supply Installed: Yes
• Number of Power Supplies Installed: 2
• Power Supply Wattage: 920 W
• Product Color: Black
• Compatible Rack Unit: 3U
• Form Factor: Rack-mountable
• HxWxD 5.2" x 17.2" x 25.5"

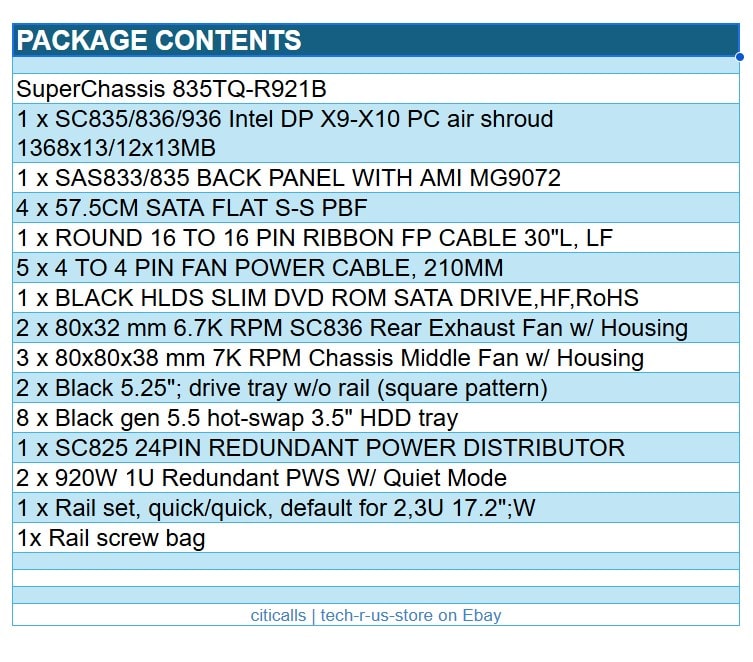

PACKAGE CONTENTS

• SuperChassis 835TQ-R921B
• 1 x SC835/836/936 Intel DP X9-X10 PC air shroud 1368x13/12x13MB
• 1 x SAS833/835 BACK PANEL WITH AMI MG9072
• 4 x 57.5CM SATA FLAT S-S PBF
• 1 x ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
• 5 x 4 TO 4 PIN FAN POWER CABLE, 210MM
• 1 x BLACK HLDS SLIM DVD ROM SATA DRIVE,HF,RoHS
• 2 x 80x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing
• 3 x 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing
• 2 x Black 5.25"; drive tray w/o rail (square pattern)
• 8 x Black gen 5.5 hot-swap 3.5" HDD tray
• 1 x SC825 24PIN REDUNDANT POWER DISTRIBUTOR
• 2 x 920W 1U Redundant PWS W/ Quiet Mode
• 1 x Rail set, quick/quick, default for 2,3U 17.2";W
