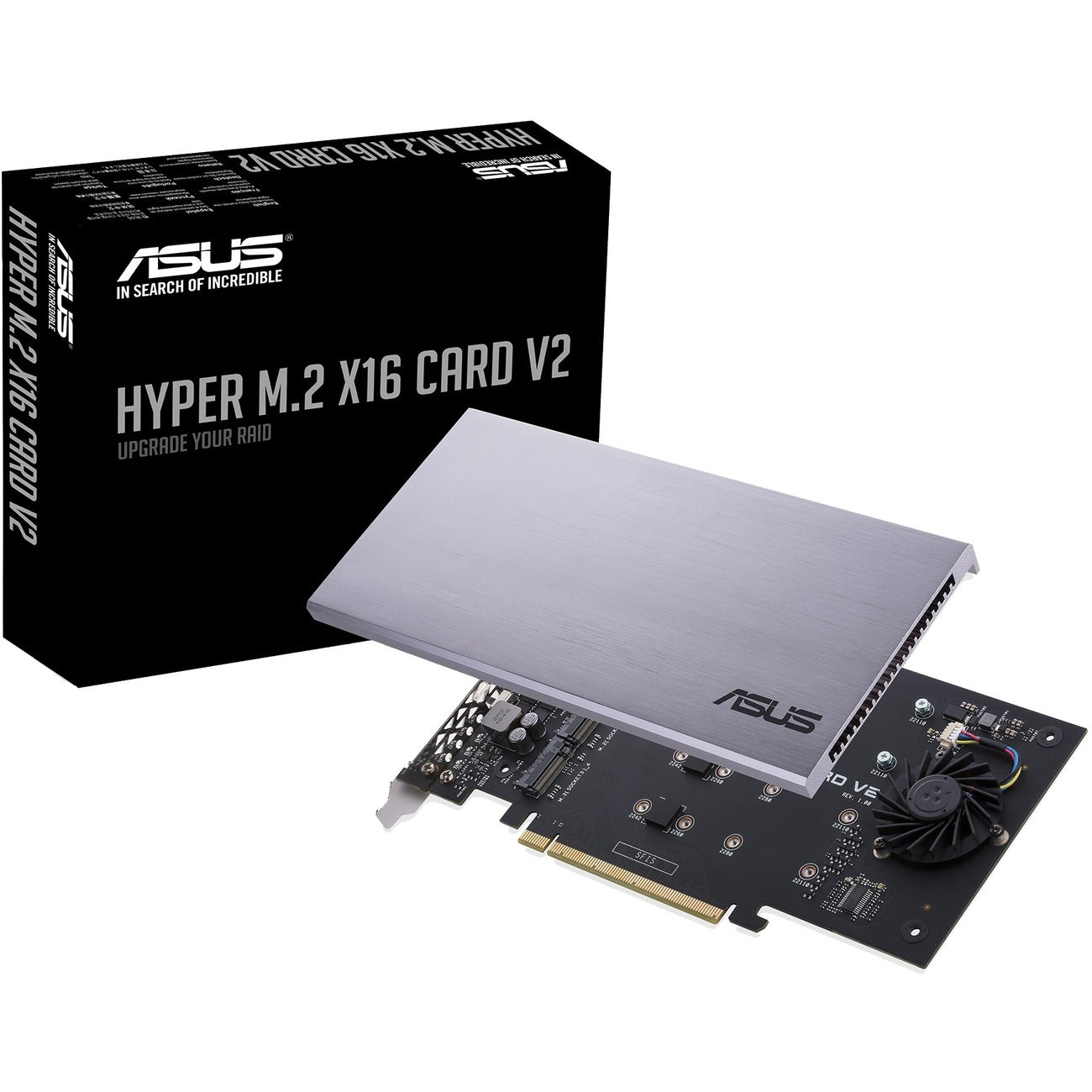

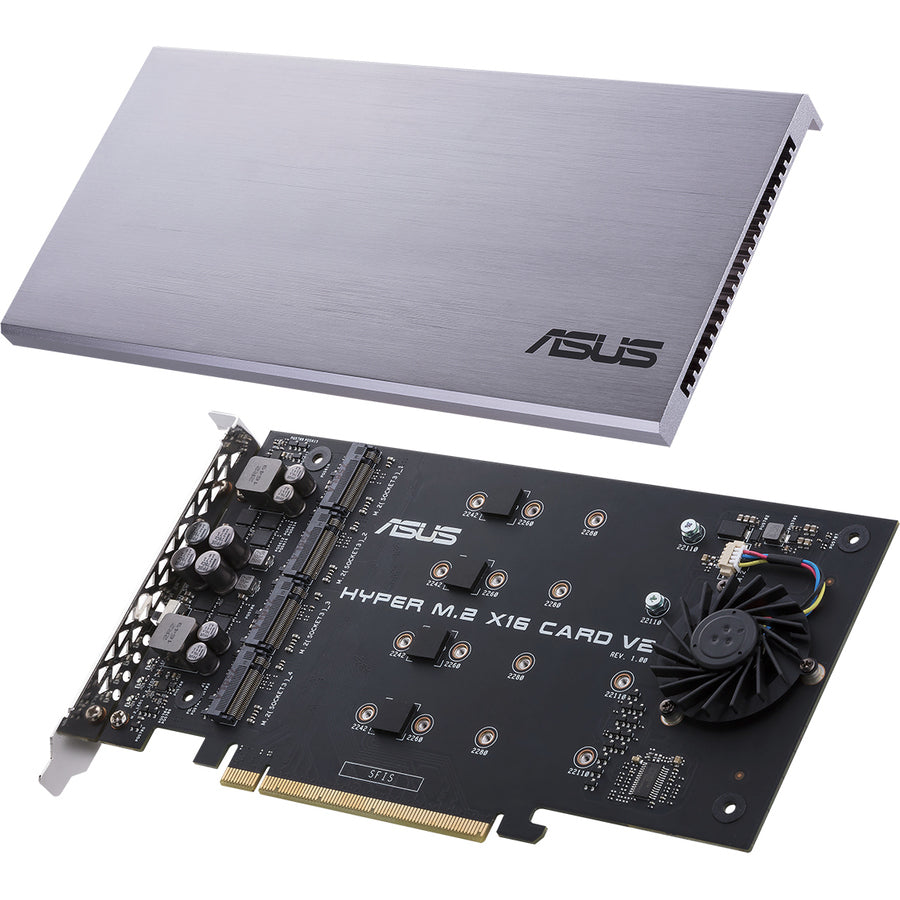

ASUS HYPER M.2 X16 CARD V2 PCIe 3.0 X4 Expansion Card V2 Supports 4 NVMe M.2

General Information

• Manufacturer: ASUS Computer International
• Brand Name: Asus
• Manufacturer Part Number: HYPER M.2 X16 CARD V2
• Product Model: HYPER M.2 X16 Card v2
• Product Name: M.2 to PCI Express Adapter
• Product Type: M.2 to PCI Express Adapter

Marketing Information:

• HYPER M.2 X16 Card supports up to four PCIe® 3.0 x4 M.2 drives, it can be setup with Intel VROC (Virtual RAID on CPU), a new I/O storage technology within the Intel® RSTe 5.x driver family. This feature allows users to use CPU PCIe lanes to create BOOTable RAID arrays. A CPU PCIe 3.0 x 16 slot can support data transfer rates up to 128 Gbps - that's four times faster than DMI the 32 Gbps limit of the DMI bus, and 22x faster than SATA 3.0.
  • Supports up to four PCIE® 3.0 M.2 drives, with transfer bandwidth up to 128Gbps
  • Supports Intel VROC tchnology, allowing you to use CPU PCIe® lanes to create BOOTable RAID arrays
  • Integrated blower-style fan to prevent throttling

Physical Characteristics

• Height: 3.8"
• Width: 0.5"
• Length: 8"

Miscellaneous

Additional Information:

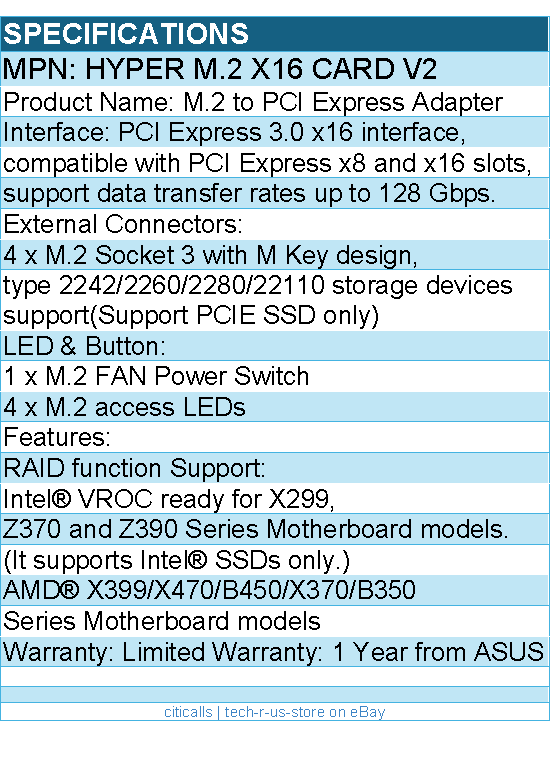

• Interface: PCI Express 3.0 x16 interface, compatible with PCI Express x8 and x16 slots, support data transfer rates up to 128 Gbps.

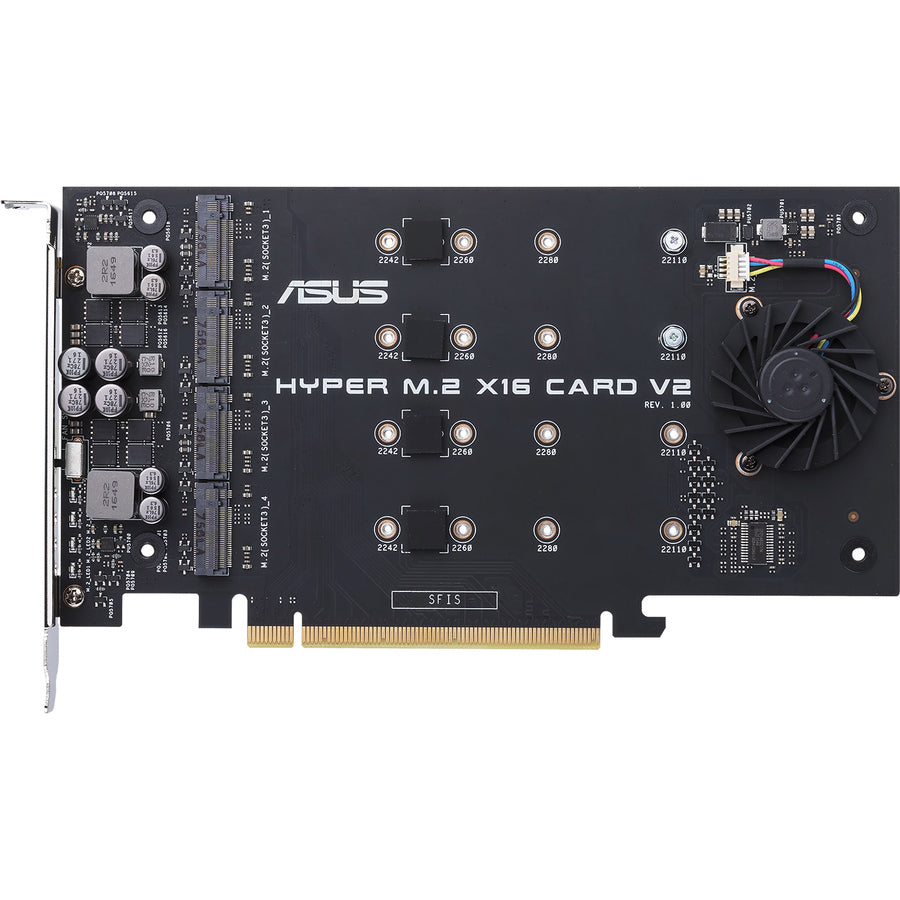

• External Connectors: 4 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support(Support PCIE SSD only)
• LED & Button:
• 1 x M.2 FAN Power Switch
• 4 x M.2 access LEDs
• Features:
• RAID function Support:
• Intel® VROC ready for X299, Z370 and Z390 Series Motherboard models. (It supports Intel® SSDs only.)
• AMD® X399/X470/B450/X370/B350 Series Motherboard models

Country of Origin: China

Warranty

• Limited Warranty: 1 Year from ASUS
