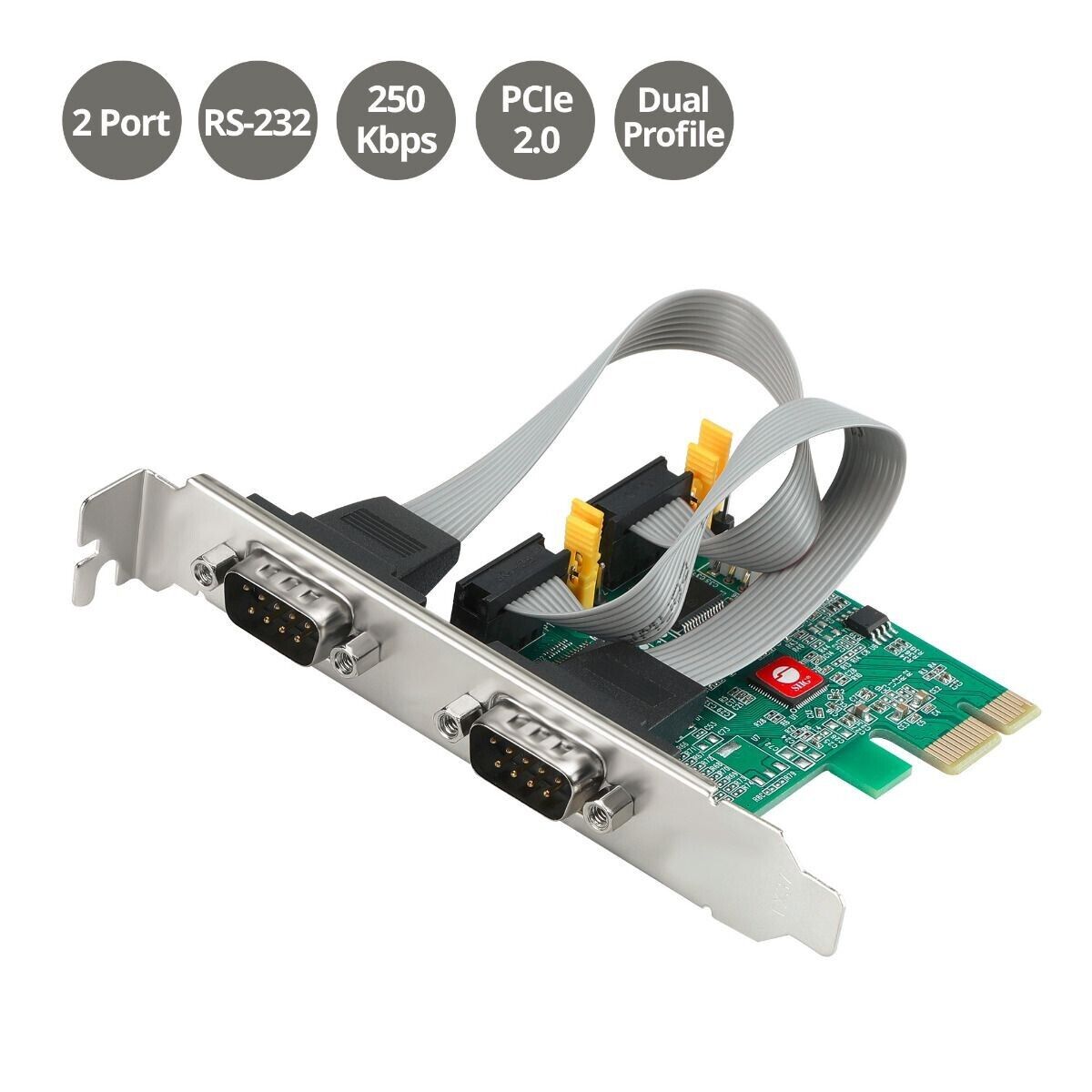

SIIG JJ-E20711-S1 2 Port DP Cyber RS-232 2S PCIe Card - 250Kbps

General Information

Manufacturer:   SIIG, Inc
Brand Name:   SIIG
Manufacturer Part Number:   JJ-E20711-S1
Product Name:   DP Cyber 2S PCIe Card

Marketing Information:
Add two 16650 RS232 ports to your PCI Express system

Features

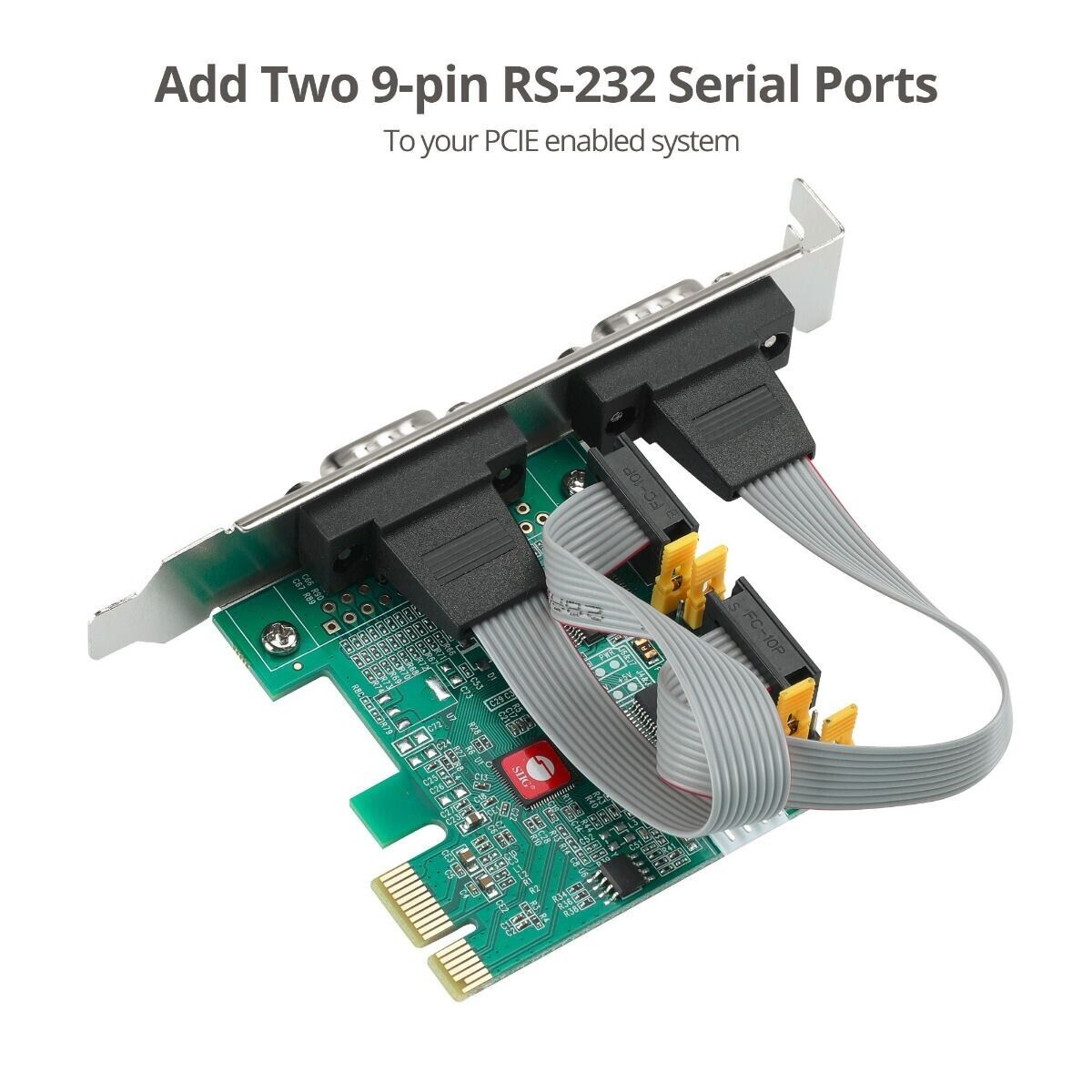

Adds two 9-pin RS-232 serial ports to PCIe enabled desktop computers
Two 16C650 UART serial ports support data transfer rate up to 250Kbps
Compliant with PCI Express 2.0 Gen 1
Single-lane (x1) PCI Express End-point Controller with PHY integrated
Full serial modem control with hardware and software flow control
Supports 5, 6, 7, 8 and 9-bit serial formats
Supports Even, Odd, None, Space and Mark parity
On chip 256-byte FIFO buffers in transmit and receive path for each serial port
Works as either standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays and many more). Configurable via jumpers
Supports PCI Bus Power Management Interface Specification Revision 1.2

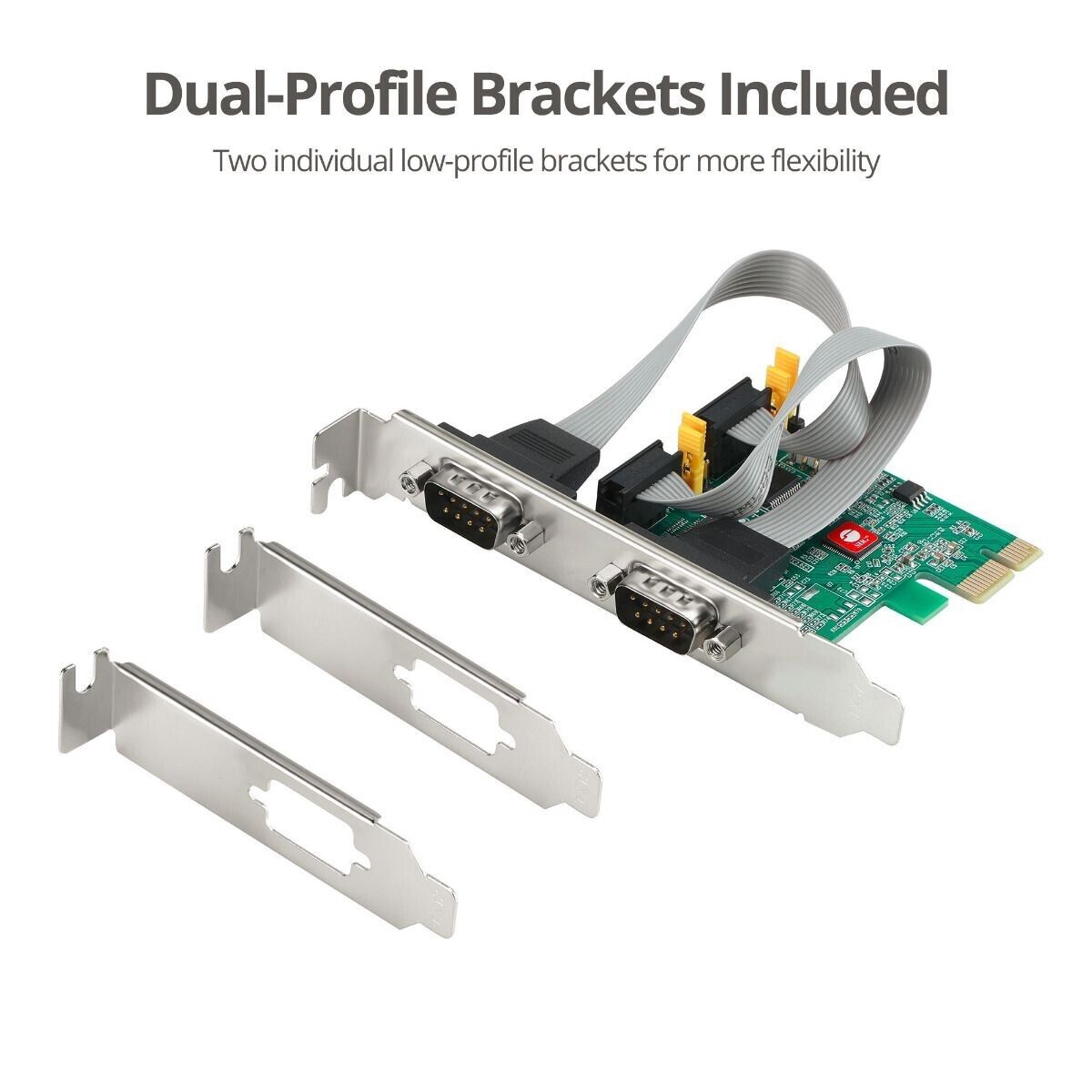

Dual profile design installs into both full-size and low-profile system chassis with the included mounting brackets
Installs into any PCI Express slot of any lane width
Perfect solution to connect with POS system, industrial testing and control device, security system, logistic management equipment, printers, scanners, etc

Product Type:   Serial Adapter

Technical Information
Host Interface:   PCI Express 2.0 x1
Platform Supported:   PC

Interfaces/Ports
Number of Serial Ports (External):   2

Physical Characteristics
Form Factor:   Plug-in Card
Card Height:   Full-height/Low-profile
Height:   0.7"
Width:   2.9"
Depth:   4.7"
Weight (Approximate):   1.92 oz

Miscellaneous
Package Contents:
DP Cyber 2S PCIe Card
Full Height Bracket
2 x Low Profile Bracket
1 x Y-Split Power Cable
4 x Voltage Jumper
Software CD
User Manual

Environmentally Friendly:   Yes
Environmental Certification:   RoHS

Country of Origin:   China

Warranty
Limited Warranty:   2 Year - Direct from the Manufacturer
