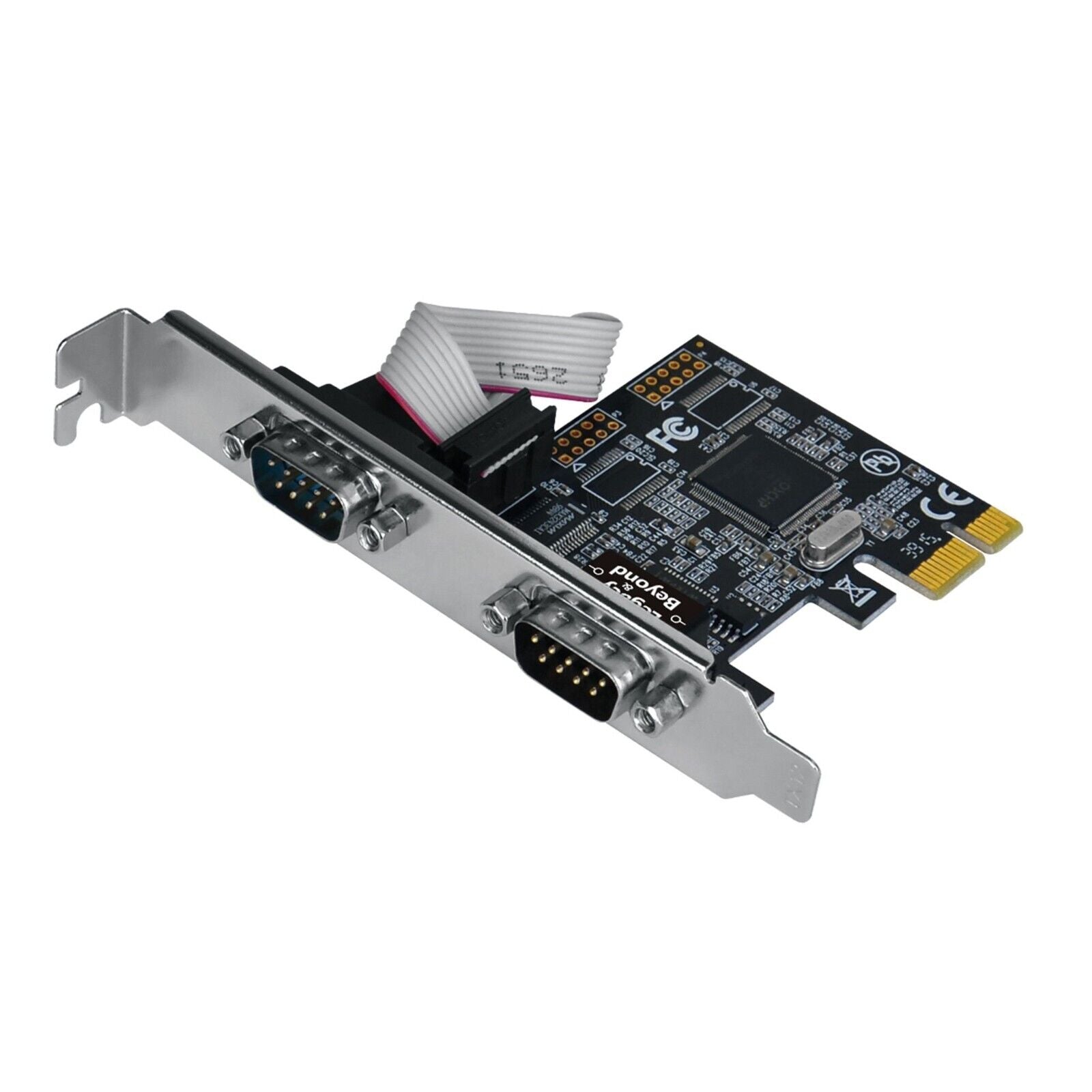

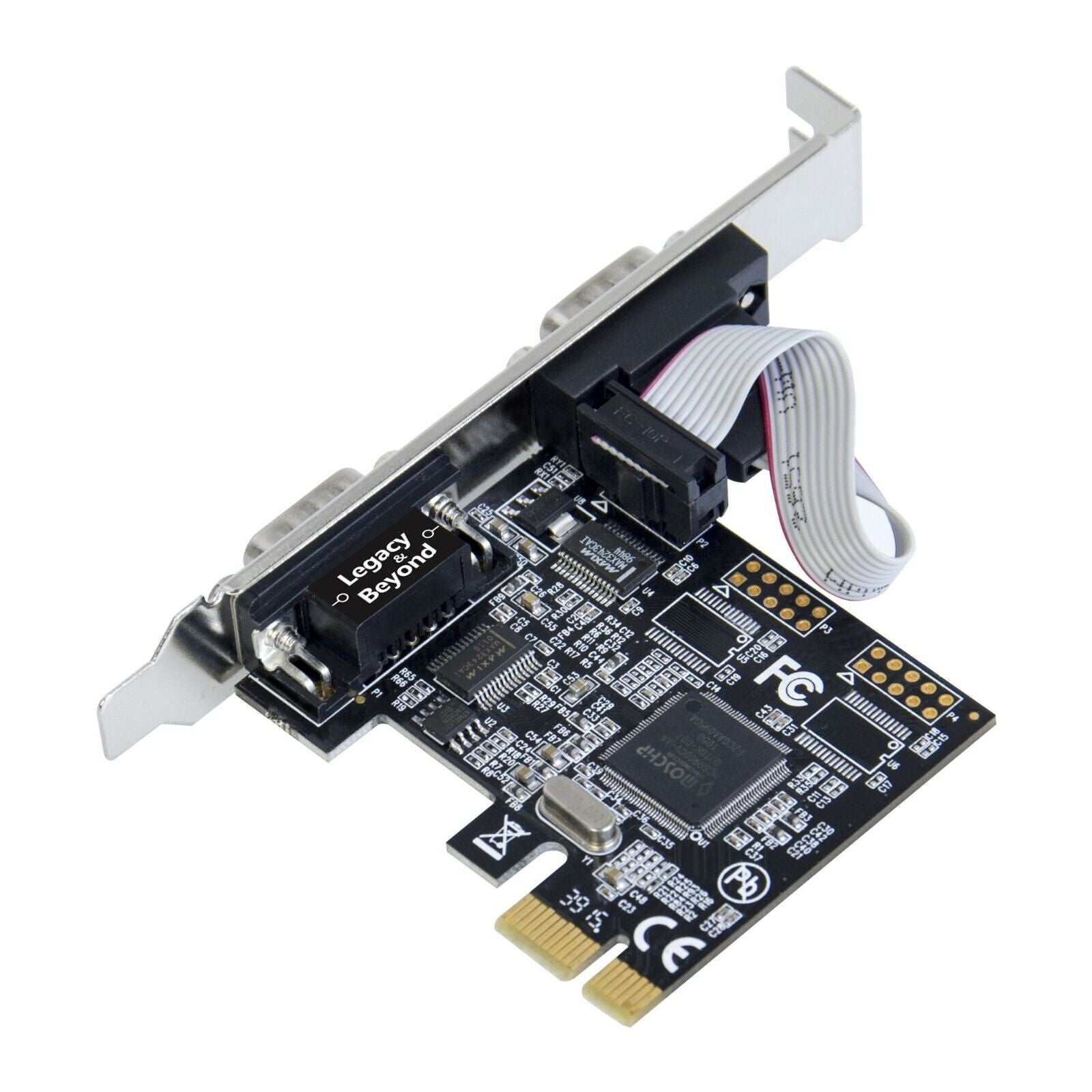

SIIG LB-S00014-S1 Dual-Serial Port RS-232 Comm PCIe x1 Card UART 16C550

Features

• Quickly adds two serial ports through an available PCI Express slot
• Supports serial port data transfer rates up to 115.2 Kbps, compatible with 16C550 UART
• 256-byte depth FIFO buffer supports fast data transfer especially in a multitasking environment
• Perfect solution to connect with POS system, industrial testing and control device, security system, logistic management equipment, etc.

Compatibility Notes:

• The chipset uses 30MHz crystal, it is not compatible with 25MHz crystal

Specifications

• Chipset: ASIX/MosChip MCS9900CV-AA
• Bus connector: PCI Express x1
• Version: PCI Express 1.1
• Baud rate: Up to 115.2 Kbps
• FIFO: 256 Bytes
• UART: 16C550
• Connectors: 2 x 9-pin RS-232, Male
• Product:
  • Dimensions: 4.72" (W) x 0.79" (H) x 3.07"(D)
  • Weight: 0.10 lbs
  • Color: Black
• Environmental conditions:
  • Operating temperature: 32 to 140 degrees F
  • Storage temperature: 14 to 158 degrees F
  • Relative humidity: 5% to 90% RH (non-condensing)
• Certifications/Standards: FCC, CE, RoHS
• Warranty: 1 year from SIIG
• Country of origin: China

System Requirements

• Desktop PC with one available PCI Express (PCIe) slot
• Windows® 11 (64-bit) / 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit)
• Windows® Server 2016 (32-/64-bit) / 2012 R2 / 2012 (32-/64-bit) / 2008 R2 / 2008 & 2003 (32-/64-bit)
• Linux kernel 2.6 and later (Works with Linux but not supported)

Package contents

• Dual-Serial Port / RS-232 PCIe Card
• Driver CD
• Installation guide
