StarTech 2S232422485-PC-CARD 2-Port Serial DB9 RS232 422 485 Adapter PCIe Card

Name: StarTech 2S232422485-PC-CARD 2-Port Serial DB9 RS232 422 485 Adapter PCIe Card
Brand: Startech
SKU: INGaSTA JL9942 - 2S232422485-PC-CARD
Price: 101.11 USD
Availability: OutOfStock

$101.11 USD

Shipping calculated at checkout.

Out of stock

Description

2-Port Serial PCIe Card, Dual-Port PCI Express to RS232/RS422/RS485 (DB9) Serial Card, Low-Profile Brackets Incl., 16C1050 UART, Windows/Linux, TAA Compliant - Level-4 ESD Protection

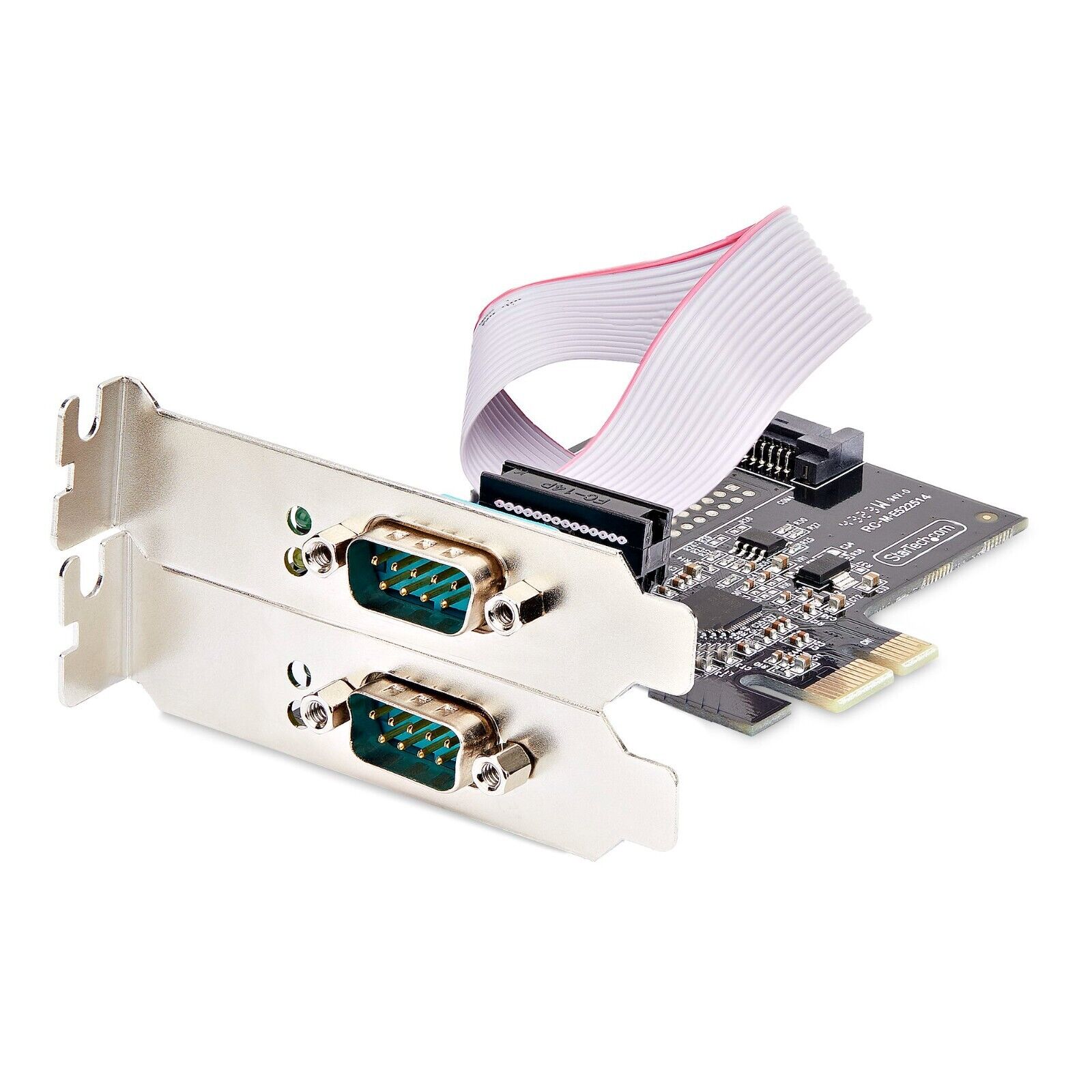

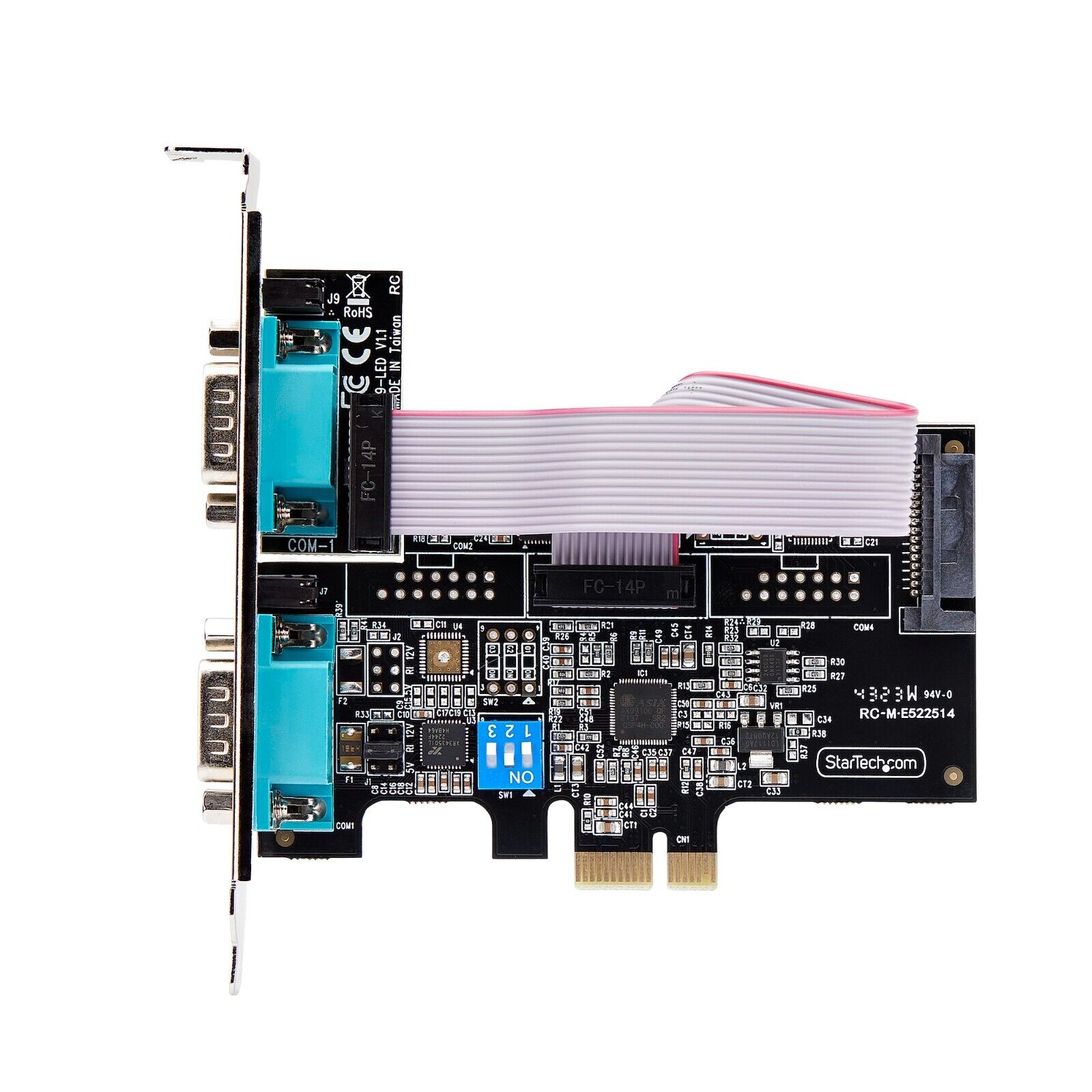

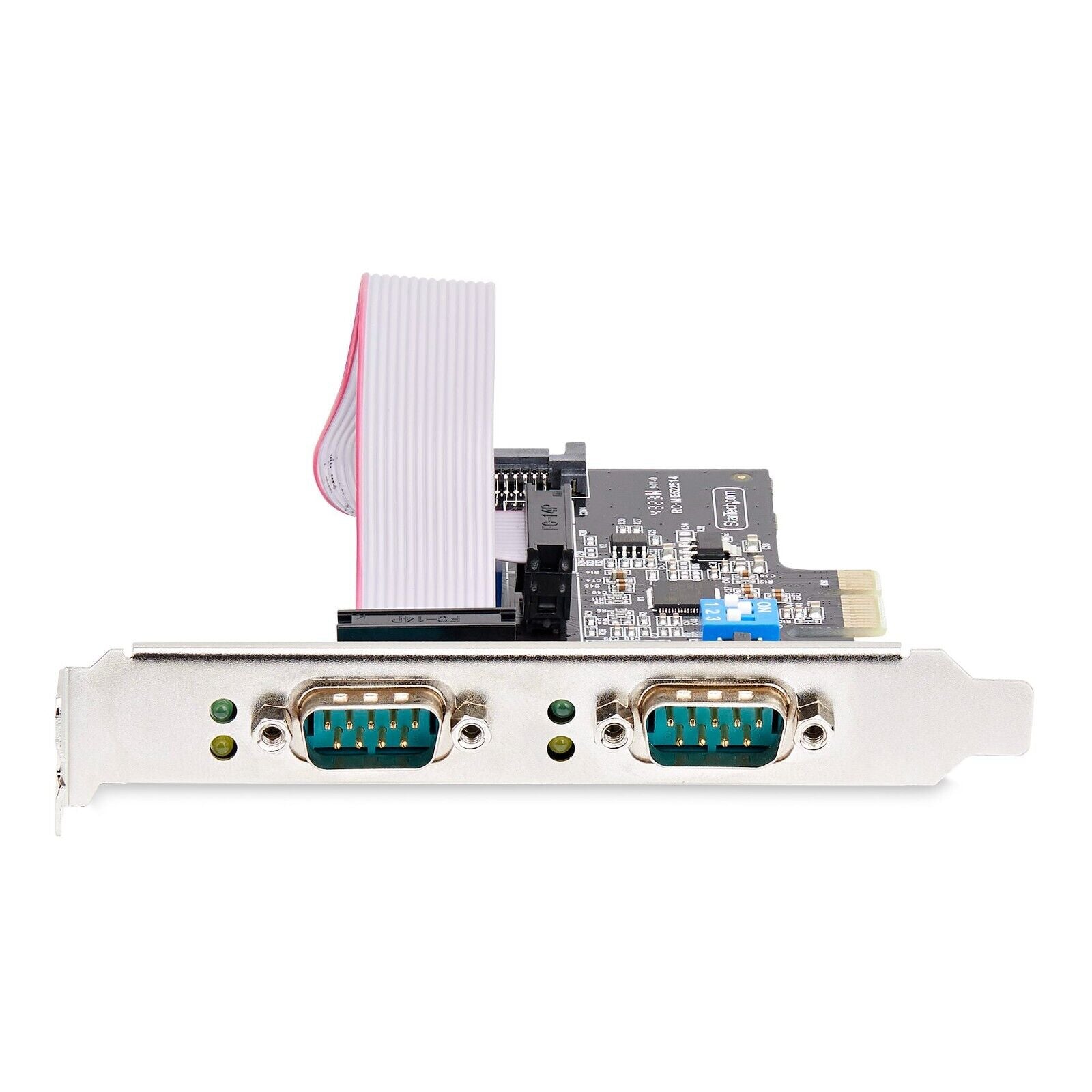

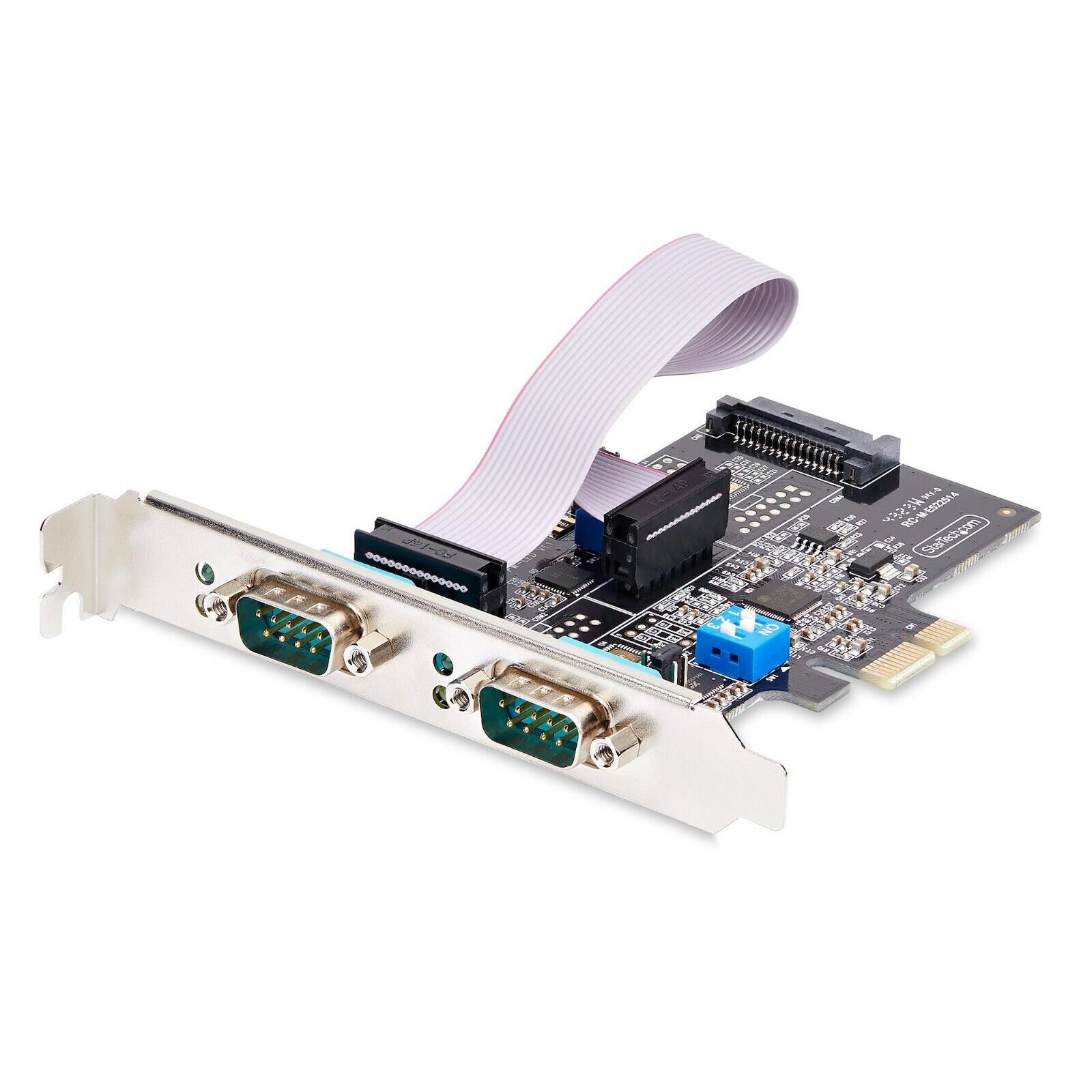

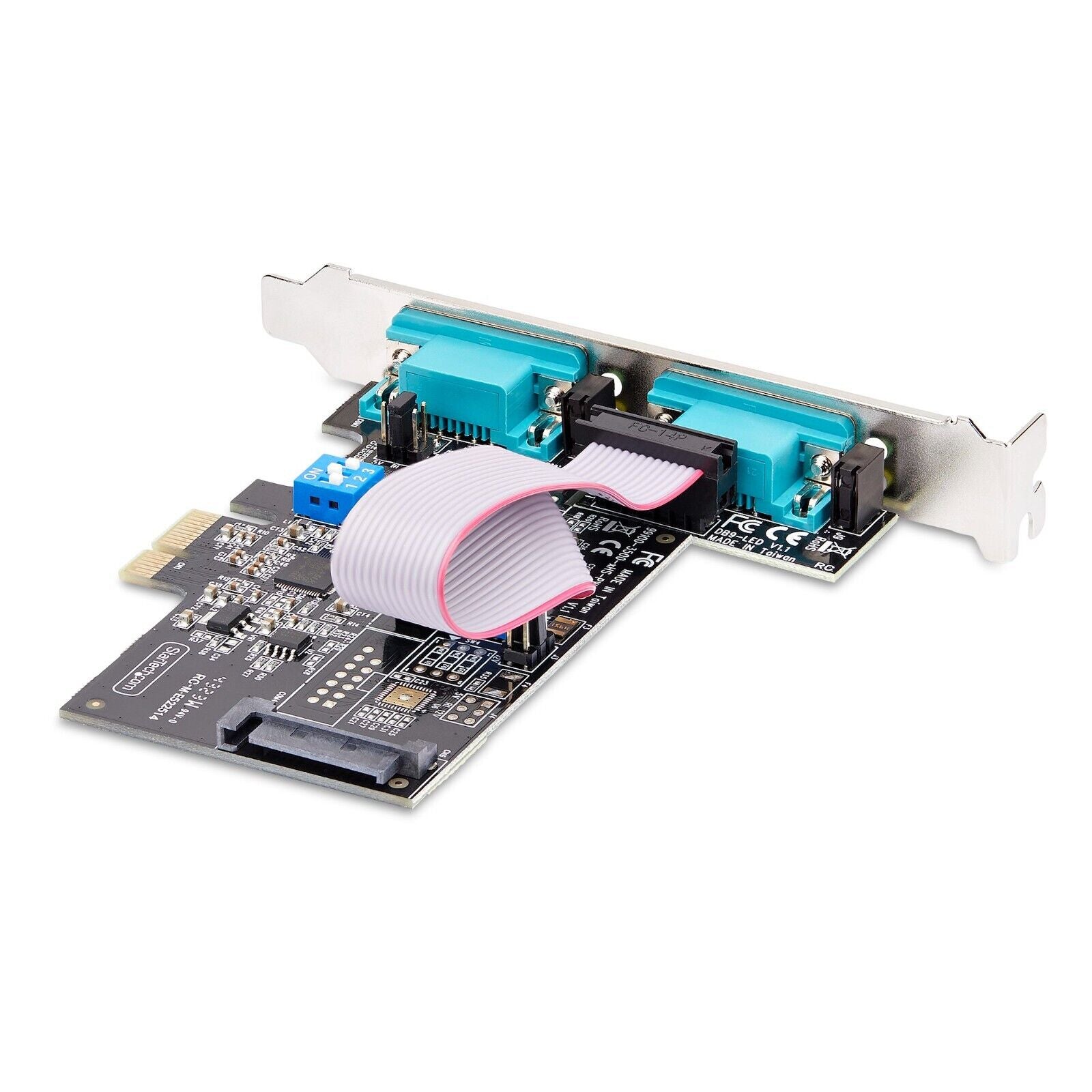

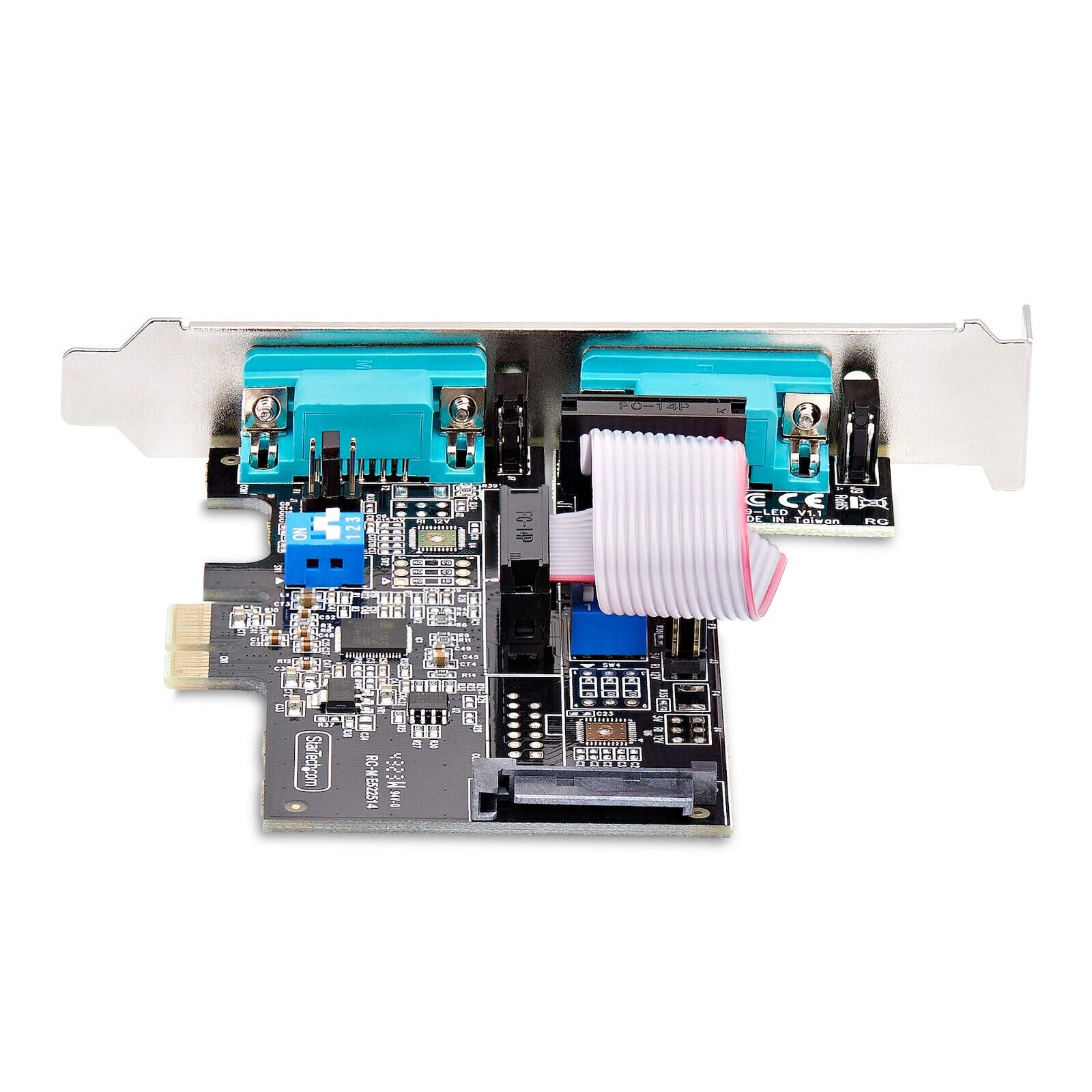

Add two RS-232, RS-422, or RS-485-capable DB9 Serial Ports to a desktop computer via PCIe x1 Expansion Card

Product ID: 2S232422485-PC-CARD

Warranty Information

Warranty

2 Years

Connector(s)

Connector Type(s)

1 - PCI Express x1

External Ports

2 - 9 pin D-Sub (DB-9) Male

Environmental

Operating Temperature

0°C to 70°C (32°F to 158°F)

Storage Temperature

-20°C to 80°C (-4°F to 176°F)

Humidity

20% ~ 80% RH

Hardware

Ports

Interface

Serial

Bus Type

PCI Express

Card Type

Standard Profile (LP bracket incl.)

Port Style

Integrated on Card

Industry Standards

PCI Express Version 2.0 x1

Chipset ID

ASIX - AX99100

Indicators

LED Indicators

2 - Data Receive LED: Flash Green to show activity

2 - Data Transmit LED: Flash Yellow to show activity

Packaging Information

Package Quantity

Package Height

1.2 in [3.0 cm]

Package Length

6.7 in [17.0 cm]

Shipping (Package) Weight

4.9 oz [140.0 g]

Package Width

5.6 in [14.2 cm]

Performance

Serial Protocol

RS-232/422/485

ESD Protection

+/-8kV (Contact)

+/-15kV (Air)

+/-15kV (HBM)

Max Baud Rate

921.6 Kbps

Data Bits

5, 6, 7, 8, 9

FIFO

256 Bytes

Flow Control

Hardware and Software

Parity

Even, Odd, None, Space, and Mark

Stop Bits

1, 1.5, 2

General Specifications

UART Compatibility: 16C450, 16C550, 16C650, 16C750, and 16C950

Physical Characteristics

Color

Black

Product Height

0.6 in [1.6 cm]

Product Length

4.1 in [10.5 cm]

Weight of Product

2.0 oz [57.0 g]

Product Width

4.0 in [10.2 cm]

Software

OS Compatibility

Windows 7, 8, 8.1, 10, 11
Windows Server 2016, 2019, 2022
Linux 2.6.13 and newer (LTS Versions Only)

Special Notes / Requirements

System and Cable Requirements

Computer with an available PCI Express x1 or greater slot

What's in the Box

Included in Package

1 - 2-Port Serial Card

2 - Low-Profile Bracket

1 - Ribbon Cable

1 - Quick-Start Guide
