StarTech PCI2S4851050 2 Port PCI RS422 RS485 Serial PCI PCI-X Adapter LowPr Card
Regular price
$114.83 USD
Sale price
$114.83 USD
Description
Couldn't load pickup availability
StarTech PCI2S4851050 2 Port PCI RS422 RS485 Serial PCI PCI-X Adapter LowPr Card
Current product
Current
Vendor:
Startech
StarTech PCI2S4851050 2 Port PCI RS422 RS485 Serial PCI PCI-X Adapter LowPr Card
Regular price
$114.83 USD
Sale price
$114.83 USD
Options
Descriptions

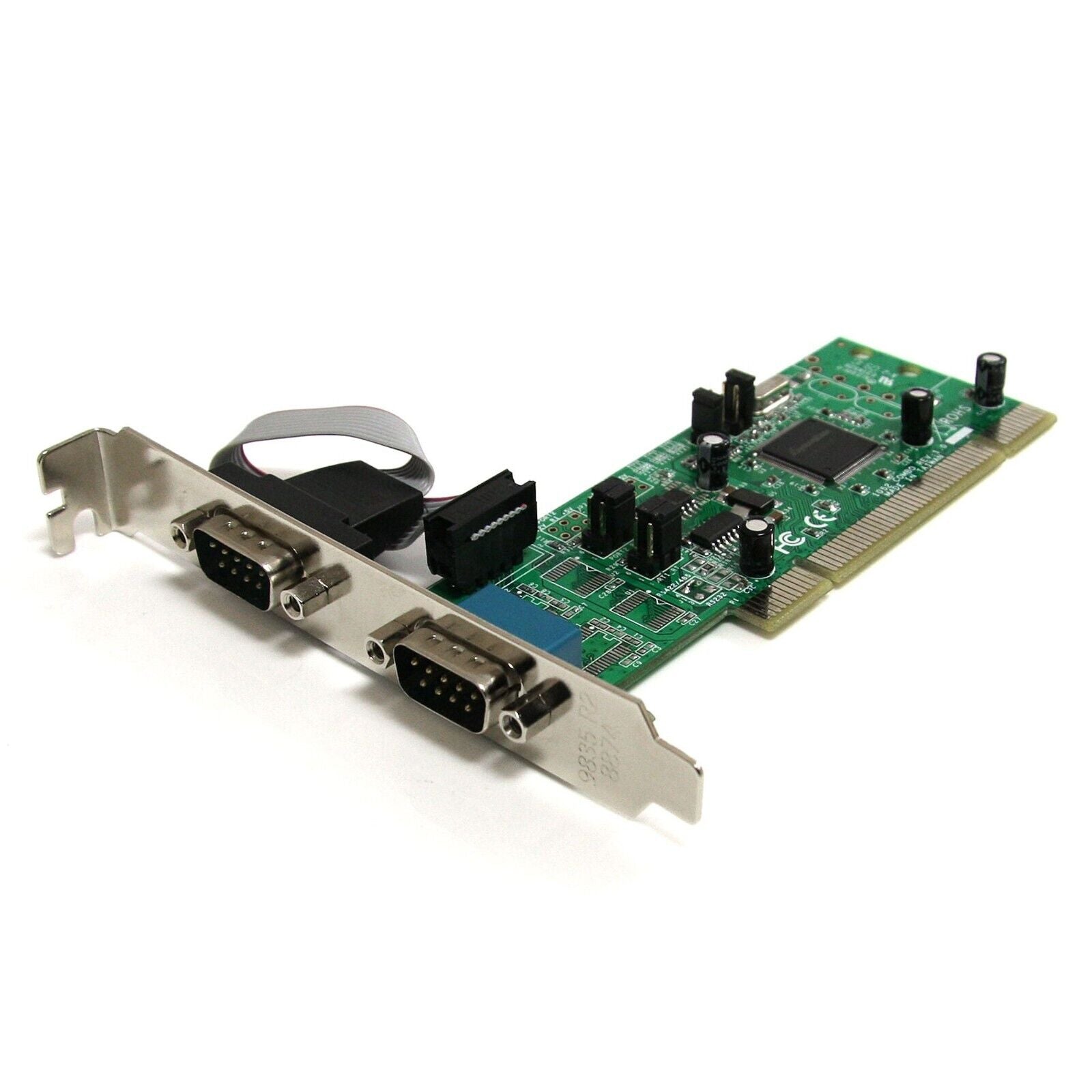

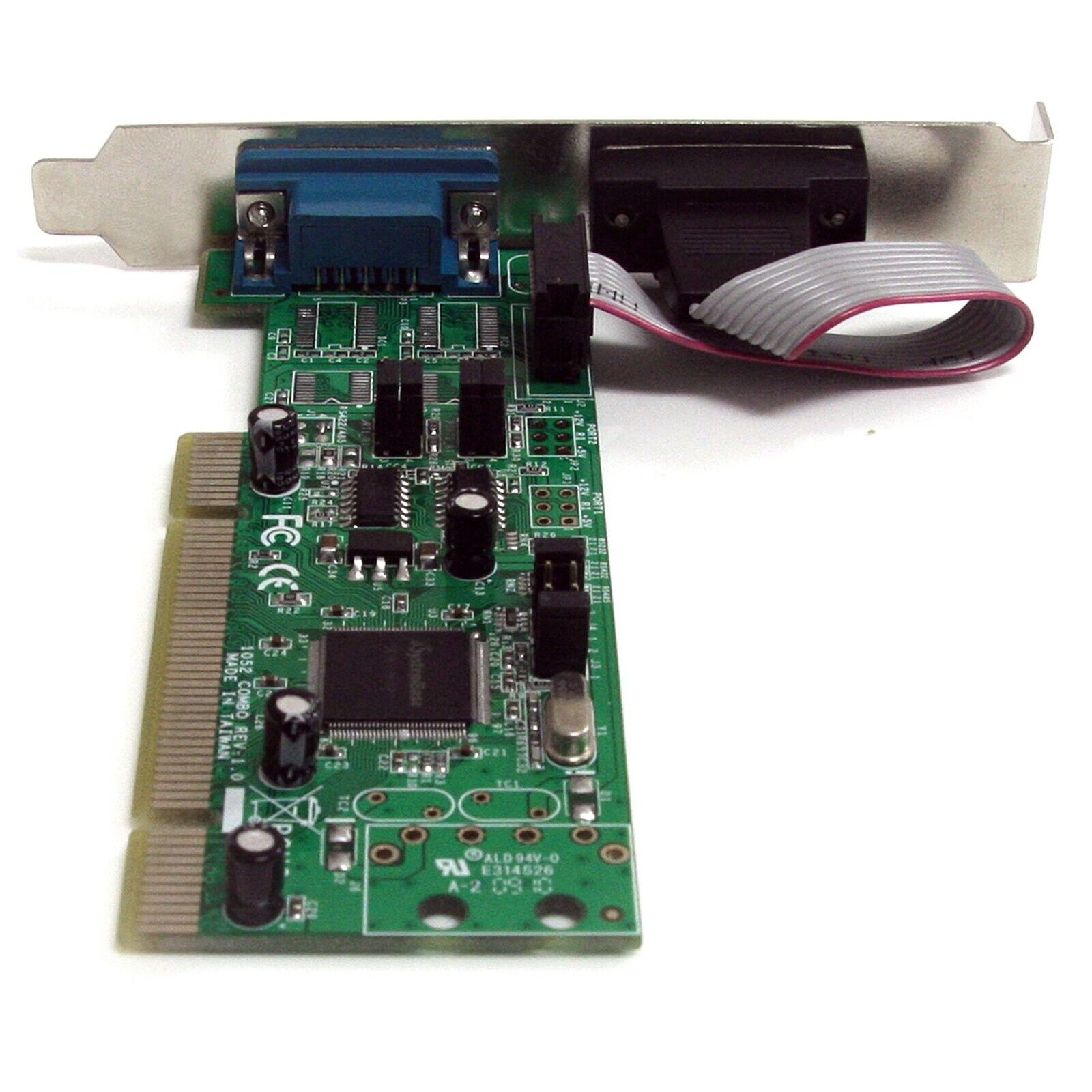

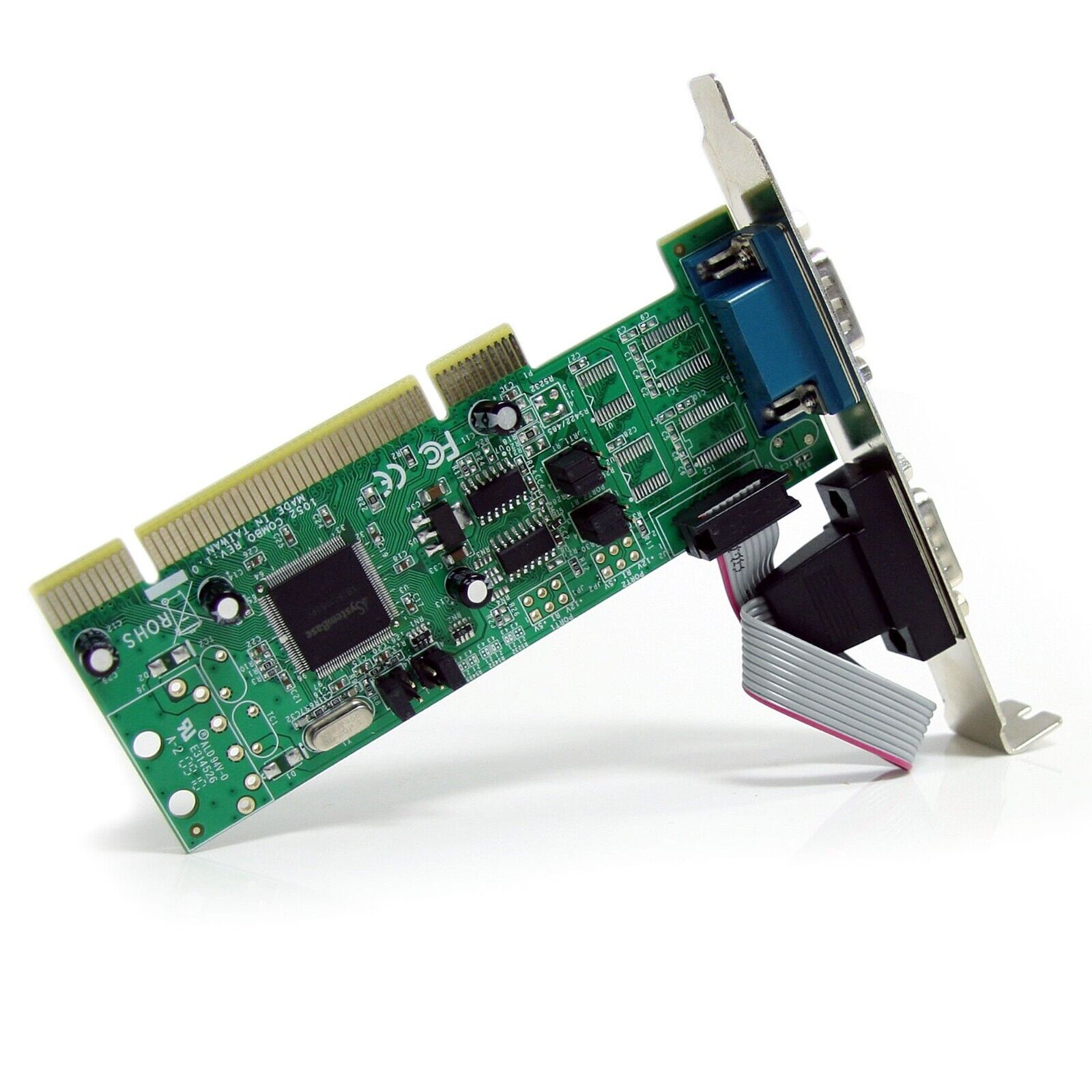

2 Port PCI RS422/485 Serial Adapter Card with 161050 UART - TAA
Add two RS422/485 serial ports through a standard or low profile PCI expansion slot
Product ID: PCI2S4851050
..
Warranty Information
Warranty
Lifetime
Connector(s)
Connector Type(s)
1 - PCI / PCI-X (Universal 3.3 & 5V, 32-bit)
External Ports

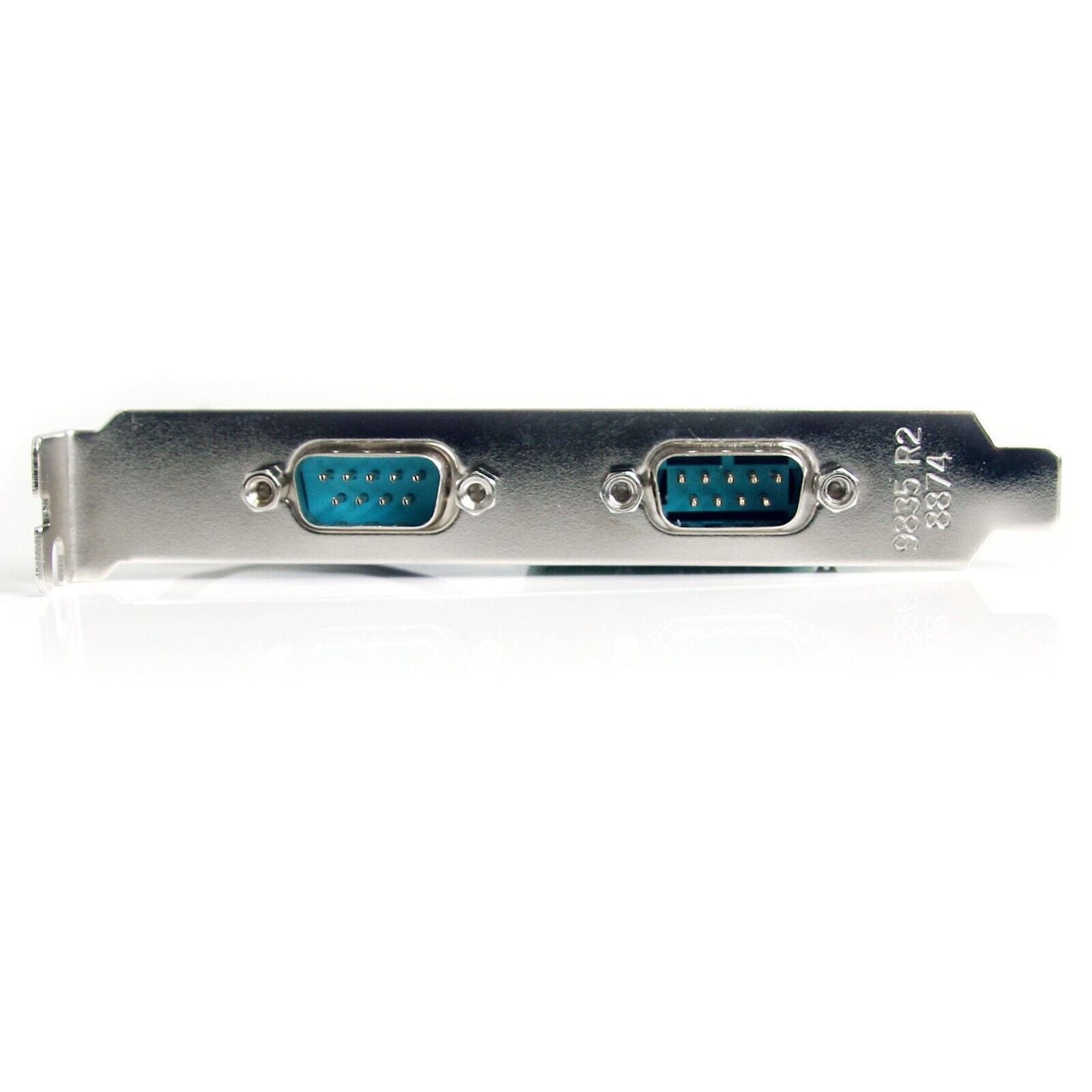

2 - DB-9 (9 pin, D-Sub)
Environmental
Operating Temperature
-10°C to 80°C (14°F to 176°F)
Storage Temperature
-20°C to 100°C (-4°F to 212°F)
Humidity
5~85% RH
Hardware
Ports
2
Interface
Serial
Bus Type
PCI
Card Type
Standard Profile (LP bracket incl.)
Port Style
Integrated on Card
Industry Standards
PCI Local Bus Specification 2.3
PCI Power Management 1.1
PCI Power Management 1.1
Chipset ID
SystemBase - SB16C1052PCI
Packaging Information
Package Quantity
1
Package Length
6,7 in [17,0 cm]
Package Width
5,5 in [14,0 cm]
Package Height
1,2 in [3,0 cm]
Shipping (Package) Weight
4,9 oz [138,0 g]
Performance
Serial Protocol
RS-422/485
Max Baud Rate
128 Kbps
Data Bits
5, 6, 7, 8
FIFO
256 Bytes
Flow Control
Xon, Xoff
Parity
Even, Odd, or No Parity
Stop Bits
1, 1.5, 2
Physical Characteristics
Color
Green
Material
Steel
Product Length
4,7 in [12,0 cm]
Product Width
4,7 in [12,0 cm]
Product Height
1,8 in [4,5 cm]
Weight of Product
1,9 oz [53,0 g]
Software
OS Compatibility
Windows® XP, Vista, 7, 8, 8.1, 10, 11
Windows Server® 2000, 2003, 2008 R2, 2012, 2016, 2019, 2022
Windows Server® 2000, 2003, 2008 R2, 2012, 2016, 2019, 2022

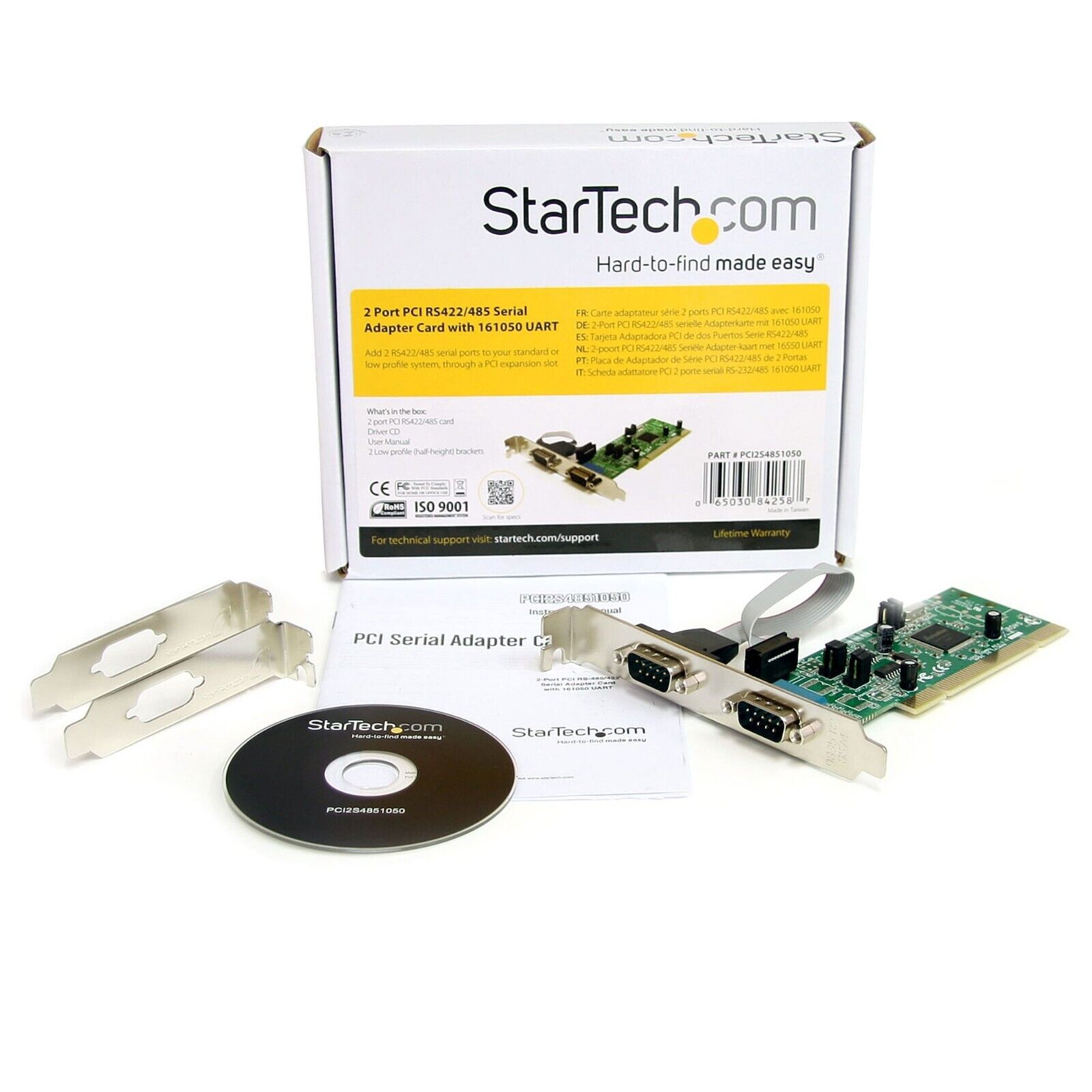

What's in the Box
Included in Package
1 - 2 port PCI RS422/485 card
2 - Low profile (half-height) brackets
1 - Driver CD
1 - User Manual
