StarTech PEX1394B3LP 3 Port 2b 1a 1394 Firewire PCIe Adapter Low Profile Card
Regular price
$79.15 USD
Sale price
$79.15 USD
Regular price
$70.99 USD
Description
StarTech PEX1394B3LP 3 Port 2b 1a 1394 Firewire PCIe Adapter Low Profile Card
Current product
Current
Vendor:
Startech
StarTech PEX1394B3LP 3 Port 2b 1a 1394 Firewire PCIe Adapter Low Profile Card
Regular price
$79.15 USD
Sale price
$79.15 USD
Regular price
$70.99 USD
Options
Descriptions

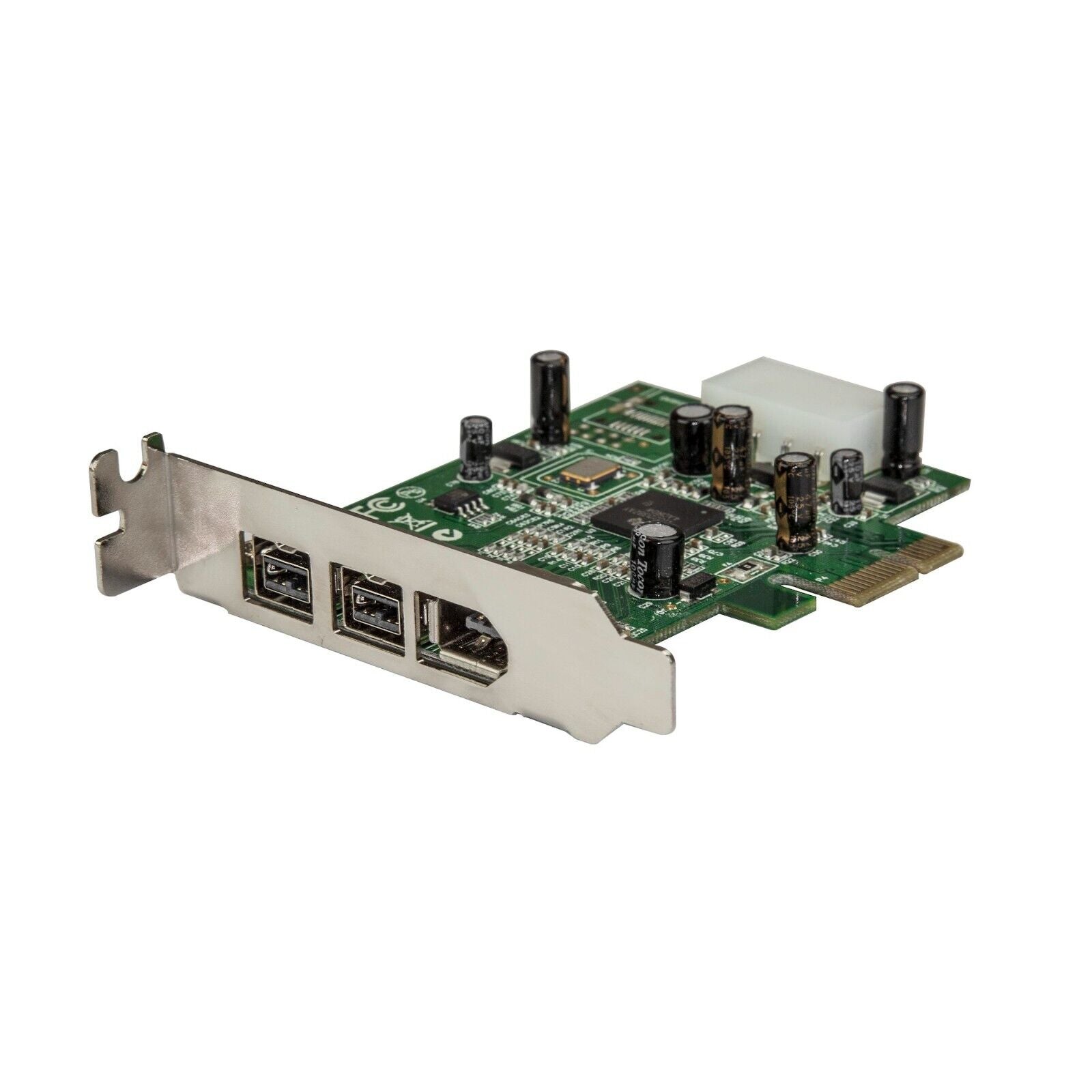

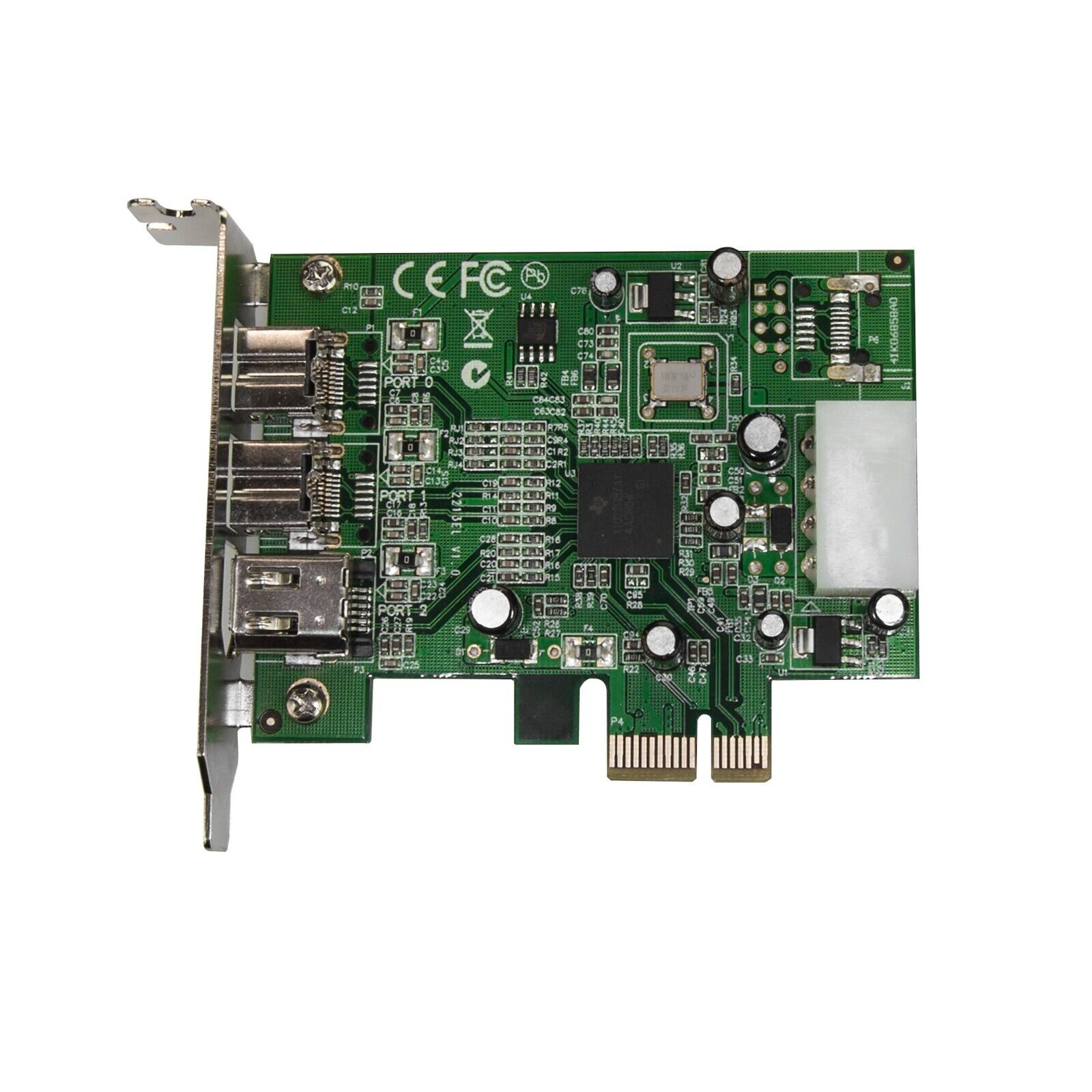

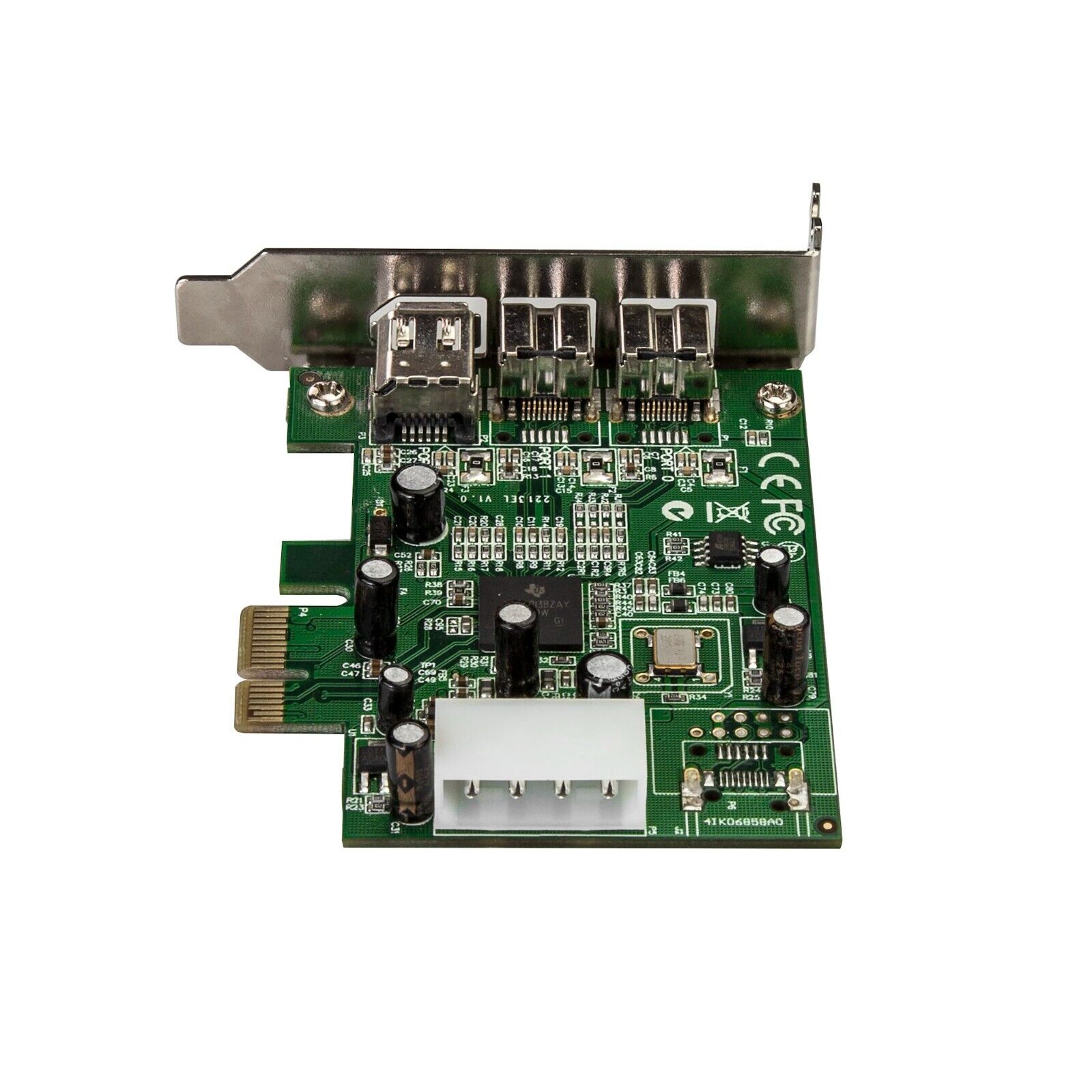

3 Port 2b 1a Low Profile 1394 PCI Express FireWire Card Adapter - TAA
Add 2 native FireWire 800 ports to your low profile/small form factor computer through a PCI Express expansion slot
Product ID: PEX1394B3LP
..
Warranty Information
Warranty
Lifetime
Connector(s)
Connector Type(s)
1 - PCI Express x1
Internal Ports
1 - LP4 (4 pin; Large Drive Power)
External Ports
1 - FireWire 400 (6 pin, IEEE 1394a)
2 - FireWire 800 (9 pin, IEEE 1394b)
Environmental
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-20°C to 90°C (-4°F to 194°F)
Humidity
0~90% RH
Hardware
Ports
3
Interface
FireWire 800 (1394b)
FireWire 400 (1394a)
Bus Type
PCI Express
Card Type
Low Profile (SP bracket incl.)
Industry Standards
IEEE-1394/1394A/1394B
OHCI
PCI Express 1.1
OHCI
PCI Express 1.1
Chipset ID
Texas Instruments - XIO2213B
Packaging Information
Package Height
1.5 in [3.8 cm]
Package Length
8.3 in [21.0 cm]
Shipping (Package) Weight
7.7 oz [218.0 g]
Package Width
5.7 in [14.6 cm]
Package Quantity
1
Performance
Maximum Data Transfer Rate
400/800 Mbps
Type and Rate
FireWire 800 IEEE-1394b - 800 Mbit/s
FireWire 400 IEEE-1394a - 400 Mbit/s
MTBF
149,905 hours
Physical Characteristics
Weight of Product
1.5 oz [43.0 g]
Color
Green
Material
Steel
Product Length
3.3 in [8.5 cm]
Product Width
2.3 in [5.8 cm]
Product Height
0.8 in [2.0 cm]
Software
OS Compatibility
Windows® 2000, XP, Vista, 7, 8, 8.1, 10, 11
Windows Server® 2003, 2008 R2, 2012, 2016, 2019, 2022
macOS 10.6 to 10.15, 11.0, 12.0, 13.0, 14.0
Linux 3.5.x and up - LTS Versions only
Windows Server® 2003, 2008 R2, 2012, 2016, 2019, 2022
macOS 10.6 to 10.15, 11.0, 12.0, 13.0, 14.0
Linux 3.5.x and up - LTS Versions only
Special Notes / Requirements
System and Cable Requirements
PCI Express enabled computer with an available PCI Express x1 slot or higher

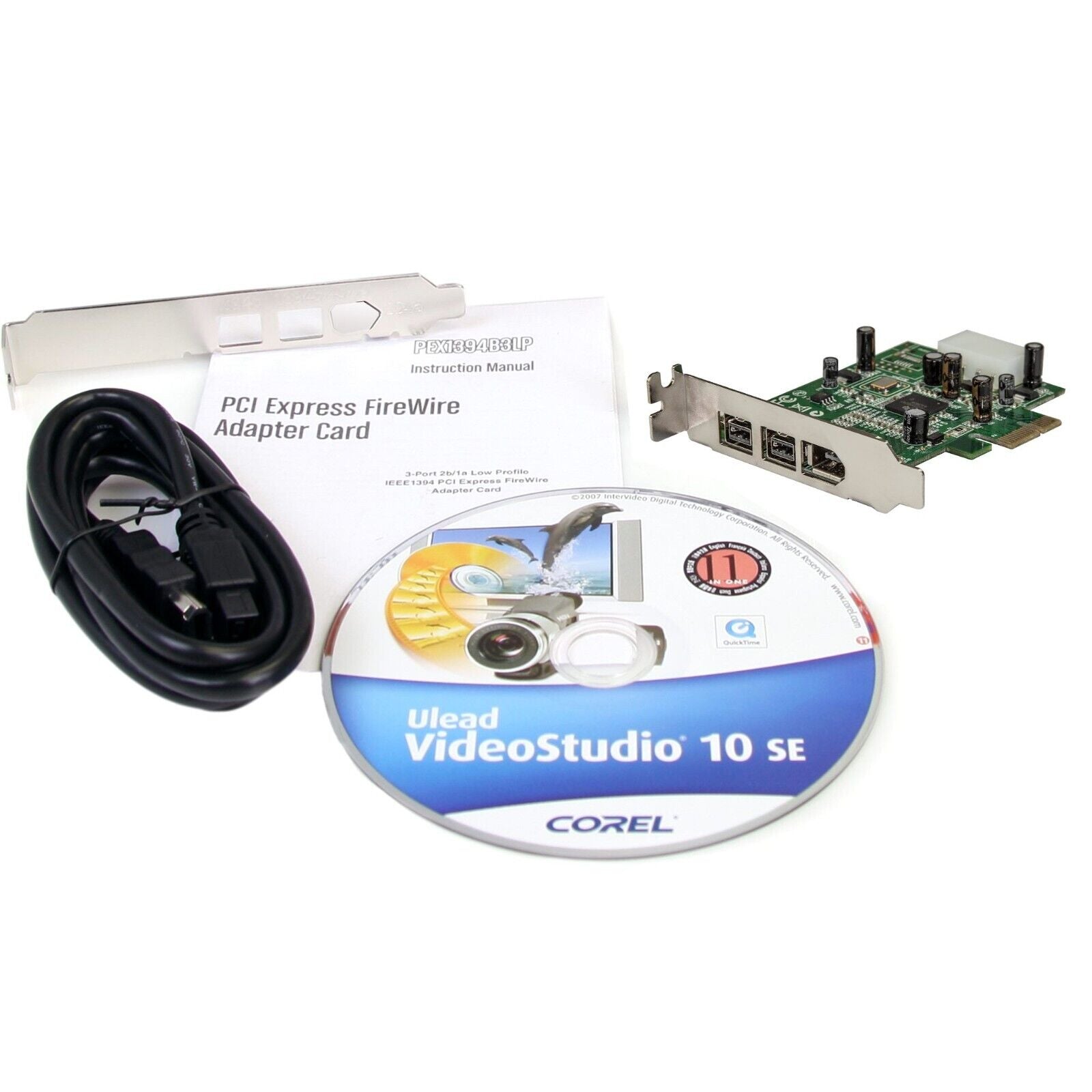

What's in the Box
Included in Package
1 - PCI Express FireWire Card
1 - FireWire Cable
1 - Full Profile Bracket
1 - Software CD
1 - Instruction Manual
