StarTech PEX4S953LP 4 Port RS232 DB9 Serial Adapter PCIe x1 LowPro Card Cable
Regular price
$124.90 USD
Sale price
$124.90 USD
Regular price
$115.99 USD
Description
Couldn't load pickup availability
StarTech PEX4S953LP 4 Port RS232 DB9 Serial Adapter PCIe x1 LowPro Card Cable
Current product
Current
Vendor:
Startech
StarTech PEX4S953LP 4 Port RS232 DB9 Serial Adapter PCIe x1 LowPro Card Cable
Regular price
$124.90 USD
Sale price
$124.90 USD
Regular price
$115.99 USD
Options
Descriptions
4-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows/Linux - TAA
PCI Express to Serial Adapter | 921.6Kbps | Windows® and Linux® Compatible
Product ID: PEX4S953LP
..
Warranty Information
Warranty
Lifetime
Connector(s)
Connector Type(s)
1 - PCI Express x1
Internal Ports
1 - LP4 (4 pin; Large Drive Power)
External Ports
4 - DB-9 (9 pin, D-Sub)
Environmental
Operating Temperature
-10°C to 80°C (14°F to 176°F)
Storage Temperature
-20°C to 100°C (-4°F to 212°F)
Humidity
5~85% RH
Hardware
Ports
4
Interface
Serial
Bus Type
PCI Express
Card Type
Low Profile (SP bracket incl.)
Port Style
Dongle (Included)
Chipset ID
Asix AX99100
Packaging Information
Package Height
2.1 in [5.4 cm]
Package Length
8.5 in [21.6 cm]
Shipping (Package) Weight
13.7 oz [388.0 g]
Package Width
6.0 in [15.2 cm]
Package Quantity
1
Performance
Serial Protocol
RS-232
Max Baud Rate
921.6 Kbps
Data Bits
5, 6, 7, 8, 9
FIFO
256 Bytes
Flow Control
None, Xon/Xoff, RTS/CTS
Parity
None, Odd, Even, Space, Mark
Stop Bits
1, 1.5, 2
MTBF
214,358 hours
Physical Characteristics
Product Height
0.7 in [1.8 cm]
Product Length
2.5 in [6.3 cm]
Weight of Product
9.3 oz [264.0 g]
Product Width
3.0 in [7.5 cm]
Color
Green
Material
Steel
Cable Length
11.8 in [30 cm]
Software
OS Compatibility
Windows® 7, 8, 8.1, 10, 11
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
Linux 2.4.x and up - LTS Versions only
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
Linux 2.4.x and up - LTS Versions only
Microsoft WHQL Certified
Yes
Special Notes / Requirements
Note
Selectable power output on pin 9 of the serial port

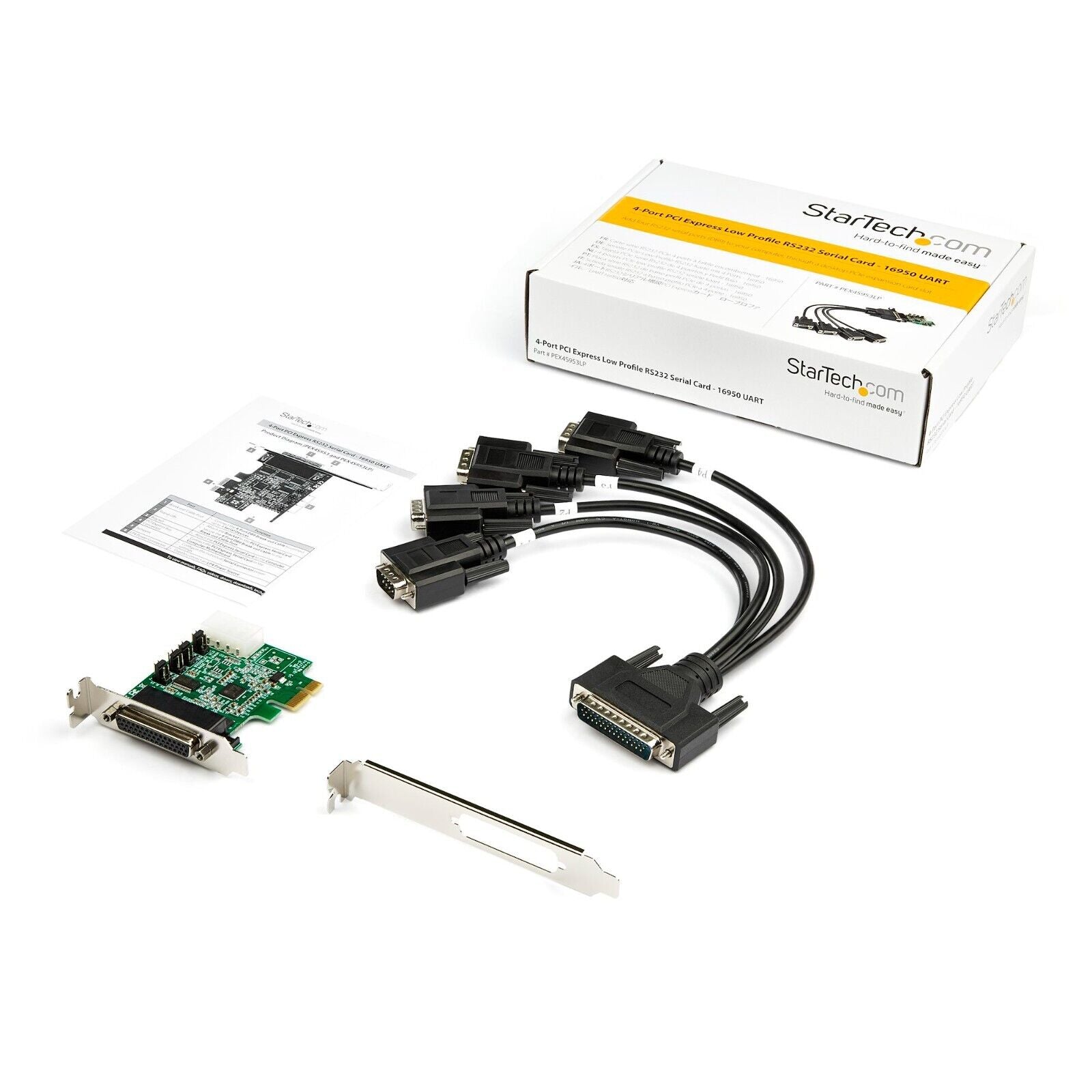

What's in the Box
Included in Package
1 - 4-Port Low Profile Serial Card

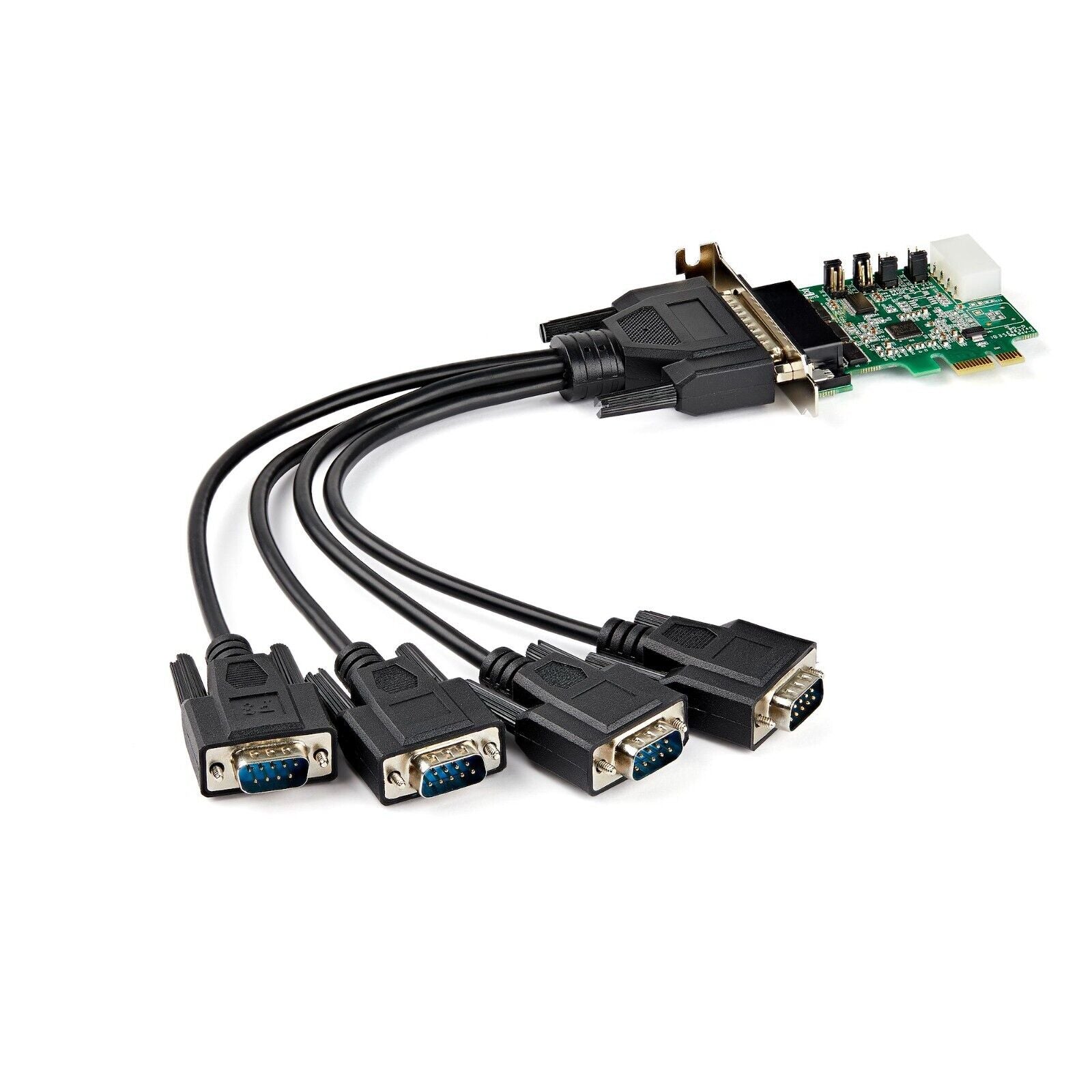

1 - 12 in [30 cm] 4-Port DB44 to DB9 Break-out Cable
1 - Low Profile Bracket (Installed)
1 - Full Profile Bracket
1 - Quick-Start Guide
