StarTech PEXUSB312C3 2 Port 10 Gbps USB-C PCIe x4 Expansion Card w PD SATA Power
Regular price
$66.35 USD
Sale price
$66.35 USD
Regular price
$65.99 USD
Description
Couldn't load pickup availability
StarTech PEXUSB312C3 2 Port 10 Gbps USB-C PCIe x4 Expansion Card w PD SATA Power
Current product
Current
Vendor:
Startech
StarTech PEXUSB312C3 2 Port 10 Gbps USB-C PCIe x4 Expansion Card w PD SATA Power
Regular price
$66.35 USD
Sale price
$66.35 USD
Regular price
$65.99 USD
Options
Descriptions
2-port 10Gbps USB C PCIe Card - USB 3.2 Gen 2 Type-C PCI Express Host Controller Add-On Card - Expansion Card - USB 3.2 Gen 2x1 PCIe Adapter 15W/port - Windows, macOS, Linux - TAA
PCI-Express USB-C Card | 10Gbps | PCIe Gen3 x4 | 2-Year Warranty
Product ID: PEXUSB312C3
..
Warranty Information
Warranty
2 Years
Connector(s)
Connector Type(s)
1 - PCI Express x4
Internal Ports
1 - SATA Power (15 pin)
External Ports
2 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)
Environmental
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-20°C to 85°C (-4°F to 185°F)
Humidity
20~80% RH
Hardware
Ports
2
Interface
USB 3.2 Gen 2
Bus Type
PCI Express
Card Type
Standard Profile (LP bracket incl.)
Port Style
Integrated on Card
Industry Standards
USB 3.2 Specification Rev. 2.0
USB Specification Rev. 2.0
PCI Express Base Specification Rev. 3.0
Intel xHCI Specification Rev. 1.1
UASP (USB Attached SCSI Protocol) Rev. 1.0
USB Specification Rev. 2.0
PCI Express Base Specification Rev. 3.0
Intel xHCI Specification Rev. 1.1
UASP (USB Attached SCSI Protocol) Rev. 1.0
Chipset ID
ASMedia - ASM3142
Packaging Information
Package Height
1,2 in [3 cm]
Package Length
6,7 in [17,0 cm]
Shipping (Package) Weight
4,2 oz [120 g]
Package Width
5,7 in [14,4 cm]
Package Quantity
1
Performance
Maximum Data Transfer Rate
10Gbps
Type and Rate
USB 3.2 Gen 2 - 10 Gbit/s
UASP Support
Yes
Physical Characteristics
Product Height
0,7 in [1,8 cm]
Product Length
4,8 in [12,2 cm]
Weight of Product
0,1 lb [0,0 kg]
Product Width
3,1 in [8,0 cm]
Color
Black
Material
Steel
Software
OS Compatibility
Windows® 7, 8, 8.1, 10, 11
Windows Server® 2008 R2, 2012 R2, 2016, 2019
Linux® 3.5 and up - LTS Versions only
macOS Catalina (10.15)
macOS Mojave (10.14)
macOS High Sierra (10.13)
macOS Big Sur (11.0)
macOS Monterey (12.0)
macOS Ventura (13.0)
macOS Sonoma (14.0)
Windows Server® 2008 R2, 2012 R2, 2016, 2019
Linux® 3.5 and up - LTS Versions only
macOS Catalina (10.15)
macOS Mojave (10.14)
macOS High Sierra (10.13)
macOS Big Sur (11.0)
macOS Monterey (12.0)
macOS Ventura (13.0)
macOS Sonoma (14.0)
Special Notes / Requirements
System and Cable Requirements
PCI Express enabled computer or server with a PCI Express x4 slot or higher (x8, x16)
Optional SATA power connector
Note
The card's USB-C ports are standard data throughput port. They do not support DP Alt Mode or USB Power Delivery.
The maximum throughput of this card is limited by the bus interface. PCI Express Gen 1.0 max throughput is 2.5Gbps. PCI Express Gen 2.0 max throughput is 5Gbps. PCI Express Gen 3.0 max throughput is 10Gbps.

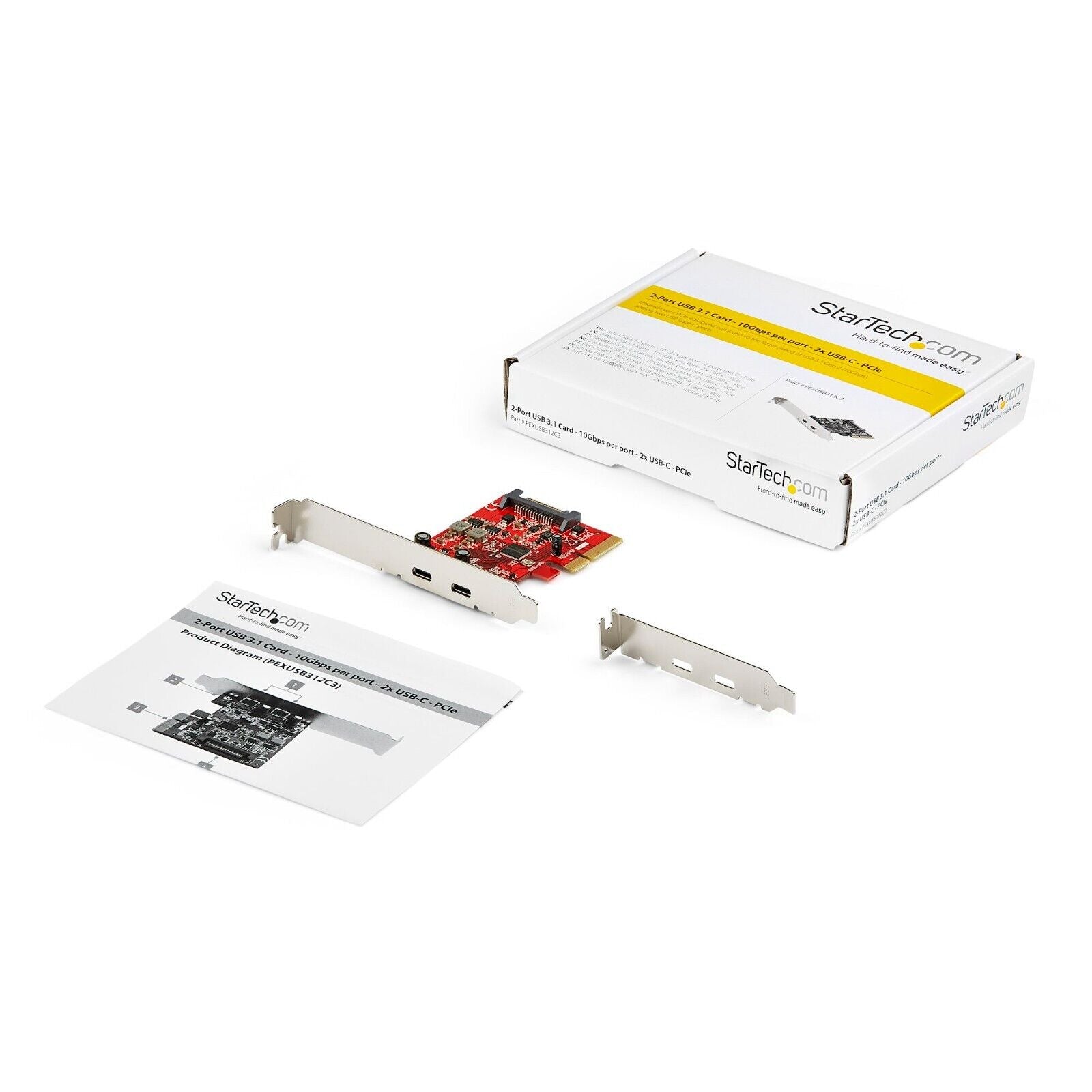

What's in the Box
Included in Package
1 - USB 3.1 Card
1 - Low Profile Bracket
1 - Quick Start Guide
