StarTech PS74ADF-SERIAL-CARD 4-Port Serial DB9 RS232 422 485 Adapter PCIe Card
Current product
Current
Vendor:
Startech
StarTech PS74ADF-SERIAL-CARD 4-Port Serial DB9 RS232 422 485 Adapter PCIe Card
Regular price
$209.79 USD
Sale price
$209.79 USD
Regular price
$209.79 USD
Options
Descriptions

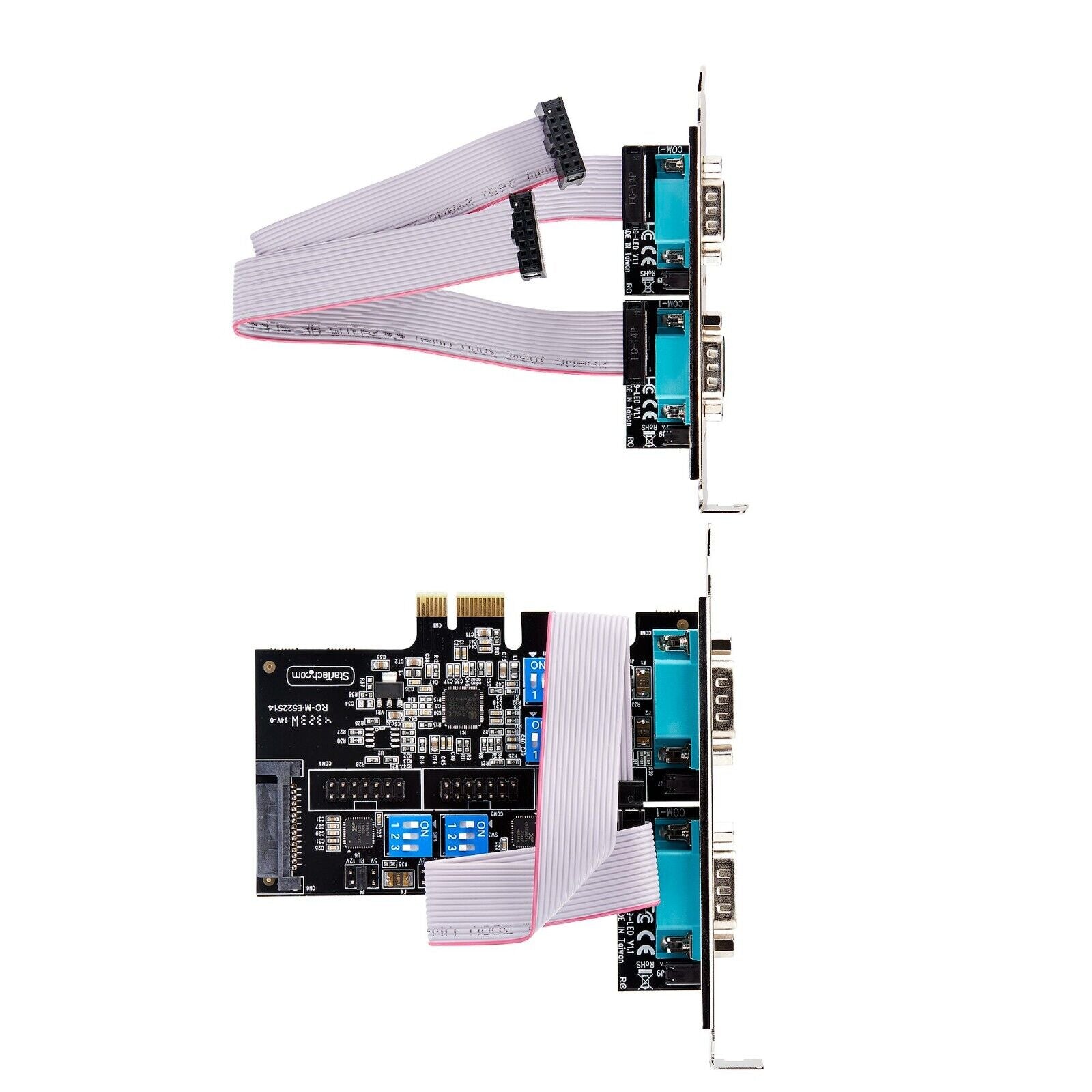

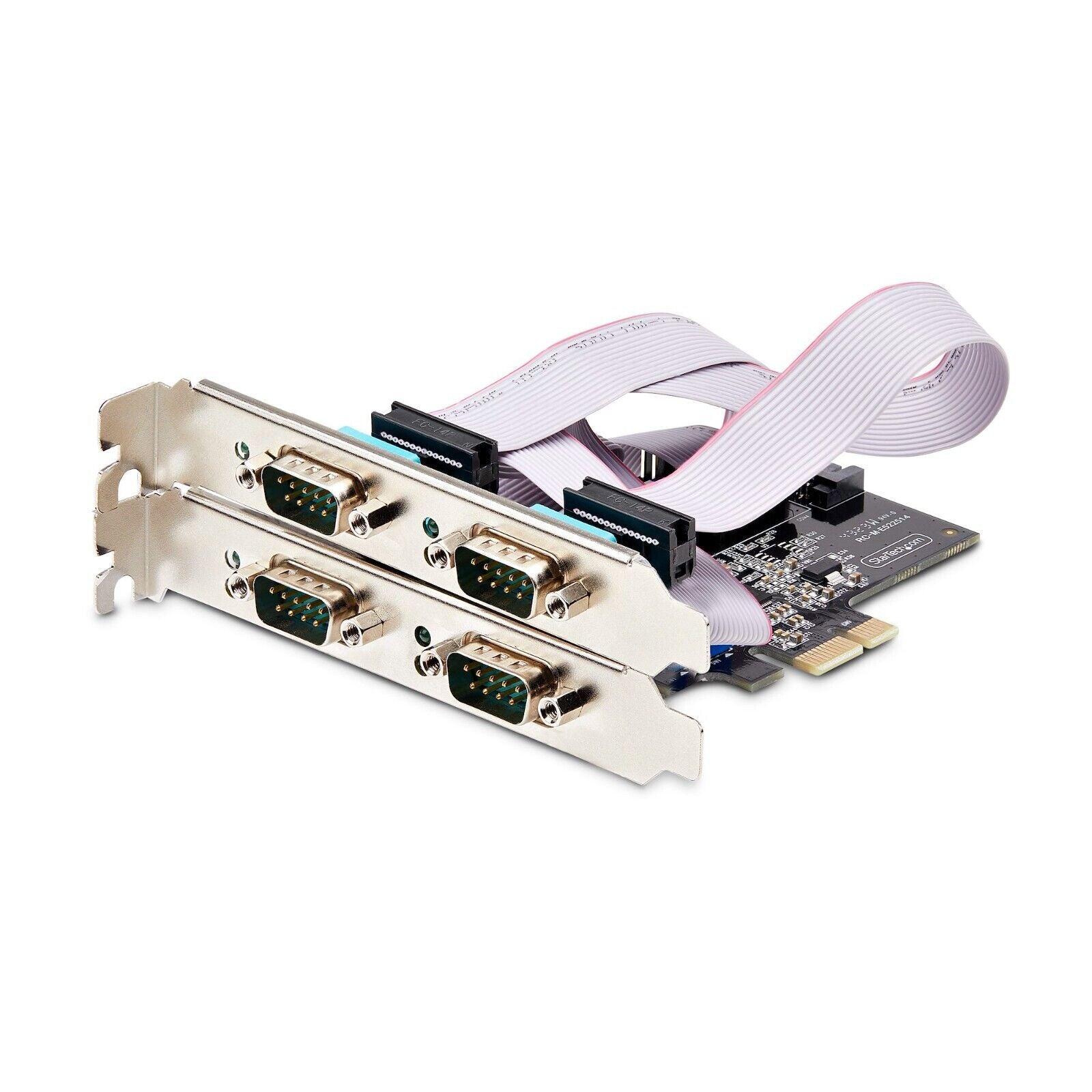

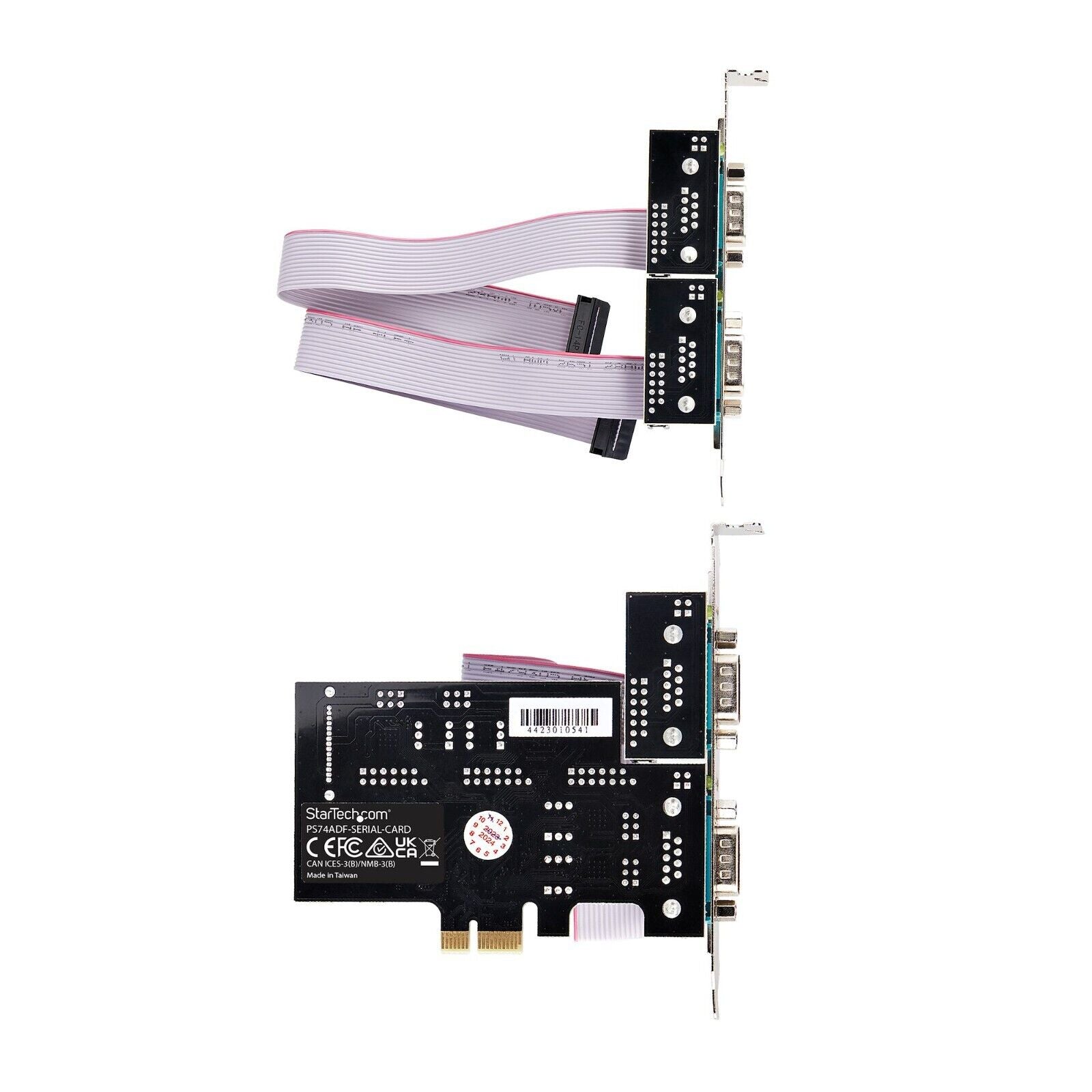

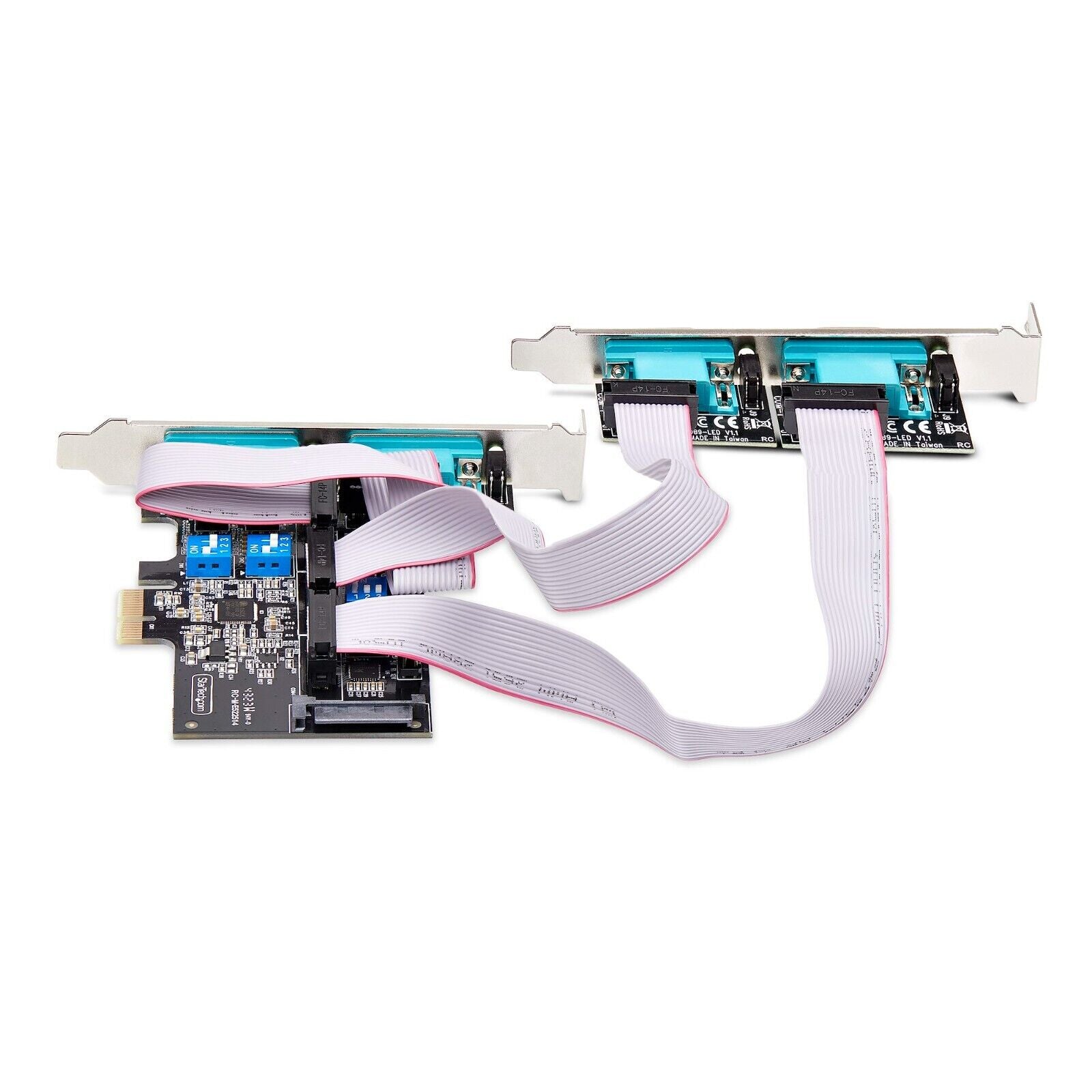

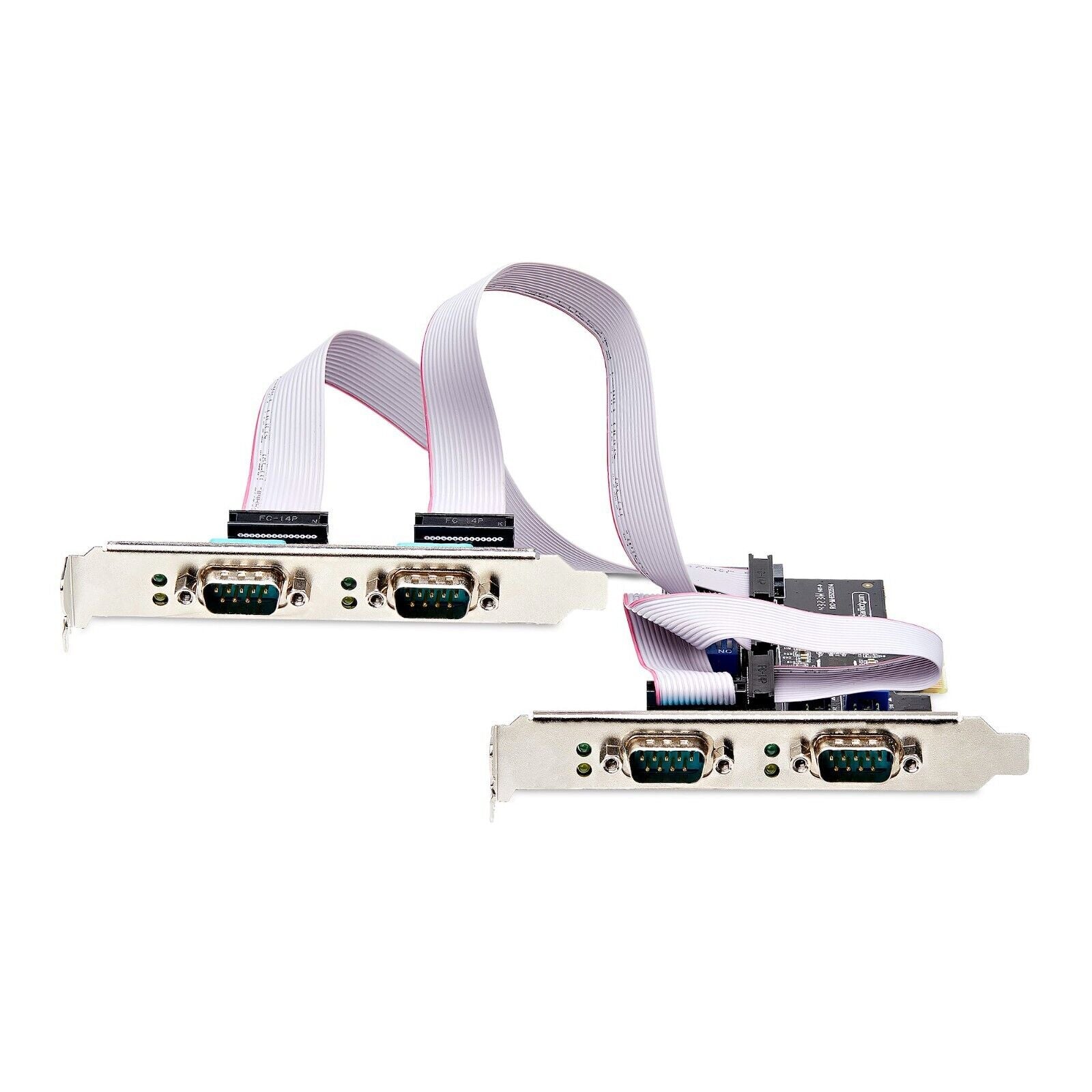

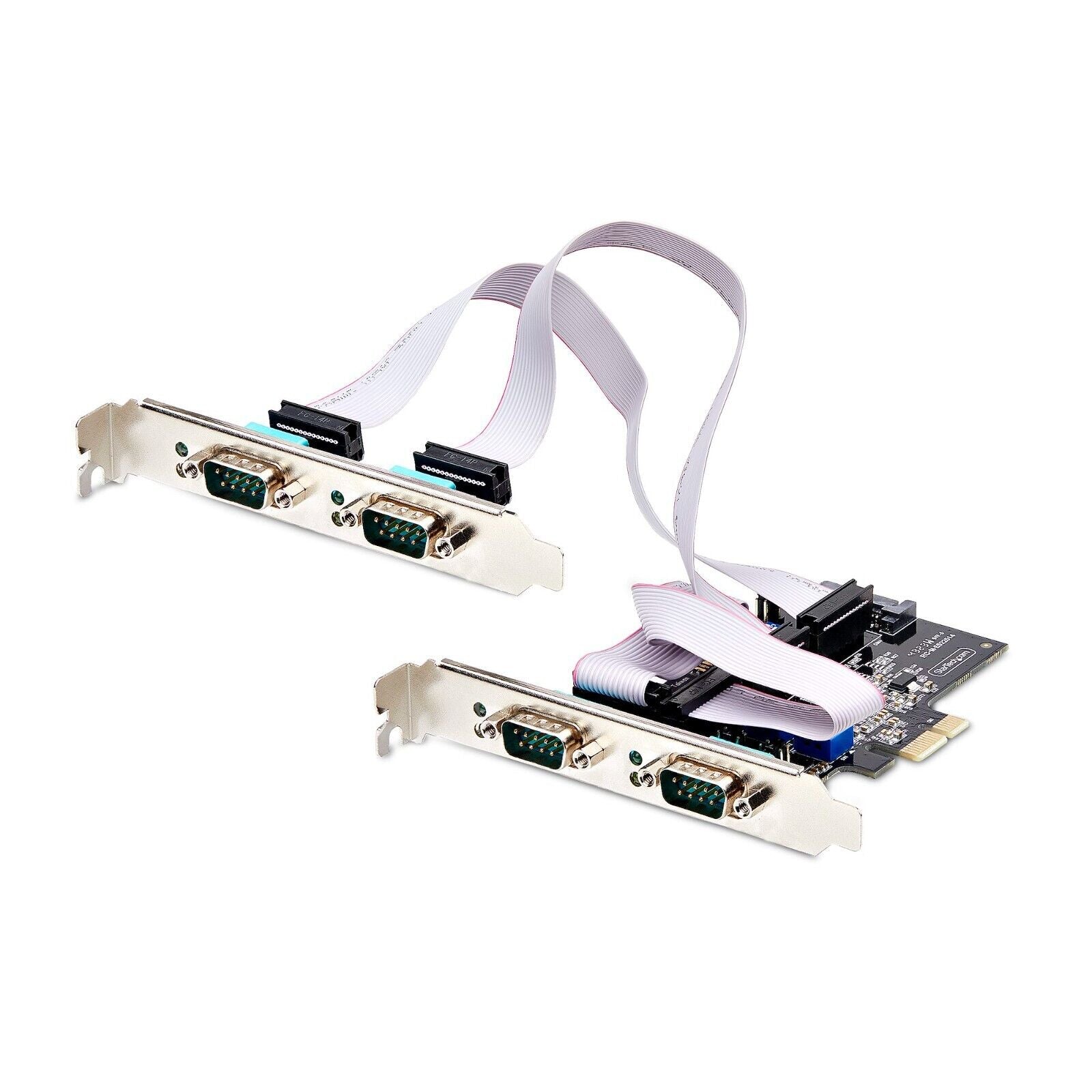

4-Port Serial PCIe Card, Quad-Port PCI Express to RS232/RS422/RS485 (DB9) Serial Card, Low-Profile Bracket Incl., 16C1050 UART, Windows/Linux, TAA Compliant - Level-4 ESD Protection
Add four RS-232, RS-422, or RS-485-capable DB9 Serial Ports to a desktop computer via PCIe x1 Expansion Card
Product ID: PS74ADF-SERIAL-CARD
..
Warranty Information
Warranty
2 Years
Connector(s)
Connector Type(s)
1 - PCI Express x1
External Ports
4 - 9 pin D-Sub (DB-9) Male
Environmental
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-20°C to 80°C (-4°F to 176°F)
Humidity
20% ~ 80% RH
Hardware
Ports
4
Interface
Serial
Bus Type
PCI Express
Card Type
Standard Profile (LP bracket incl.)
Port Style
Integrated on Card
Industry Standards
PCI Express Version 2.0 x1
Chipset ID
ASIX - AX99100
Indicators
LED Indicators
4 - Data Receive LED: Flash Green to show activity
4 - Data Transmit LED: Flash Yellow to show activity
Packaging Information
Package Height
1.5 in [3.8 cm]
Package Length
8.1 in [20.7 cm]
Shipping (Package) Weight
9.6 oz [273.2 g]
Package Width
5.7 in [14.4 cm]
Package Quantity
1
Performance
Serial Protocol
RS-232/422/485
ESD Protection
+/-8kV (Contact)
+/-15kV (Air)
+/-15kV (HBM)
Max Baud Rate
921.6 Kbps
Data Bits
5, 6, 7, 8, 9
FIFO
256 Bytes
Flow Control
Hardware and Software
Parity
Even, Odd, None, Space, and Mark
Stop Bits
1, 1.5, 2
General Specifications
UART Compatibility: 16C450, 16C550, 16C650, 16C750, and 16C950
Physical Characteristics
Color
Black
Product Height
0.6 in [1.6 cm]
Product Length
4.8 in [12.1 cm]
Weight of Product
2.1 oz [60.0 g]
Product Width
4.3 in [10.9 cm]
Cable Length
11.8 in [30 cm]
Software
OS Compatibility
Windows 7, 8, 8.1, 10, 11
Windows Server 2016, 2019, 2022
Linux 2.6.13 and newer (LTS Versions Only)
Windows Server 2016, 2019, 2022
Linux 2.6.13 and newer (LTS Versions Only)
Special Notes / Requirements
System and Cable Requirements
Computer with an available PCI Express x1 (or greater) slot

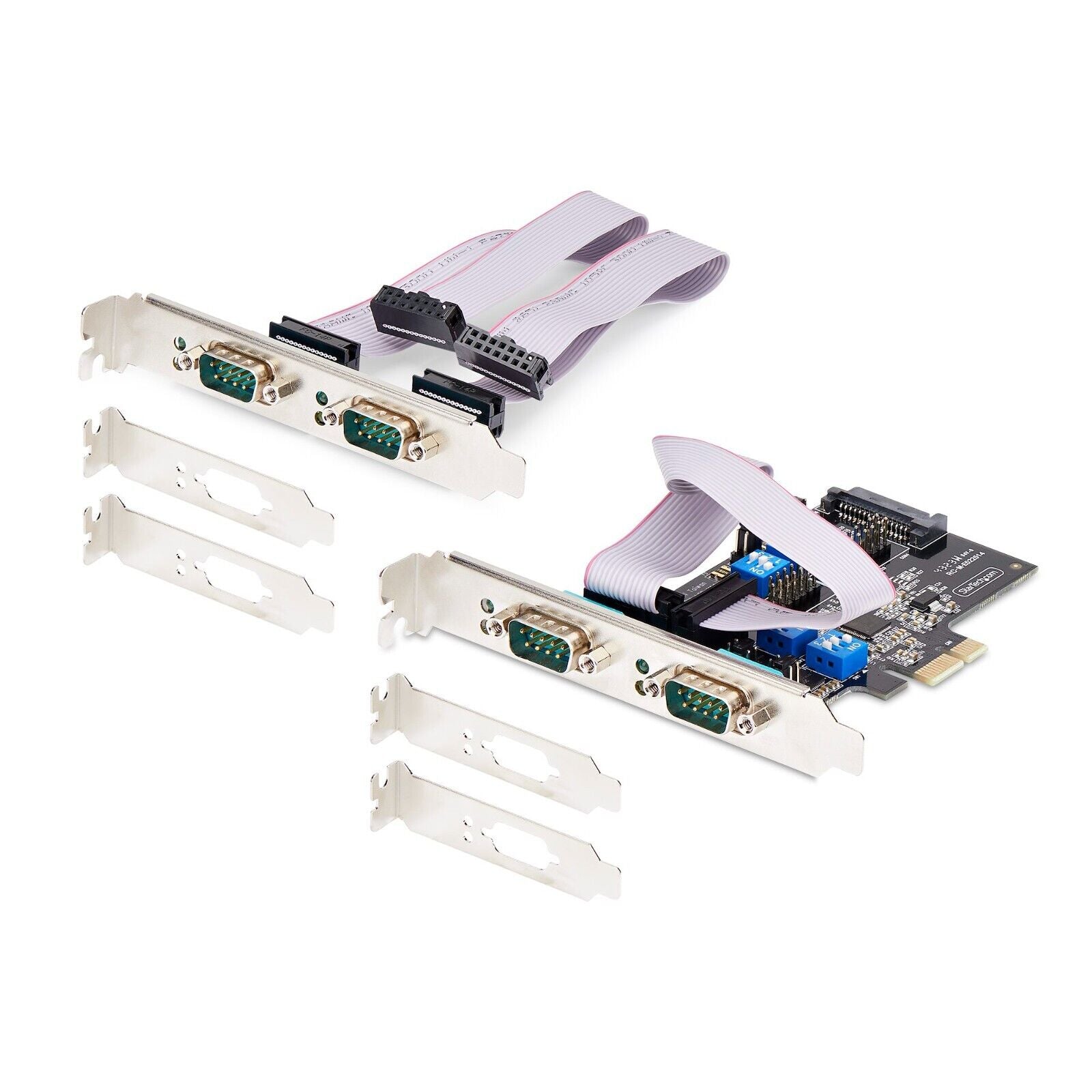

What's in the Box
Included in Package
1 - 4-Port Serial Card
4 - Low-Profile Bracket
3 - Ribbon Cable
1 - Quick-Start Guide
