Vantec UGT-ST655 5-Port SATA III 6Gbps PCIe x4 Host Card for SSD HDD Optical

Highlights

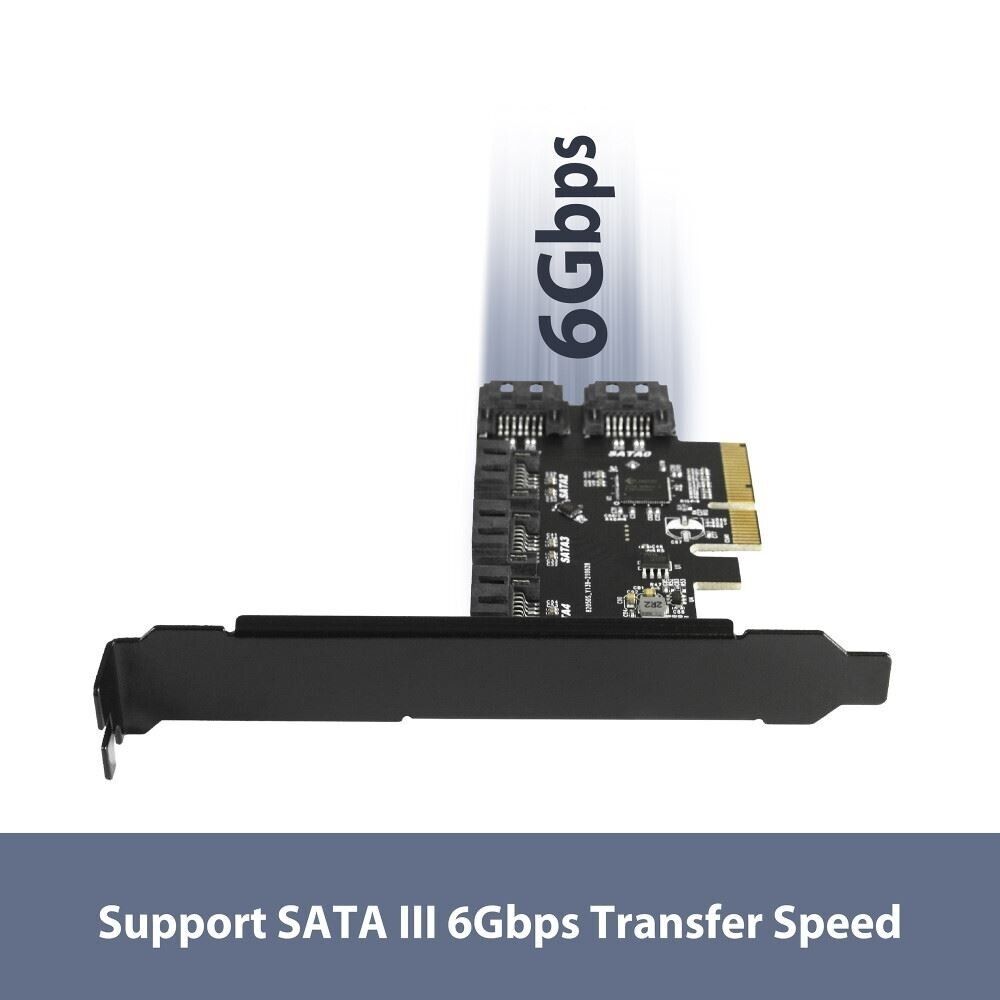

This 5-Ports SATA III 6Gbps PCIe x4 Host card is designed for adding additional SATA III ports to your system. This small card will fit regular and slim or low profile chassis, ideal for any system with a PCIe x4 slot. When installing into Windows 10, not drivers are required, just plug and it is ready to add your drives like SSD, HDD, and Optical Drive*. You can use it for HDD, SSD, Optical drive, and more. The wide PCIe path will allow for a fast transfer speed. It is will support your new system with PCIe v3.0.

SPECIFICATIONS

• Model: UGT-ST655

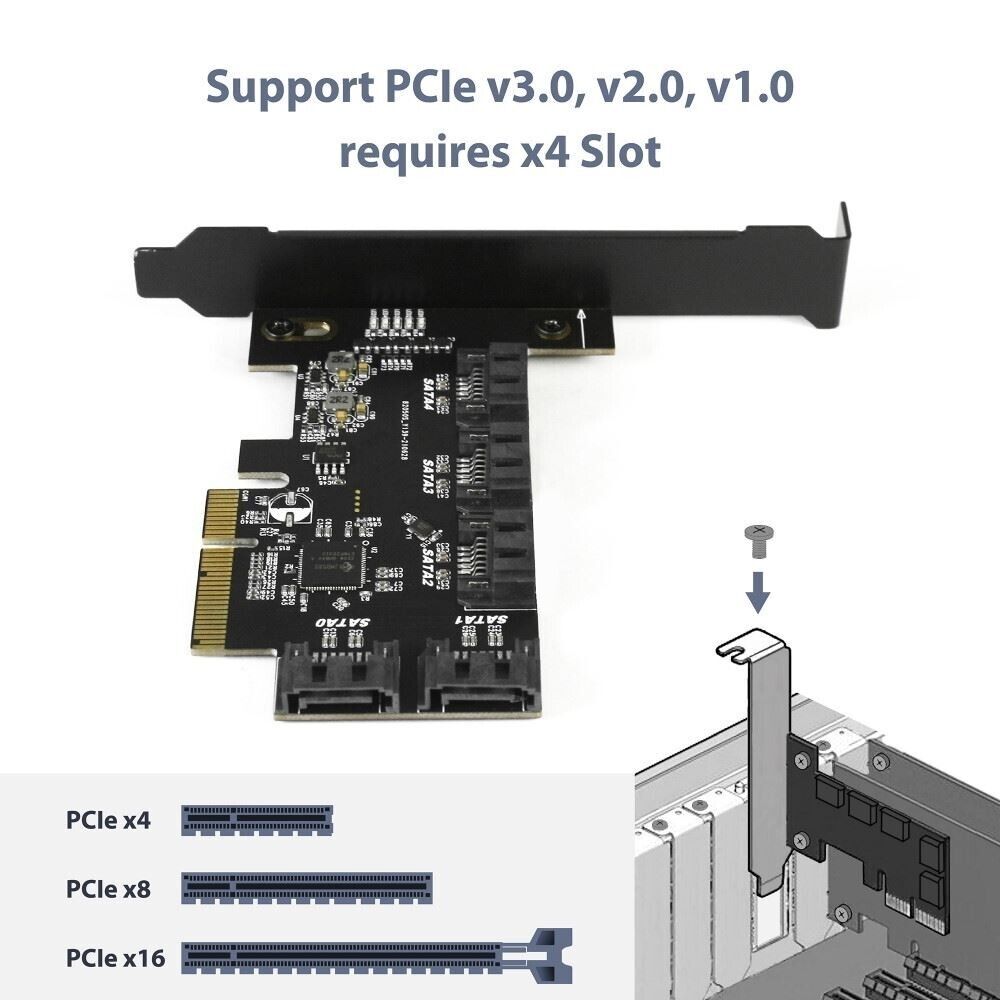

• PCIe Standard Support: PCIe v3.0
• PCIe Slot Support: PCIe x4/x8/x16

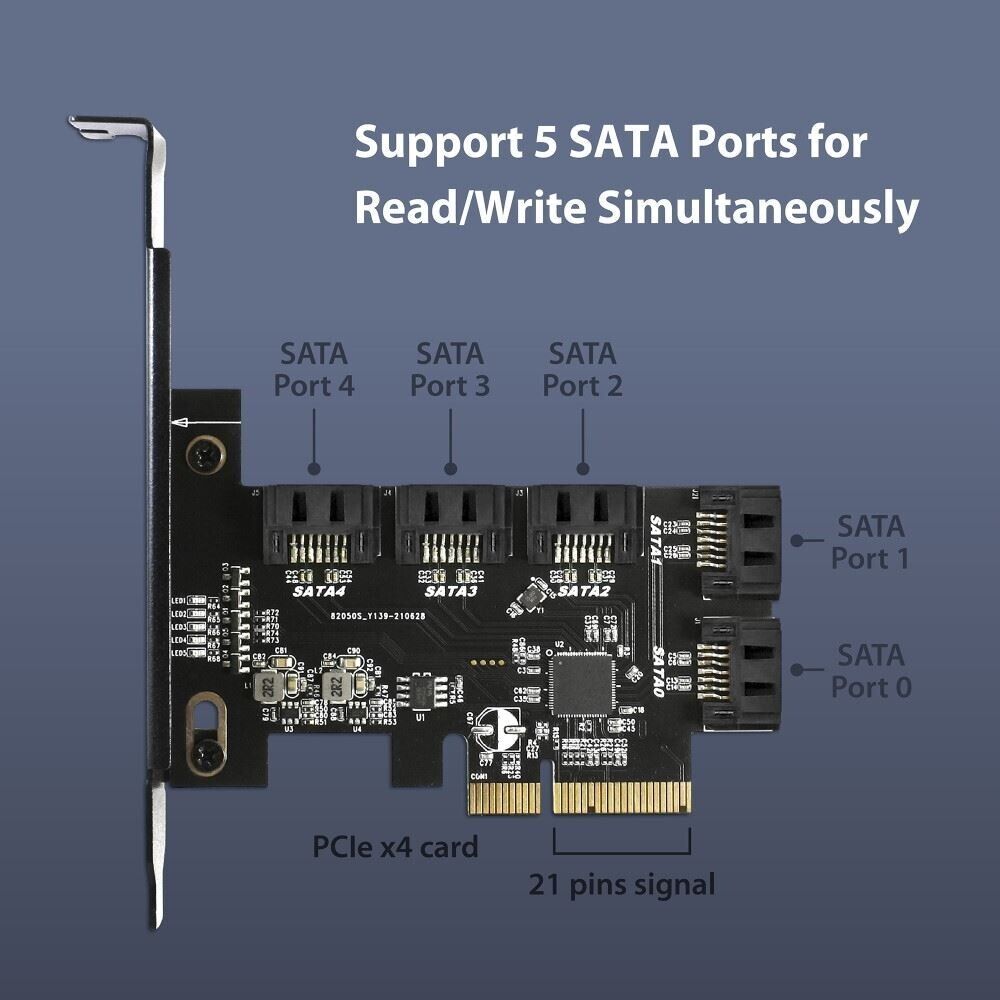

• SATA interface: 5 Standard SATA III for SSD, HDD, Optical Drive*
• Power: PCIe Bus powered

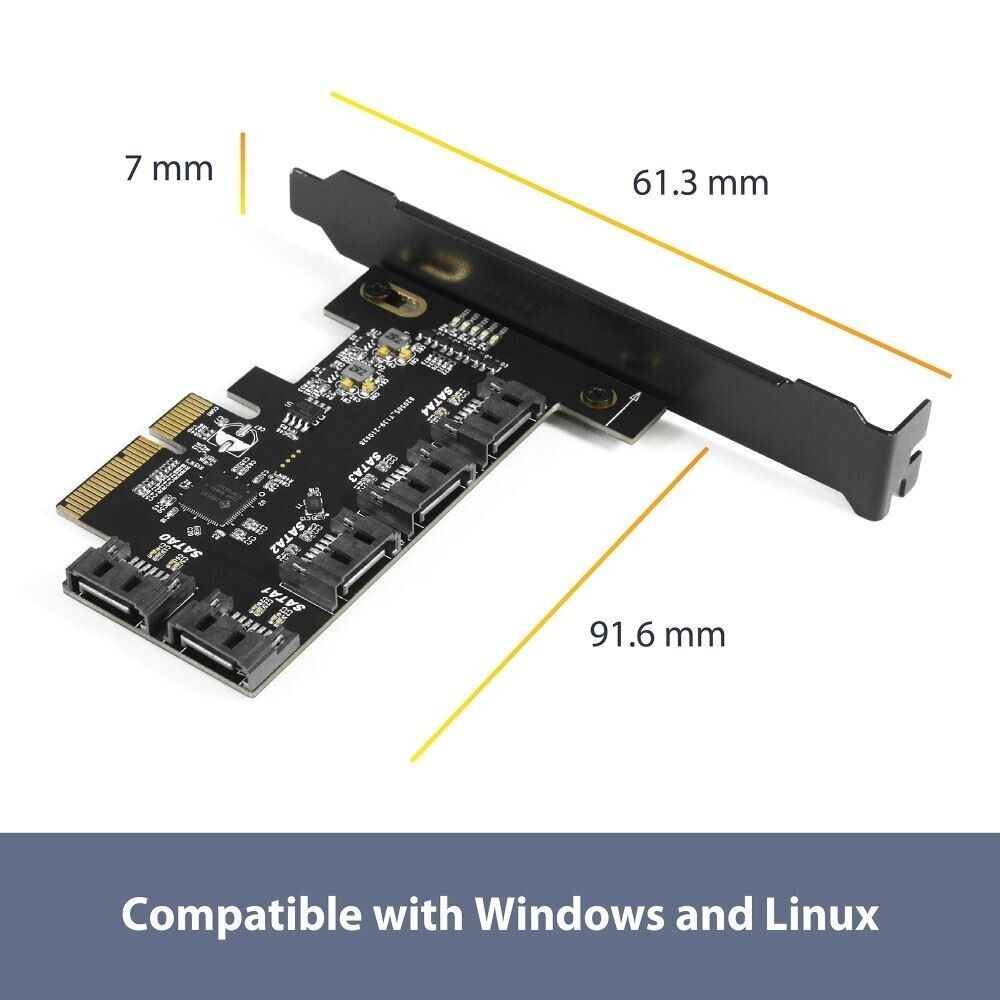

• Dimensions: 3.6 x 2.6 x 0.9 inches / 92 x 66 x 22 mm
• Weight: 3.1 oz. / 87 g
• OS support: Windows 7/8/8.1/10/11, or Linux

* Note: Optical drive support for data read/write, but not for booting

 System Requirements:

• Available system board PCIe x4 or x8 or x16 slot
• OS support like Windows 7/8/8.1/10/11, or Linux
• SATA cable(s) (SATA cable not inlcuded)

 Package Contents:

• 5-Port SATA III 6Gbps PCIe x4 Host Card
• Quick Installation Guide

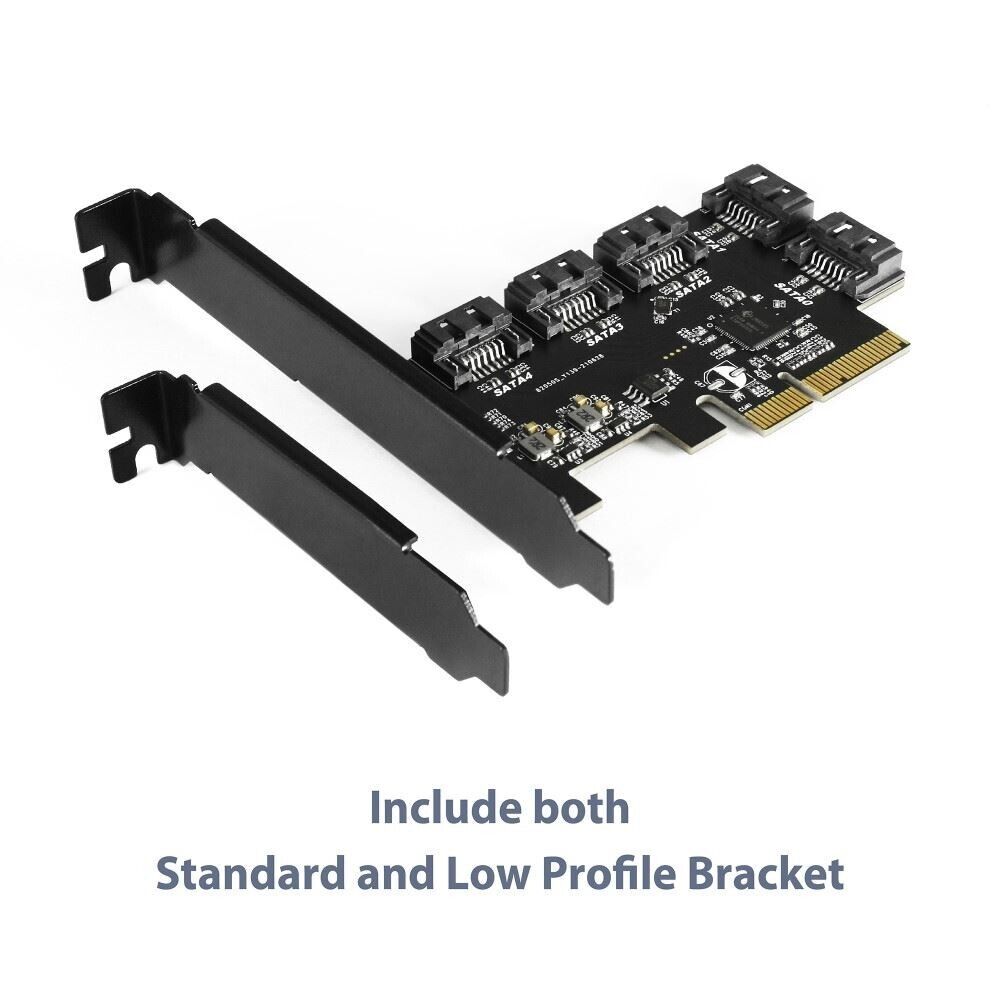

• Standard and Low profile bracket

Other Information

• UPC:   844767023632
• EAN:   4716872103850
• Environmental:
  • Operating Temperature 0 ℃ to +45℃
  • Operating Humidity 10% to 85 % RH (no condensation)
  • Storage Temperature -10℃ to +70℃
  • Storage Humidity 5% to 90% RH (no condensation)
• Country of Origin: Taiwan

Shipping Notes:

All our products are normally shipped within 1-2 business days from any of our warehouse locations below:

• Monrovia, CA 91016 (Most usual)
• Fremont, CA 94538
• Richardson, TX 75018
• Duluth, GA 30096
• Itasca, IL 60143
• Edison, NJ 08837

International orders may take an additional 2 to 3 days.
