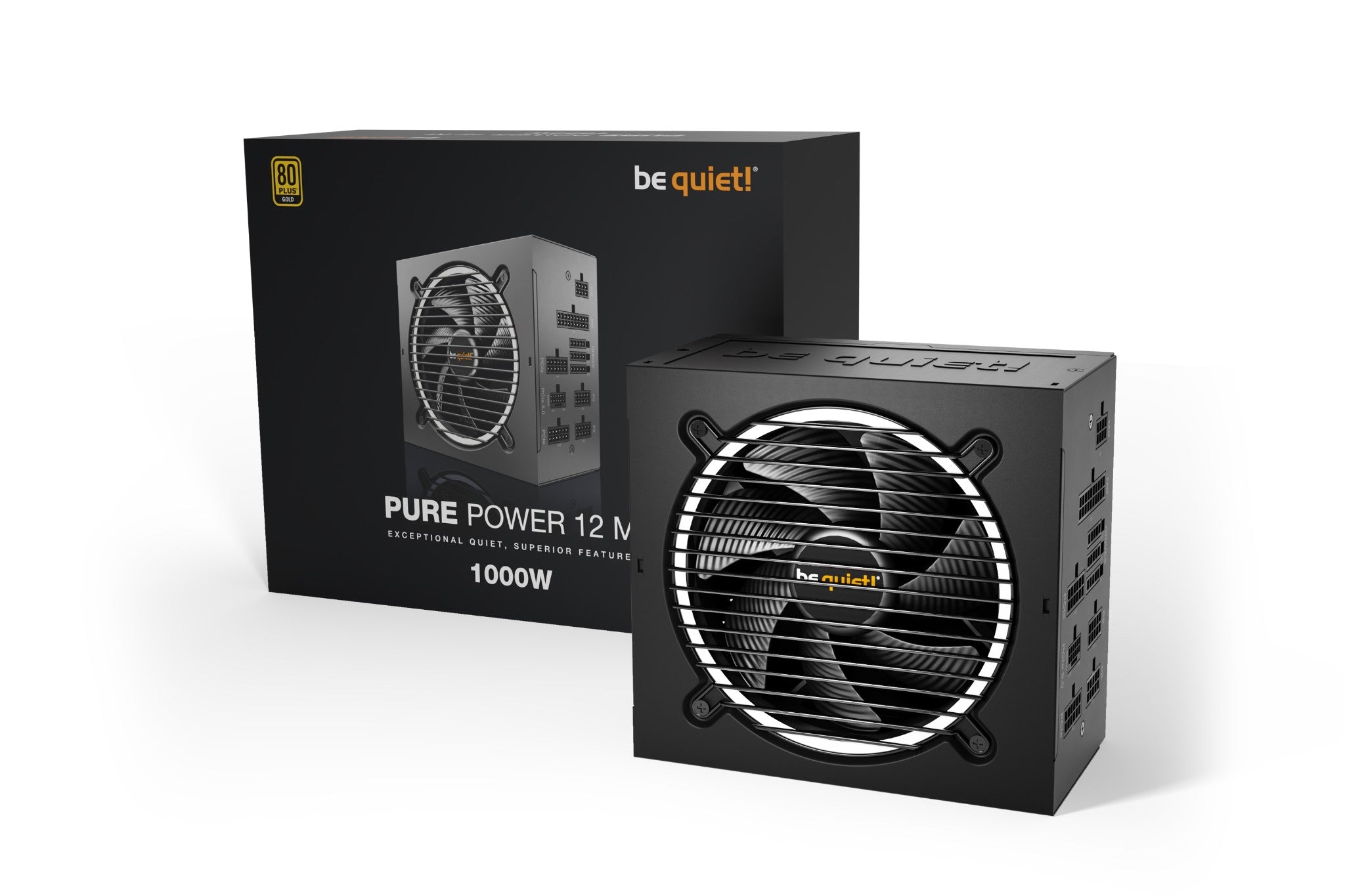

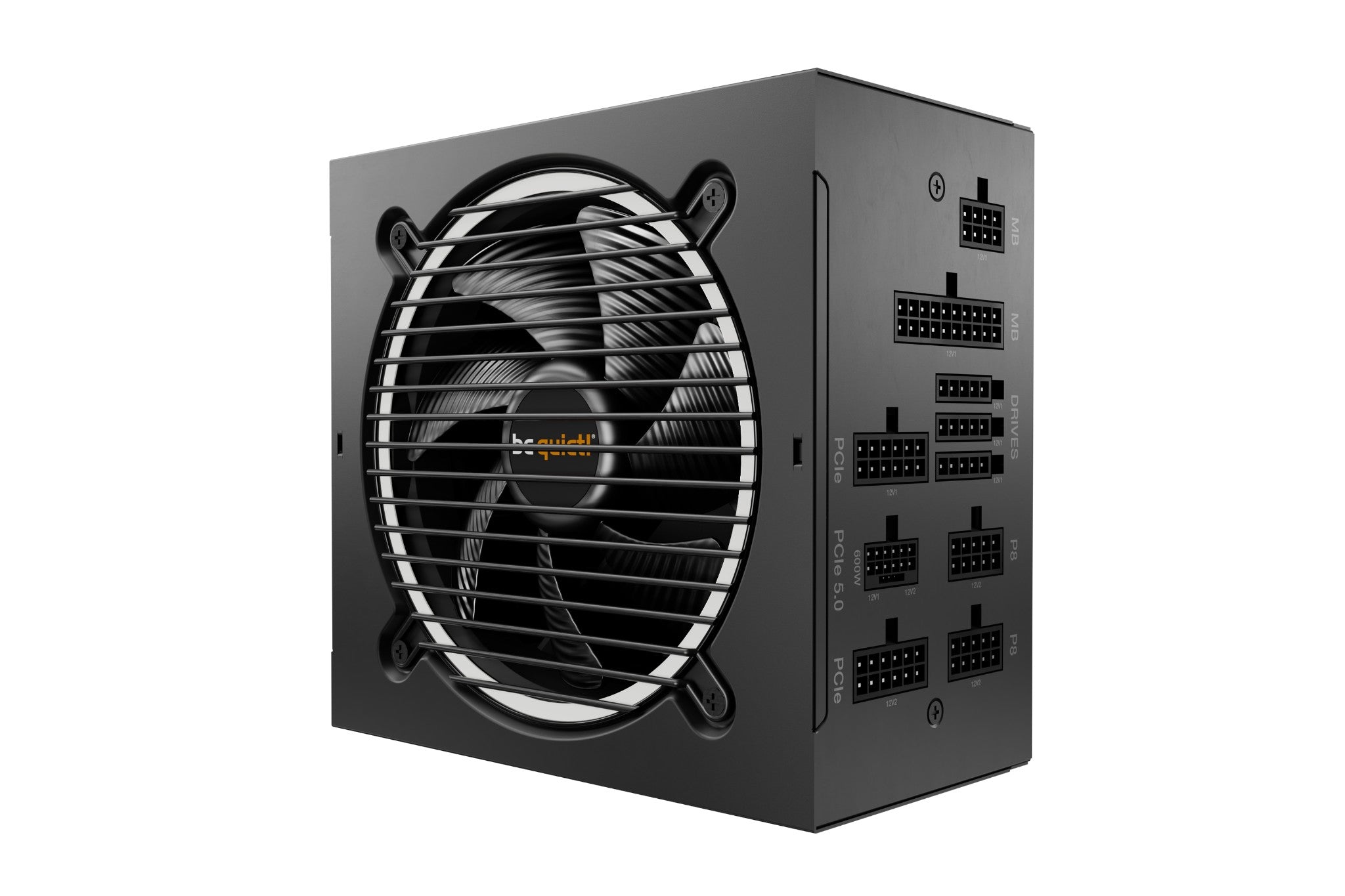

be quiet! BN506 Power Supply - 1000W PURE POWER 12M ATX3.0 80 Plus Gold Modular

Marketing Information

• PURE POWER 12 M
• 1000W
• Exceptional quiet, superior features
  • Pure Power 12 M 1000W is ATX 3.0 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Pure Power 12 M 1000W offers the best combination of features with outstanding compatibility.
  • 80 PLUS Gold efficiency (up to 93.1%)
  • ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors
  • Exceptionally silent 120mm be quiet fan
  • Advanced stability and voltage regulation thanks to LLC technology
  • 2 strong 12V-rails
  • Modular cables for maximum build flexibility
  • One PCIe 5.0 12VHPWR 600W and 4 PCIe 6+2 connectors for overclocked high-end GPUs
  • 10-year manufacturers warranty
  • Characteristics
• 80 PLUS GOLD CERTIFIED
• Very high operating efficiency
• Pure Power 12 M 1000W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 93.1%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 M 1000W is always the correct choice for quiet systems and gaming PCs
• FUTURE-PROOF YOUR SYSTEM
• Fulfills all ATX 3.0 specifications
• Pure Power 12 M 1000W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.

Detail Specifications

• Model: Pure Power 12 M 1000W
• Continuous power (W): 1000
• Peak power (W): 1050
• Form factor: Version 3.0
• Form factor EPS 12V: Version 2.92
• Topology: LLC + SR + DC/DC
• Voltage (Vac): 100 - 240
• Frequency (Hz): 50 - 60
• Input current (A): 12 / 6
• Power factor at 100% load: >0.98
• Modern standby: Yes
• Power consumption in standby (W): <0.1
• Average life time (h / 25oC): >100,000
• Operating temperature up to (oC): 40

Warranty Information

• 10 years from Be quiet
