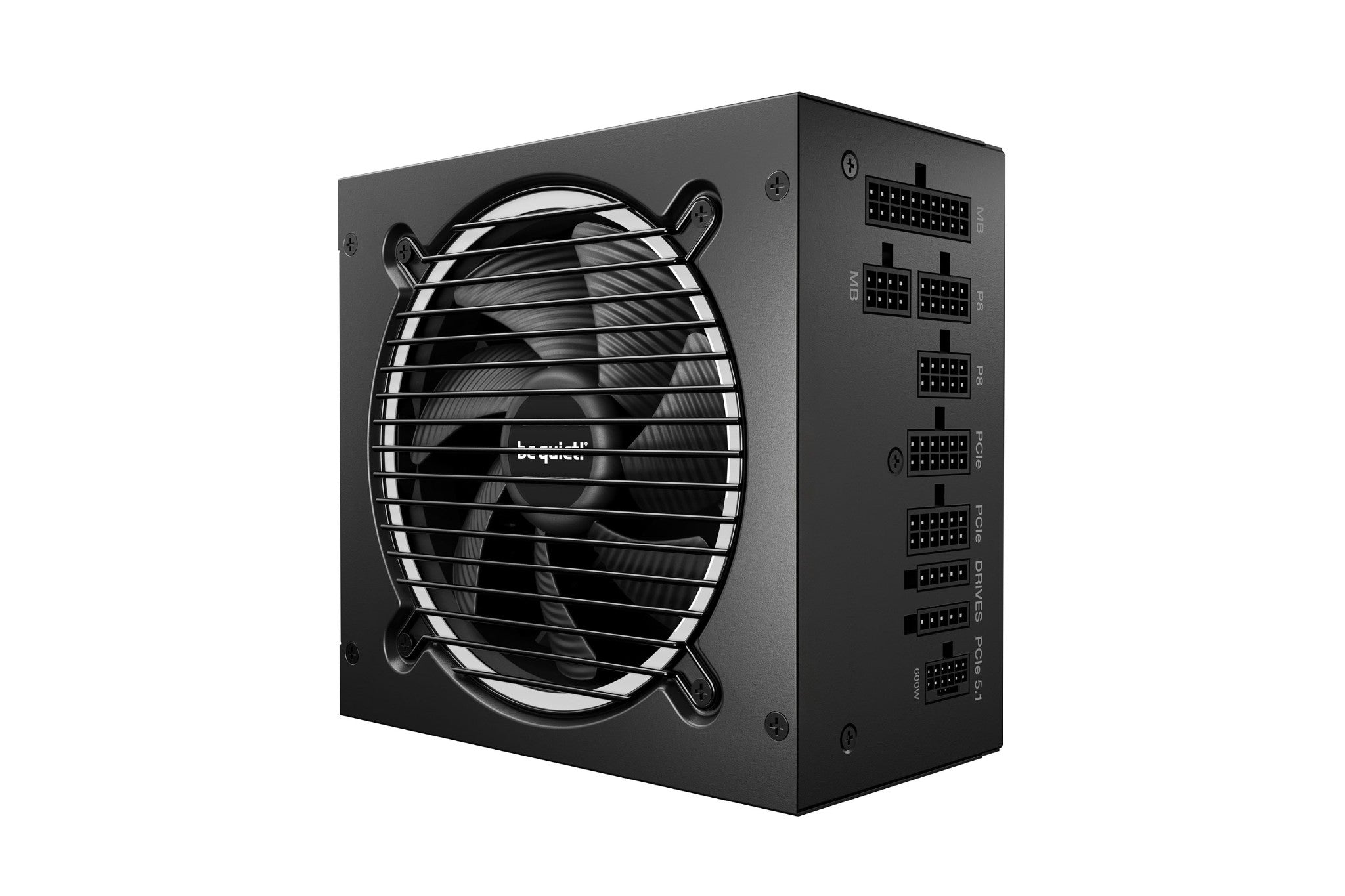

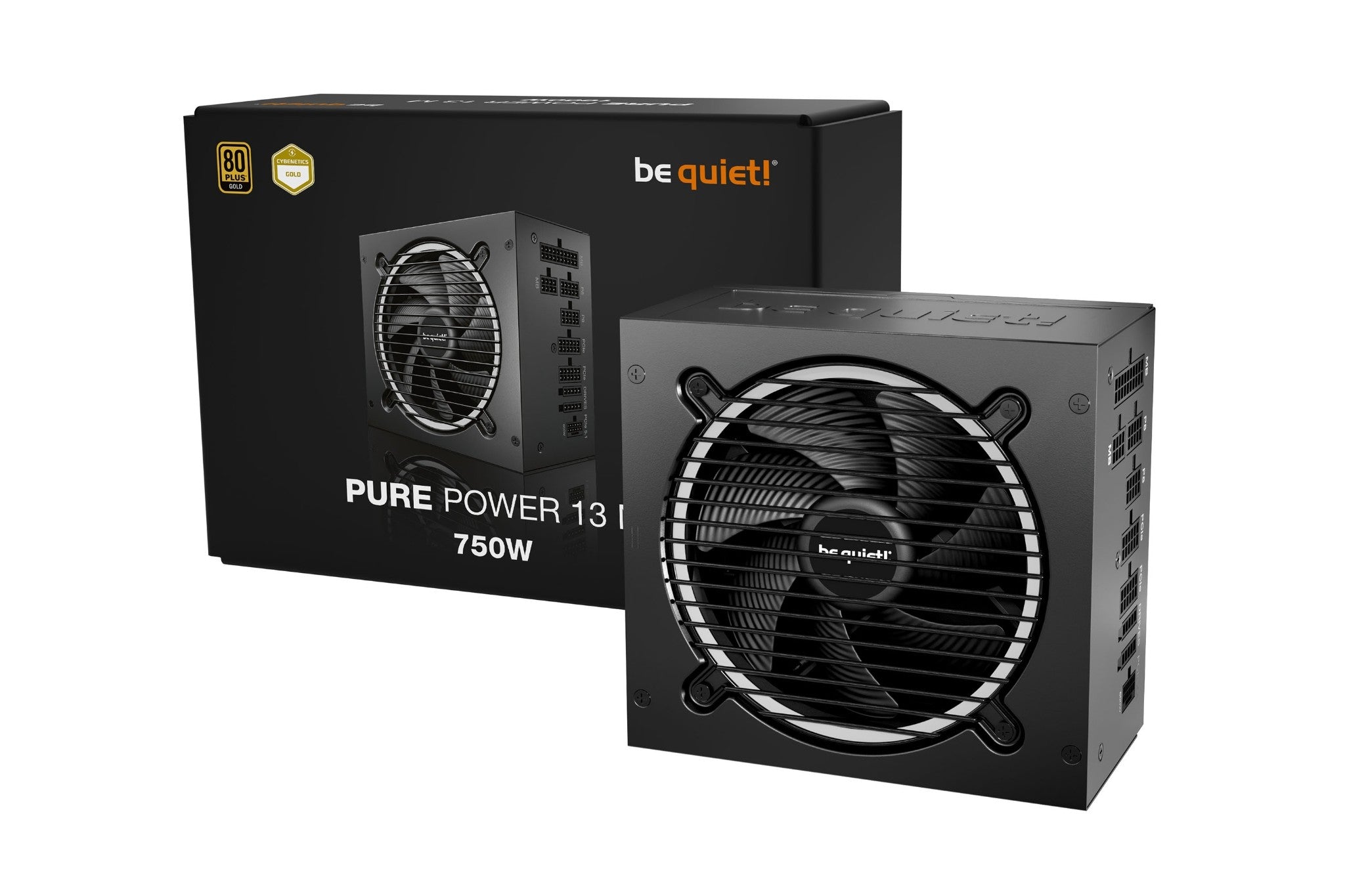

be quiet! BP026US Power Supply - Pure Power 13 M 750W Black - Retail

Marketing Information

• PURE POWER 13 M
• 750W
• Exceptional quiet, superior features
  • Pure Power 13 M 750W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Pure Power 13 M 750W offers the best combination of features with outstanding compatibility.
  • 80 PLUS Gold efficiency (up to 94.3%)
  • ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
  • Exceptionally silent semi-passive 120mm be quiet fan
  • Semi-passive construction for quiet and energy-saving operation
  • LLC technology for advanced stability and voltage regulation
  • One massive high-performance 12V-rail
  • One PCIe 5.1 12V-2x6 600W and 4 PCIe 6+2 connectors for overclocked high-end GPUs
• 80 PLUS GOLD CERTIFIED
• Very high operating efficiency
• Pure Power 13 M 750W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 94.3%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 13 M 750W is always the correct choice for quiet systems and gaming PCs
• FUTURE-PROOF YOUR SYSTEM
• Fulfills all ATX 3.1 specifications
• Pure Power 13 M 750W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and 4 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.

Detail Specifications

• General data
• Model: Pure Power 13 M 750W
• Continuous power (W): 750
• Peak power (W): 820
• Form factor: Version 3.1
• Form factor EPS 12V: Version 2.92
• Topology: LLC + SR + DC/DC
• Voltage (Vac): 100 - 240
• Frequency (Hz): 50 - 60
• Input current (A): 10 / 5
• Power factor at 100% load: >0.98
• Modern standby: Yes
• Power consumption in standby (W): <0.1
• Average life time (h / 25oC): >100,000
• Operating temperature up to (oC): 40
• Efficiency
• 80 PLUS certification: Gold
• Efficiency (%) at 230V, 2% load: 71.9
• Efficiency (%) at 230V, 10% load: 90.6
• Efficiency (%) at 230V, 20% load: 93.4
• Efficiency (%) at 230V, 50% load: 94.3
• Efficiency (%) at 230V, 100% load: 92.6
• Fan: Silence-optimized be quiet fan
• Fan size (mm): 120
• Bearing technology: Rifle
• Motor technology: 4-pole fan motor
• Max. fan speed (rpm): 1800

Warranty Information

• 10 years from Be quiet
