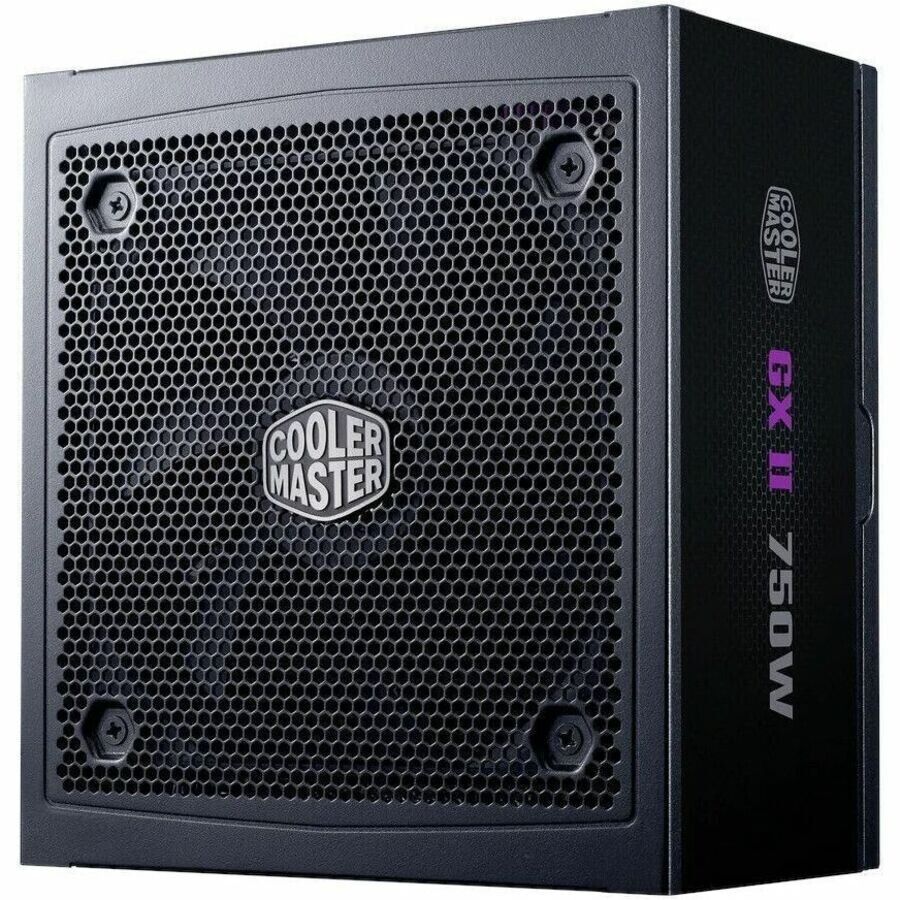

Cooler Master MPX-7503-AFAG-2BUV MWE Gold MPX-7503-AFAG 750W Power Supply

MPN: MPX-7503-AFAG-2BUV

Main Features

• ATX 3.1 support & a durable 12V-2x6 cable
• 80 Plus Gold certified efficiency
• Silent fan performance with a zero-RPM mode

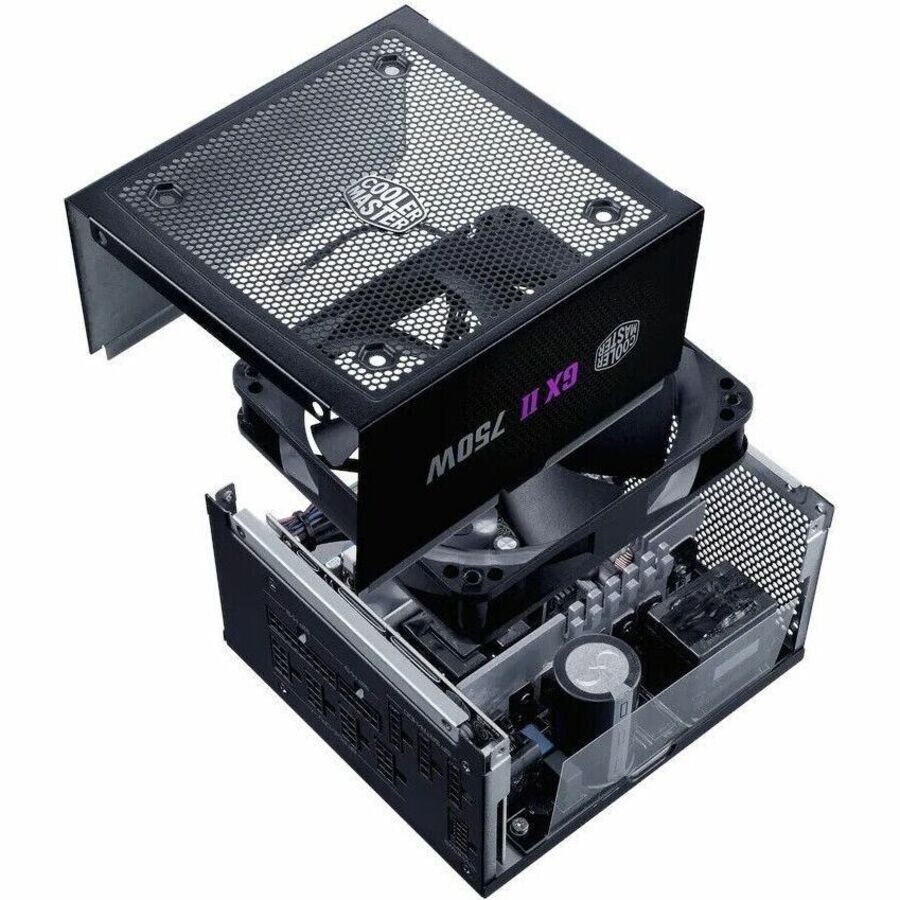

• Separated thermal technologies

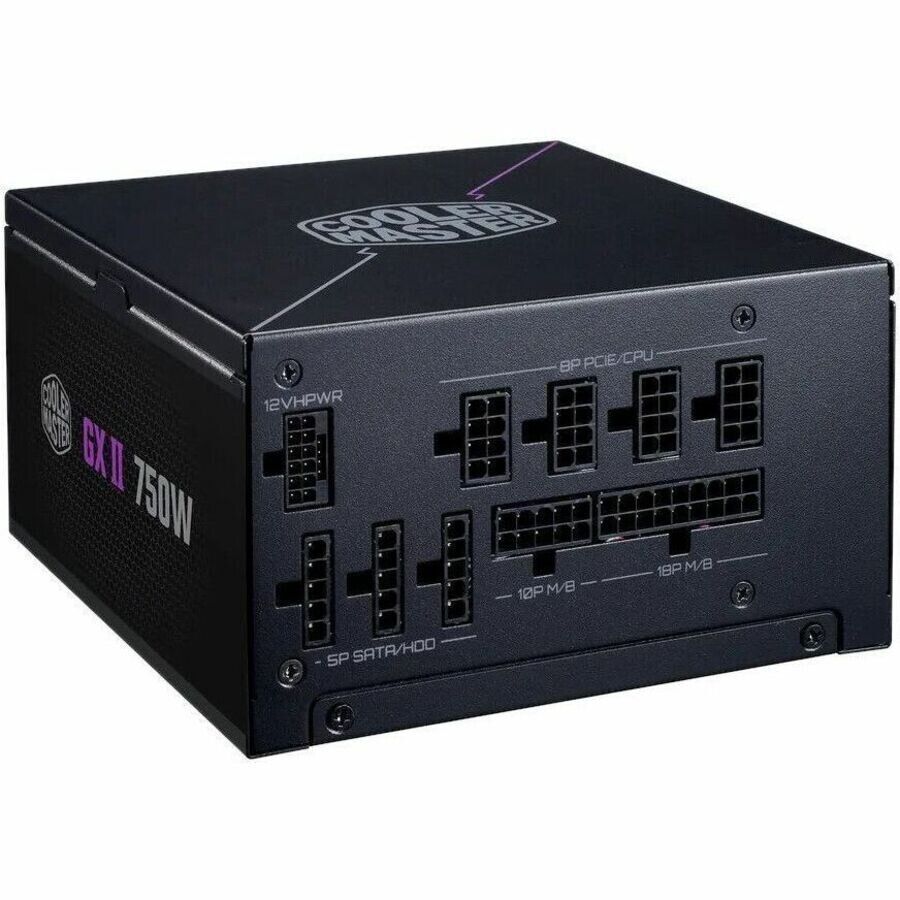

• Fully modular cabling
• 10-year warranty
• Specification Compliance
• -ATX12V v3.1
• -ATX12V v3.0
• Efficiency: 0%
• Power Factor Correction (PFC): Active
• Number of Fans: 1
• Fan Diameter: 120 mm
• Protection Type
• -Over Voltage
• -Over Power
• -Over Temperature
• -Short Circuit
• -Over Current
• -Under Voltage
• -Surge
• -Inrush Current
• Modular: Yes
• MTBF: 100000 Hour
• Number of +12V Rails: 1
• Input Voltage
• -120 V AC
• -230 V AC
• Output Voltage
• -3.3 V DC
• --5 V DC
• -12 V DC
• --12 V DC
• -5 V SB
• Output Voltage Detail
• -3.3 V DC @ 20 A
• -5 V DC @ 20 A
• --12 V DC @ 0.3 A
• -5 V DC @ 3 A
• -12 V DC @ 62.5 A
• Output Power: 750 W
• Input Frequency: 60Hz
• Number of SATA Power Connectors: 6
• PCI Express Connector: Yes
• Number of (6+2 pin) PCI Express Power Connectors: 4
• Number of (4+4 pin) CPU Power Connectors: 1
• Minimum Operating Temperature: 32°F (0°C)
• Maximum Operating Temperature: 104°F (40°C)
• Form Factor: ATX
• Height: 3.4"
• Width: 5.9"
• Weight (Approximate): 6.46 lb
• Certifications & Standards
• -cTUVus
• -TUV
• -CE
• -FCC
• -BSMI
• -CCC
• -EAC
• -RCM
• -UKCA
• -BIS
• -KC
• Energy Efficiency Certification: 80 Plus Gold
• Energy Efficiency Compliance: Energy-related Products Directive Lot 3 (ErP Lot 3)
• Environmental Compliance
• -Restriction of Hazardous Substances (RoHS) 2
• -Waste Electrical and Electronic Equipment Directive (WEEE)
• -China Restriction of Hazardous Substances (China RoHS)
• Limited Warranty: 10 Year - Direct from the Manufacturer
