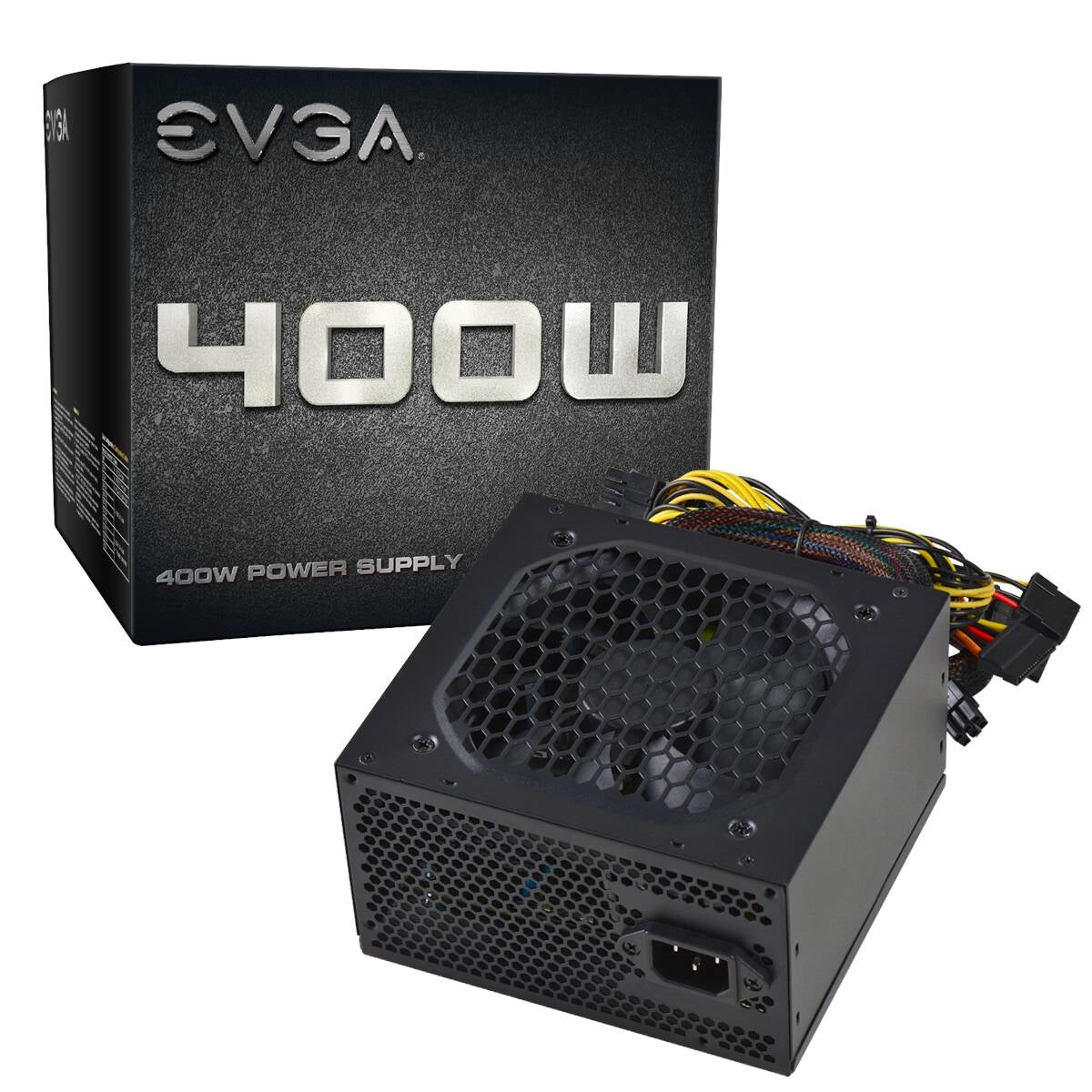

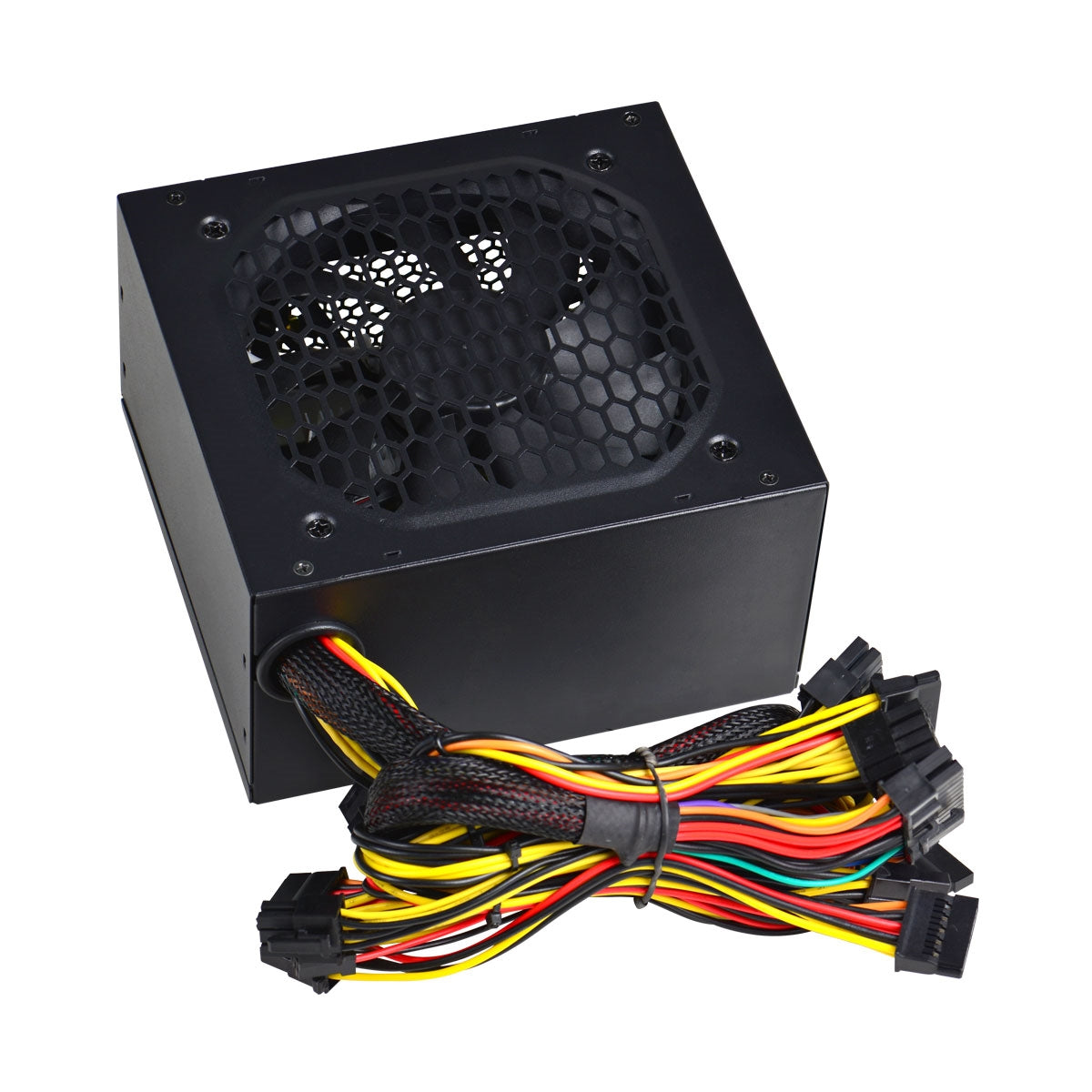

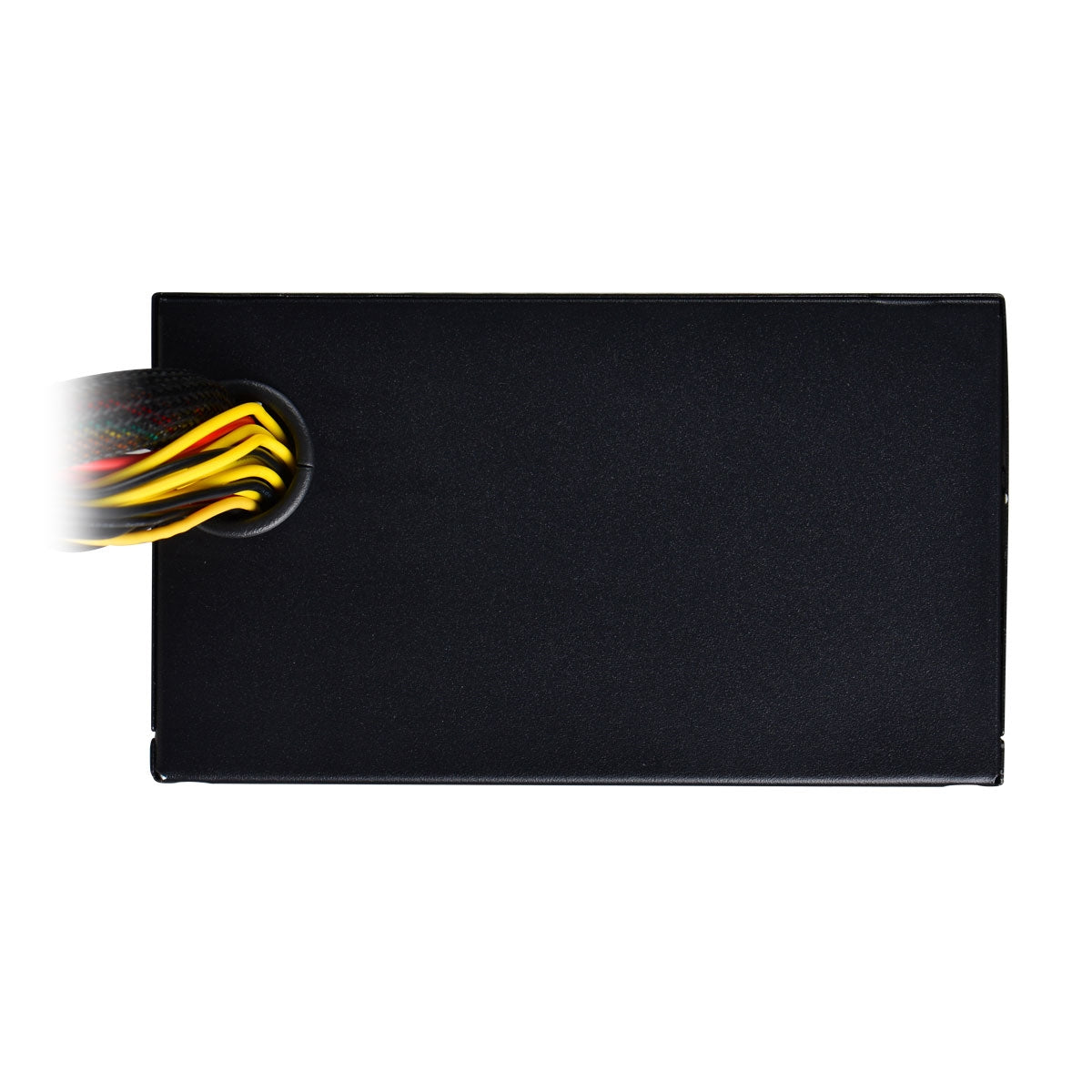

EVGA 100-N1-0400-L1 Power Supply - 400W 100-240V 5-10A 50-60Hz Retail

General Information

• Manufacturer: EVGA Corporation
• Brand Name: EVGA
• SKU: 156180
• Manufacturer Part Number: 100-N1-0400-L1
• Product Name: 400W Power Supply
• Product Type: Power Supply

Marketing Information:

• When building on a budget, the EVGA 400W power supply is a great choice at a low cost. Supporting 30A on a single +12V rail provides more options without having to reduce your component requirements. The EVGA 400W offers the connections and protections needed for basic system builds. With a standard 2 year warranty and ultra quiet fan design the EVGA 400W power supply will be a great asset for your next build on a budget.

Technical Information

• Specification Compliance: ATX12V/EPS12V
• Efficiency: 75%
• Number of Fans: 1
• Protection Type:
  • Under Voltage
  • Over Power
  • Short Circuit
• Modular: No
• Reliability
• MTBF: 100000 Hour

Power Description

• Number of +12V Rails: 1
• Input Voltage Type: AC

Input Voltage:

• 120 V AC
• 220 V AC

Input Voltage Range:

• 100 V AC - 240 V AC

Output Voltage:

• 3.3 V DC
• 5 V DC
• 12 V DC
• -12 V DC
• Output Voltage Detail:
  • 3.3 V DC @ 18 A
  • 5 V DC @ 17 A
  • 12 V DC @ 30 A
  • -12 V DC @ 300 mA
  • 5 V DC @ 2 A
• Input Current:
  • 5 A @ 120V
  • 10 A @ 230V
• Output Current:
  • 18 A
  • 17 A
  • 30 A
  • 300 mA
  • 2 A
  • 24 A
  • 15 A
  • 34 A
  • 3 A

Output Power: 400 W

Interfaces/Ports

Receptacles:

• 1 x 24-pin ATX Motherboard
• 1 x 4+4pin ATX12V Motherboard
• 1 x 6+2pin PCI-E
• 1 x 6-pin PCI-E
• 4 x Serial ATA
• 3 x 4-pin LP4 Peripheral Device
• 1 x 4-pin SP4 Floppy Drive

Physical Characteristics

• Color Family: Black
• Product Color: Black
• Form Factor: Internal

Miscellaneous

• Certifications & Standards:
  • cUL
  • UL
  • CE
  • FCC
  • TÜV
• Country of Origin: China
• Environmentally Friendly: Yes
• Environmental Compliance:
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Restriction of Hazardous Substances (RoHS)

Warranty

• Limited Warranty: 2 Year from EVGA
