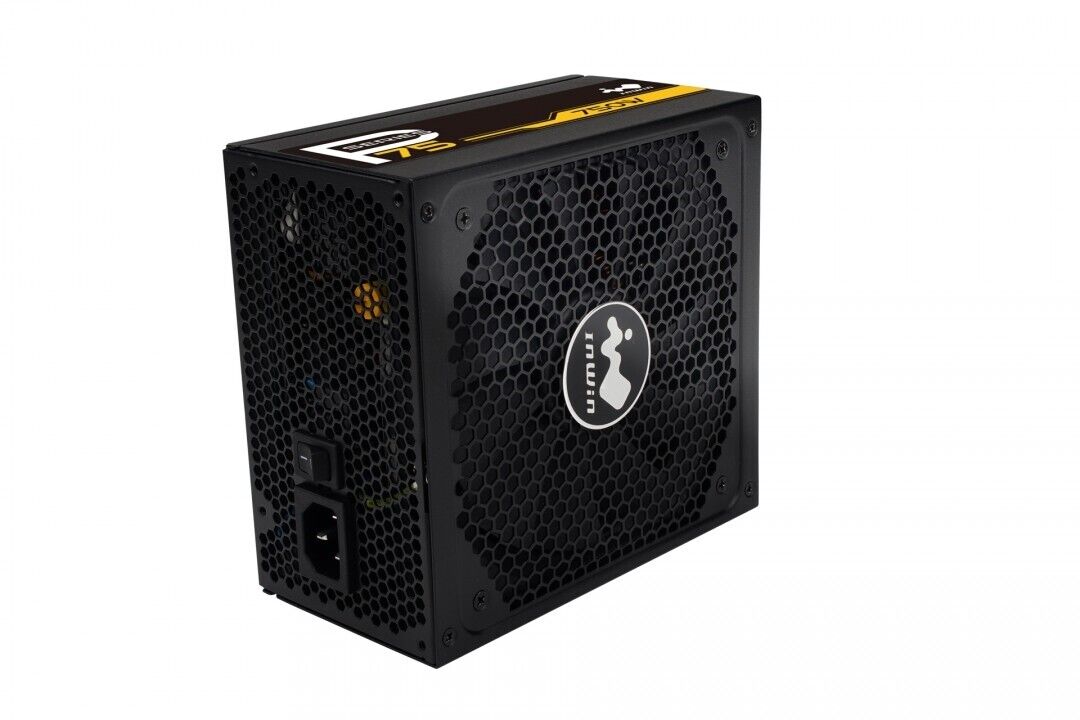

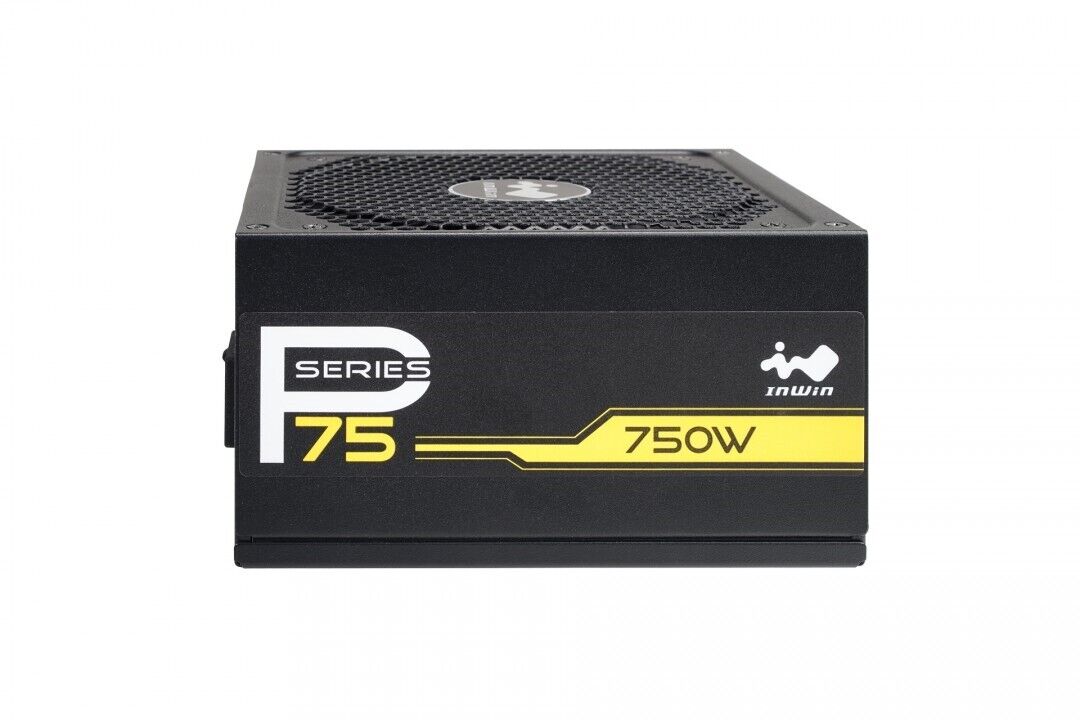

In-Win P75 Power Supply 750W SECC ATX12V EPS12V APFC 80+ Gold Fully Modular

Vendor: In-Win

SKU: 247487
MPN: P75

Marketing Information
The P Series is an 80 PLUS®Gold certified power supply that focuses its features on efficiency, reliability and overall PC building experience.
The P Series’ low noise output makes this PSU the optimal choice for most PC builds.

80 PLUS® Gold Certified with Up to 90% Conversion Efficiency
The P Series delivers up to 90% efficiency, generating less heat and effectively reducing operating cost.

5V and 3.3V DC to DC Design
The P Series is equipped with a DC to DC converter design, that provides a superior dynamic response, and supports a foundation for greater system stability.

Highly Reliable Japanese Aluminium Electrolytic Capacitors
Premium Japanese capacitors with 105°C rating improves power stability at higher temperatures and provides an ultra-long lifespan.

Multi-Protection Safeguards
The P Series comes with plenty of safety protections safeguards. These precautions are to ensure quality and a safe power usage.

Fully Modular with High Quality Flat Cables
The fully modular and flexible flat cables allow builders limits the cables present in a PC. Easier cable management results in cleaner builds with better airflow.

Detail Specifications
Model
P75
Model Number
IW-PS-P750W
Total Power
750W
Material
SECC
Type
ATX12V V2.4
EPS12V V2.92
Cable Management
Fully Modular
PFC
Active PFC ( >0.95)
Efficiency
80 PLUS Gold (Up to 90%)
MTBF (Hours)
>100,000 hrs.
AC Input
100-240Vac.,10A, 50-60Hz
Fan
135mm FDB Fan
Typical Load Fan Noise(dBA)(50% Loading)
<25dBA
Operating Temperature Range (oC)
0 to 40 oC
Full Protection
OCP/ OVP/ UVP/ SCP/ OTP/ OPP
Safety Certifications
cTUVus/ TUV/ CB/ BSMI/ CE/ FCC/ EAC/ CCC/ RCM
Connectors
Connectors
20+4 Pin Motherboard
1
8 (6+2) Pin PCI-E
4
4 Pin Peripheral
4
4 Pin Peripheral
4
Floppy
1
AC INPUT
100-240Vac.,
DC OUTPUT/Max. Output Current/Max. Combined Power
+12V / 62.5A / 750W
+5V / 22A / 120W
+3.3V / 22A / 120W
-12V / 0.3A / 3.6W
+5VSB / 3A / 15W
Total Power
750W

Warranty Information
5 Year limited warranty - Direct from the Manufacturer
