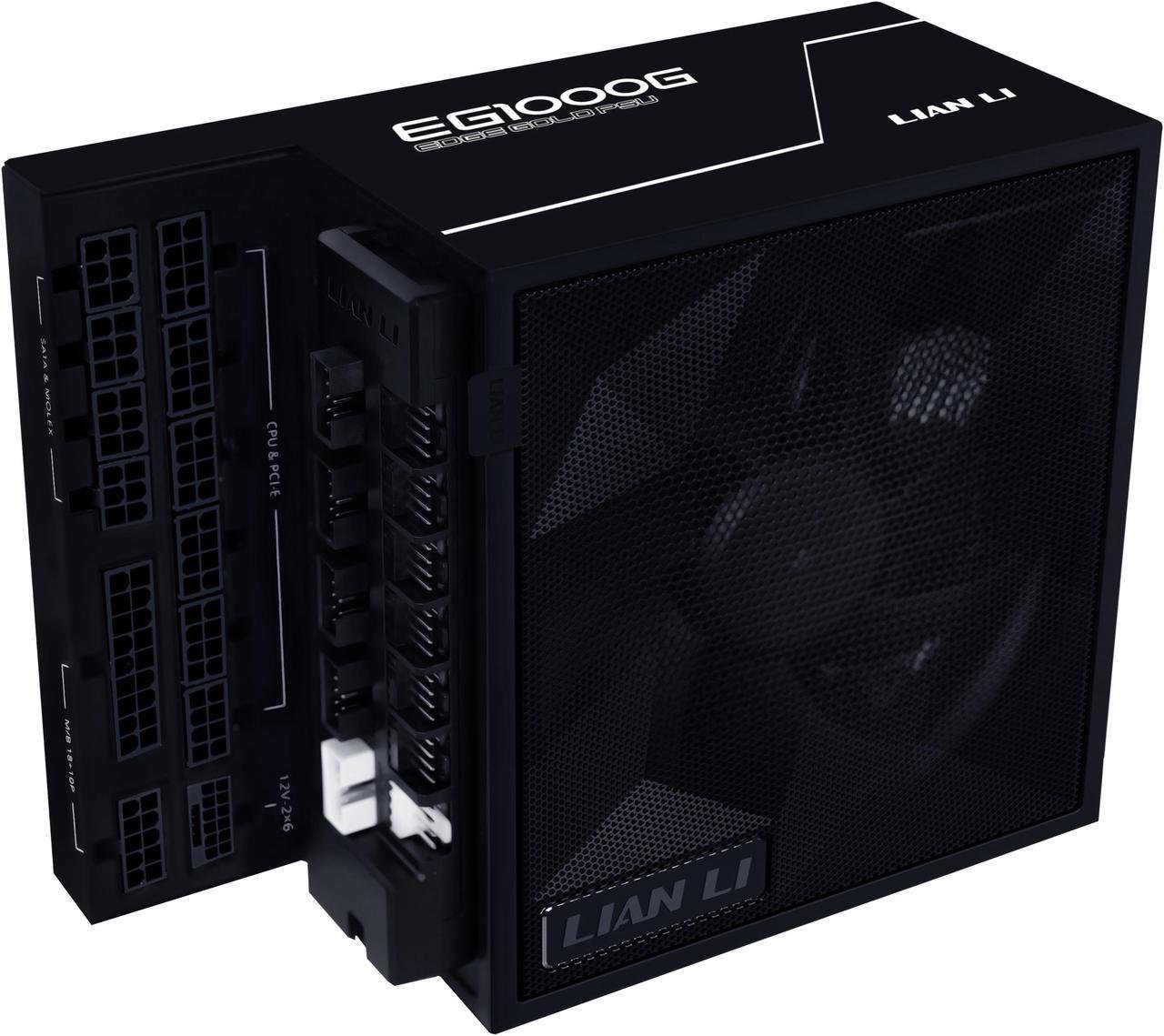

Lian Li EG1000G.BH 1000W Full Modular Power Supply w FAN HUB Gold L-Shape Black

Lian Li Edge Gold Series 1000W Full Modular Power Supply (Fan Hub Included)-ATX 3.0, 3.1-PCIE 5.1-L-Shape Design for Dual Chamber Case-120mm FDB Fan-Supports up to 4 USB Device - Black-EG1000G.BH

• Package: RETAIL
• Mfr#: EG1000G.BH
• UPC Code: 840353046825

• Dimensions: (D)182 mm X (W)86 mm X (H)150 mm
• Power Supply Design: Fully modular
• Color: Black
• Material: Steel
• Form Factor: ATX 3.1
• Certification: 80 PLUS GOLD / Cybenetics GOLD / PPLP GOLD
• Max. DC Output: 1000W
• Combined +3.3v & +5v: 120W
• Combined +12v: 996W
• Input Voltage: 100-240Vac
• Input Frequency Range: 12-6A 50-60Hz
• PFC: Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz
• Efficiency: 91.24%MAX
• Protective Circuit: OCP/OVP/OTP/OPP/SCP/UVP

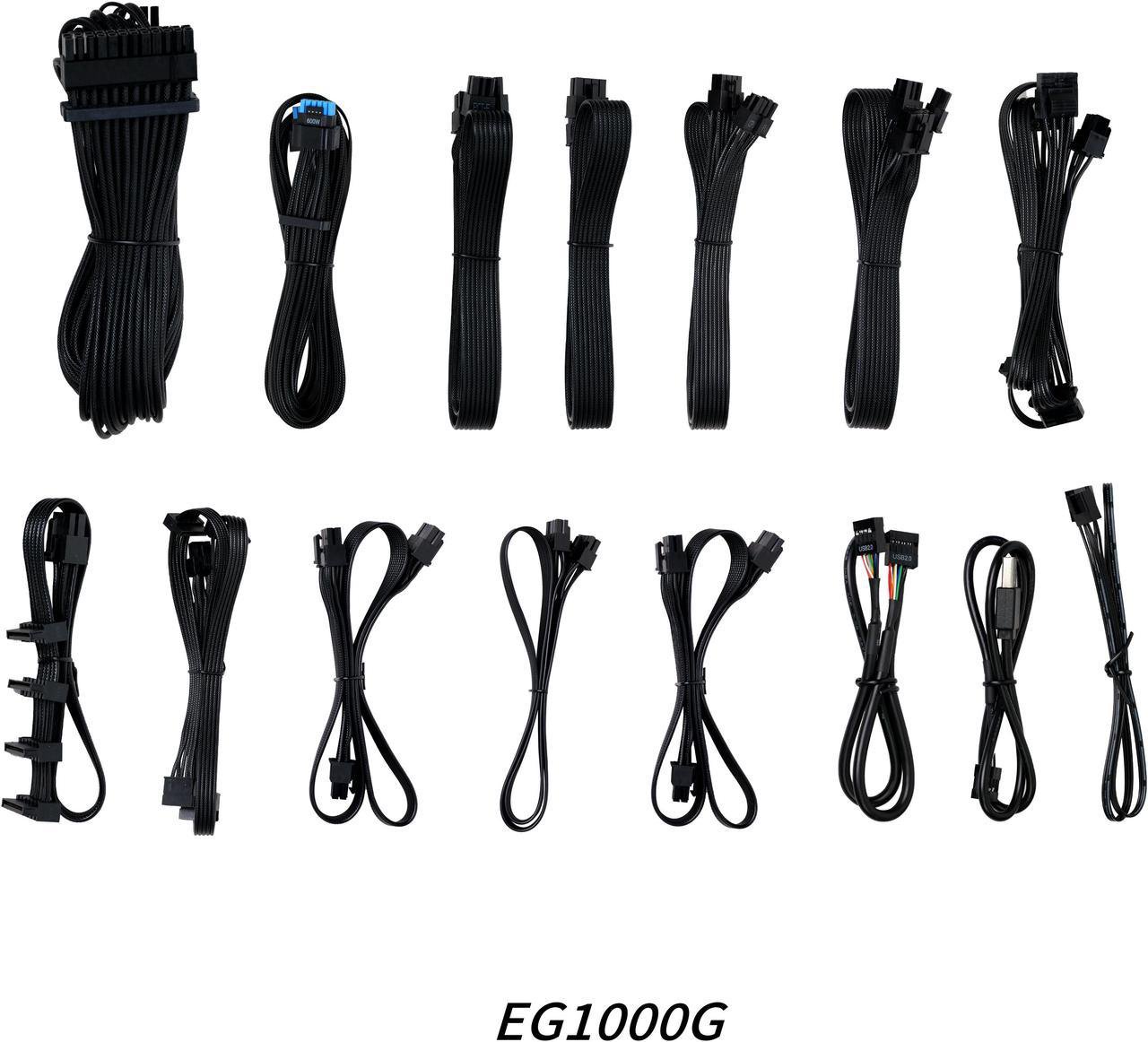

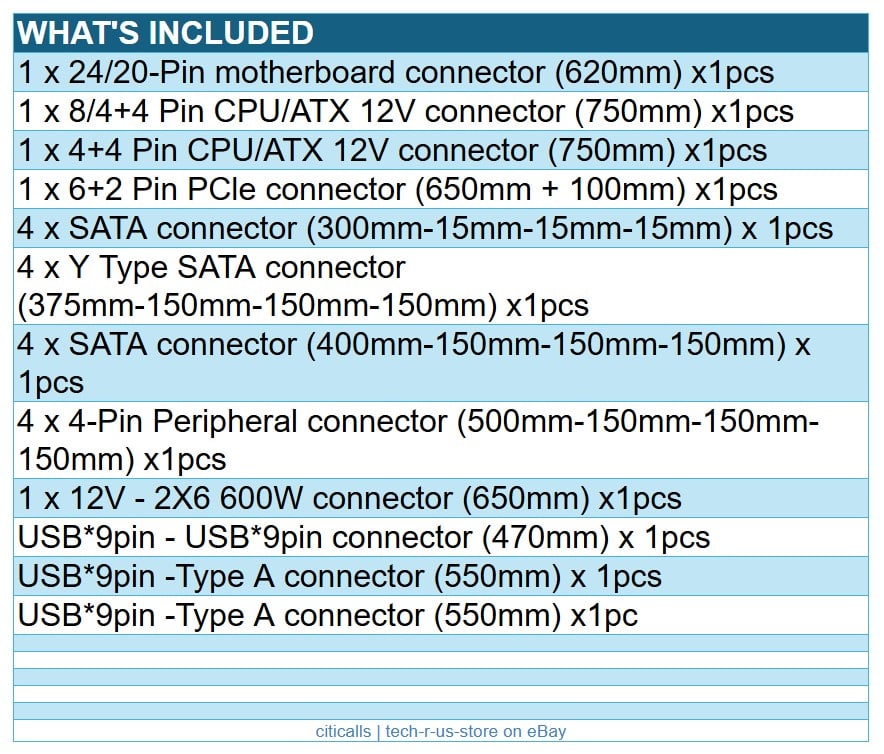

• Connectors
  • 1 x 24/20-Pin motherboard connector (620mm) x1pcs
  • 1 x 8/4+4 Pin CPU/ATX 12V connector (750mm) x1pcs
  • 1 x 4+4 Pin CPU/ATX 12V connector (750mm) x1pcs
  • 1 x 6+2 Pin PCle connector (650mm + 100mm) x1pcs
  • 4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs
  • 4 x Y Type SATA connector (375mm-150mm-150mm-150mm) x1pcs
  • 4 x SATA connector (400mm-150mm-150mm-150mm) x 1pcs
  • 4 x 4-Pin Peripheral connector (500mm-150mm-150mm- 150mm) x1pcs
  • 1 x 12V - 2X6 600W connector (650mm) x1pcs
  • USB*9pin - USB*9pin connector (470mm) x 1pcs
  • USB*9pin -Type A connector (550mm) x 1pcs
  • Fan Type: 120mm FDB Fan
  • Fan Speed: 2000RPM
  • Fan Noise Level: 30.9dBA
