Lian Li EG1000WE.US 1000W Full Modular Power Supply 80 Plus Gold L-Shape White

FEATURES

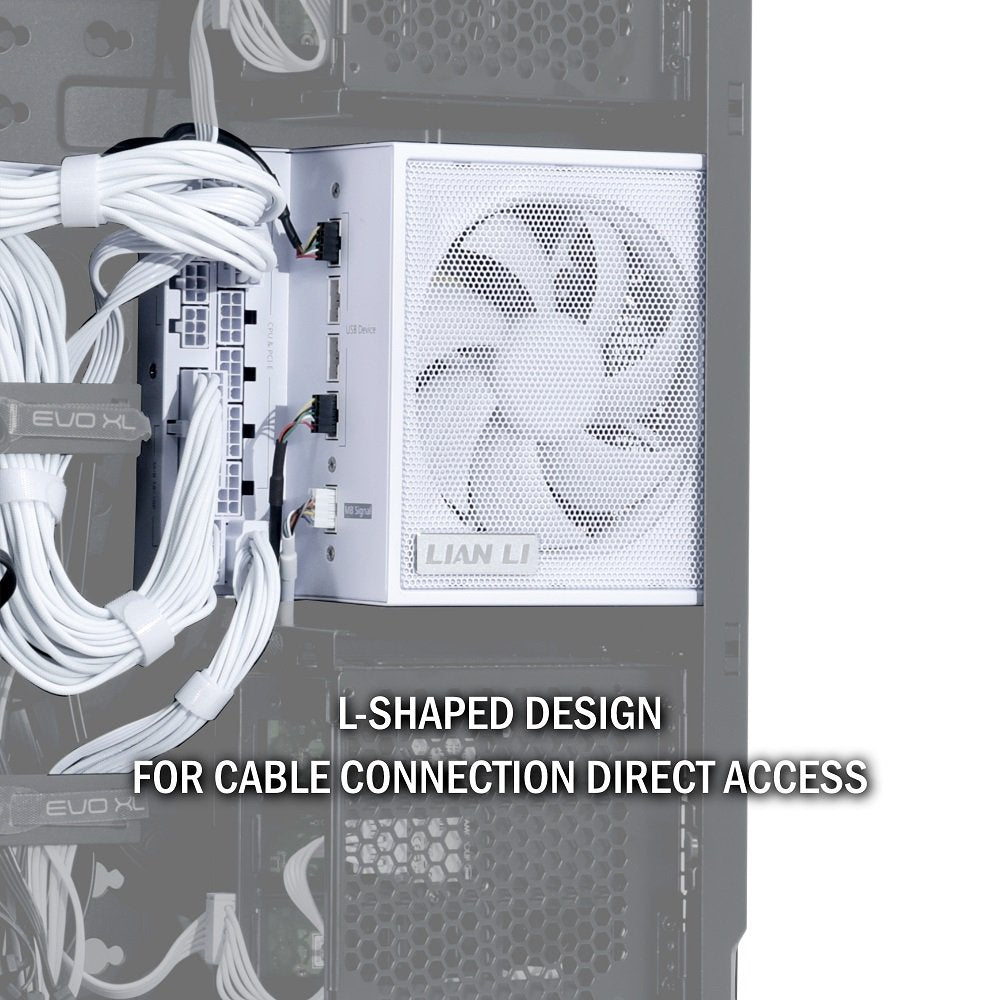

• L-Shape design for dual chamber case
• 80 PLUS Platinum Effieciency
• ATX 3.0/3/1 compliant PSU

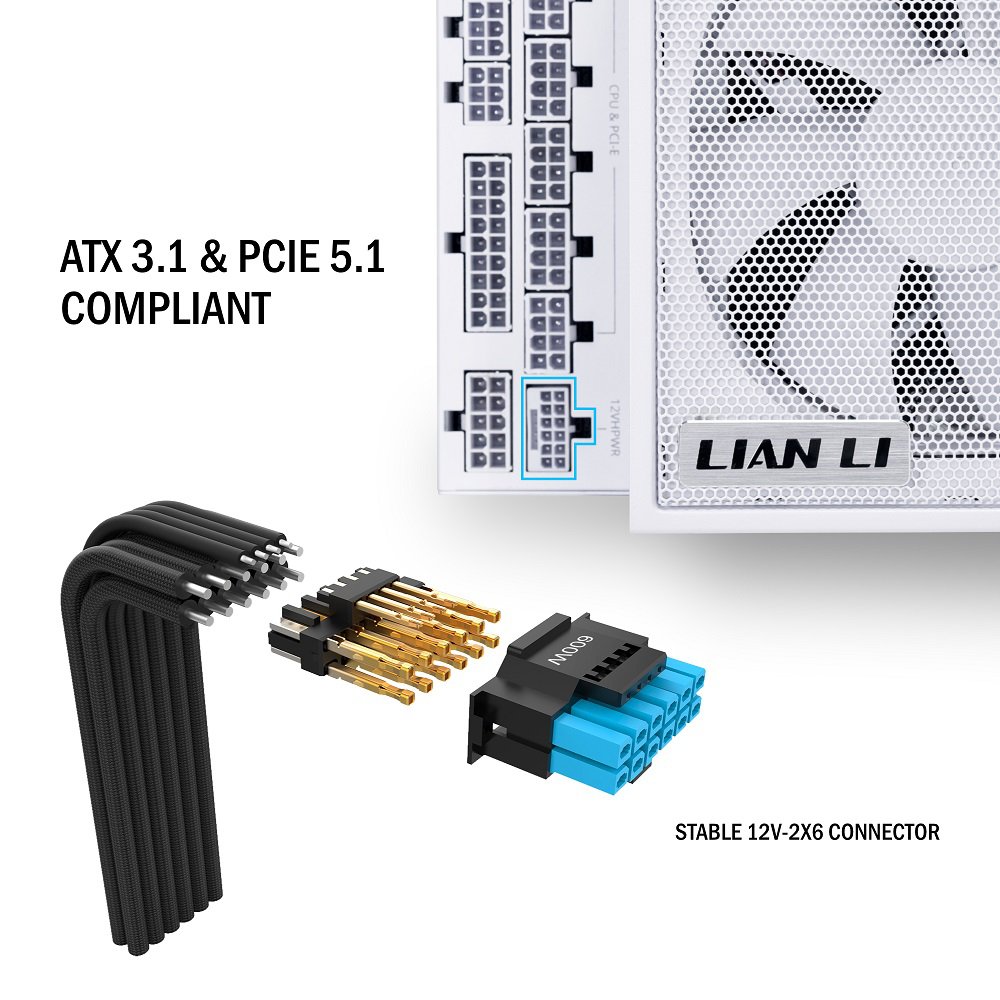

• PCIe 5.1 ready with in-house R&D 12V-2x6 alloy copper soldered terminals

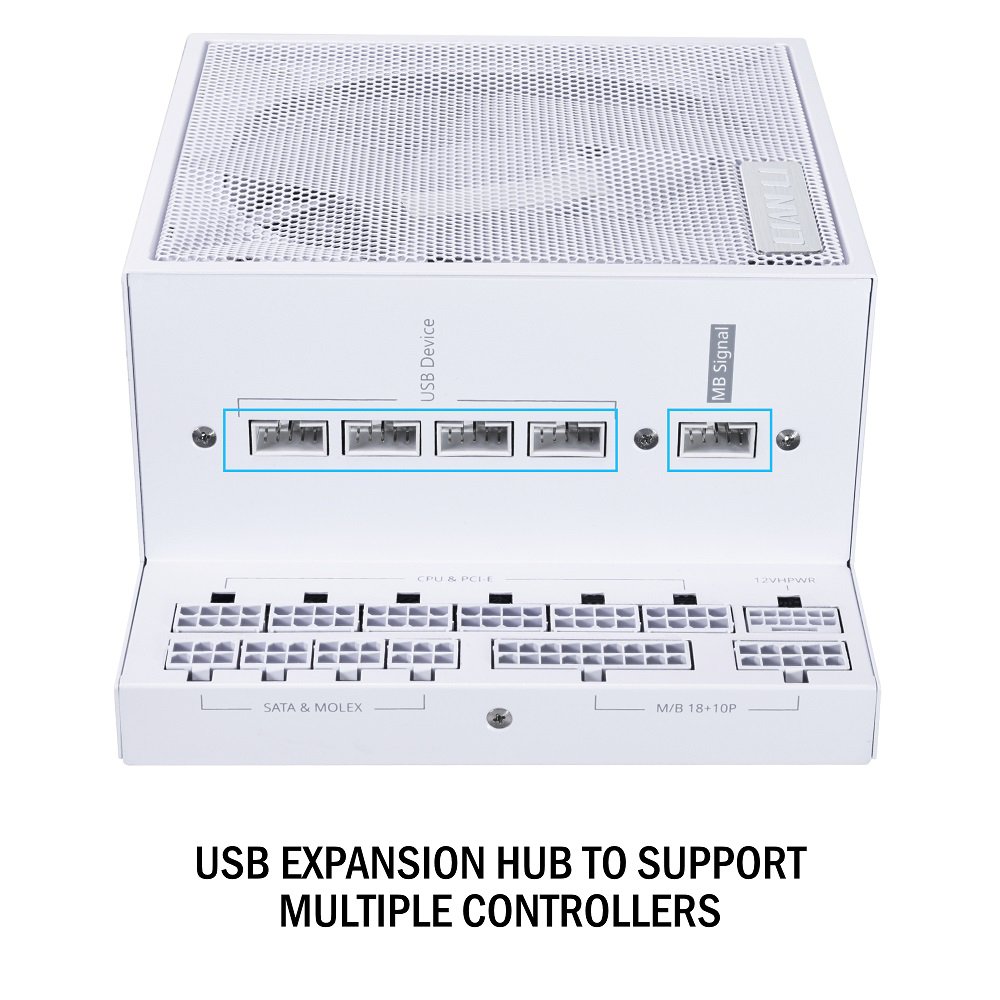

• Built-in USB expantion hub with 4 internal USB 2.0 headers
• Integrating German EPCOS bulk capacitors
• Full modular sleeved cables with cable combs on MB/CPU/GPU connectors

SPECIFICATIONS

• ATX12V Version: V3.1
• Color: White
• 80 Plus Efficiency: 80 Plus GOLD
• DC Output Cable: Full Modular
• Material: Steel
• PFC: Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz
• Input Rating: 100-240Vac 12-6A 50-60Hz
• MAX. DC Output: 1000W
• Combined +12V: 996 W
• Combined +3.3V & +5V: 120W
• Fan Spec: 120mm FDB Fan
• Fanless mode: Yes

CONNECTORS

• 1 x 24/20-Pin motherboard connector (500mm) x1pcs
• 1 x 8/4+4 Pin CPU/ATX 12V connector (550mm) x2pcs
• 1 x 8/6+2 Pin PCle connector (550m m) x4pcs
• 1 x 12V-2x6 connector (550mm) x 1pcs
• 4 x 4-Pin Peripheral connector (500mm-150mm-150mm-150mm) x1pcs
• 4 x SATA connector (400mm-150mm-150mm-150mm) x1pcs
• 4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs
• 4 x Y Type SATA connector (400mm-125mm*2) x1pcs
• USB*9pin - USB*9pin connector (350mm) x 1pcs
• USB*9pin -Type A connector (550mm) x 1pcs

DIMENSIONS

• Item Dimension: 9.53*6.93*4.02
• Package Dimension: 20.67*14.65*10.31
• Item Weight: 3.86 lbs

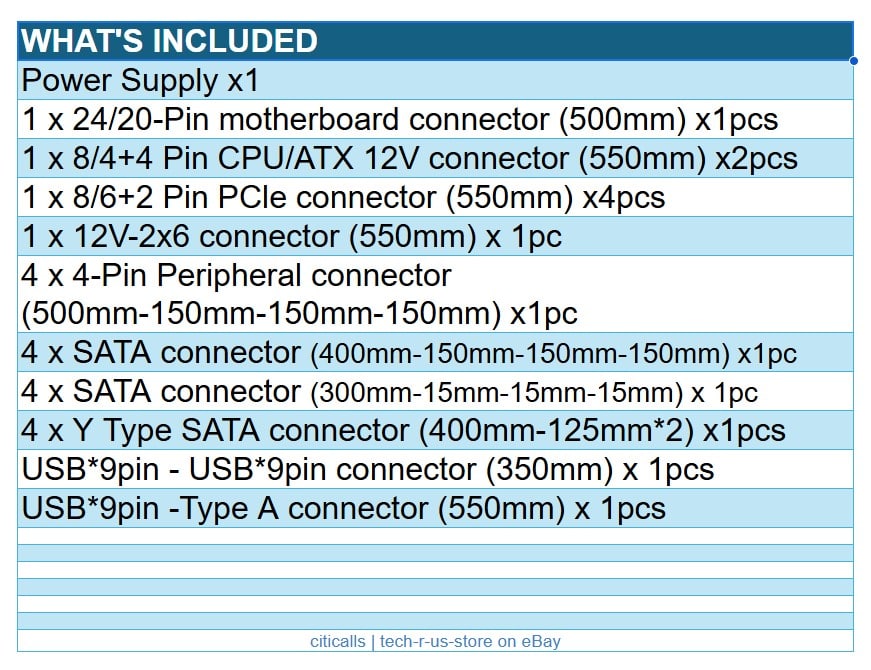

WHAT'S IN THE BOX

• Power Supply x1
• 1 x 24/20-Pin motherboard connector (500mm) x1pcs
• 1 x 8/4+4 Pin CPU/ATX 12V connector (550mm) x2pcs
• 1 x 8/6+2 Pin PCle connector (550mm) x4pcs
• 1 x 12V-2x6 connector (550mm) x 1pcs
• 4 x 4-Pin Peripheral connector (500mm-150mm-150mm-150mm) x1pcs
• 4 x SATA connector (400mm-150mm-150mm-150mm) x1pcs
• 4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs
• 4 x Y Type SATA connector (400mm-125mm*2) x1pcs
• USB*9pin - USB*9pin connector (350mm) x 1pcs
• USB*9pin -Type A connector (550mm) x 1pcs
