Lian-Li EG1200G WH Power Supply - 1200W 80+ Gold White with Hub Full Modular ATX

Product Information

Lian Li EDGE GOLD Overview

Designed for dual-chamber PC cases, the L-shaped Lian Li EDGE GOLD 1200W 80 PLUS Gold Modular ATX Power Supply provides a unique cabling solution, making it a highly capable PSU for users who prioritize clean aesthetics, convenience, and airflow.

This power supply features a fully modular design, with a USB and fan PWM module that can be attached to the power supply body or connected via a PCIe power interface for independent operation. The module directly provides six extended 4-pin fan connectors, each rated at 2A, to power additional fans and four USB ports supporting up to eight downstream connections, making it ideal for RBG controllers and USB devices. A USB 9-pin cable, a USB 9-pin to USB-A cable, and a 3-pin fan cable are included.

Connectivity

The EDGE GOLD features a single +12V 1200W rail, meeting ATX 3.1 motherboard compliance to efficiently operate your resource-demanding components. It features a multitude of connectors to suit your needs, such as 20+4 pin, 4+4 pin, and 8-pin motherboard connectors alongside six PCIe connectors, 12 SATA connectors, and one peripheral connector. A 16-pin 12VHPWR connector for high-powered NVIDIA graphics cards is included with this power supply.

Longer Cable Reach for Versatile Builds

The included cables are considerably longer compared to other Edge PSU models, offering flexibility for dual-chamber or regular towers, and ensuring optimal cable management for all kinds of builds.

80 PLUS Gold Rating

Achieving the 80 PLUS Gold rating, the EDGE GOLD ensures top-tier energy efficiency, reducing power consumption and heat output while delivering reliable, stable performance.

Cool and Quiet

The power supply comes equipped with a 120mm PWM fan under an open-style mesh vent for excellent heat dissipation. Even under heavy load, the fan operates efficiently with minimal noise, as well as offering a fanless mode, where the fans remain at zero rpm during low power loads for quiet operation.

Dual-Color PCIe 5.1 Connector

Lian Li's in-house designed 12V-2x6 connector features copper alloy soldered terminals and a dual-colored shell to ensure secure connections.

Industrial-Grade Capacitors

The EDGE GOLD PSU integrates the German EPCOS capacitors, offering compact, robust performance with higher tolerances to harsh temperatures and environments.

Sufficient Protection

This PSU features OCP, OVP, SCP, OPP, UVP, OTP, SIP, and NLO protections, as well as an inrush current limiter that ensures the Edge Gold delivers continuously stable and reliable power.

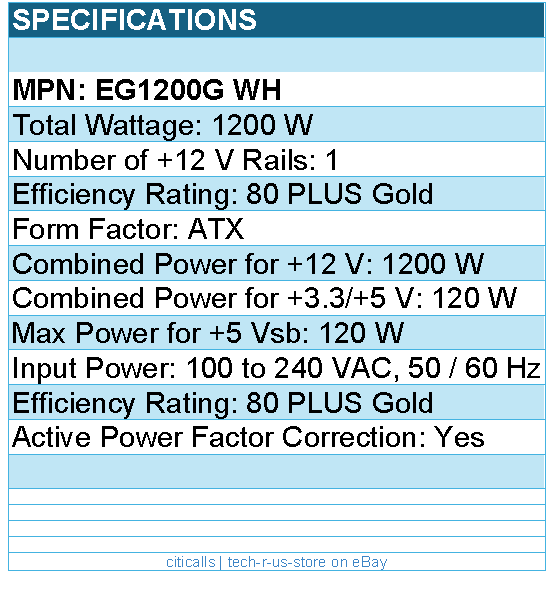

• MPN: EG1200G WH
• Total Wattage: 1200 W
• Number of +12 V Rails: 1
• Efficiency Rating: 80 PLUS Gold
• Form Factor: ATX
• Combined Power for +12 V: 1200 W
• Combined Power for +3.3/+5 V: 120 W
• Max Power for +5 Vsb: 120 W
• Input Power: 100 to 240 VAC, 50 / 60 Hz
• Efficiency Rating: 80 PLUS Gold
• Active Power Factor Correction: Yes

Cooling

• Fan Size: 120 mm
• Bearing Type: Fluid Dynamic Bearings (FDB)
• Noise Level: 39.3 dBA

Physical

• Form Factor: ATX
• Compliance: ATX v3.1

Protection

• Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection
