Lian-Li EG1300 White Power Supply - 1300W 80+ PLATINUM Full Modular ATX White

Marketing Information

THE “POWER” FOR DUAL CHAMBER CASES

The EDGE PSU series introduces a revolutionary power supply featuring a unique L-shape design, an integrated USB hub, and enhanced efficiency. Experience the blend of aesthetics and convenience in your PC build.

AVAILABLE IN 2 COLORS AND 3 WATTAGES

Offering versatile options, the EDGE PSU is available in multiple configurations to meet different power needs or match the components’ color.

INNOVATIVE L-SHAPE DESIGN

Engineered specifically for dual-chamber chassis such as the LIAN LI O11 series, the EDGE PSU’s L-shape design is ideal for vertical installation at the second chamber.

This unique form factor reorients the connectors outward, simplifying cable management and ensuring a clean, organized build.

POWER AND USB HUB TWO-IN-ONE

The full Edge Series integrates 4 × 9-pin internal USB expansion, which function as a 1-to-7 USB hub, simplifying the connection of USB devices such as UNI fans, Strimer Plus, and RGB controllers to the motherboard.

All USB ports features uninterruptible power, allowing connected devices to remain operational when the PC is turned off, as long as the power supply is on. Each port supports a rate current of 500mA.

PLATINUM CERTIFIED

Achieving the 80 PLUS, Cybenetics and PPLP Platinum certifications, the EDGE Series ensures top-tier energy efficiency, reducing power consumption and heat output while delivering reliable, stable performance.

ATX 3.0 AND 3.1 COMPLIANT

Fully compliant with ATX 3.0 and 3.1 standards, the EDGE Series meets the latest power supply specifications, ensuring compatibility with the newest components and motherboards.

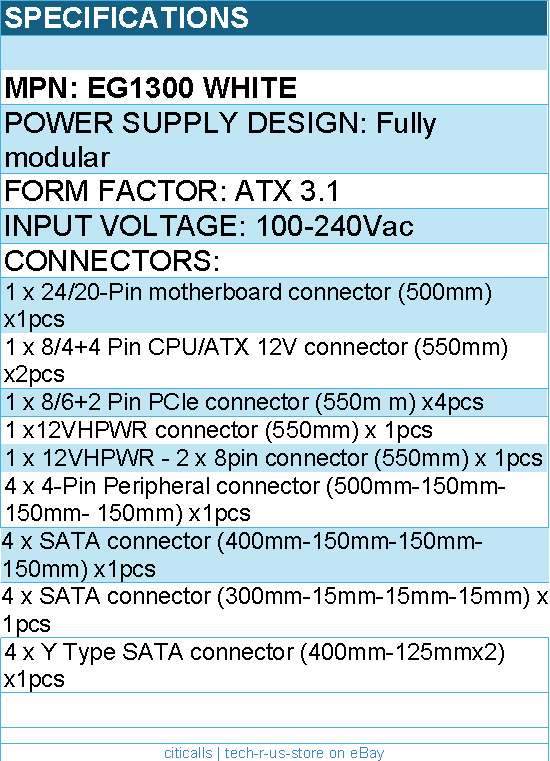

Detail Specifications

• MPN: EG1300 WHITE
• PRODUCT NAME: EDGE1300
• POWER SUPPLY DESIGN: Fully modular
• COLOR: White
• MATERIAL: Steel
• FORM FACTOR: ATX 3.1
• CERTIFICATION: 80 PLUS PLATINUM / Cybenetics PLATINUM / PPLP PLATINUM
• MAX. DC OUTPUT: 1300W
• COMBINED +3.3V and +5V: 120W
• COMBINED +12V: 1296W
• INPUT VOLTAGE: 100-240Vac
• INPUT FREQUENCY RANGE: 15-7.5A 50-60Hz
• PFC: Active PFC, PF > 0.90 under full load at 115Vac, 60Hz
• EFFICIENCY: 92.39% MAX
• PROTECTIVE CIRCUIT: OCP/OVP/OTP/OPP/SCP/UVP

• CONNECTORS
  • 1 x 24/20-Pin motherboard connector (500mm) x1pcs
  • 1 x 8/4+4 Pin CPU/ATX 12V connector (550mm) x2pcs
  • 1 x 8/6+2 Pin PCle connector (550m m) x4pcs
  • 1 x12VHPWR connector (550mm) x 1pcs
  • 1 x 12VHPWR - 2 x 8pin connector (550mm) x 1pcs
  • 4 x 4-Pin Peripheral connector (500mm-150mm-150mm- 150mm) x1pcs
  • 4 x SATA connector (400mm-150mm-150mm-150mm) x1pcs
  • 4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs
  • 4 x Y Type SATA connector (400mm-125mmx2) x1pcs
  • USB 9pin - USB 9pin connector (350mm) x 1pcs
  • USB 9pin -Type A connector (550mm) x 1pcs

• FAN TYPE: 120mm FDB Fan
• FAN SPEED: 2400RPM
• FAN NOISE LEVEL: 33.61dBA

Warranty Information

• 10 Years from Lian-Li
