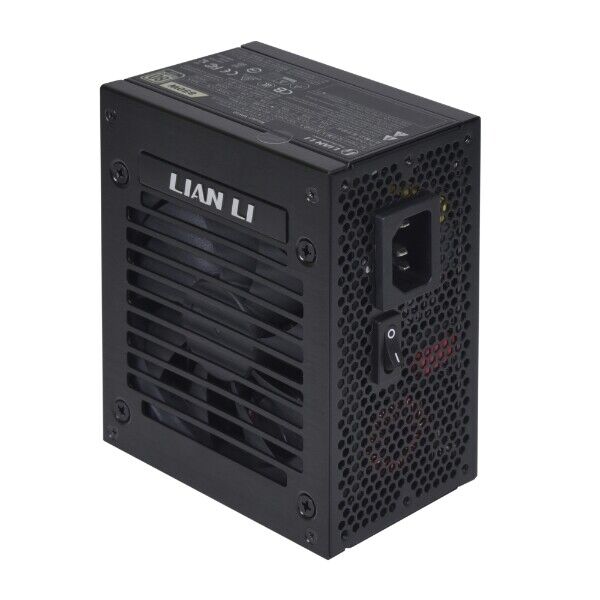

Lian-Li SP850 Power Supply 850W APFC 80+ GOLD Full modular SFX Black Retail

Vendor: Lian-Li

SKU: 265188
MPN: SP850

Marketing Information
• 80 PLUS GOLD Efficiency
• Fully modular braided cables for a clean look
• High durability Japanese electrolytic capacitors
• ZERO RPM mode under 40% load for silent operation
• Sleek and classic exterior with brushed aluminum housing
• OVP/OPP/SCP/UVP/OCP/OTP protection
• 12VHPWR connector cable without sideband contact included (not compatible with 40 series graphic card)

SP850
Performance SFX Form Factor Power Supply
The SP850 is a stylish high-performance PSU that perfectly fits small-form-factor PCs while supporting power-hungry components.

80 PLUS GOLD CERTIFICATE
SP850 achieves 91.55% efficiency 115VAC at 50% load, which edges close to the 80PLUS PLATINIUM a requirement at 92% efficiency 115VAC at 50%, ensuring less power wastage.

SP850 COMPOSITION
● Aesthetic – Aluminum Housing
● Silent – Zero RPM mode
● Powerful – 850 Watts
● Perfect Size – SFX Form
● Practical – Fully Modular Design
● Longevity – Japanese Electrolytic Capacitors

COOLING IN SILENCE

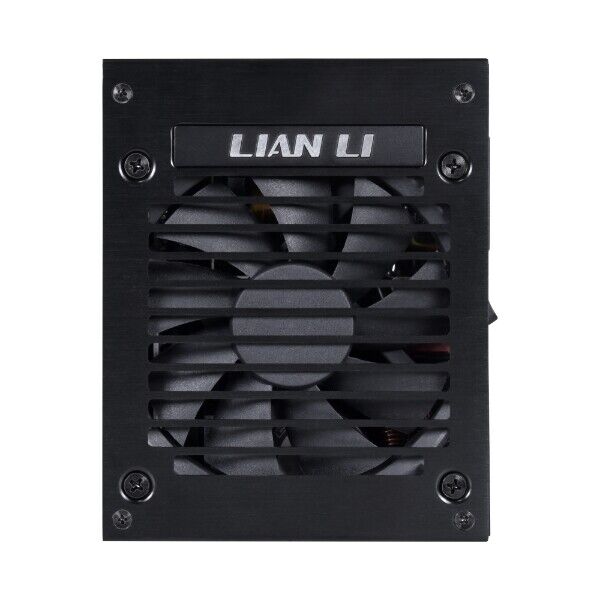

To achieve minimal acoustic levels, the SP850 features a 92mm hydraulic bearing fan that operates at zero RPM mode until the PSU reaches 40% load or once the ambient temperature reaches 60°C.

Detail Specifications
POWER SUPPLY DESIGN
Fully modular
COLOR
Black
MATERIAL
Steel/brushed aluminum housing
FORM FACTOR
SFX
CERTIFICATION
80 PLUS Gold
POWER SUPPLY DESIGN
Fully modular
MAX. DC OUTPUT
850W
COMBINED +3.3V and +5V
100W
COMBINED +12V
840W
INPUT VOLTAGE
100-240Vrms
INPUT FREQUENCY RANGE
50Hz-60Hz
PFC
Active PFC(PF)>0.90 at full load
EFFICIENCY
93.53% MAX
PROTECTIVE CIRCUIT
OCP, OVP, OTP, OPP, SCP, UVP
CONNECTORS
1 x 24/20-Pin motherboard connector (300mm) x1pcs 1 x 8/4+4 Pin CPU/ATX 12V connector (600mm) x2pcs 1 x 8/6+2 Pin PCle connector (400mm) x1pcs 2 x 8/6+2 Pin PCle connector (400mm-120mm) x1pcs 4 x SATA connector (120mm120mm-120mm-120mm) x2pcs 4 x 4-Pin Peripheral connector (120mm-120mm-120mm- 120mm) x1pcs 1x12VHPWR connector cable without sideband contact (400mm) x 1pcs
NOISE LEVEL
17.1-40.6DBA
FAN RPM
1000-2800 RPM
BEARING TYPE
HYB

Warranty Information
5 years - Direct from the Manufacturer
