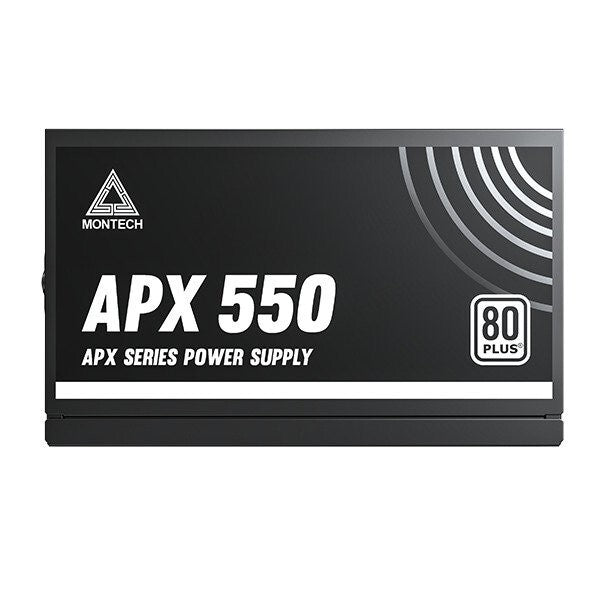

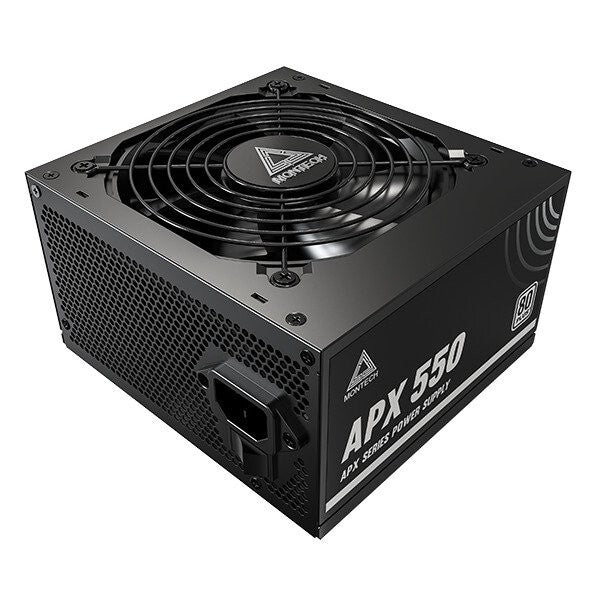

Montech APX 550W APX Series Power supply (internal) - DC-DC - ATX12V - 80 PLUS

MPN: APX 550W

Main Features

• Product Name: APX 550W
• ATX Version: Intel ATX12V
• PFC: Active PFC
• Input Voltage: 100-240Vac
• Input Current: 12A
• Input Frequency: 50-60Hz
• Dimensions (L*W*H): 150*140*86mm

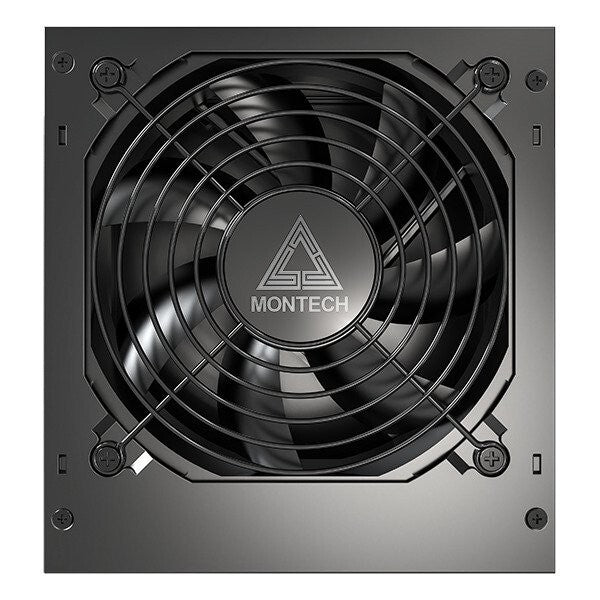

• Fan Size: 120mm
• Efficiency: 80% Typically
• Operating Temperature: 0-45 C
• Protections: OVP / OPP / OTP / SCP / OCP/ UVP
• Regulatory: cTUVus / TUV / CB / CE / RoHS / FCC-ICES / EAC / RCM / BSMI
• Connectors
• -M/B 20+4 Pin: 1
• -CPU 4+4 Pin: 2
• -PCIE 6+2 Pin: 2
• -SATA: 6
• -Molex 4 Pin: 3

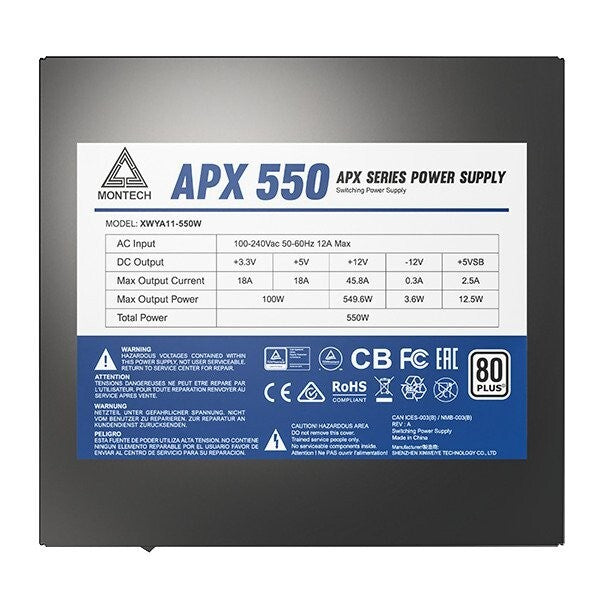

• AC Input: 100-240Vac 50-60Hz 12A MAX
• DC Output: +3.3V; +5V; +12V; -12V; +5VSB
• Max Output Current: 18A; 18A; 45.8A; 0.3A; 2.5A
• Max Output Power: 100W; 549.6W; 3.6W; 12.5W
• Total Power: 550W

Our Montech products are shipping from any of the following locations:

• Monrovia, CA 91016 (Most usual)
• San Jose, CA 95132
• Hanover Park, IL 60133
• Miami, FL 33122
• Edison, NJ 08837

International orders may take an additional 2 to 3 days.
