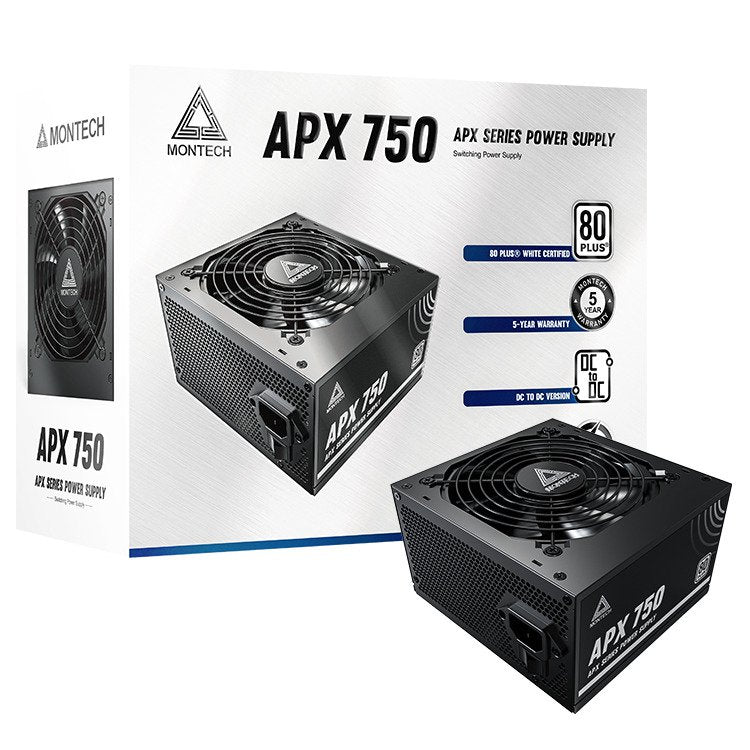

Montech APX 750W ATX12V 80 Plus Power Supply 100-240VAC SATA PCIE 6+2 PIN 20+4

MONTECH APX Series APX 750W - Power supply (internal) - DC-DC - ATX12V - 80 PLUS - AC 100-240 V - 750 Watt - active PFC

• Package: RETAIL
• Mfr#: APX 750W

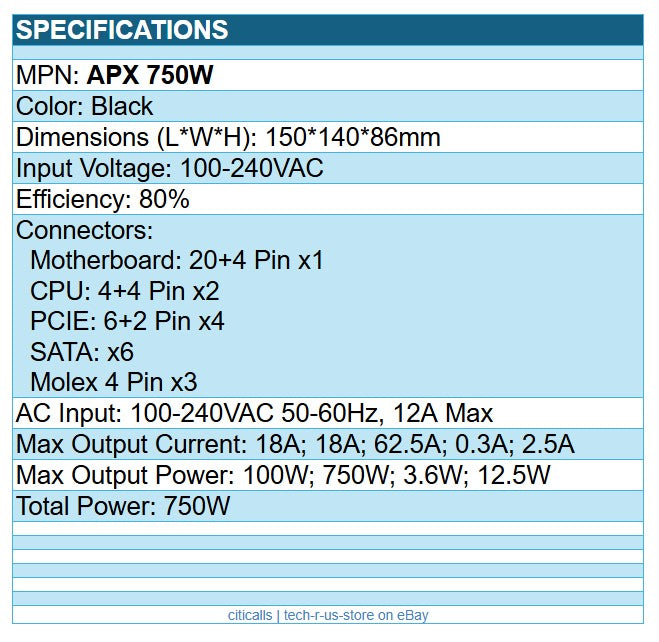

SPECIFICATIONS

• Product Name: APX 750W
• ATX Version: Intel ATX12V
• PFC: Active PFC
• Input Voltage: 100-240Vac
• Input Current: 12A
• Input Frequency: 50-60Hz
• Dimensions (L*W*H): 150*140*86mm

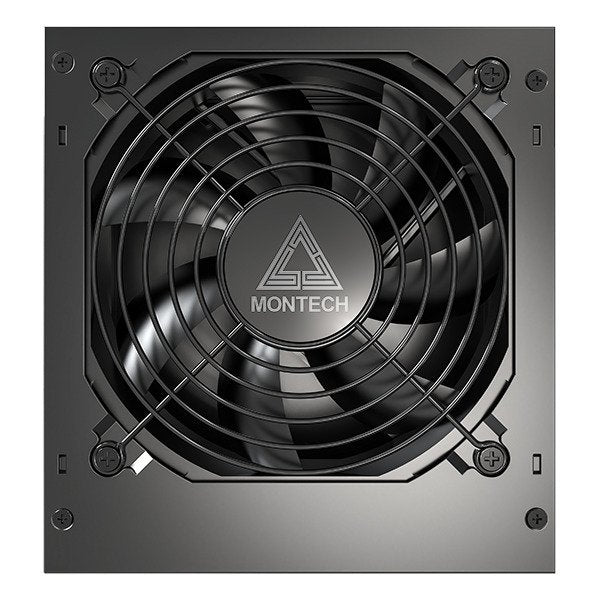

• Fan Size: 120mm
• Efficiency: 80% Typically
• Operating Temperature: 0-45C
• Protections: OVP / OPP / OTP / SCP / OCP/ UVP
• Regulatory: cTUVus / TUV / CB / CE / RoHS / FCC-ICES / EAC / RCM / BSMI
• Connectors
  • M/B 20+4 Pin: 1
  • CPU 4+4 Pin: 2
  • PCIE 6+2 Pin: 4
  • SATA: 6
  • Molex 4 Pin: 3

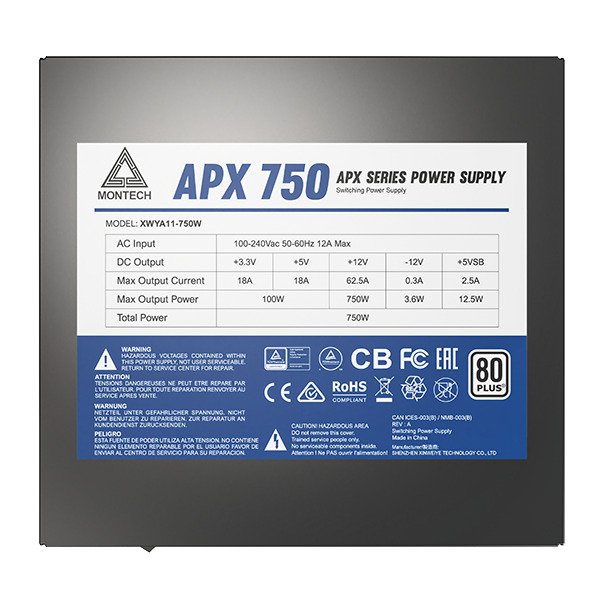

• AC Input: 100-240Vac 50-60Hz 12A MAX
• DC Output: +3.3V; +5V; +12V; -12V; +5VSB
• Max Output Current: 18A; 18A; 62.5A; 0.3A; 2.5A
• Max Output Power: 100W; 750W; 3.6W; 12.5W
• Total Power: 750W
