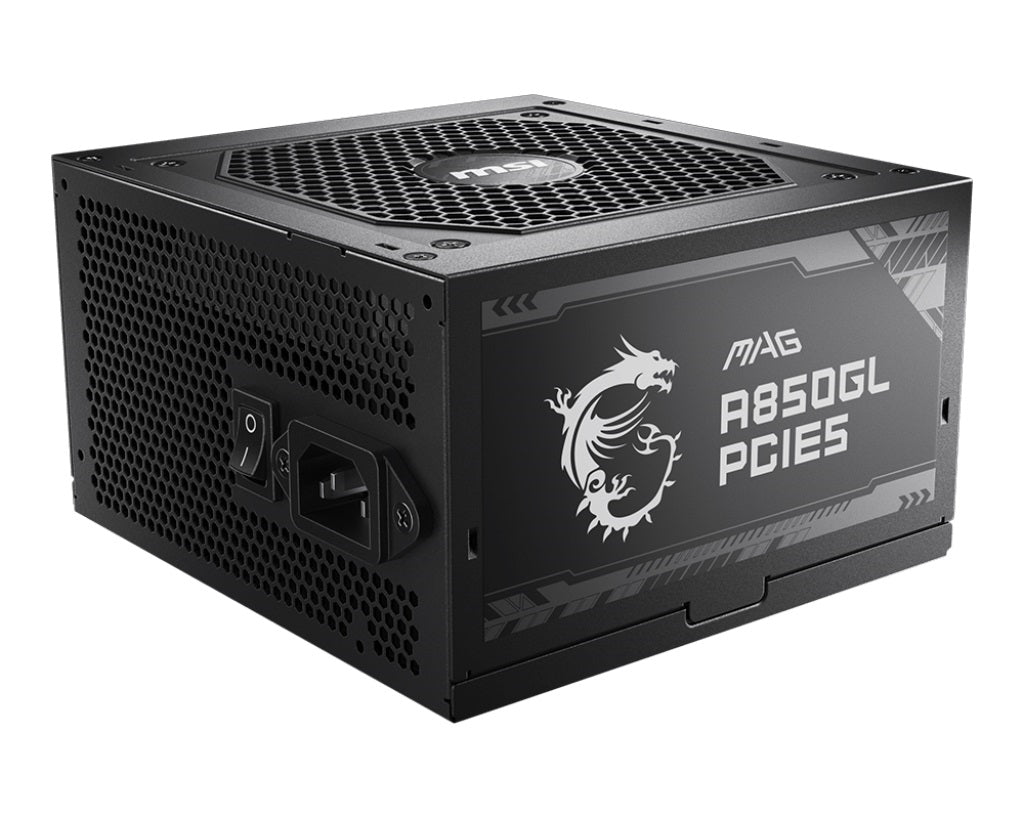

MSI MAGA850GLPCIE5 850 W 80Plus Gold Fully-Modular ATX Power Supply

Marketing Information

MAG A850GL PCIE5

• ATX 3.0 compatible, native PCIe 5.0 connector

• Supports NVIDIA® GeForce RTX™ 40 Series graphics cards

• Full modular design,Flat cables

• 80 Plus Gold certified for high efficiency

• Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP

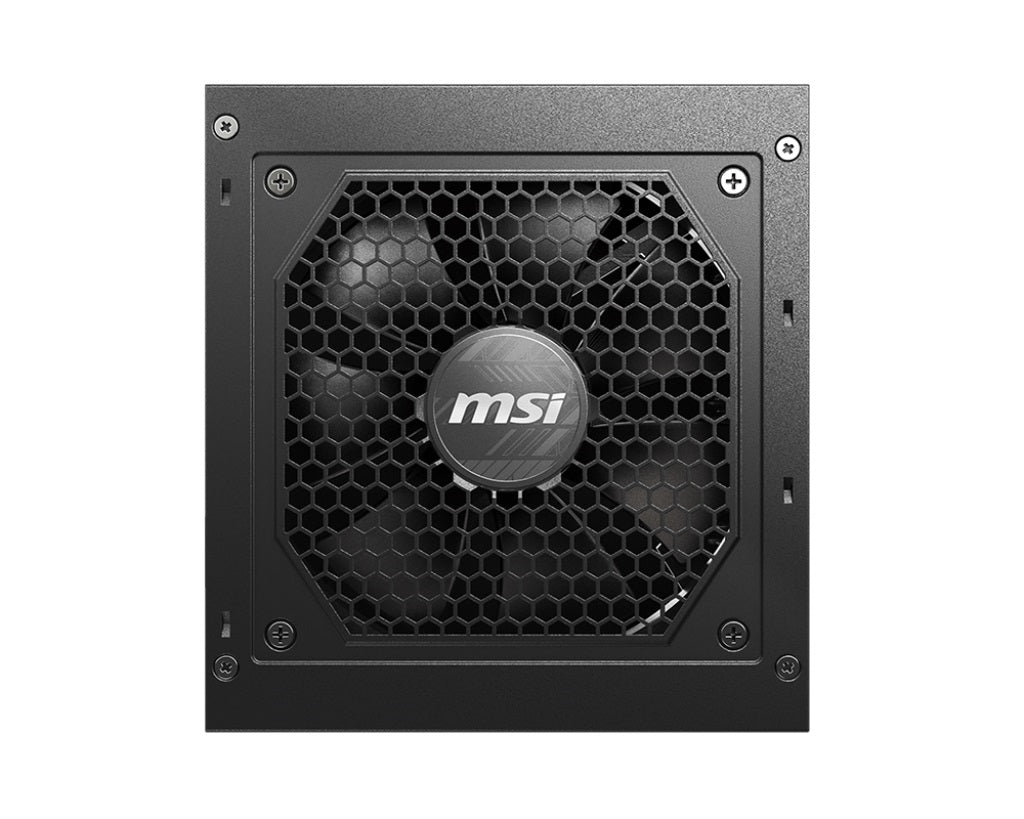

• 120mm Fluid Dynamic Bearing Fan

• LLC Full Bridge Topology with DC-DC module design

• MAG unite as one
• The MAG series fights alongside gamers in pursuit of honor.
• With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

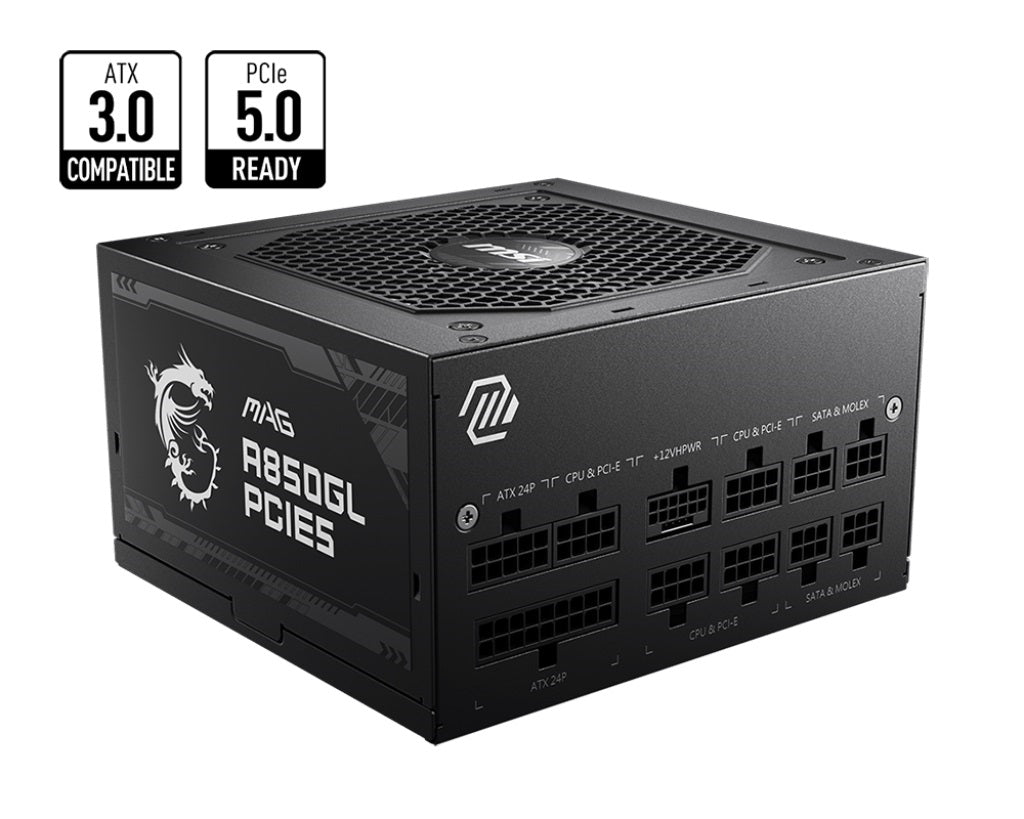

• ATX 3.0 COMPATIBLE
• It has an output port that is compliant with PCIe 5.0 and Intel PSDG(Power Supply Design Guide) ATX 3.0, also the MAG A850GL PCIE5 power supply can handle up to 2x total power excursion and 3x GPU power excursion.
• 80 PLUS GOLD CERTIFIED
• The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
• COMPACT SIZING
• Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.
• ONLY WHAT YOU NEED
• The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.
• ALL THE MORE ORGANIZED
• Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.

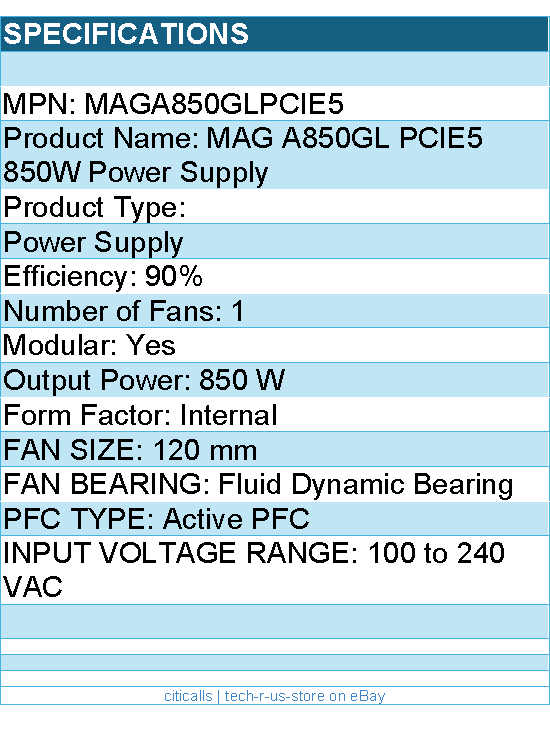

Detail Specifications

• EFFICIENCY RATING: 80 PLUS Gold (up to 90%)
• MODULAR: Yes (full modular)
• FAN SIZE: 120 mm
• FAN BEARING: Fluid Dynamic Bearing
• PFC TYPE: Active PFC
• INPUT VOLTAGE RANGE: 100 to 240 VAC
• POWER WATT: 850W
• POWER EXCURSION: 1700W (Note: up to 200% of the PSUs rated power for 100 microsecond)
• INPUT FREQUENCY RANGE: 47-63Hz
• PROTECTION: OCP / OVP / OPP / OTP / SCP / UVP

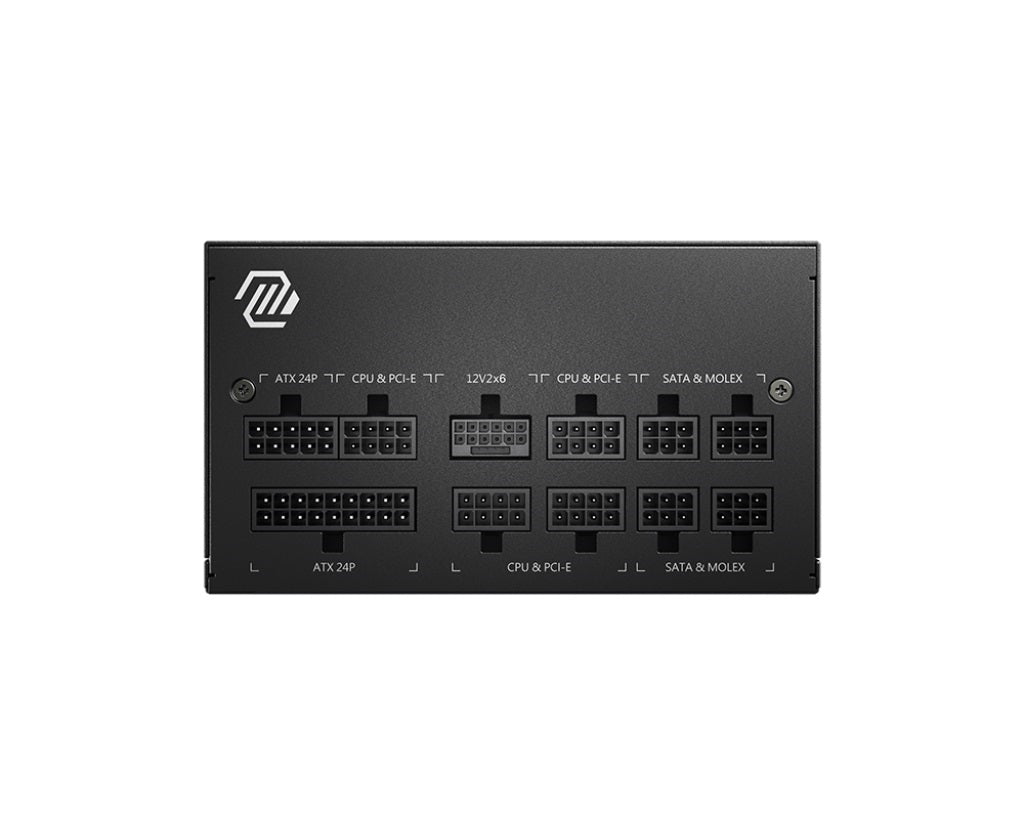

• ATX (24 PIN): 1
• EPS (4+4 PIN): 2
• PCI-E 5.0 (16 PIN): 1 (600W)
• PCI-E (6+2 PIN): 4
• SATA (15 PIN): 8
• MOLEX (4 PIN): 4
• FDD (4 PIN): 1
• Item Dimension (L inchxW inchxH inch)
• 12 x 9 x 5

Warranty Information

• 10-year from MSI
