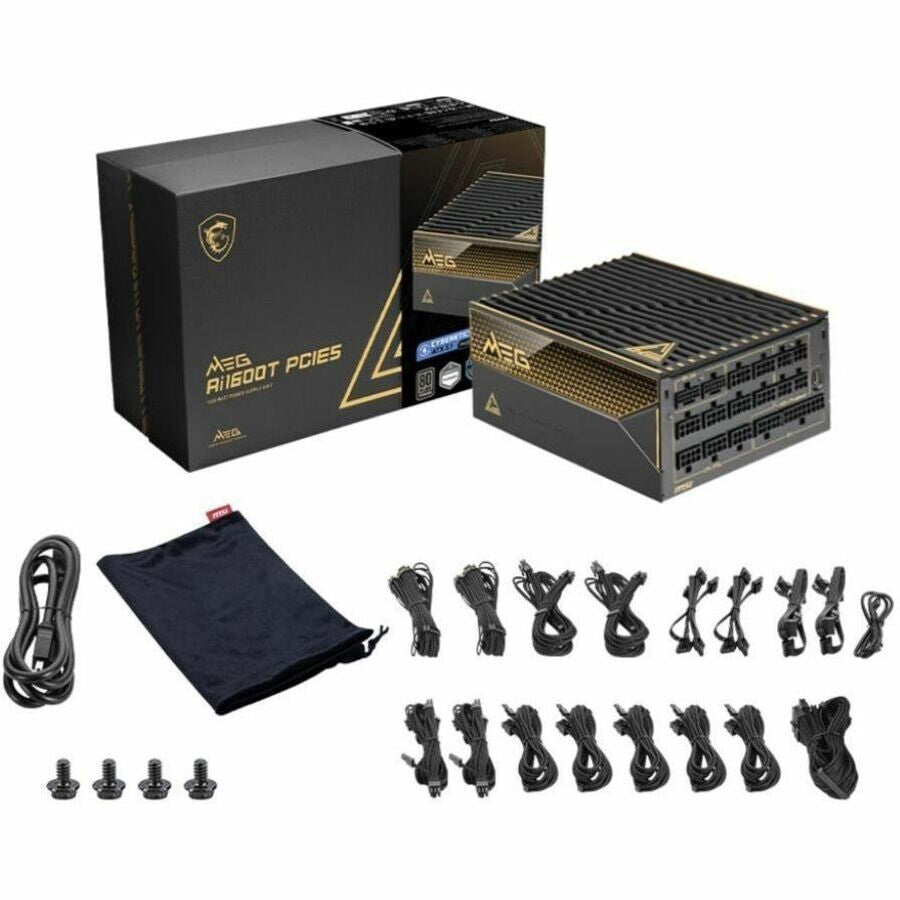

MSI MEGAi1600TPCIE5 1600W MEG 80 Plus Titanium ATX 3.1 135mm Fan Power Supply

GENERAL INFORMATION

• Manufacturer: MSI
• Manufacturer Part Number: MEGAI1600TPCIE5
• Brand Name: MSI
• Product Series: MEG
• Product Name: MEG 1600W Power Supply
• Product Type: Power Supply

FEATURES:

• Low Noise
• Compact
• RGB Lighting

TECHNICAL INFORMATION

• Specification Compliance: ATX 3.1
• Efficiency: 94%
• Power Factor Correction (PFC): Active
• Number of Fans: 1
• Fan Bearing Type: Dual Ball Fan Bearing
• Fan Diameter: 135 mm
• Protection Type:
  • Over Current
  • Over Temperature
  • Over Power
  • Short Circuit
  • Over Voltage
  • Under Voltage
  • Surge & Inrush Protection
  • No Load
• Modular: Yes
• NVIDIA SLI Supported: Yes
• Energy Efficiency Certification: 80 Plus Titanium

POWER DESCRIPTION

• Number of +12V Rails: 1
• Input Voltage:
  • 120 V AC
  • 230 V AC
• Output Voltage:
  • 5 V DC
  • 3.3 V DC
  • 12 V DC
  • -12 V DC
  • 5 V SB
• Output Voltage Detail:
  • 5 V DC @ 22 A
  • 3.3 V DC @ 22 A
  • 12 V DC @ 133.3 A
  • -12 V DC @ 0.3 A
  • 5 V SB @ 3 A
• Output Power: 1600 W
• Input Frequency: 60 Hz

INTERFACES/PORTS

• Number of SATA Power Connectors: 8
• PCI Express Connector: Yes
• Number of (6+2 pin) PCI Express Power Connectors: 9
• Number of (4+4 pin) CPU Power Connectors: 2
• Number of 4-pin Molex Power Connectors: 8

PHYSICAL CHARACTERISTICS

• Form Factor: Internal
• Height: 7.5"
• Width: 5.9"
• Depth: 3.4"
