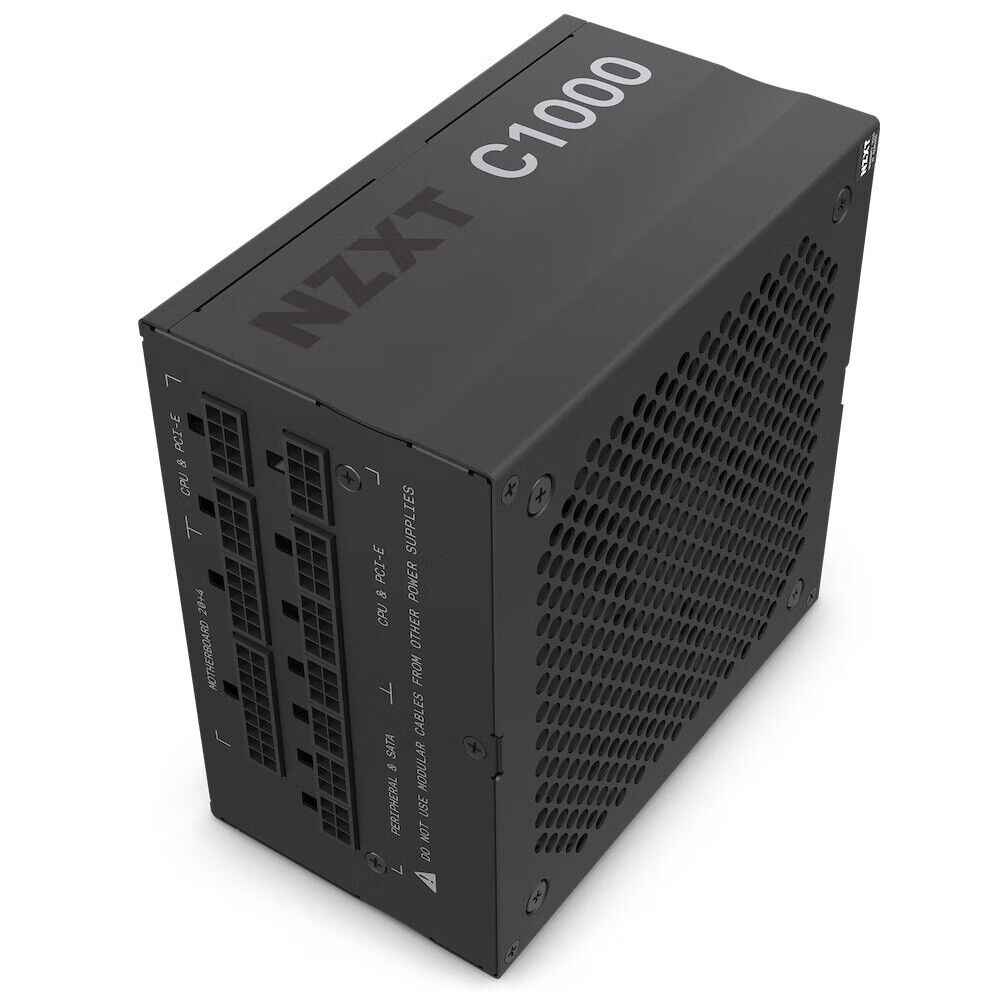

NZXT PA-0G1BB-US Power Supply C1000 GOLD 1000W 80+Gold Full-modular ATX
Regular price
$214.63 USD
Sale price
$214.63 USD
Regular price
$214.63 USD
Description
NZXT PA-0G1BB-US Power Supply C1000 GOLD 1000W 80+Gold Full-modular ATX
Current product
Current
Vendor:
NZXT
NZXT PA-0G1BB-US Power Supply C1000 GOLD 1000W 80+Gold Full-modular ATX
Regular price
$214.63 USD
Sale price
$214.63 USD
Regular price
$214.63 USD
Options
Descriptions
Vendor: NZXT
SKU: 266179
MPN: PA-0G1BB-US
Marketing Information
This PSU delivers 1000 watts of clean, stable power and is ideal for gaming and workstation PCs that have multiple GPUs and high-performance CPUs. The C1000 supports the latest GPUs, including up to an NVIDIA RTX 3090 and AMD GPUs up to the 6900 XT.
Inside the Box
C1000 Gold x1
24-Pin ATX Power Cable x1
4+4-Pin CPU Power Cables x2
6+2-pin PCIe Power Cable x3
SATA Cables x2
Peripherals Cables x2
6-32 Screws x4
Detail Specifications

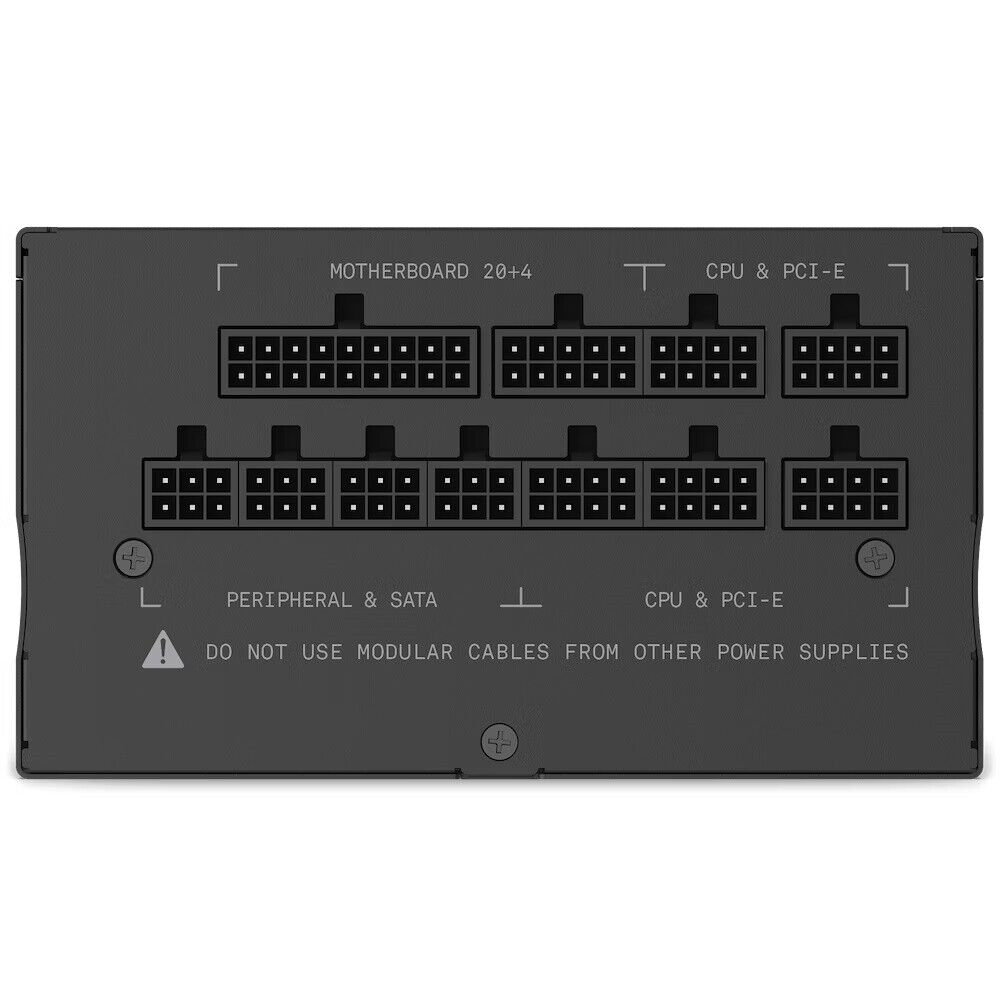

OUTPUT CONNECTORS
24-pin ATX power:
1
4+4-pin CPU power:
2
6+2-pin PCIe power:
6
SATA power:
6
Peripherals:
6
CABLE SPECS
24-pin ATX power:
600 mm, Nylon sleeving
4+4-pin CPU power:
700 mm, Nylon sleeving
6+2-pin PCIe power:
650 + 150 mm, Nylon sleeving
SATA power:
500 + 150 mm
Peripherals:
500 + 150 mm
AC INPUT RATING
100 - 240Vac:
13A-6.5A 50Hz-60Hz
DC OUTPUT RATING
+3.3V and +5V:
22A (120W)
+12V:
83.5A (1002W)
-12V:
0.3A (3.6W)
5Vsb:
3A (15W)
Total:
1000W
OPERATION
PF Correction:
Active at 0.96
MTBF:
100,000 hours
Temperature:
0 - 50 oC (derating from 100% to 80% from 40 oC to 50 oC)
ENERGY EFFICIENCY
Rating:
80 Plus Gold
20% loading:
87% at 115Vac
50% loading:
90.5% at 115Vac
100% loading:
87.5% at 115Vac

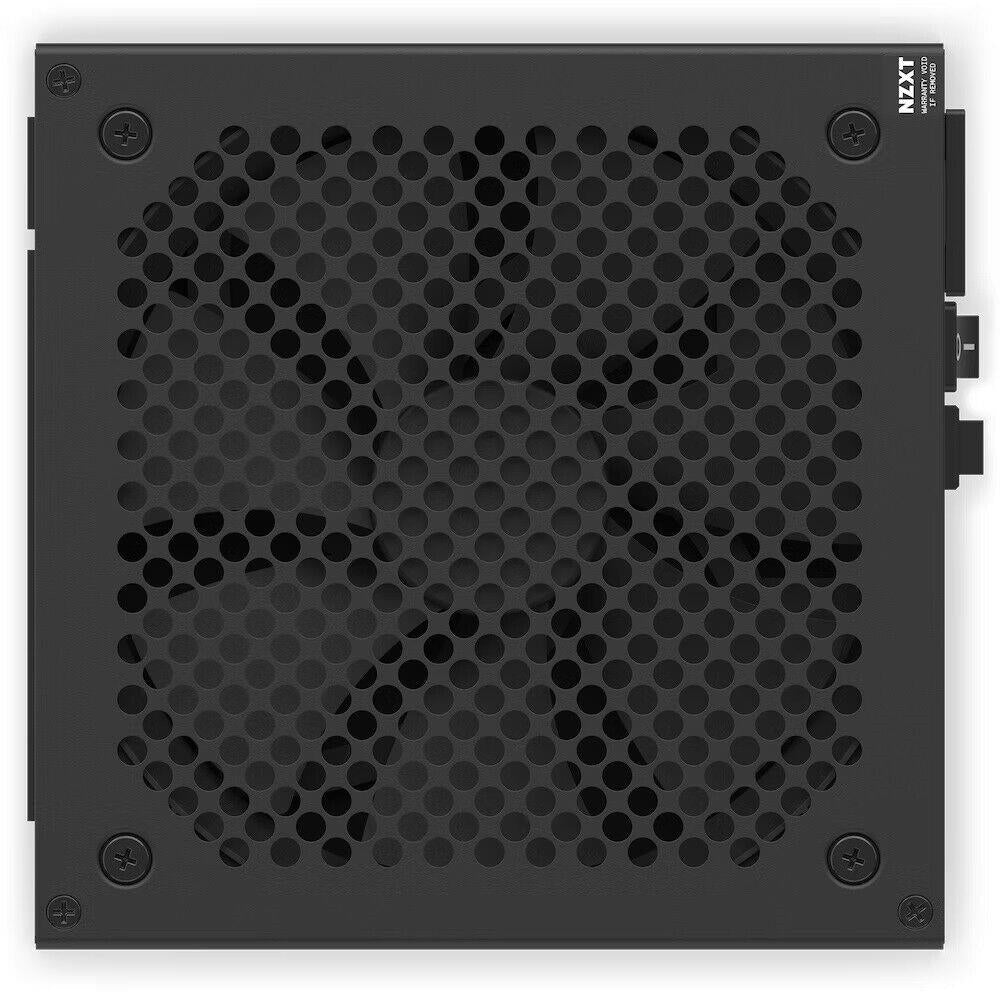

FAN SPECS
Dimensions:
135 x 135 x 25 mm
Speed:
0-2300 +/- 10% RPM
Airflow
:93.02 CFM (Tpy.)
Noise:
44.5 dBA max
Bearing:
Fluid Dynamic Bearing (FDB)
GENERAL
Material(s):
Steel, PCB and Plastic
Compliance Standard:
ATX12V v2.52 / EPS12V v2.92
Warranty Information
10 Years - Direct from the Manufacturer
