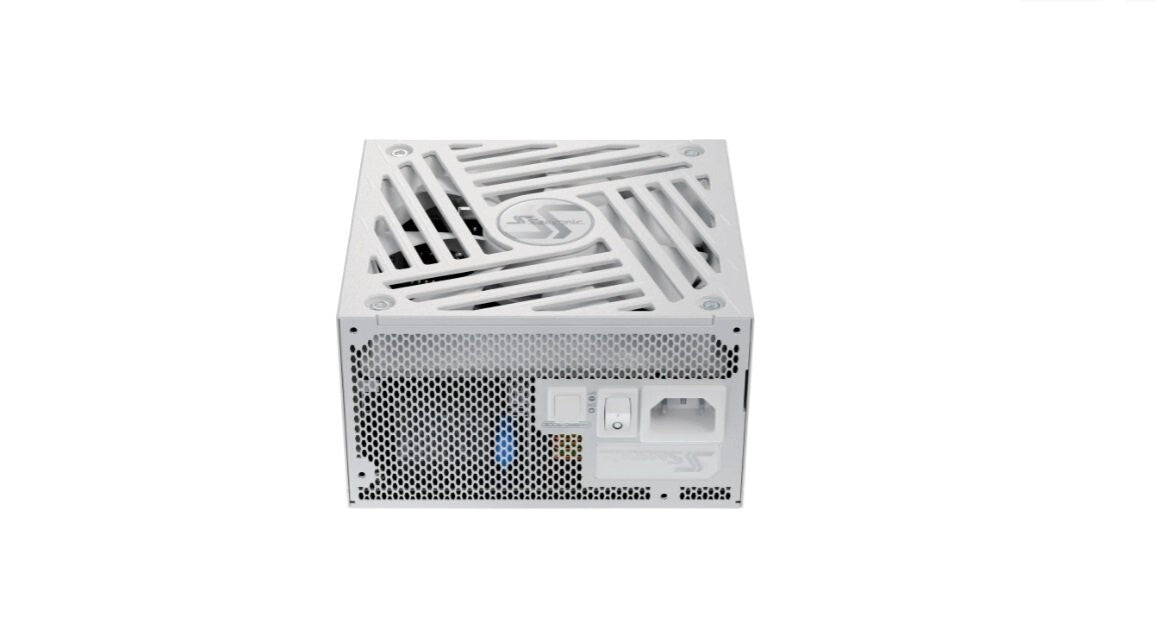

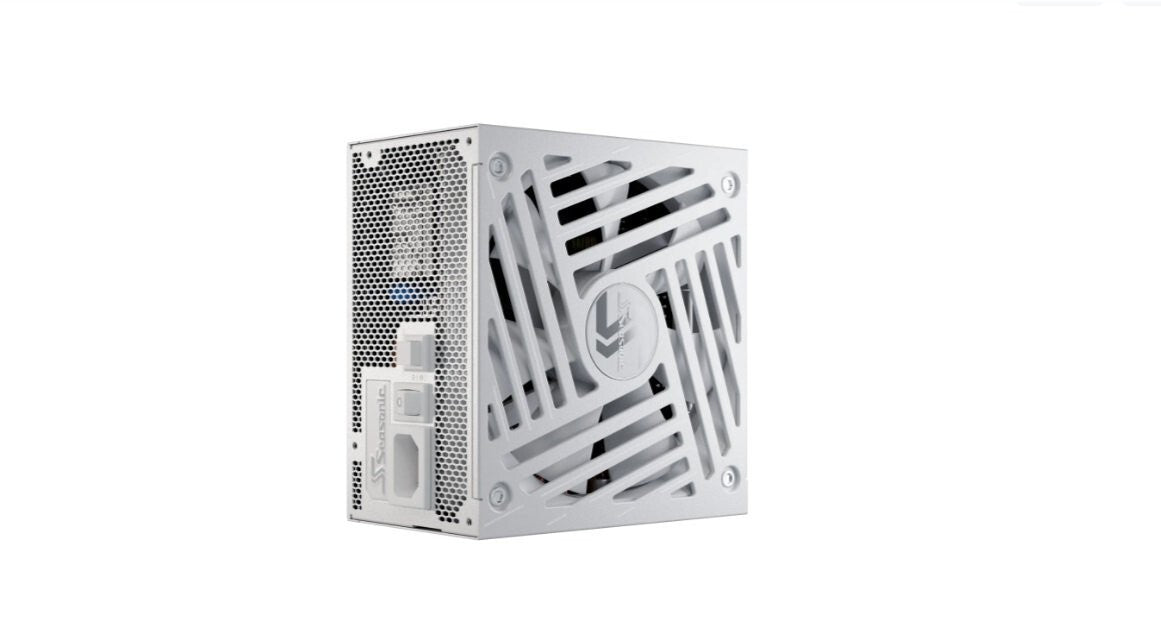

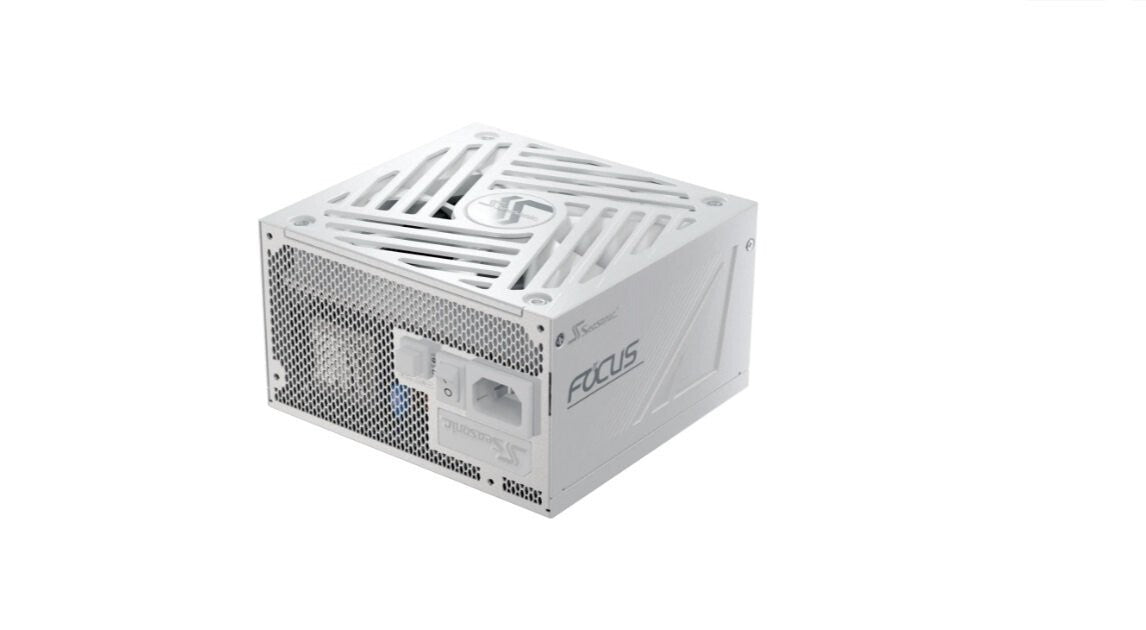

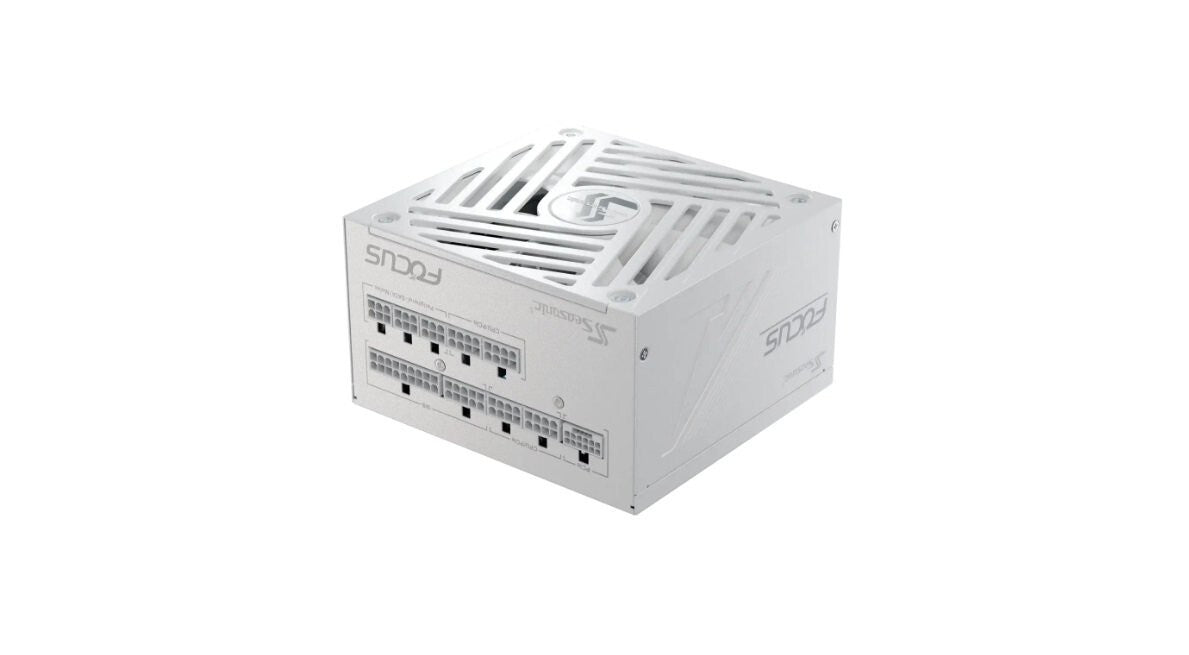

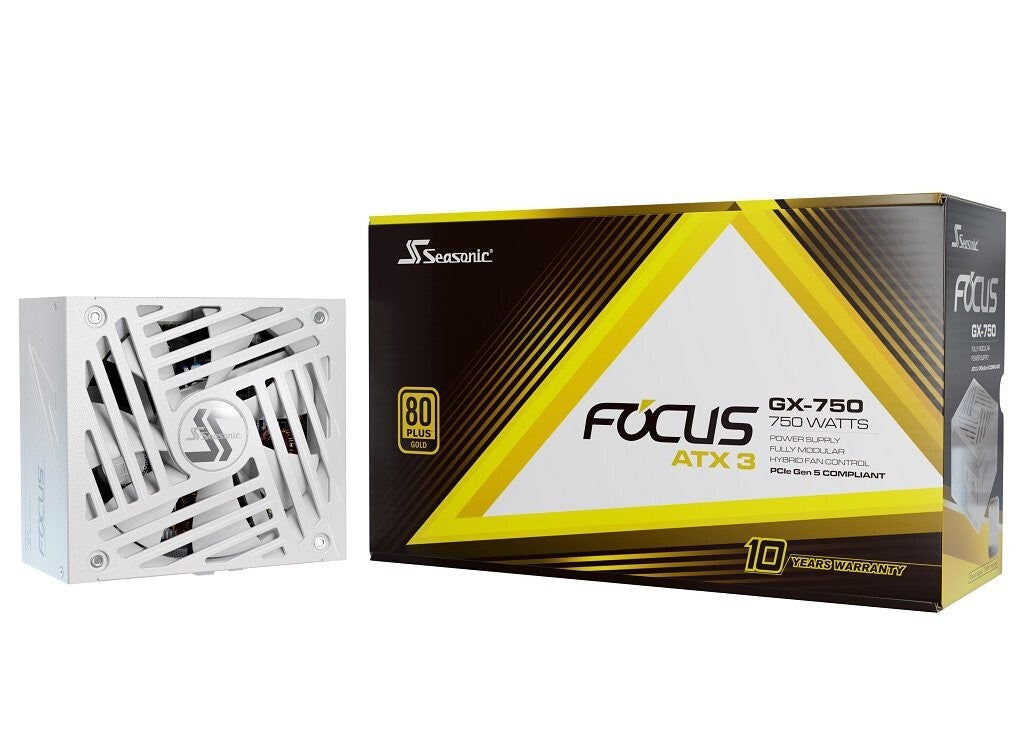

Seasonic FOCUS GX-750 WHITE ATX3 750W 80+ Gold Full-Modular, Fan Control

MPN: FOCUS GX-750 WHITE ATX3

Main Features

• Features
• -High Efficiency, 80 PLUS Gold Certified
• -ATX 3 and 16-Pin PCIe Gen 5 Cable (12V-2x6)
• -OptSink Design
• -Fully Modular Cabling Design
• -Compact Size (140 mm)

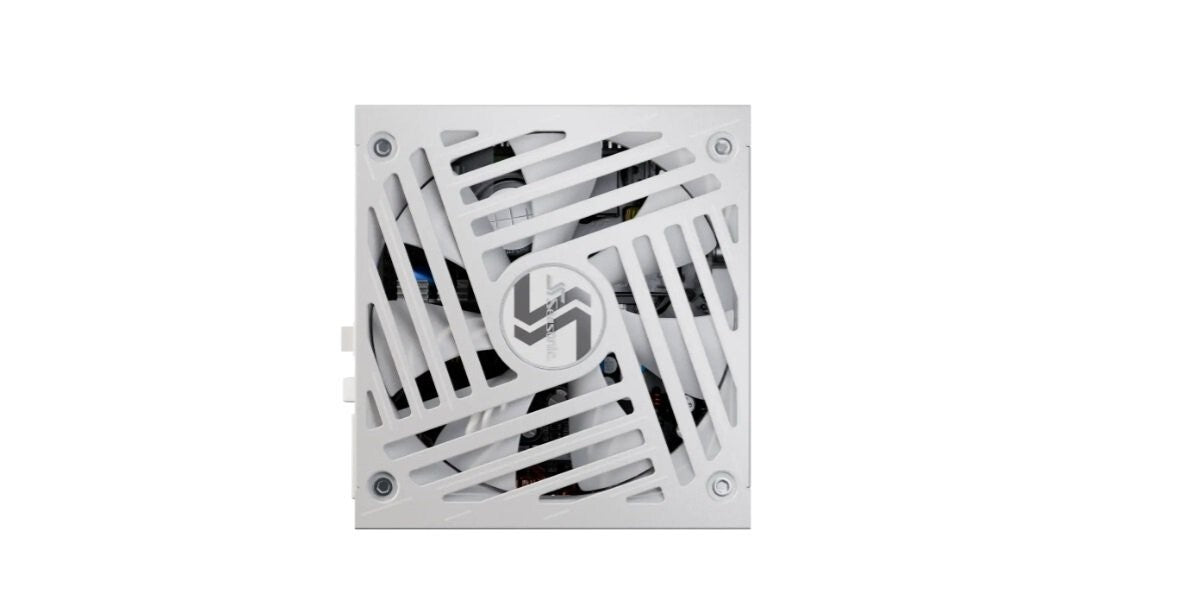

• -135 mm Fluid Dynamic Bearing (FDB) Fan
• -Seasonic Hybrid Silent Fan Control
• -Highly Reliable Japanese 105 °C Aluminum Electrolytic Capacitors
• -Tight Voltage Regulation (12 V, 5 V and 3.3 V) [+/- 3 %]
• -Ample +12 V Output
• -DC to DC Converter Design
• -Cable-free Connection Design
• -Gold-Plated High Current Terminals (MB, CPU and PCIe)
• -PVC Embossed Cable
• Total Continuous Power: 750 W
• 80PLUS: Gold
• Form Factor: ATX/EPS
• Fan Information
• -Fan Size: 135 mm
• -Fan Control: Digital Hybrid Fan Control
• -Fan Bearing: Fluid Dynamic Bearing
• -Life Expectancy: 50,000 hours at 40 °C, 15 % - 65 % RH
• Cable Information
• -Modularity: Fully Modular
• -Cable type: Individual White Cables with Braided Pattern
• Electrical Features
• -Operating Temperature: 0 - 50 °C
• -MTBF @ 25 °C, excl. fan: 100,000 hours
• -AC Input: Full Range
• -Protection: OCP, OPP, OTP, OVP, SCP, UVP
• Safety and Environmental
• -Safety and EMC: BSMI, CB, CCC, CE, cTUVus, EAC, FCC, TUV
• -Environmental Compliance: Energy Star, ErP Lot 6, REACH, RoHS, WEEE
• Power Output
• -AC Input: 100 V - 240 V; 10 - 5 A; 50 Hz - 60 Hz
• -DC Output: +3.3 V 20 A; +5 V 20 A; +12 V 62 A; -12 V 0.3 A; +5 VSB 3 A

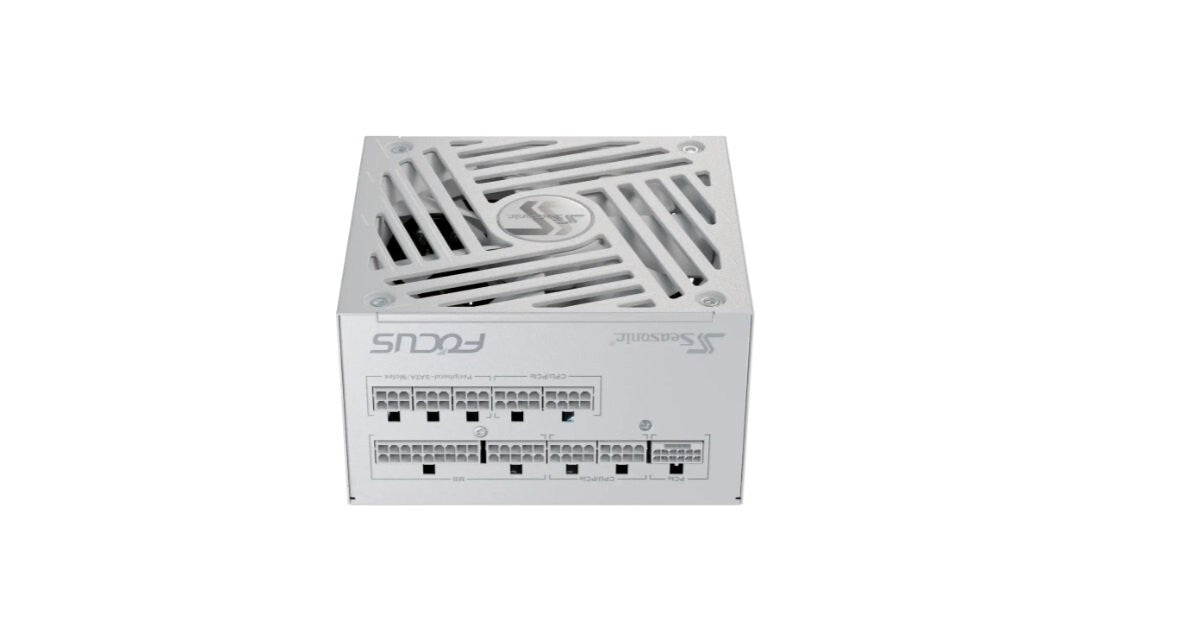

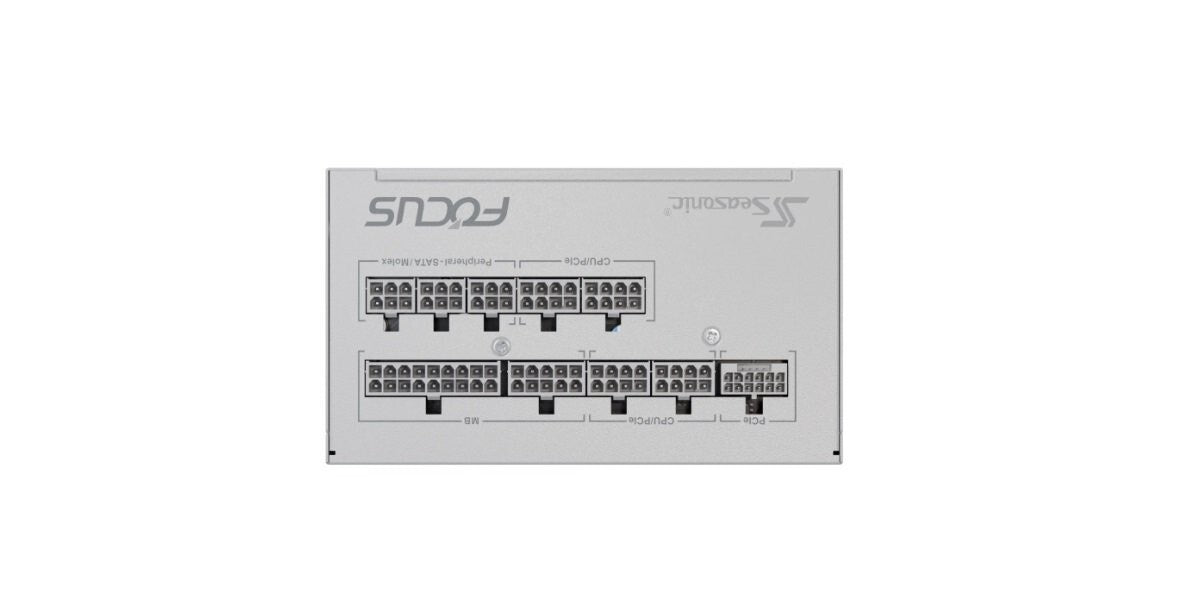

• Connectors
• -1 x 1 connector MB (24/20 pins)
• -2 x 1 connector CPU (8/4 pins)
• -2 x 1 connector PCIe (8/6 pins)
• -2 x 4 connectors SATA
• -1 x 3 connectors Molex
• -1 x 1 connector 12V-2x6 (12+4 Pins to 12+4 Pins)
• *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country. All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers.
