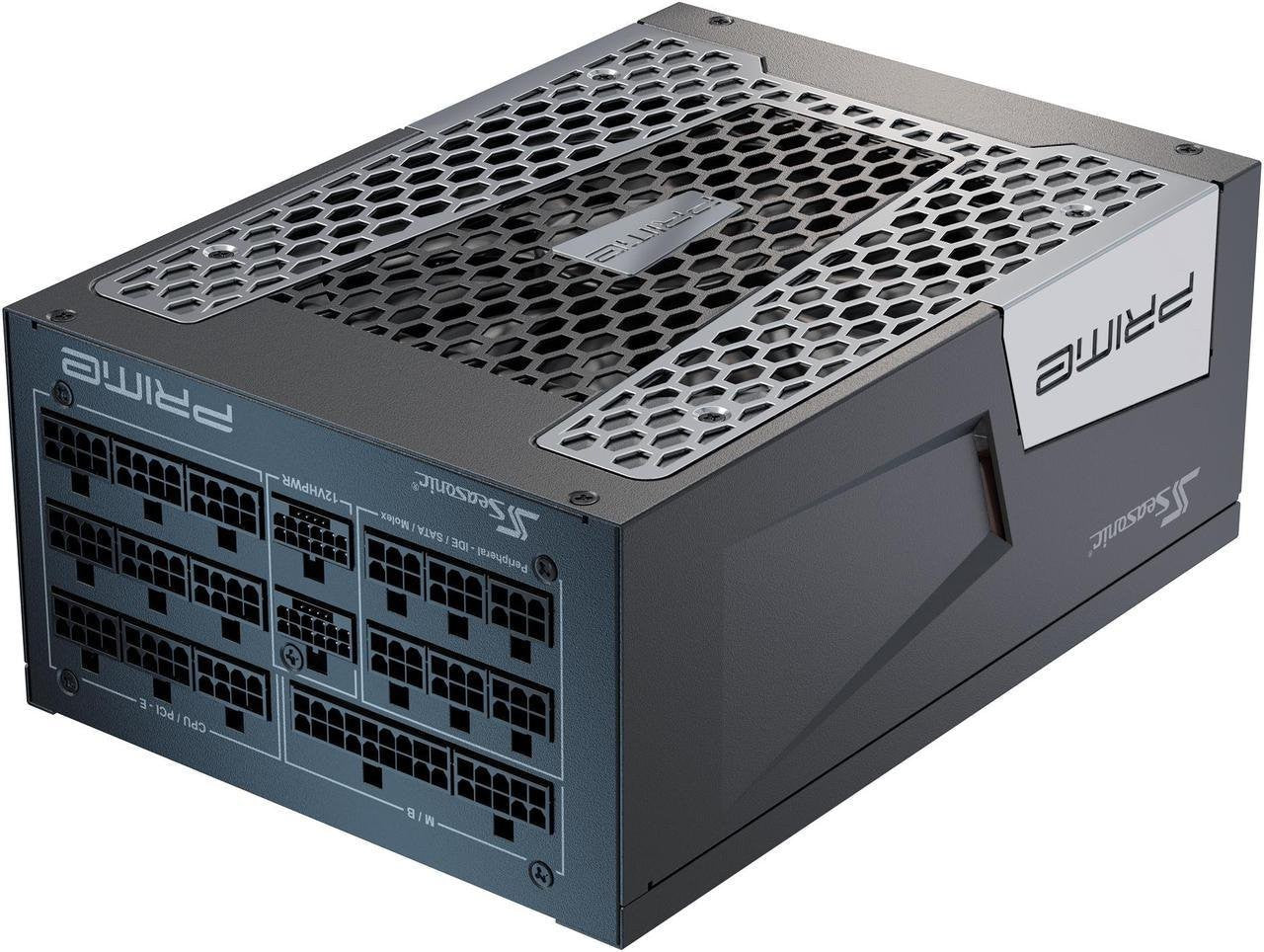

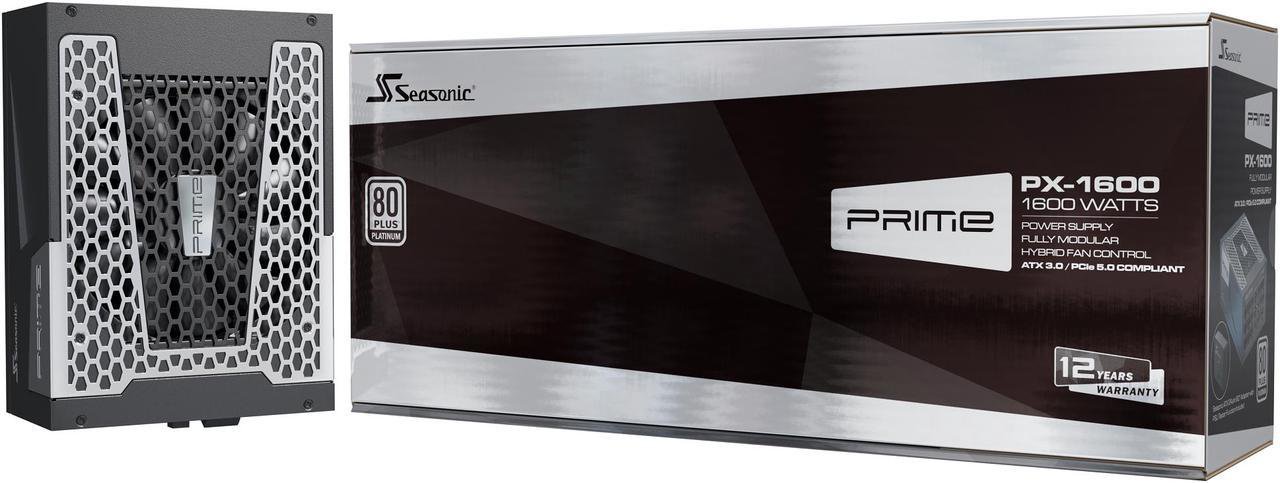

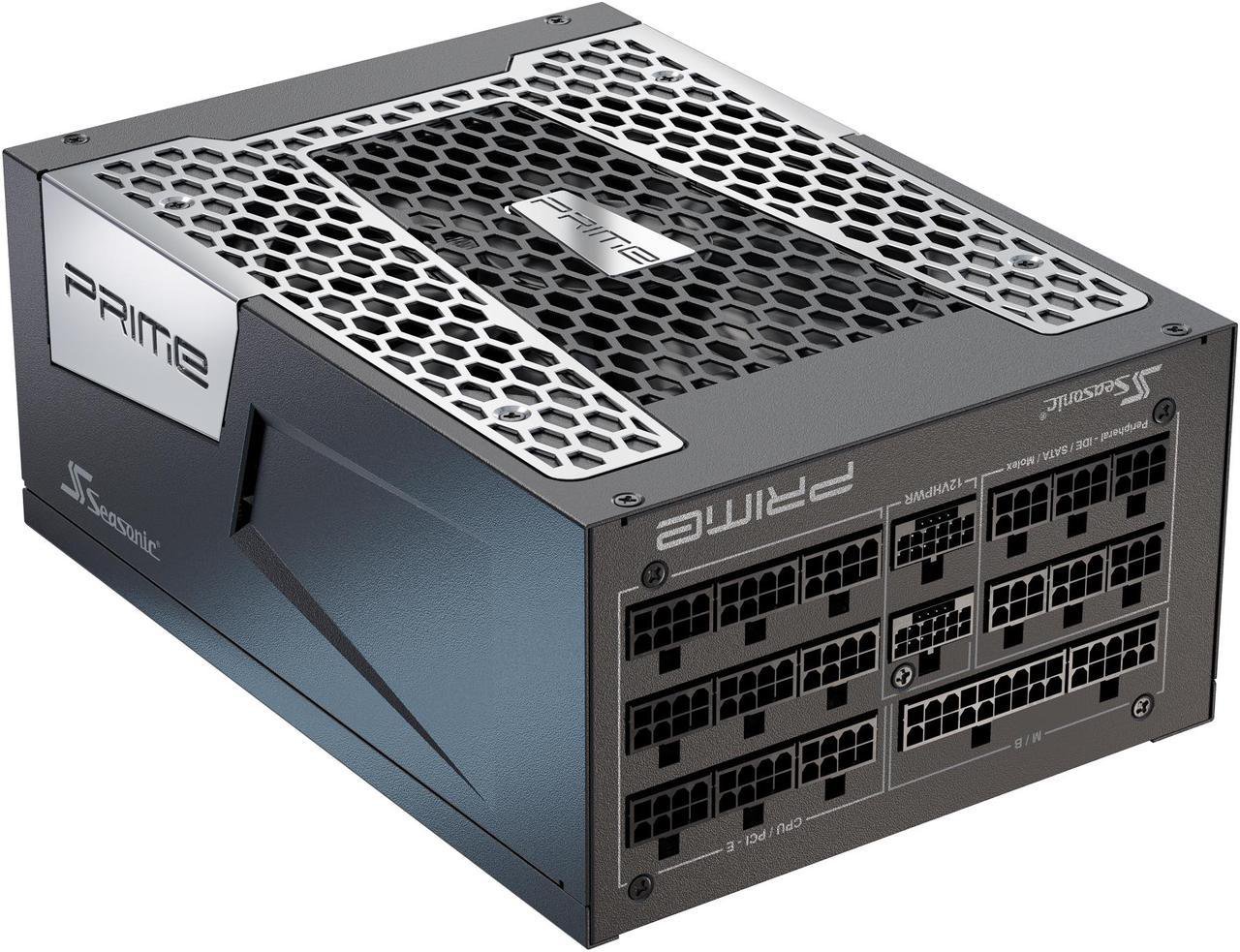

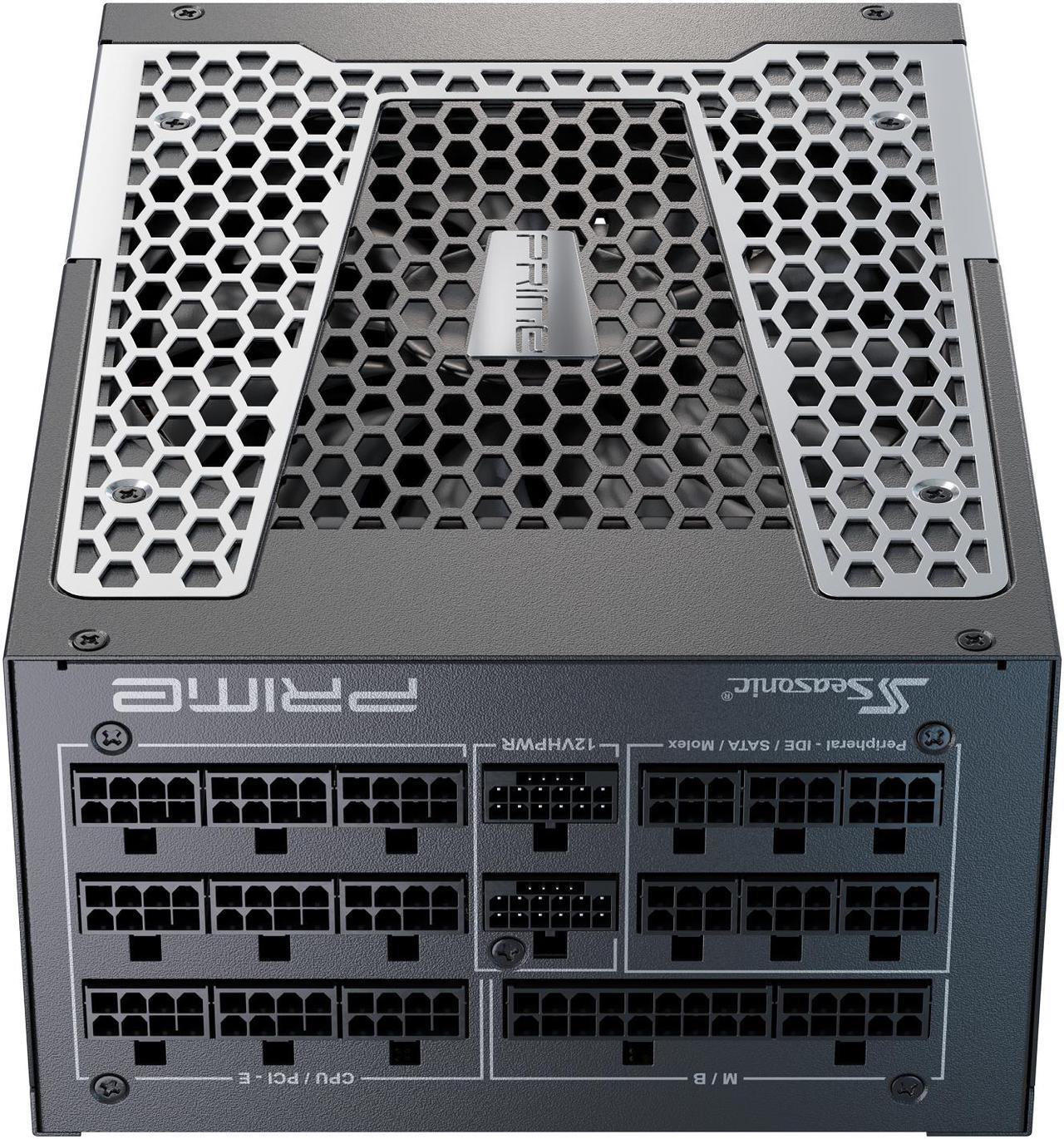

Seasonic PRIME PX-1600 ATX3.0 SSR-1600PD2 80+ 1600W Plat Modular Power Supply

Seasonic PRIME PX-1600 ATX3.0(SSR-1600PD2) 1600W 80+ Platinum ATX 3.0 & PCIe 5.0 Ready Full Modular Power Supply

• Converts current to the desired voltage and frequency to manage your power requirements
• 3.3 V DC ensures steady and uninterrupted power supply to your device
• The 1600 W output power reduces fan noise

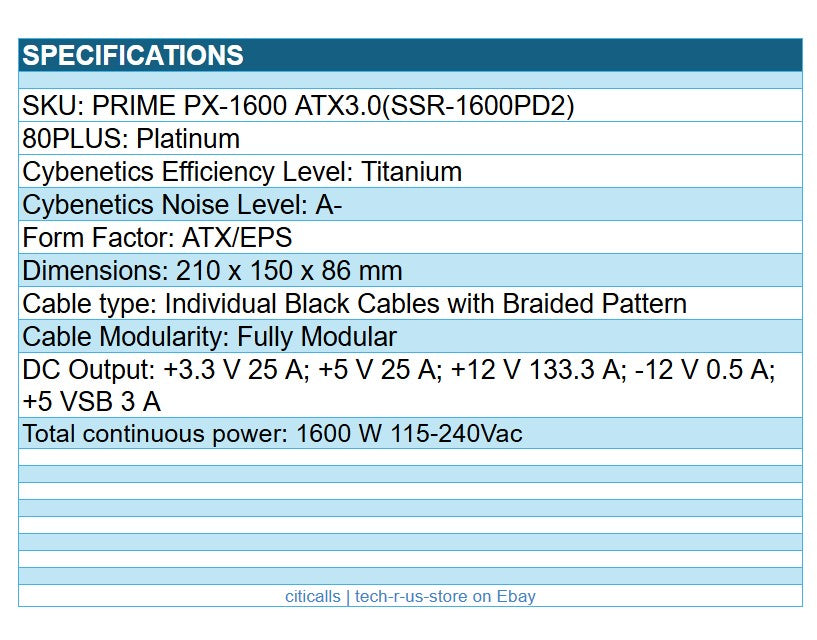

SPECIFICATIONS

• SKU: PRIME PX-1600 ATX3.0(SSR-1600PD2)
• 80PLUS: Platinum
• Cybenetics Efficiency Level: Titanium
• Cybenetics Noise Level: A-
• Form Factor: ATX/EPS
• Dimensions: 210 x 150 x 86 mm
• Fan Information
  • Fan Size: 135 mm
  • Fan Control: Digital Hybrid Fan Control
  • Fan Bearing: Fluid Dynamic Bearing
  • Life Expectancy: 50,000 hours at 40 °C, 15 % - 65 % RH
• Cable Information

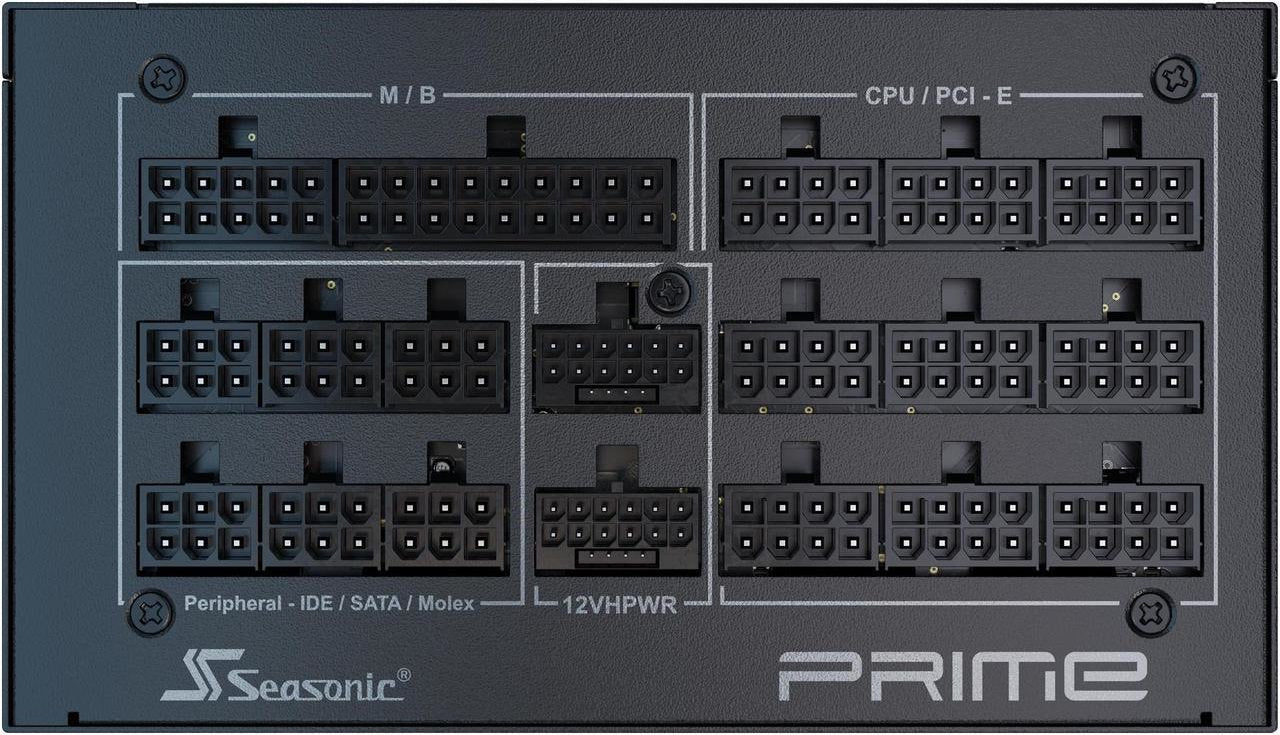

  • Modularity: Fully Modular
• Cable type: Individual Black Cables with Braided Pattern
• Electrical Features
  • Operating Temperature: 0 - 50 °C
  • MTBF @ 25 °C, excl. fan: 100,000 hours
  • AC Input: Full Range
  • Protection: OPP, OVP, UVP, OCP, OTP, SCP
• Safety and Environmental
  • Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, EAC, CE
  • Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
• DC Output: +3.3 V 25 A; +5 V 25 A; +12 V 133.3 A; -12 V 0.5 A; +5 VSB 3 A
• Total continuous power: 1600 W 115-240Vac
