Seasonic SSR-500GB3 S12III 500W Power Supply Internal - 120 V AC, 230 V AC Input

MPN: SSR-500GB3

Main Features

• 80 PLUS® Bronze Certified High Efficiency
• Ample + 12 V Outputs
• Active Power Factor Correction (99 % PF Typical)
• LLC Resonant Converter Design
• Smart & Silent Fan Control (S2)

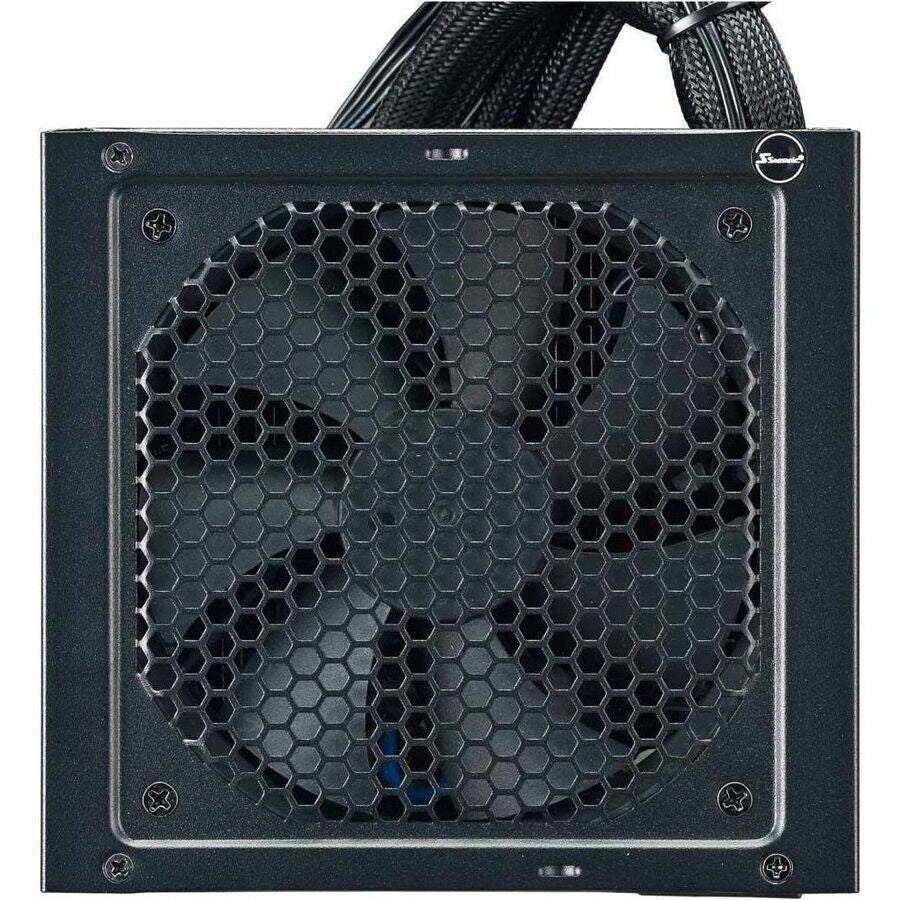

• 120 mm Sleeve Bearing Fan
• Universal AC Input (Full Range)
• Ultra Ventilation (Honeycomb Structure)
• 5 Years Warranty
• Specification Compliance
• ATX12V
• EPS12V
• Efficiency: 87%
• Power Factor Correction (PFC): Active
• Number of Fans: 1
• Fan Bearing Type: Sleeve Bearing
• Fan Diameter: 120 mm
• Protection Type:
• -Over Power
• -Over Voltage
• -Short Circuit
• -Under Voltage
• Modular: No
• Features: S2FC Fan Control
• MTBF: 100000 Hour
• Number of +12V Rails: 1
• Input Voltage:
• -120 V AC
• -230 V AC
• Output Voltage:
• -3.3 V DC
• -5 V DC
• -12 V DC
• --12 V DC
• -5 V SB
• Output Voltage Detail:
• -3.3 V DC @ 18 A
• -5 V DC @ 18 A
• -12 V DC @ 40 A
• --12 V DC @ 0.3 A
• -5 V DC @ 2.5 A
• Output Power: 500 W
• Input Frequency: 60 Hz
• Number of SATA Power Connectors: 4
• PCI Express Connector: Yes
• Number of (6+2 pin) PCI Express Power Connectors: 2
• Form Factor: Internal
• Height: 3.4"
• Width: 5.5"
• Certifications & Standards:
• -CCC
• -EMI
• -EMC
• -TUV
• -CB
• -FCC
• -CE
• -EAC
• -cTUVus
• -Gost-R
• -UkrTEST
• -BSMI
• -Semko
• -C-tick
• Energy Star: Yes
• Energy Efficiency Certification: 80 Plus Bronze
• Energy Efficiency Compliance: Energy-related Products Directive Lot 6 (ErP Lot 6)
• Environmental Compliance:
• Waste Electrical and Electronic Equipment Directive (WEEE)
• China Restriction of Hazardous Substances (China RoHS)
• Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
• Limited Warranty: 5 Year - Direct from the Manufacturer
