Seasonic VERTEX GX-1000, 1000W 80+ Gold, ATX 3.0 & PCIe 5.0 Ready, Full-Modular

MPN: VERTEX GX-1000

Main Features

• Power Capacity: 1000 W
• 80PLUS: Gold
• Cybenetics Efficiency Level: Platinum
• Cybenetics Noise Level: A
• Form Factor: ATX/EPS

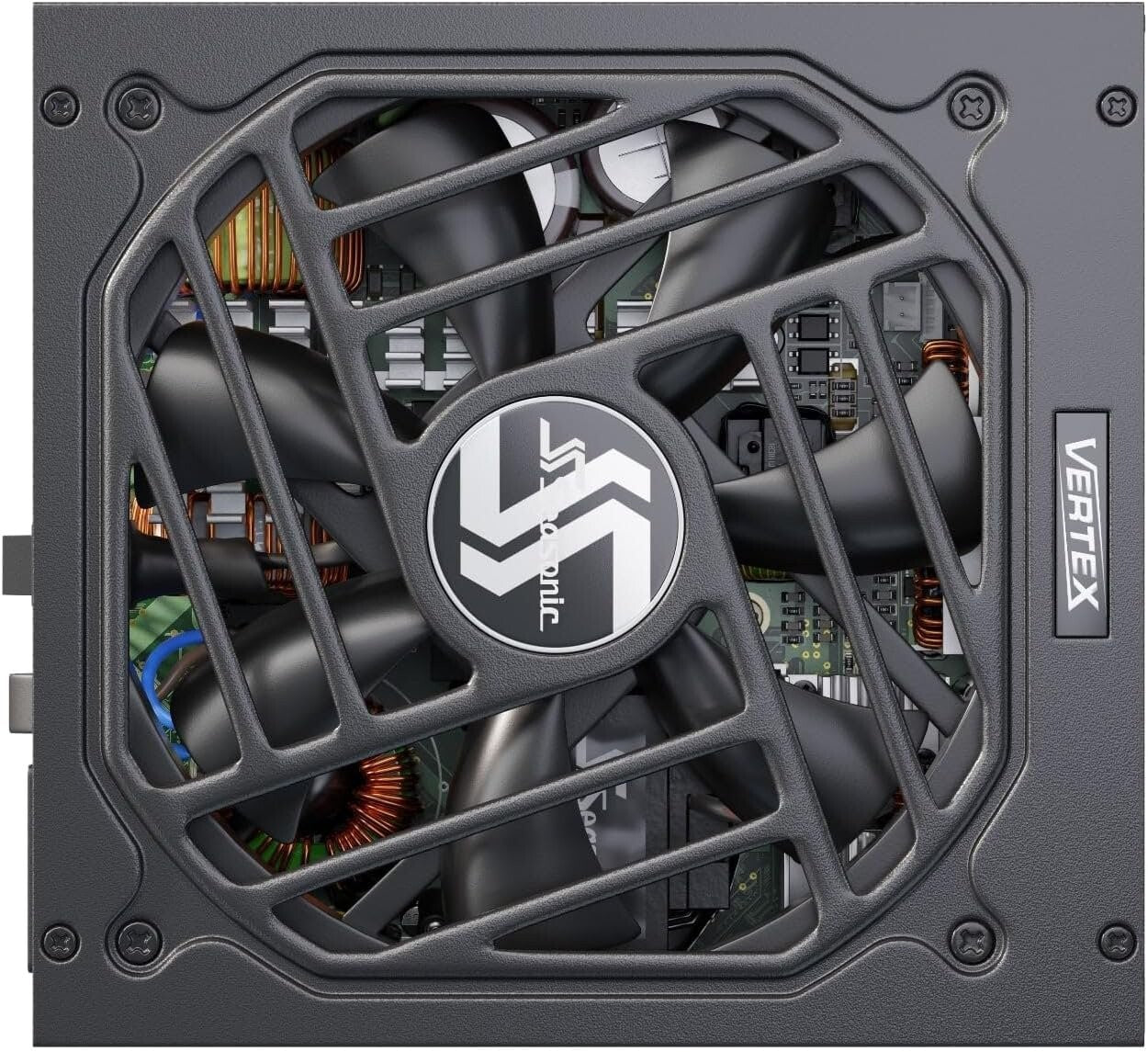

• Fan Information:
• -Fan Size: 135 mm
• -Fan Control: Digital Fan Control
• -Fan Bearing: Fluid Dynamic Bearing
• -Life Expectancy: 50,000 hours at 40 C, 15 % - 65 % RH
• Cable Information:
• -Modularity: Fully Modular
• -Cable type: Cables with Braided Pattern
• Electrical Features:
• -Operating Temperature: 0 - 50 C
• -MTBF @ 25 C, excl. fan: 100,000 hours
• AC Input: Full Range
• Protection: OPP, OVP, UVP, OCP, OTP, SCP
• Safety and Environmental:
• -Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, EAC, CE
• -Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
• Power Output:
• -AC Input: 100 V - 240 V; 13 - 6.5 A; 50 Hz - 60 Hz
• -DC Output: +3.3 V 25 A; +5 V 25 A; +12 V 83 A; -12 V 0.3 A; +5 VSB 3 A

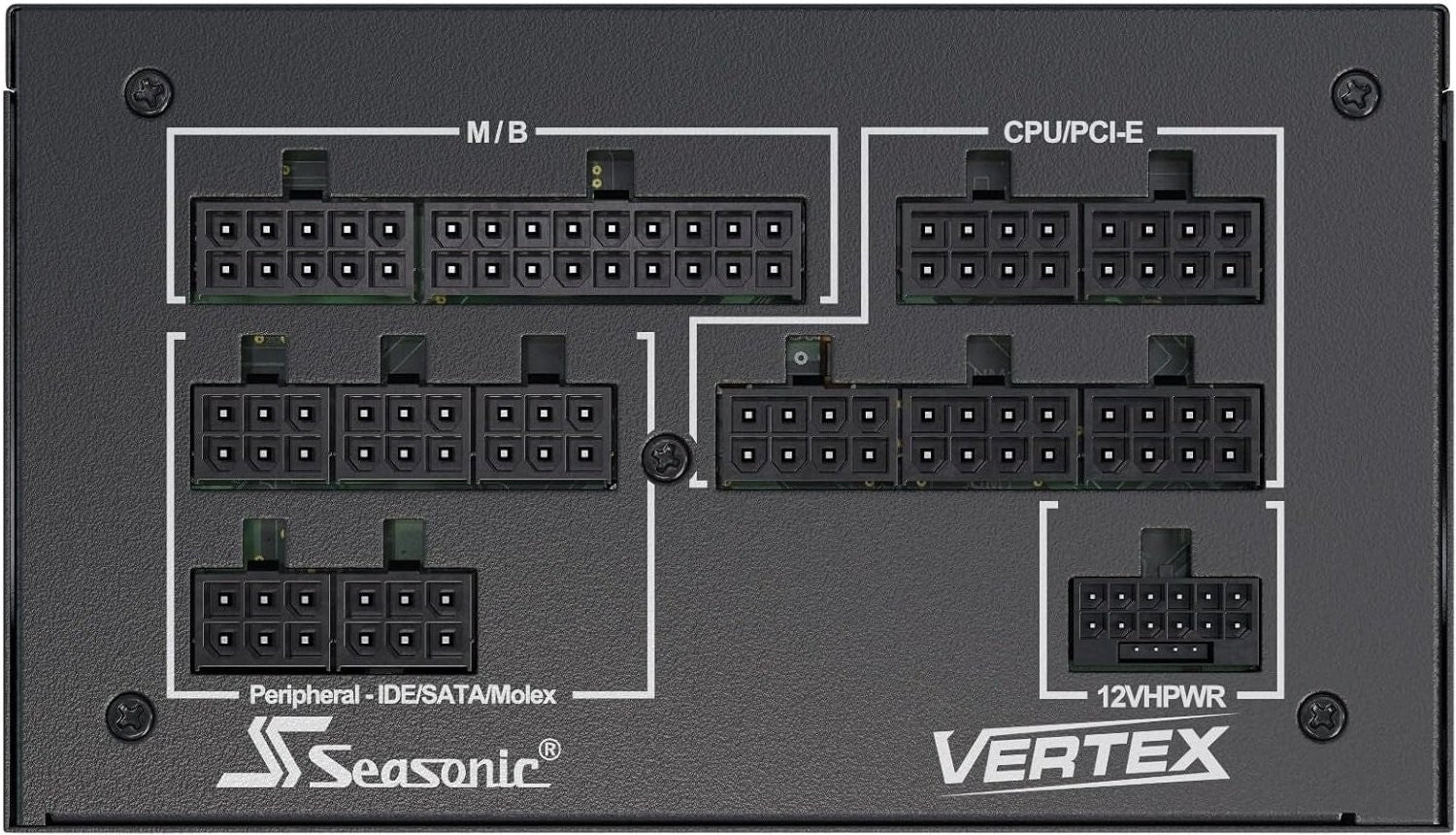

• Connectors:
• -1 x Main Power (24/20 pins)
• -2 x EPS 12 V /ATX 12 V (8/4 pins)
• -1 x 12V-2x6 (12+4 Pins)
• -3 x PCIe (8/6 pins)
• -16 x SATA
• -2 x SATA 3.3
• -3 x Peripheral (4P)
• Dimensions: 160 x 150 x 86 mm
• Package Weight: 1492g
• *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country. All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers.
