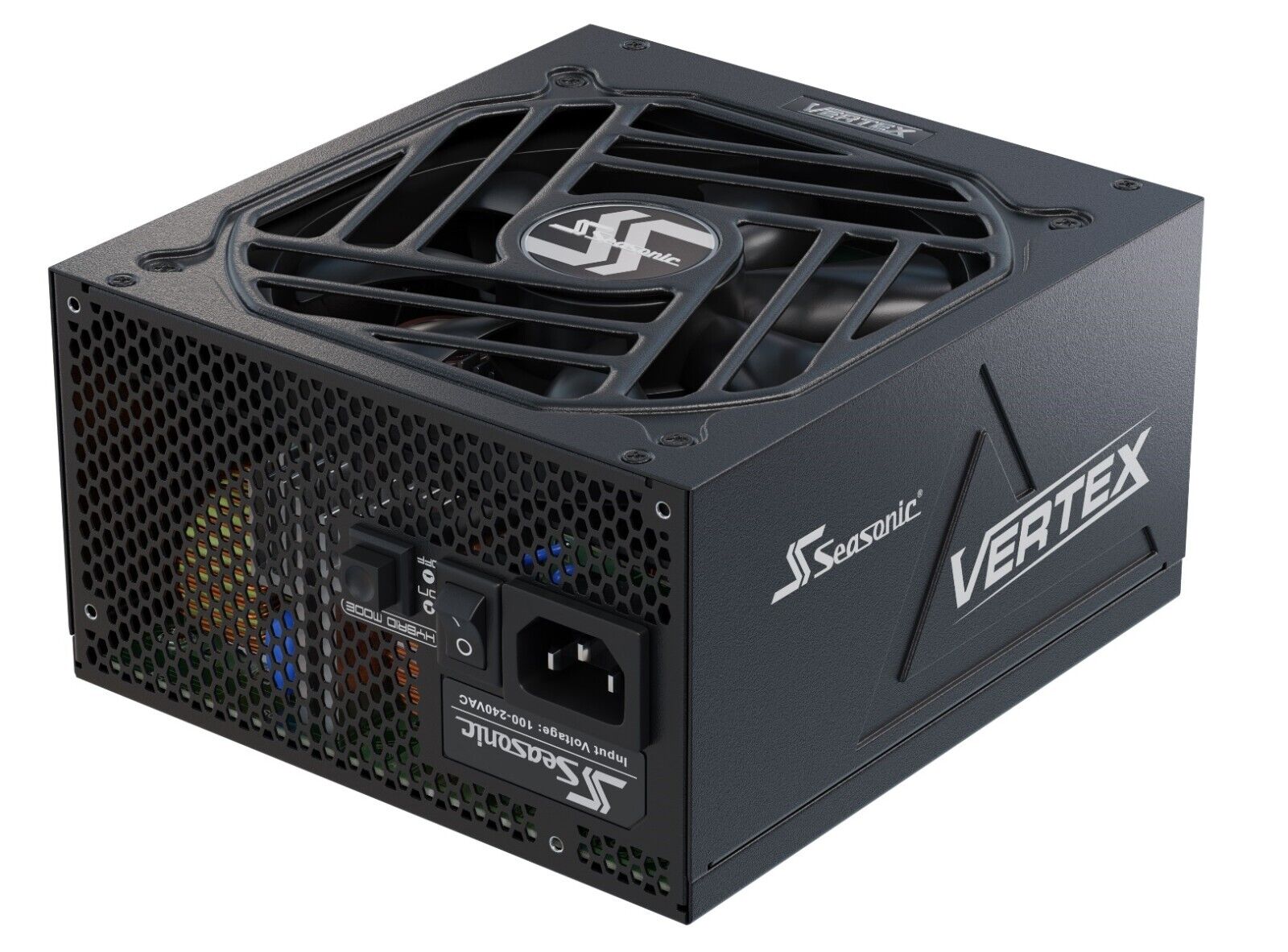

Seasonic VERTEX GX-750 750W 80+ Gold Platinum Full Modular ATX EPS Power Supply

Detail Specifications

• 80PLUS: Gold
• Cybenetics Efficiency Level: TBA
• Cybenetics Noise Level: TBA
• Form Factor: Intel ATX 12 V

Fan Information

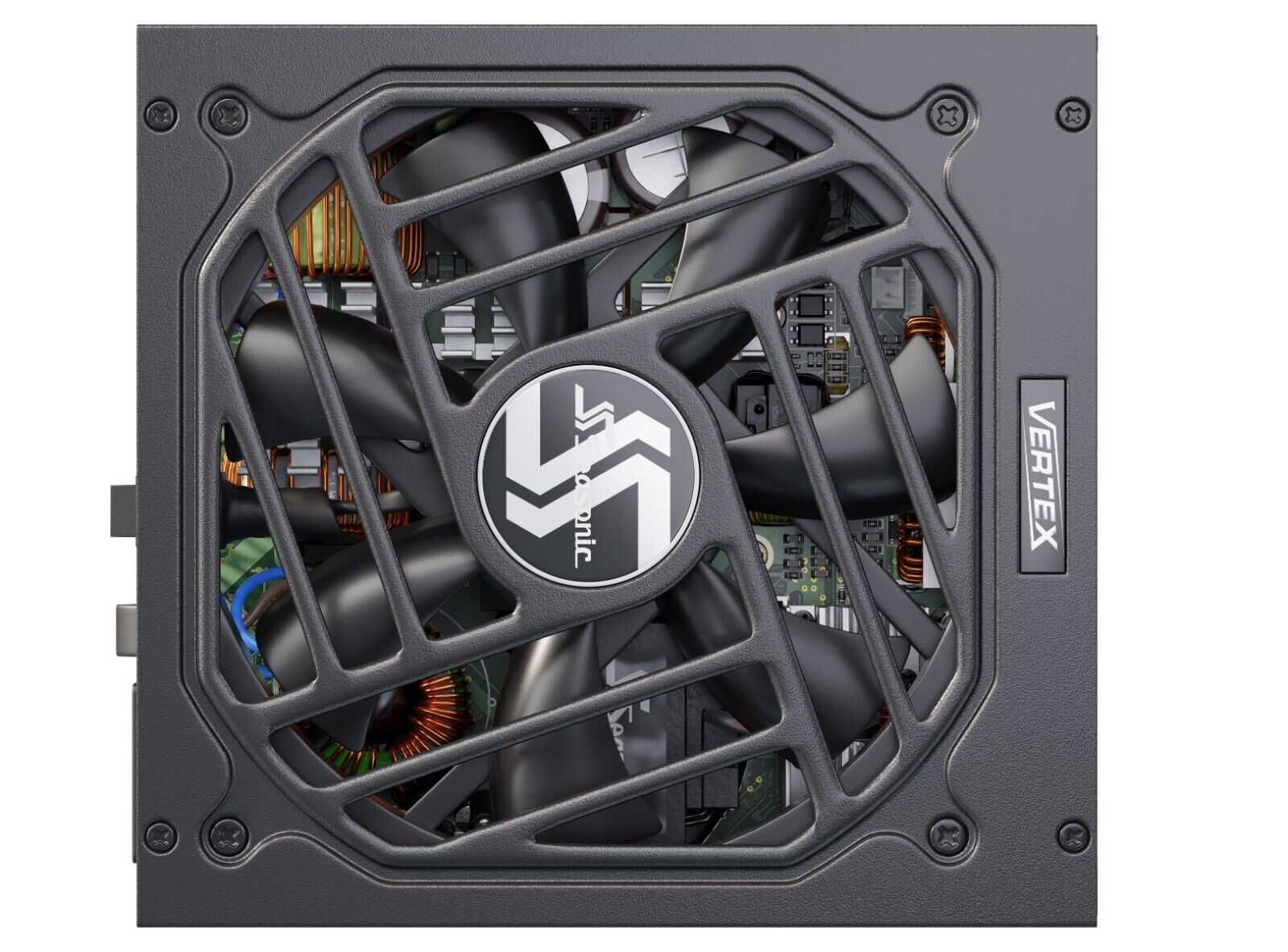

• Fan Size: 135 mm
• Fan Control: Premium Hybrid Fan Control
• Fan Bearing: Fluid Dynamic Bearing
• Life Expectancy: 50,000 hours at 40 oC, 15 % - 65 % RH

Cable Information

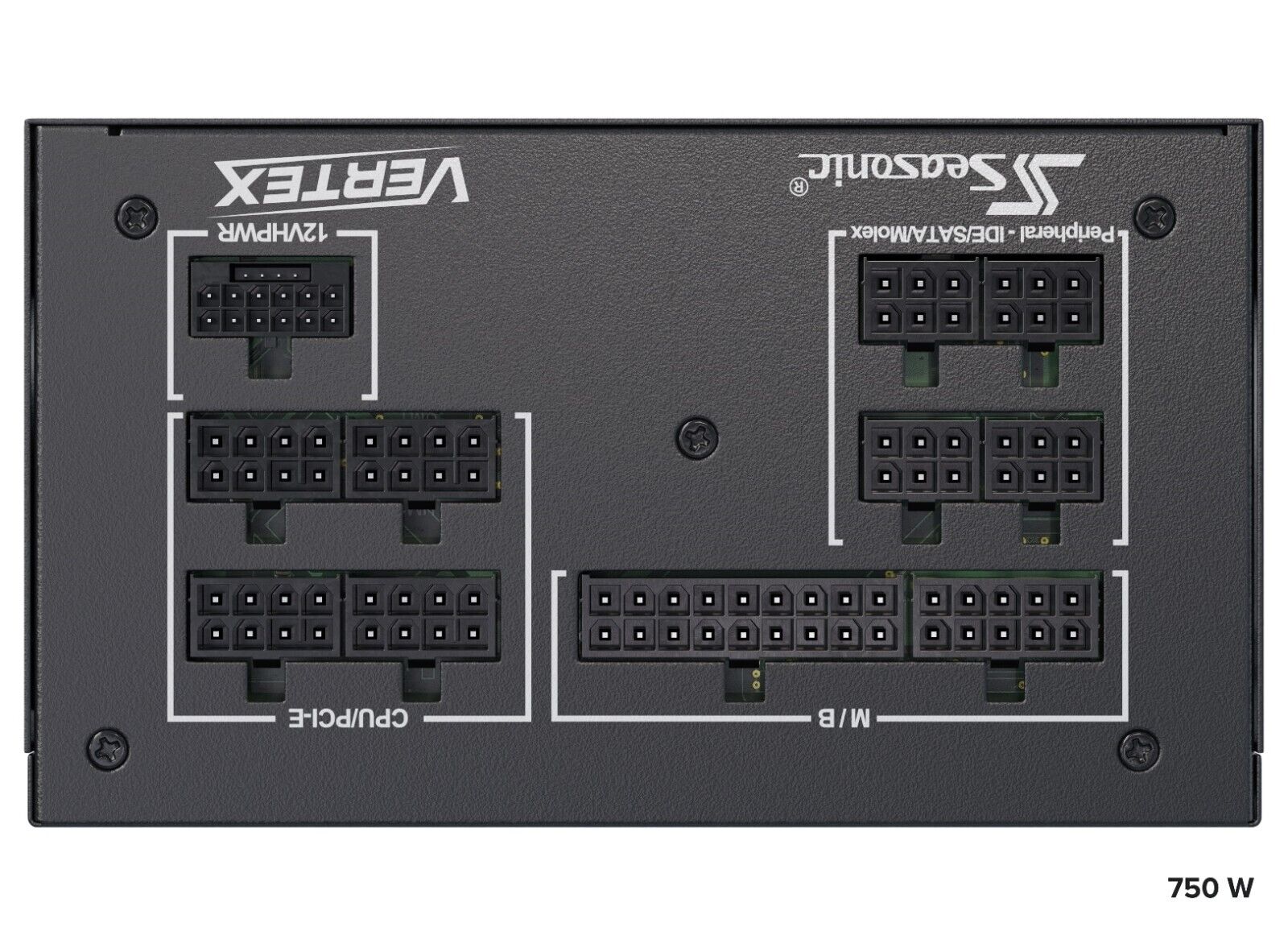

• Modularity: Fully Modular
• Cable type: Flat black cables

Electrical Features

• Operating Temperature: 0 - 50 oC (derating from 100 % to 80 % from 40 oC to 50 oC)
• MTBF at 25 oC, excl. fan: 150,000 hours
• AC Input: Full Range
• Protection: OPP, OVP, UVP, OCP, OTP, SCP

Safety and Environmental

• Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, EAC, CE
• Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH

Power Output

AC Input

• Voltage: 100 V - 240 V
• Current: 10-5 A
• Frequency: 50 Hz - 60 Hz

DC Output

Rail / Maximum Power

• +3.3 V / 20 A / 125 W
• +5 V / 20 A / 125 W
• +12 V / 62 A / 744 W
• -12 V / 0.3 A / 3.6 W
• +5 VSB / 3 A / 15 W
• Total continuous power: 750 W

Item Dimension (L inchxW inchxH inch): 8 x 14 x 5
Weight: 6.02 lb
Warranty: 1 year from Seasonic
