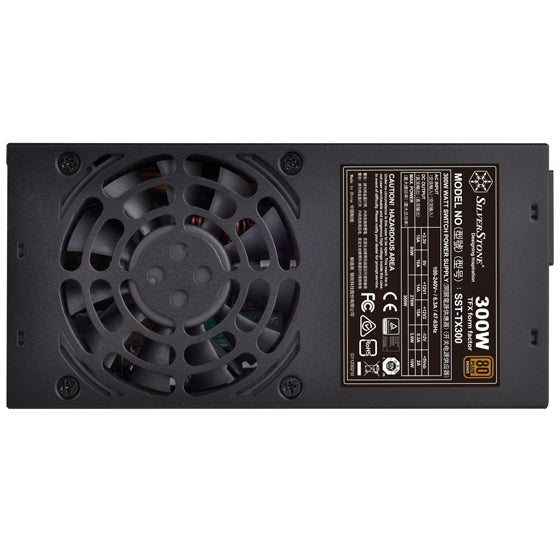

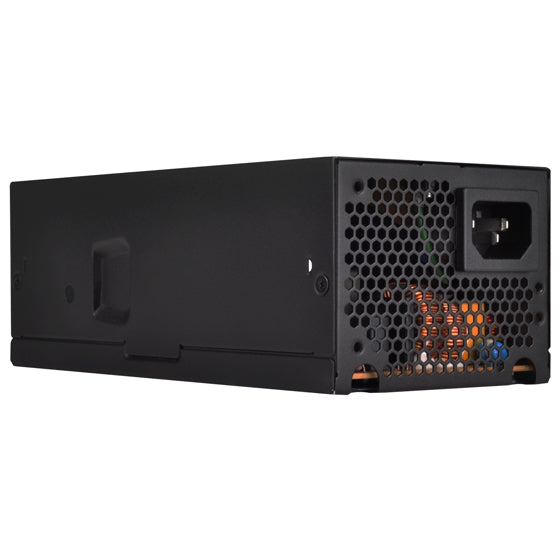

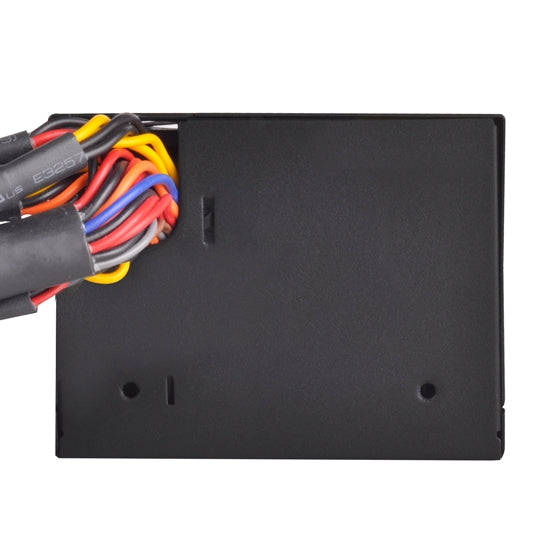

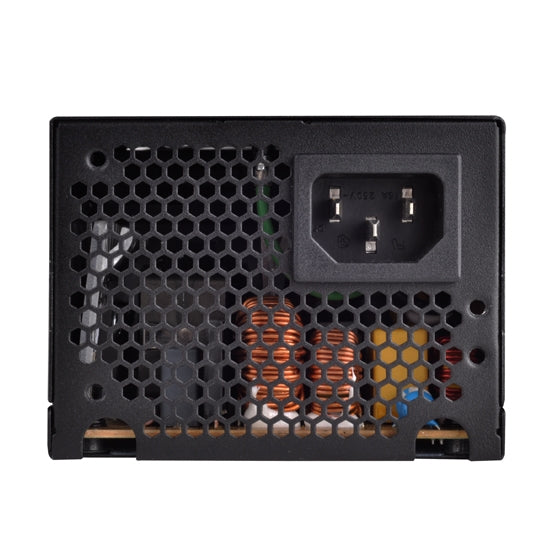

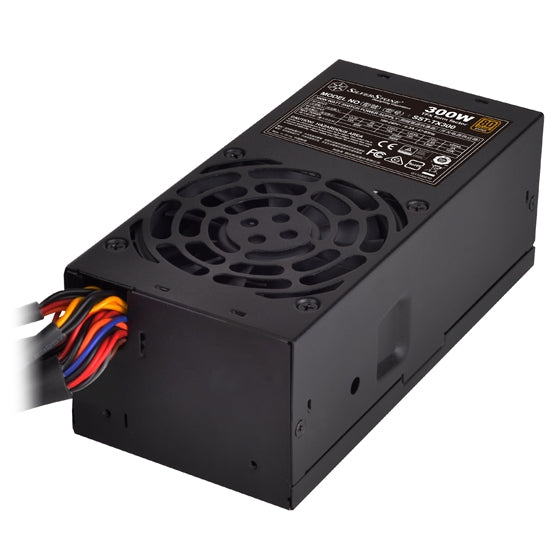

Silverstone TX300 Power Supply - 300W 80+Bronze 80mm fan 18dBA Active PFC TFX

Marketing Information

TX300

• Support standard TFX form factor
• 300W continuous power output at 40°C operating temperature rated for 24/7 operation
• High efficiency with 80 PLUS Bronze certification
• Silent running 80mm fan with 18 dBA minimum
• Single PCI-E 6pin connectors support
• Active PFC

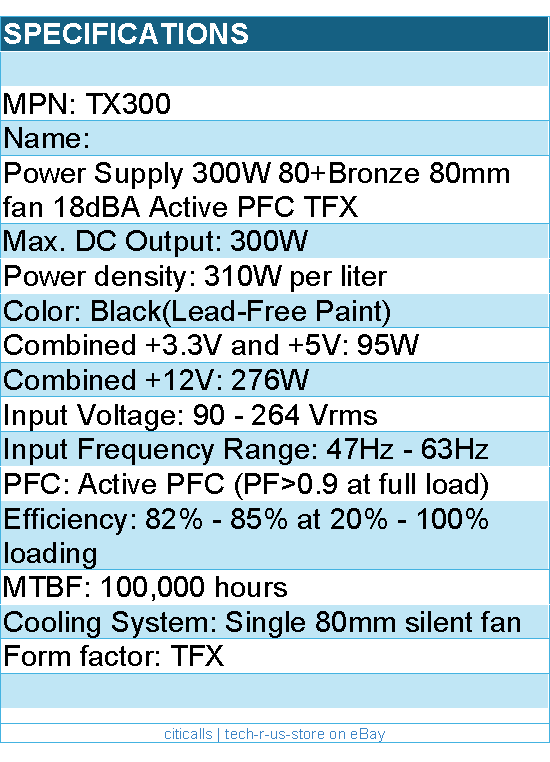

Detail Specifications

• MPN: TX300
• Name: Power Supply 300W 80+Bronze 80mm fan 18dBA Active PFC TFX
• Max. DC Output: 300W
• Power density: 310W per liter
• Color: Black(Lead-Free Paint)
• Combined +3.3V and +5V: 95W
• Combined +12V: 276W
• Input Voltage: 90 - 264 Vrms
• Input Frequency Range: 47Hz - 63Hz
• PFC: Active PFC (PF>0.9 at full load)
• Efficiency: 82% - 85% at 20% - 100% loading
• MTBF: 100,000 hours
• Operating temperature: 0oC - 40oC
• Protection:
• Over power protection
• Over voltage protection
• Short circuit protection
• Connectors:
• 1 x 24 / 20-Pin motherboard connector (350mm)
• 1 x 8 / 4-Pin EPS / ATX 12V connector (450mm)
• 1 x 6-Pin PCIE connector (350mm)
• 4 x SATA connector ("350mm / 150mm" x 2)
• 2 x 4-Pin Peripheral connector (350mm / 150mm)
• 1 x 4-Pin Floppy adapter connector (350mm / 150mm / 150mm)
• Cooling System: Single 80mm silent fan
• Form factor: TFX
• Noise Level: 18 dBA minimum
• Certification: 80 PLUS Bronze
• Other:
• GPU Support list
• Compatible with ATX12V v2.4

Warranty Information

• 3 Years parts and labor from Silverstone
