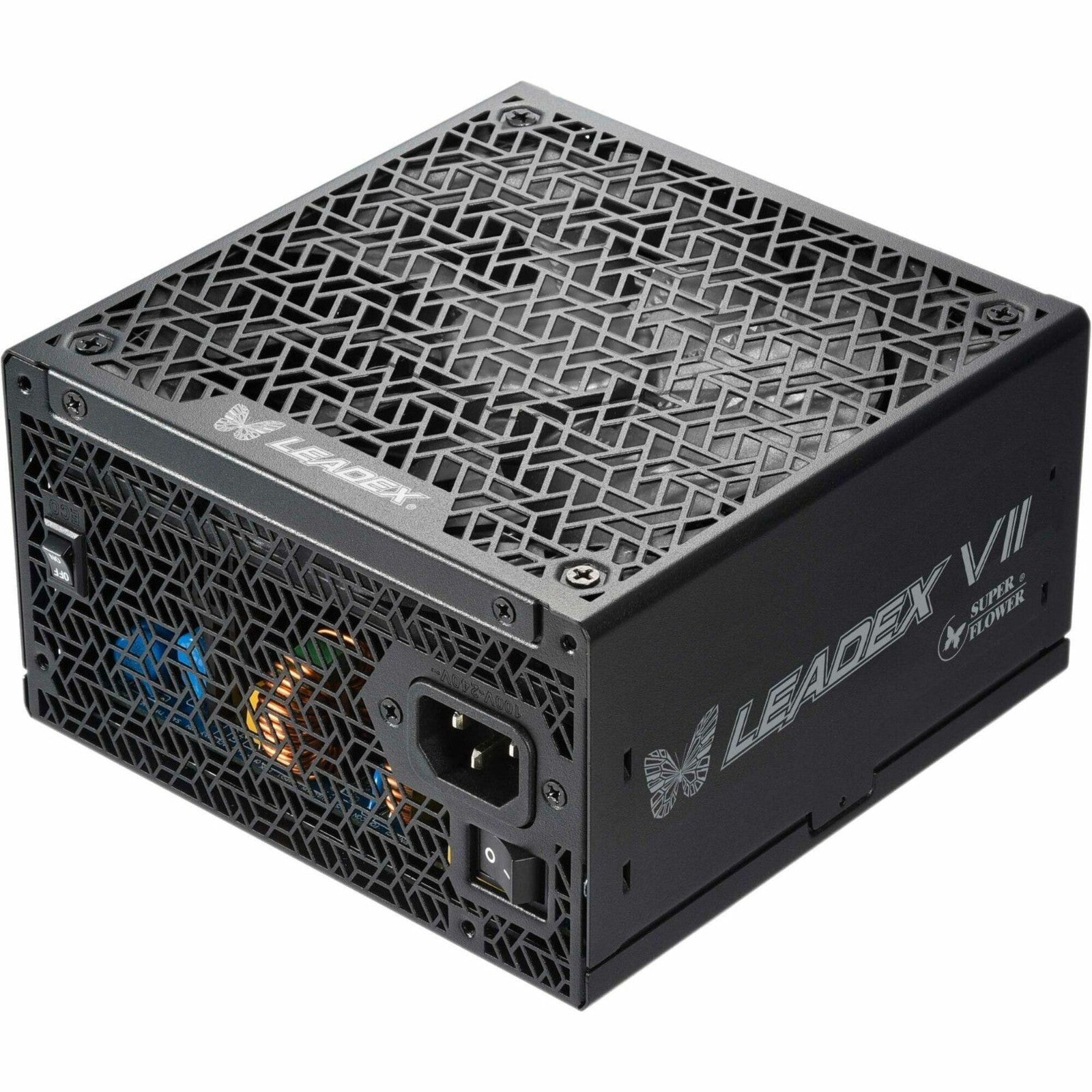

Super Flower SF-1000F14XG LEADEX VII XG 1000W Power Supply Internal - 120 V AC

General Information

• Manufacturer: Super Flower Computer, Inc
• Manufacturer Part Number: SF1000F14XG
• Brand Name: Super Flower
• Product Line: LEADEX VII XG
• Product Model: SF-1000F14XG
• Product Name: LEADEX VII XG SF-1000F14XG 1000W Power Supply
• Product Type: Power Supply

Technical Information

• Specification Compliance:
• ATX 3.0
• EPS 2.92
• Efficiency: 90%
• Number of Fans: 1
• Protection Type:
• Over Power
• Over Voltage
• Under Voltage
• Short Circuit
• Over Current
• Over Temperature

Power Description

• Number of +12V Rails: 1
• Input Voltage:
• 120 V AC
• 230 V AC
• Output Voltage:
• 3.3 V DC
• 5 V DC
• 12 V DC
• -12 V DC
• 5 V SB

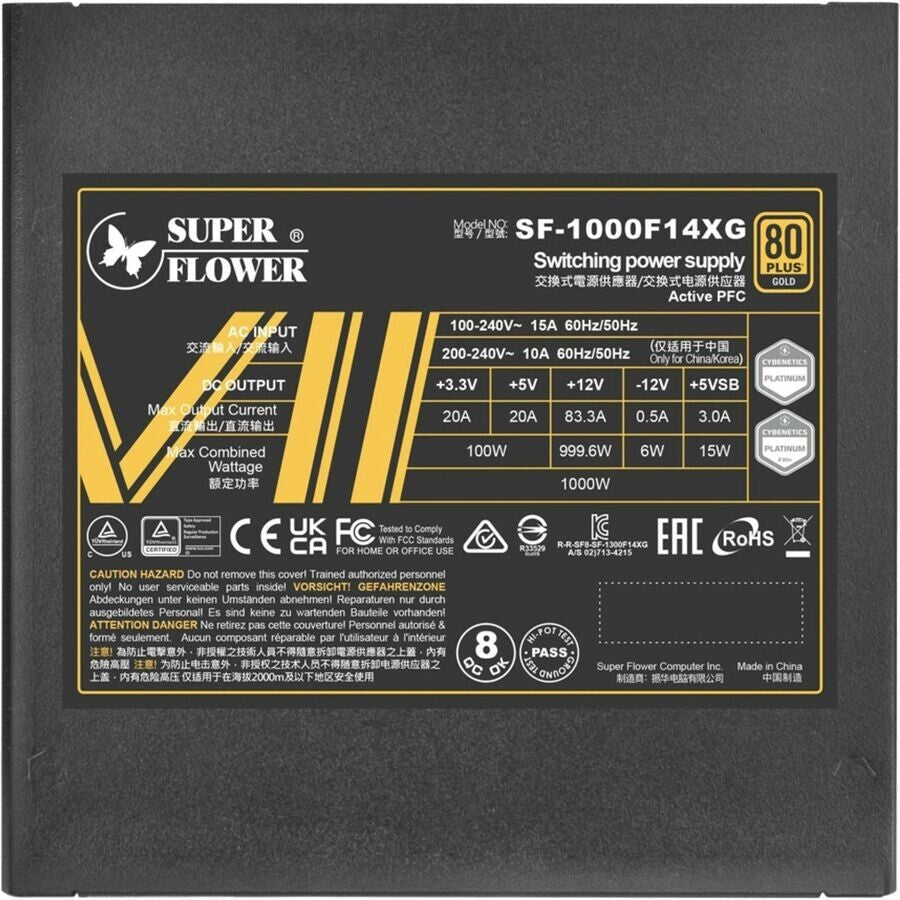

• Output Voltage Detail:
• 3.3 V DC @ 20 A
• 5 V DC @ 20 A
• 12 V DC @ 83.3 A
• -12 V DC @ 0.5 A
• 5 V SB @ 3 A
• Output Current:
• 83.30 A
• 20 A
• 500 mA
• 3 A
• Output Power: 1000 W
• Input Frequency: 60 / 50Hz

Environmental Conditions

• Maximum Operating Temperature: 122°F (50°C)

Physical Characteristics

• Form Factor: Internal
• Height: 3.4"
• Width: 5.9"

Miscellaneous

• Environmentally Friendly: Yes
• Energy Efficiency Certification: 80 Plus Gold
• Environmental Compliance: Restriction of Hazardous Substances (RoHS)
