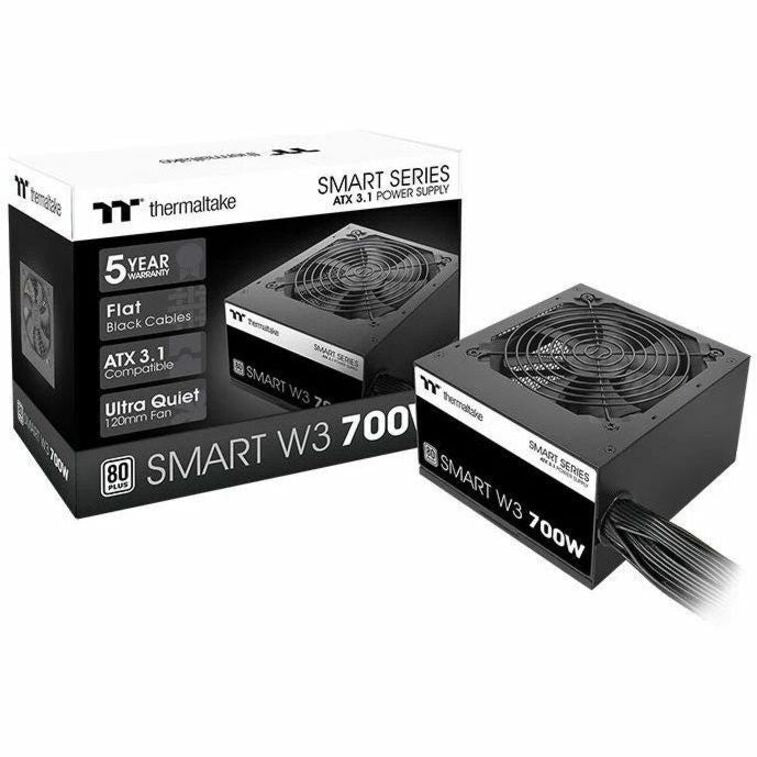

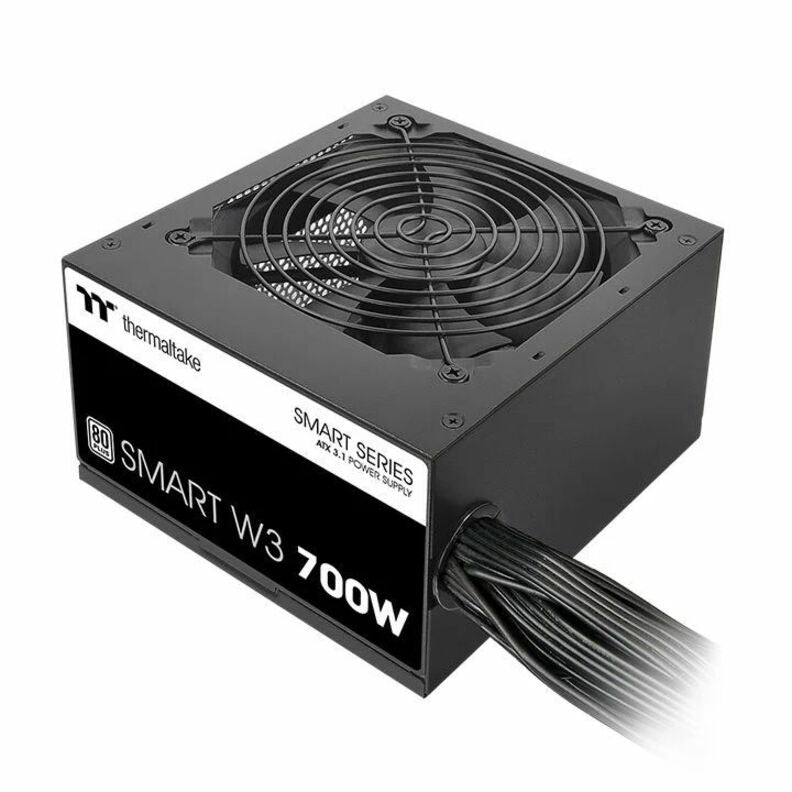

Thermaltake PS-SPW-0700NNFAWU-1 Smart W3 SP3-700AH2NLW 700W Power Supply

• Manufacturer: Thermaltake Technology Co., Ltd
• Brand Name: Thermaltake
• Manufacturer Part Number: PS-SPW-0700NNFAWU-1
• Product Line: Smart W3
• Product Model: SP3-700AH2NLW
• Product Name: Smart W3 SP3-700AH2NLW 700W Power Supply
• Product Type: Power Supply

• Power up with Efficiency and Stability
• The Smart W3 series is certified by 80 PLUS efficiency and designed to meet ATX 3.1 standards, offering 500W, 600W, and 700W options. It's perfect for budget-conscious users seeking an efficient and reliable entry-level power supply, backed by a solid 5-year warranty.
• ATX 3.1 Ready
• Smart W3 series is fully compatible with ATX 3.1 specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.
  • 2X Total Power Excursion
  • 3X GPU Power Excursion
• Silent Cooling
• Ultra-quiet 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.
• High Quality 105°C/221°F Main Capacitor
• High quality main capacitor greatly improves the power supplies durability and ensures the Smart W3 series is stable and reliable.
• High Amperage Single +12V Rail & DC to DC Design
• Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of DC to DC circuit design provides very stable operation and enhanced voltage regulation.
• Built-in Industrial Grade Protection
• To protect the hardware, Smart W3 is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).
  • OCP Over Current Protection
  • OVP Over Voltage Protection
  • UVP Under Voltage Protection
  • OPP Over Power Protection
  • SCP Short Circuit Protection
  • OTP Over Temperature Protection
• Non-Modular Soft Cable Design
• Smart W3 series comes with soft black cables, designed to make cable installation an easy task while fully powering the system at optimal voltages.
• 80 PLUS Certified and Intel C6/C7 States Ready
• Smart W3 series saves energy through its high energy efficiency up to 80% and is certified to 80 PLUS®. It has been optimized to work with all generations of Intel's processors to achieve maximum energy saving.

• Specification Compliance: ATX 3.1
• Efficiency: 80%
• Power Factor Correction (PFC): Active
• Number of Fans: 1
• Fan Bearing Type: Fluid Dynamic Bearing
• Fan Diameter: 120 mm
• Protection Type:
  • Over Current
  • Over Power
  • Over Temperature
  • Over Voltage
  • Short Circuit
  • Under Voltage
• Modular: No

• Number of +12V Rails: 1
• Input Voltage:
  • 120 V AC
  • 230 V AC
• Output Voltage:
  • 3.3 V DC
  • 5 V DC
  • 12 V DC
  • -12 V DC
  • 5 V SB
• Output Voltage Detail:
  • 3.3 V DC @ 18 A
  • 5 V DC @ 18 A
  • -12 V DC @ 0.3 A
  • 5 V DC @ 3 A
  • 12 V DC @ 58.3 A
• Output Power: 700 W
• Input Frequency: 60Hz

• Number of SATA Power Connectors: 4
• PCI Express Connector: Yes
• Number of (6+2 pin) PCI Express Power Connectors: 2
• Number of (4+4 pin) CPU Power Connectors: 2

• Minimum Operating Temperature: 41°F (5°C)
• Maximum Operating Temperature: 104°F (40°C)

• Color Family: Black
• Product Color: Black
• Form Factor: Internal
• Height: 3.4"
• Width: 5.9"
• Depth: 5.5"

• Certifications & Standards:
  • CB
  • FCC
  • cTUVus
  • ICES

• Limited Warranty: 5 Year from Thermaltake
