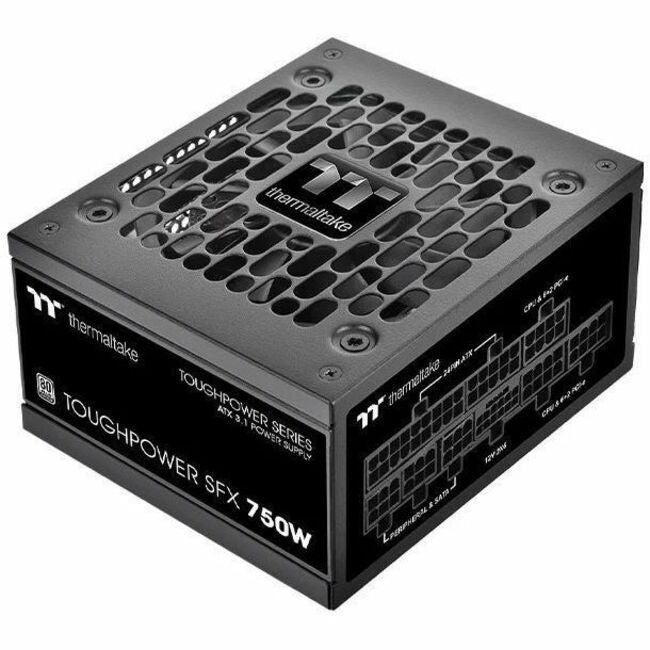

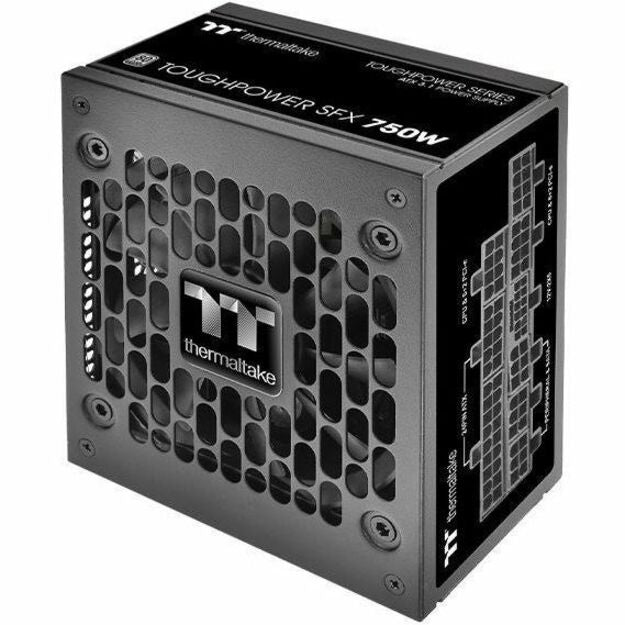

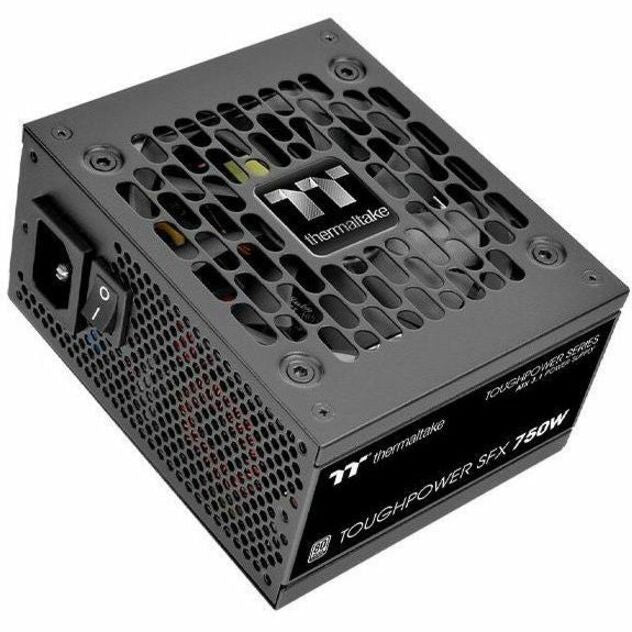

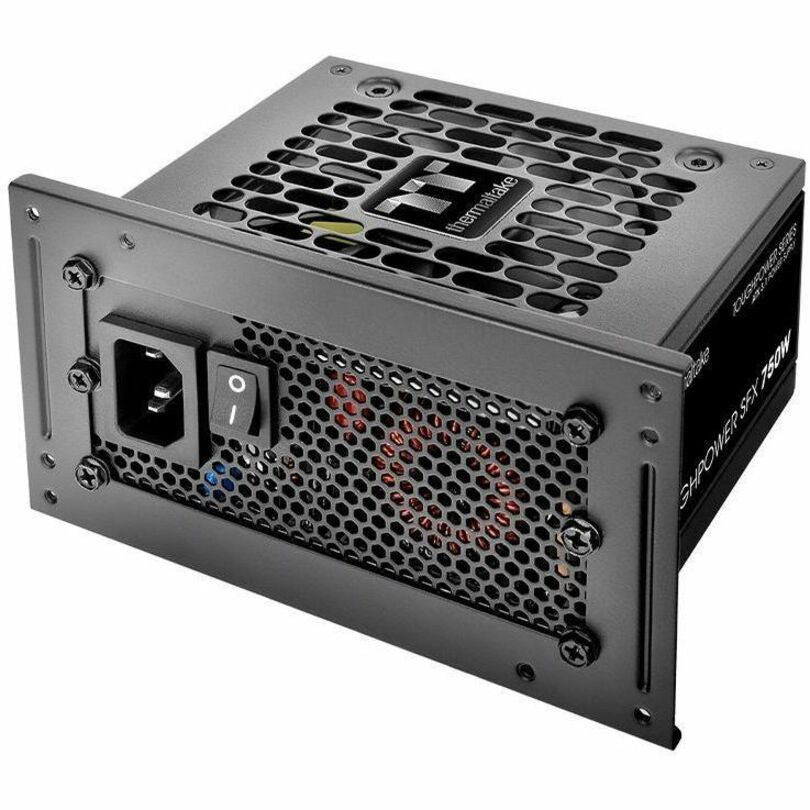

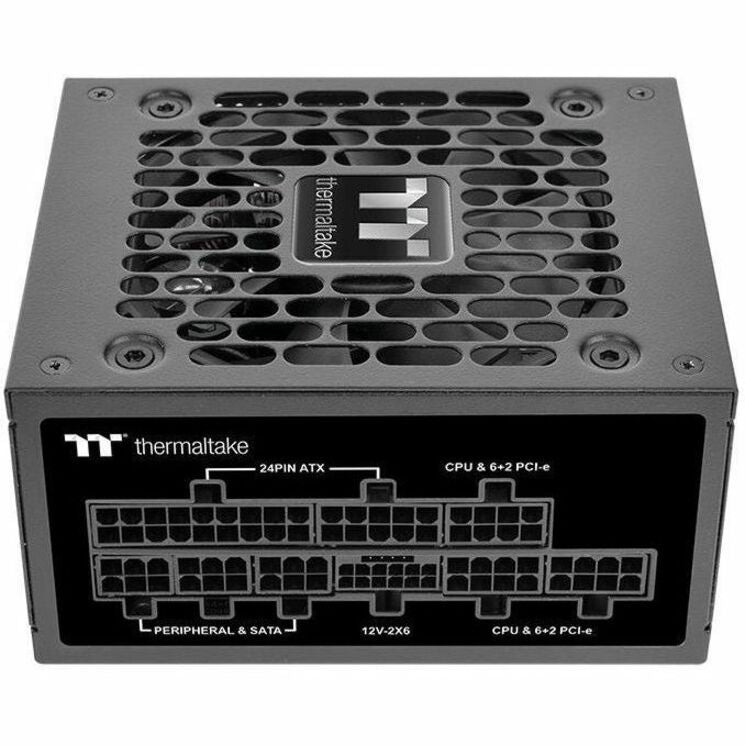

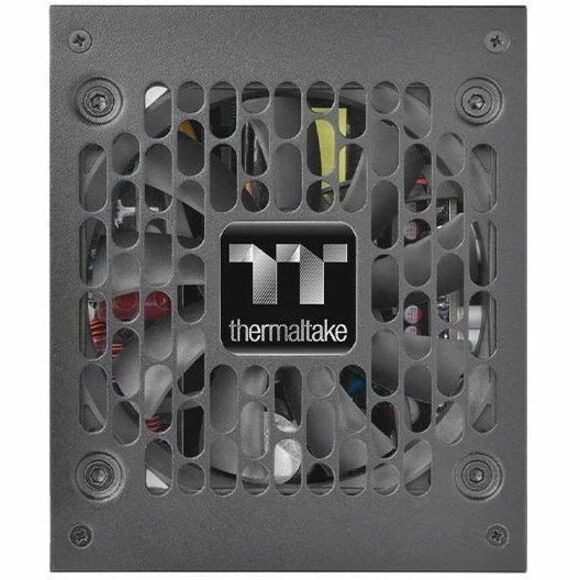

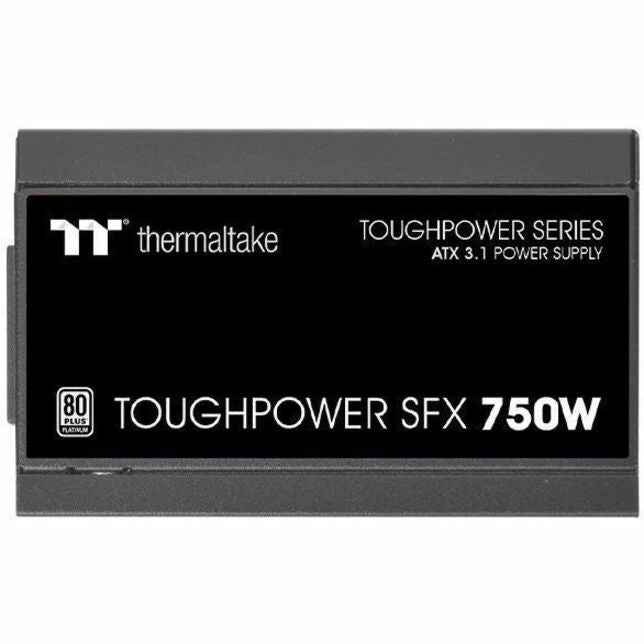

ThermalTake PS-STP-0750FNFAPU-1 Toughpower SFX 750W SFX Plat Modular Power Supp

Black - Internal - 120 V AC, 230 V AC Input - 3.3 V DC, 5 V DC, 12 V DC, -12 V DC, 5 V SB Output - 750 W - Active PFC - 1 +12V Rails - PCI Express Connector - 1 Fan(s) - NVIDIA SLI Supported - 92% Efficiency

• Limits current to the safety level and manages electrical faults
• The constant 3.3 V DC ensures smooth functioning
• With highly efficient supply, the 750 W output power enhances the performance

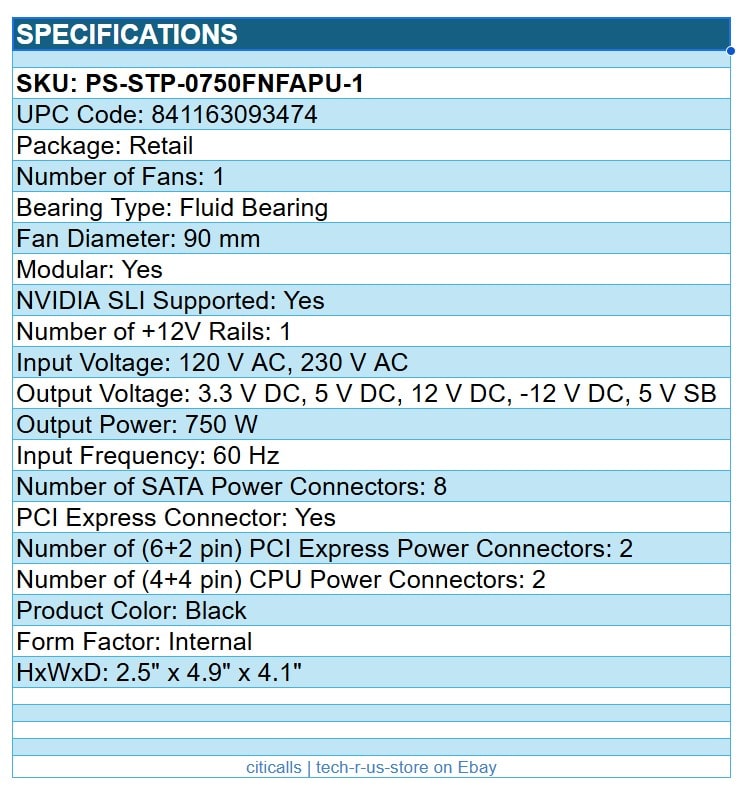

SPECIFICATIONS

• SKU: PS-STP-0750FNFAPU-1
• UPC Code: 841163093474

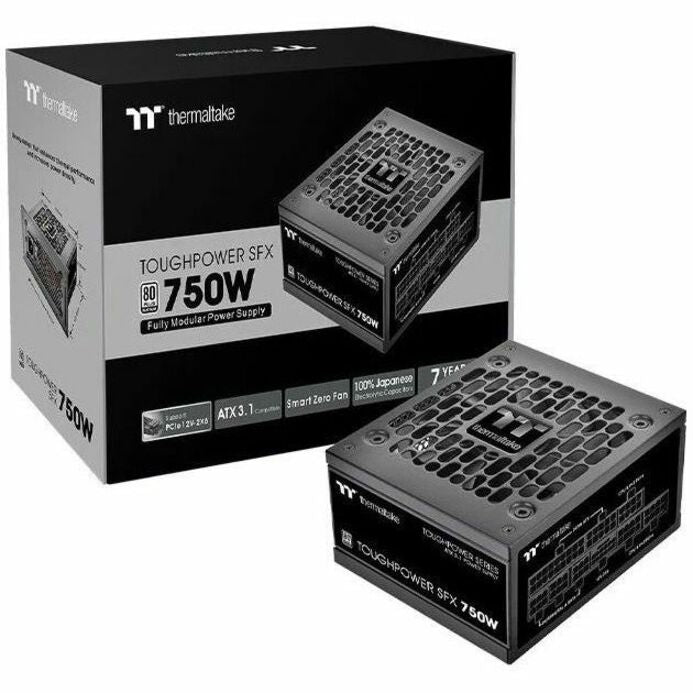

• Package: Retail
• Specification Compliance: ATX 3.1, SFX12V v4.1, ATX12V v3.1
• Efficiency: 92%
• Power Factor Correction (PFC): Active
• Number of Fans: 1
• Bearing Type: Fluid Bearing
• Fan Diameter: 90 mm
• Protection Type: Over Current, Over Voltage, Under Voltage, Over Power, Short Circuit, Over Temperature
• Modular: Yes
• NVIDIA SLI Supported: Yes
• Features: Compact
• Number of +12V Rails: 1
• Input Voltage: 120 V AC, 230 V AC
• Output Voltage: 3.3 V DC, 5 V DC, 12 V DC, -12 V DC, 5 V SB
• Output Voltage Details:
  • 3.3 V DC @ 18 A
  • 5 V DC @ 18 A
  • 12 V DC @ 62.5 A
  • -12 V DC @ 0.3 A
  • 5 V SB @ 2.5 A
• Output Current:
  • 18 A
  • 62.50 A
  • 300 mA
  • 2.50 A
• Output Power: 750 W
• Input Frequency: 60 Hz

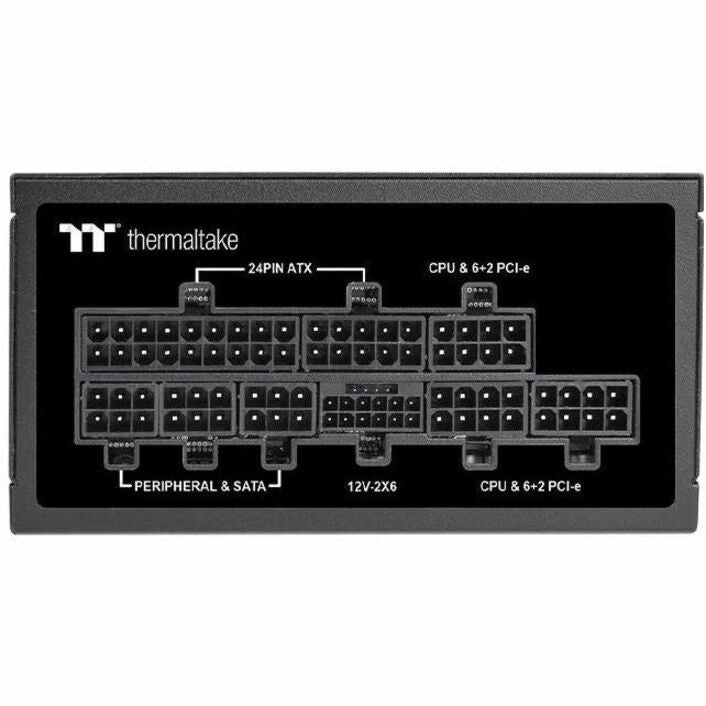

• Number of SATA Power Connectors: 8
• PCI Express Connector: Yes
• Number of (6+2 pin) PCI Express Power Connectors: 2
• Number of (4+4 pin) CPU Power Connectors: 2
• Minimum Operating Temperature: 41°F (5°C)
• Maximum Operating Temperature: 104°F (40°C)
• Color Family: Black
• Product Color: Black
• Form Factor: Internal
• HxWxD: 2.5" x 4.9" x 4.1"
