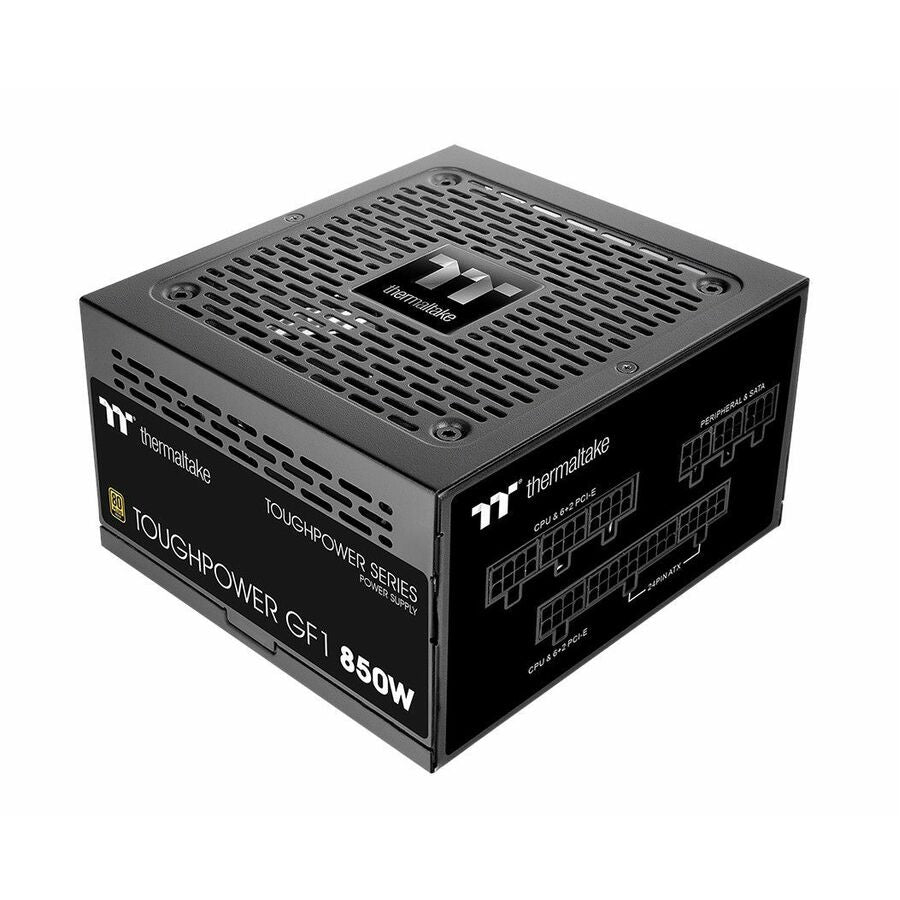

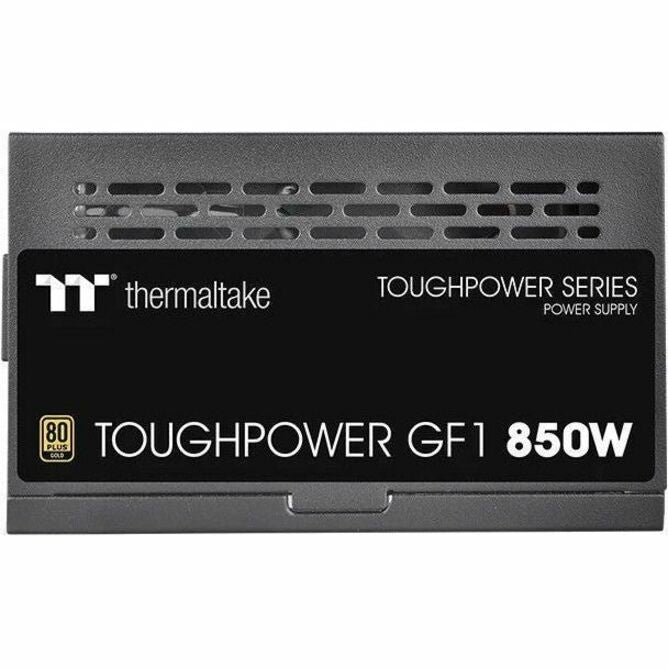

Thermaltake PS-TPD-0850FNFAGU-P Toughpower GF1 850W Power Supply - 120 V , 230 V

• Manufacturer: Thermaltake Technology Co., Ltd
• Brand Name: Thermaltake
• Manufacturer Part Number: PSTPD0850FNFAGUP
• Product Line: ToughPower GF1
• Product Model: TPD-850AH2FLG
• Product Name: Toughpower GF1 TPD-850AH2FLG 850W Power Supply
• Product Type: Power Supply

• The fully modular Toughpower GF1 series is available in 750W / 850W models and built to deliver 80 PLUS Gold efficiency. With an ample 10-year warranty, the Toughpower GF1 is able to satisfy the market, where PC enthusiasts are looking for a premium power supply with all the latest features.
• Compact Design with 140mm Depth
• The Toughower GF1 Series is designed to be compact with a size of 140mm (D) x 86mm (H) x 150mm (L) providing ample space for cable management.
• Zero Cable Platform
• Farewell to messy cables! We have connected the back panel and the PCB with a copper plate for better heat dissipation and impressive output power quality.
• Be Smart, Stay Quiet
• Featuring a 120mm fluid bearing fan to deliver excellent airflow. Furthermore, the Smart Zero Fan will not spin until the load exceeds certain percentage of the power supply, minimizing undesired noise.

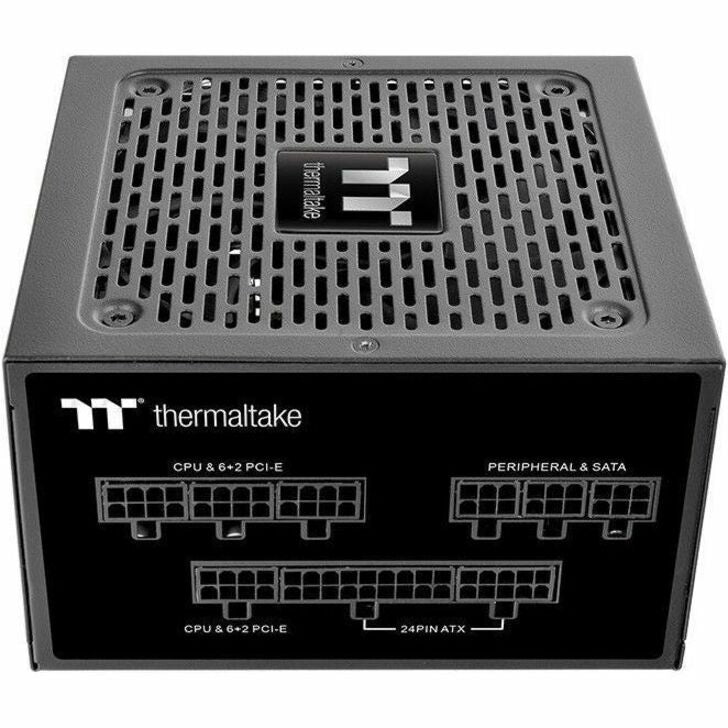

• Fully Modular Low-Profile Flat Cable
• Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.
• High Quality 105°C/221°F Main Capacitors
• Providing great durability as well as offering the highest stability, while remaining reliable.
• High Amperage Single +12V Rail & High-Class Technologies
• Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation.
• 80 PLUS Gold Certified and Intel C6/C7 States Ready
• Toughpower GF1 series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel's processors to achieve maximum energy saving.
• Built-in Industrial Grade Protection
• To protect the hardware, Toughpower GF1 series is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).

• Specification Compliance: ATX12V
• Efficiency: 90%
• Power Factor Correction (PFC): Active
• Number of Fans: 1
• Protection Type:
  • Over Current
  • Over Voltage
  • Under Voltage
  • Over Power
  • Short Circuit
  • Over Temperature
• Modular:Yes
• Features: Compact

• Number of +12V Rails: 1
• Input Voltage:
  • 120 V AC
  • 230 V AC
• Output Voltage:
  • 3.3 V DC
  • 5 V DC
  • 12 V DC
  • -12 V DC
  • 5 V SB
• Output Voltage Detail:
  • 3.3 V DC @ 20 A
  • 5 V DC @ 20 A
  • 12 V DC @ 62.5 A
  • -12 V DC @ 0.5 A
  • 5 V DC @ 3.5 A
• Output Power: 850 W
• Input Frequency: 50Hz/60Hz
• Environmental Conditions
• Minimum Operating Temperature: 41°F (5°C)
• Maximum Operating Temperature: 104°F (40°C)

• Form Factor: Internal
• Height: 3.4"
• Width: 5.9"
• Depth: 5.5"

• Environmentally Friendly: Yes
• Energy Efficiency Certification: 80 Plus Gold

• Limited Warranty: 10 Year from Thermaltake
