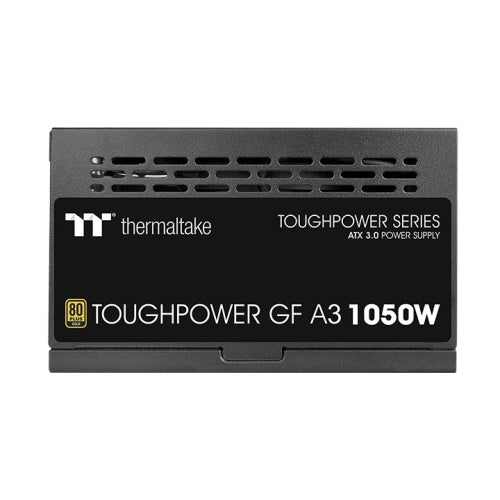

Thermaltake PS-TPD-1050FNFAGU-L Power Supply - TOUGHPOWER GF A3 Gold 1050W 80+GD

Product Information

• Manufacturer: Thermaltake Technology Co., Ltd
• Manufacturer Part Number: PS-TPD-1050FNFAGU-L
• Brand Name: Thermaltake
• Product Line: Toughpower GF A3
• Product Model: TTP-1050AH2FLG
• Product Name: Toughpower GF A3 Gold 1050W - TT Premium Edition

Marketing Information:

• ATX 3.0 & PCIe Gen 5.0 Ready | Toughpower GF A3 Gold | Power Up the Next Generation Hardware
• To fully support next-gen hardware, Toughpower GF A3 Gold Series (650W/750W/850W/1050W/1200W) is designed to meet ATX 3.0 standards, including a PCIe Gen 5.0 12VHPWR connector. The GF A3 Gold series delivers 80 PLUS Gold efficiency, it also offers stability, durability, and reliability.
• Fully Compatible with Intel ATX 3.0 Standards
• Toughpower GF A3 Gold series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.
• PCIe Gen 5.0 Ready
• Toughpower GF A3 Gold series comes with a 16pin connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.
• The wattage marked on the 12VHPWR's connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of the GF A3 750W can deliver up to 300W for PCIe 5.0 graphics cards.
• Made to Comply with the Latest Graphics Cards
• As the power consumption of graphics cards increase, so has their demand for power. The GF A3 series is designed to support NVIDIA and AMD graphics cards, and are ready to supply the graphics cards according to their different connections.
• Be Smart, Stay Quiet

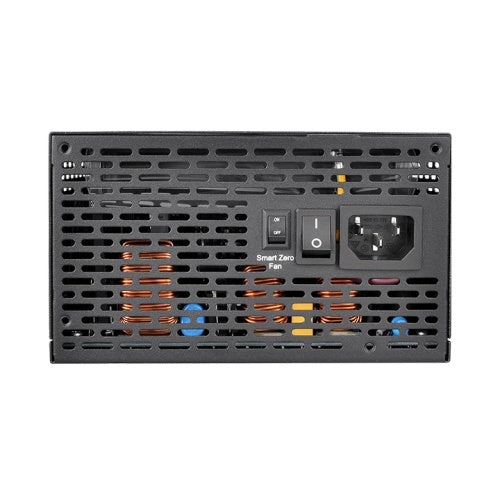

• Featuring a 120mm fluid bearing fan to deliver excellent airflow. Furthermore, the Smart Zero Fan will the fan will not spin until the load exceeds 30% of the power supply, minimizing undesired noise.
• High Quality Japanese Main Electrolytic Capacitor
• High quality Japanese main electrolytic capacitor greatly improves the power supplies durability and ensures the Toughpower GF A3 series is stability and reliability.
• High Amperage Single +12V Rail & High-Class Technologies

• Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.
  • OCP Over Current Protection
  • OVP Over Voltage Protection
  • UVP Under Voltage Protection
  • OPP Over Power Protection
  • SCP Short Circuit Protection
  • OTP Over Temperature Protection
• Built-in Industrial Grade Protection
• To protect the hardware, GF A3 is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).

Product Type: Power Supply

Technical Information

• Specification Compliance: ATX 3.0
• Efficiency: 90%
• Number of Fans: 1
• Modular: Yes
• NVIDIA SLI Supported: Yes
• Power Description
• Number of +12V Rails: 1
• Output Voltage:
• 3.3 V DC
• 5 V DC
• 12 V DC
• -12 V
• Output Voltage Detail:
• 3.3 V DC @ 20 A
• 5 V DC @ 20 A
• 12 V DC @ 87.5 A
• -12 V @ 0.3 A
• 5 V DC @ 3 A
• Output Current:
• 20 A
• 87.50 A
• 300 mA
• 3 A
• Output Power: 1050 W
• Form Factor: Internal
