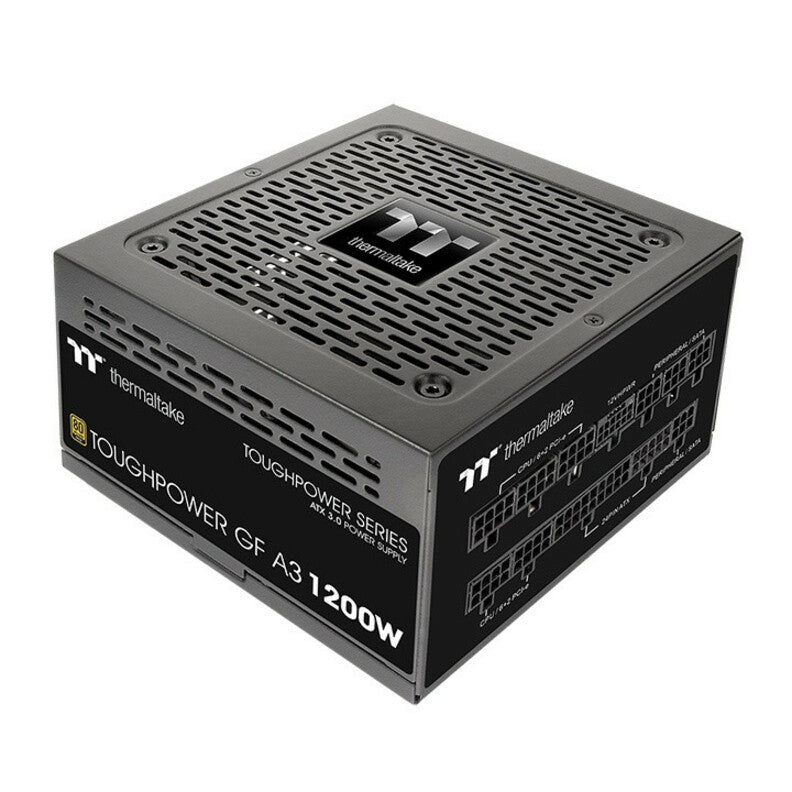

Thermaltake PS-TPD-1200FNFAGU-L TOUGHPOWER GF A3 Gold 1200 W - Power Supply

Marketing Information

• Toughpower GF A3 series is 80 PLUS Gold certified and compatible with Intel’s ATX 3.0 specifications. Designed with a native PCIe Gen 5.0 connector, it can power up next-gen technology with one new 12VHPWR cable.
• The wattage marked on the 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of the GF A3 650W can deliver up to 300W for PCIe 5.0 graphics cards.
• Power Up the Next Generation Hardware
• To fully support next-gen hardware, Toughpower GF A3 Gold Series (650W/750W/850W/1050W/1200W) is designed to meet ATX 3.0 standards, including a PCIe Gen 5.0 12VHPWR connector. The GF A3 Gold series delivers 80 PLUS Gold efficiency, it also offers stability, durability, and reliability.
• Fully Compatible with Intel ATX 3.0 Standards
• Toughpower GF A3 Gold series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.
• PCIe Gen 5.0 Ready

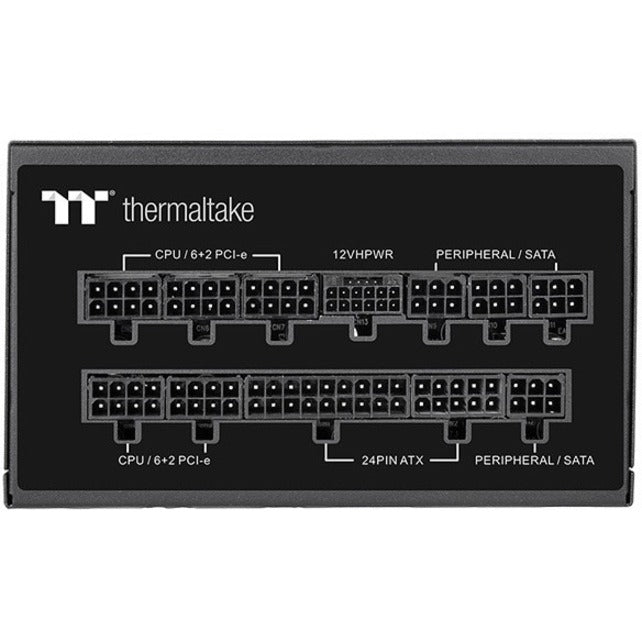

• Toughpower GF A3 Gold series comes with a 16pin connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.
• The wattage marked on the 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of the GF A3 650W can deliver up to 300W for PCIe 5.0 graphics cards.
• Made to Comply with the Latest Graphics Cards
• As the power consumption of graphics cards increase, so has their demand for power. The GF A3 series is designed to support NVIDIA and AMD graphics cards, and are ready to supply the graphics cards according to their different connections.

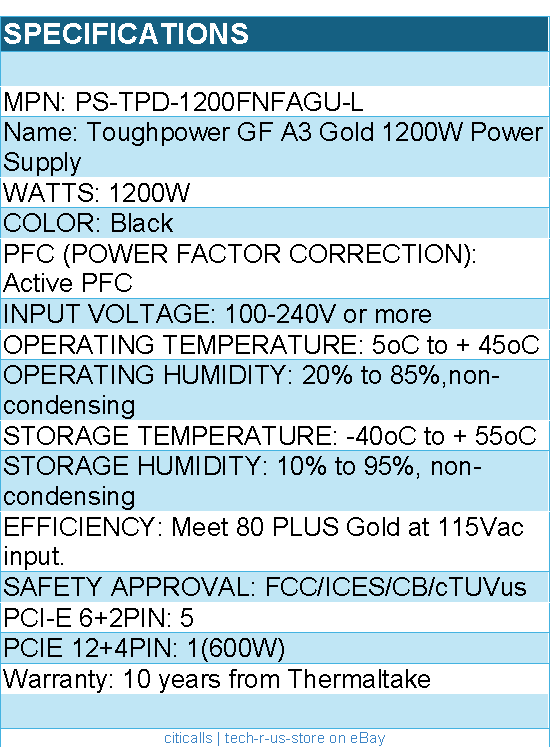

Detail Specifications

• MPN: PS-TPD-1200FNFAGU-L
• Name: Toughpower GF A3 Gold 1200W Power Supply
• WATTS: 1200W
• MAX. OUTPUT CAPACITY: 1200W
• COLOR: Black
• PFC (POWER FACTOR CORRECTION): Active PFC
• POWER GOOD SIGNAL: 100-150 msec
• HOLD UP TIME: > 17msec
• INPUT CURRENT: 20A-8A
• INPUT FREQUENCY RANGE: 50Hz/60Hz
• INPUT VOLTAGE: 100-240V or more
• OPERATING TEMPERATURE: 5oC to + 45oC
• OPERATING HUMIDITY: 20% to 85%,non-condensing
• STORAGE TEMPERATURE: -40oC to + 55oC
• STORAGE HUMIDITY: 10% to 95%, non-condensing
• COOLING SYSTEM: 12cm FDB Fan
• EFFICIENCY: Meet 80 PLUS Gold at 115Vac input.
• MTBF: 100,000 hrs minimum
• SAFETY APPROVAL: FCC/ICES/CB/cTUVus
• PCI-E 6+2PIN: 5
• PCIE 12+4PIN: 1(600W)

Warranty Information

• 10 years from Thermaltake
