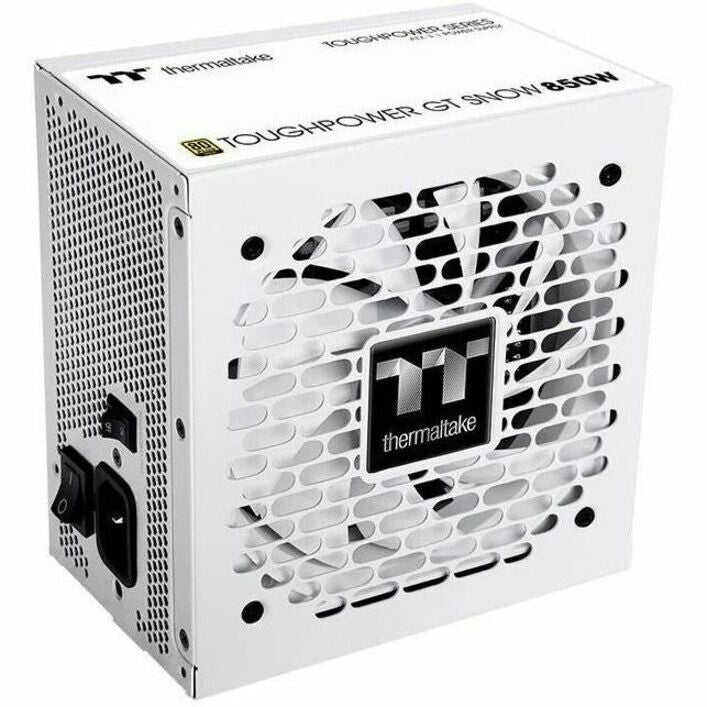

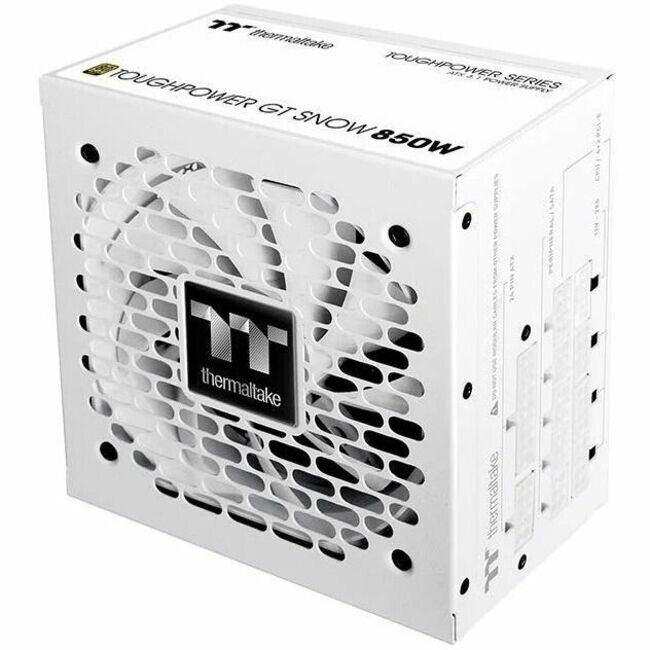

Thermaltake PS-TPT-0850FNFAGU-W TOUGHPOWER GT Snow 850W - Power Supply - Snow

General Information

• Manufacturer: Thermaltake Technology Co., Ltd
• Brand Name: Thermaltake
• Manufacturer Part Number: PS-TPT-0850FNFAGU-W
• Product Line: Toughpower
• Product Series: GT
• Product Model: TPD-850AH2FXG-3
• Product Name: TOUGHPOWER GT Snow 850W
• Product Type: Power Supply

Marketing Information:

• Toughpower GT Snow Series
• The fully modular Toughpower GT Snow series is designed to deliver 80 PLUS Gold efficiency and is compatible with ATX 3.1 standards. Its native PCIe 12V-2x6 (12+4 pin) modular interface efficiently powers PCIe 12+4 pin graphics cards. Backed by an extensive 5-year warranty, the Toughpower GT Snow series meets the needs of value-oriented users seeking a new power supply with reliable performance.
• ATX 3.1 Ready
• Toughpower GT Snow series is fully compatible with ATX 3.1 specifications which supports up to 200% power excursion, reaches 60% efficiency at low load and complies with required power supply timing standards.
• PCIe Gen 5.1 Ready
• Toughpower GT Snow series comes with a PCIe 12V-2x6 connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.
• The wattage marked on the PCIe 12+4-pin cable connector represents the recommended wattage (Ref. Intel design guideline). The bundled PCIe Gen 5.1 (12+4pin) cable connector of the Toughpower GT Snow 850W can deliver up to 600W for PCIe 12+4pin graphics cards.

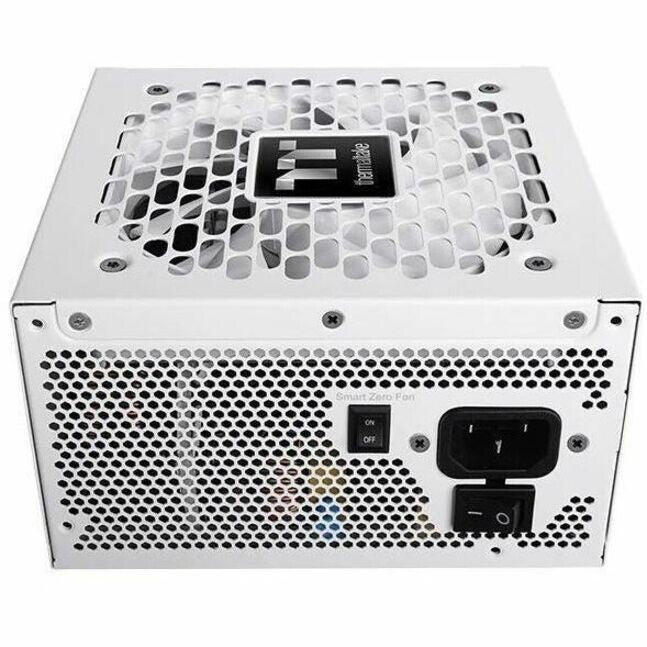

• Ultra Quiet 120mm Hydraulic Bearing Fan with Smart Zero Fan
• Featuring an 120mm Hydraulic Bearing Fan to keep friction at really low level. Designed with our Smart Zero Fan to adjust the fan speed and minimizes undesired noise.
• High Amperage Single +12V Rail & High-Class Technologies
• Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.

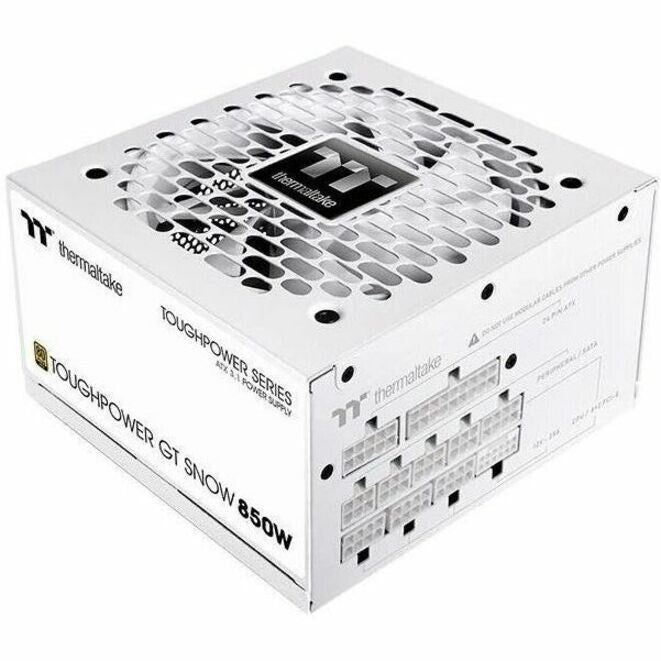

• Fully Modular Low-Profile Cables
• Offers cable selection for users while powering the system at an advantageous voltage. Low-profile white cables make cable management easier, reduces clutter and increases airflow inside the chassis.
• Built-in Industrial Grade Protection
• To protect the hardware, Toughpower GT Snow series is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).
• 80 PLUS Gold Certified
• Toughpower GT Snow series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold.

Technical Information

• Specification Compliance: ATX 3.1
• Efficiency: 90%
• Power Factor Correction (PFC): Active
• Number of Fans: 1
• Fan Bearing Type: Hydraulic Bearing
• Fan Diameter: 120 mm
• Protection Type:
  • Over Current
  • Over Voltage
  • Under Voltage
  • Over Power
  • Short Circuit
  • Over Temperature
• Modular: Yes

Power Description

• Number of +12V Rails: 1
• Input Voltage:
  • 120 V AC
  • 230 V AC
• Output Voltage:
  • 3.3 V DC
  • 5 V DC
  • 12 V DC
  • -12 V DC
  • 5 V SB
• Output Voltage Detail:
  • 3.3 V DC @ 20 A
  • 5 V DC @ 20 A
  • 12 V DC @ 70.8 A
  • -12 V DC @ 0.3 A
  • 5 V SB @ 3 A
• Output Power: 850 W
• Input Frequency: 60Hz

Interfaces/Ports

• Number of SATA Power Connectors: 6
• PCI Express Connector: Yes
• Number of (6+2 pin) PCI Express Power Connectors: 4
• Number of (4+4 pin) CPU Power Connectors: 2

Environmental Conditions

• Minimum Operating Temperature: 32°F (0°C)
• Maximum Operating Temperature: 104°F (40°C)

Physical Characteristics

• Color Family: White
• Product Color: Snow
• Form Factor: Internal
• Height: 3.4"
• Width: 5.9"
• Depth: 5.5"

Miscellaneous

• Certifications & Standards:
  • CE
  • UKCA
  • ICES
  • TUV
  • LVD
  • RCM
  • CB
  • FCC
  • cTUVus
  • BSMI
  • CCC
  • BIS
  • S-MARK
• Energy Efficiency Certification: 80 Plus Gold

Warranty

• Limited Warranty: 5 Year from Thermaltake
