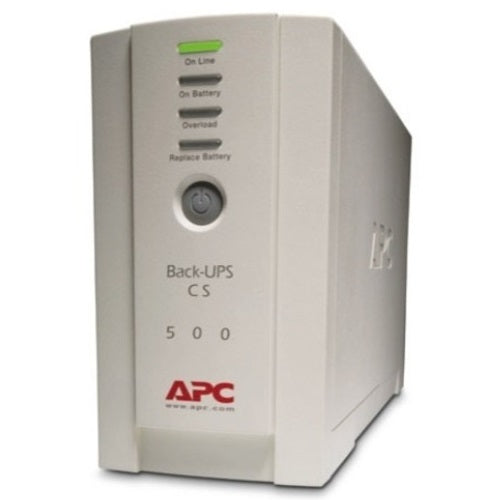

APC BK500 Back-UPS CS 500VA, 120V, beige, 6 NEMA outlets (3 surge)

General Information

• Manufacturer: Schneider Electric SA
• Brand Name: APC by Schneider Electric
• Manufacturer Part Number: BK500
• Product Line: Back-UPS
• Product Series: CS
• Product Name: BK500 120V Backup System
• Packaged Quantity: 1 Each
• Product Type: Standby UPS

Marketing Information:

• Protect your electronics with this 6-outlet, 120-volt battery backup system. 300-watt back-UPS features a surge energy rating of 480 joules. Serial connection lets you use your PC to access additional power protection and management features for your uninterruptible power supply (UPS) through a serial port. Disconnected battery notification warns you when a battery is not available to provide backup power. Cold-start capability provides temporary battery power when the utility power is out. Dataline surge protection protects connected equipment from power surges on the data lines. Hot-swappable batteries ensure clean, uninterrupted power to your protected equipment while the batteries are being replaced. Wiring fault indicator informs you of potentially dangerous wiring problems in the wall circuit.

Technical Information

• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15P

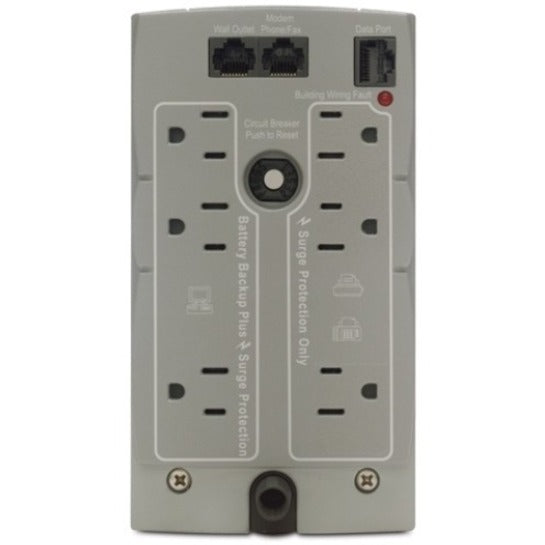

• Receptacle Detail:
• 3 x NEMA 5-15R
• 3 x NEMA 5-15R Surge
• Number of Battery & Surge Outlets: 6
• Dataline Protection: RJ-11
• Cord Length: 6 ft

Power Description

• Load Capacity (VA): 500 VA
• Load Capacity (Watt): 300 W
• Input Voltage: 120 V
• Input Current: 10 A
• Output Voltage: 120 V AC
• Power Consumption: 300 W
• Waveform Type: Stepped Approximated Sine Wave
• Surge Energy Rating: 480 J

Management

• Alarm:
  • On Battery
  • Low Battery
  • Overload

Controls/Indicators

• Status Indicators: LED status display with On Line, On Battery, Replace Battery, Site wiring fault and Overload Indicators

Interfaces/Ports

• Serial Port: Yes
• USB: Yes

Battery Information

• Battery Characteristics: Spill-proof, Maintenance-free
• Battery Chemistry: Lead Acid
• Backup/Run Time (Full Load): 3 Minute
• Backup/Run Time (Half Load): 15 Minute
• Typical Battery Recharge Time: 8 Hour

Environmental Conditions

• Maximum Operating Temperature: 113°F (45°C)
• Sound Emission (A-Weighted): 45 dB(A)
• Thermal Dissipation: 7.03 W

Physical Characteristics

• Color Family: Beige
• Product Color: Beige
• Height: 6.5"
• Width: 3.6"
• Depth: 11.2"
• Form Factor: Tower
• Mounting Preference: No Preference
• Mounting Location: Front

Miscellaneous

• For Country/Region: United States
• Package Contents:
  • BK500 120V Backup System
  • CD with software
  • Cord management straps
  • USB cable
  • User manual
• Additional Information:
  • Additional Surge Protected Outlets
  • Cord Management
  • Software
  • USB compatible
• Country of Origin: Philippines
• Environmentally Friendly: Yes

Warranty

• Limited Warranty: 3 Year from APC
