APC by Schneider Electric SMX2000RMLV2UNC Smart-UPS X 1920 VA Tower/Rack Mountab

General Information

Manufacturer:   Schneider Electric SA
Brand Name:   APC by Schneider Electric
Manufacturer Part Number:   SMX2000RMLV2UNC
Product Line:   Smart-UPS
Product Series:   X
Product Model:   SMX2000RMLV2UNC
Product Name:   Smart-UPS X 1920 VA Tower/Rack Mountable

Marketing Information:
Overview

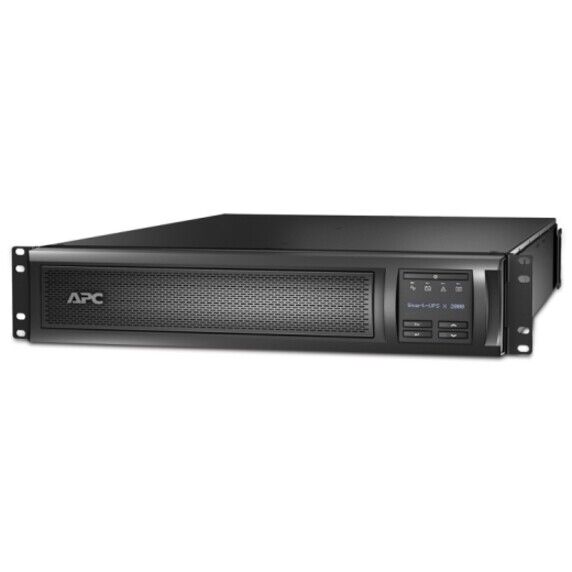

APC Smart-UPS Extended Run SMX2000RMLV2UNC

• Instant backup battery power during an outage
• Protects electronic equipment from harmful power conditions
• Three switchable outlet groups for individual load management
• Pure sine wave output while on battery
• Ability to add external battery packs for extended runtime
• Green mode reduces power consumption
• Smart battery management for long battery life
• LCD interface with intuitive navigation keys
• Preinstalled Network Management Card to remote manage the UPS
• Converts from tower to rack mount for convenient installation
• PowerChute software provides safe shutdown
• Three-year limited warranty

Backup Battery Lets You Keep Working through Outages
Protect your servers, routers and networking devices with the APC Smart-UPS SMX2000RMLV2UNC. This UPS provides backup battery power in the event of a power outage, monitoring and safeguarding your equipment from harmful power conditions, spikes and surges. An automatic green mode ensures you are operating at the highest level of efficiency while smart battery management maximizes performance. Use the intuitive LCD interface and PowerChute software to configure settings and monitor usage. This Smart-UPS has a 1,800-watt power capacity, seven outlets, three switchable outlet groups and the capability to add external battery packs to extend the runtime needed for network applications. This model converts between tower and rack-mount for convenient installation and includes a preinstalled network management card to manage and control the UPS.

Protects Electronic Equipment from Power Disruptions
Keep your electronic equipment protected through blackouts, brownouts, and other power disturbances with APC Smart-UPS. The generous runtime while on battery with the option to extend the runtime with external battery packs lets you continue working during medium to extended-length power outages. If you need to add extra runtime during an outage, attach plug-and-play external batteries for clean, uninterrupted power.

Providing a greater level of control this UPS has one switchable outlet group that allows individual control separate from the UPS. Allowing the ability to reboot hung devices, program sequenced on and off and non-critical load shedding of equipment.

Automatic voltage regulation (AVR) adjusts high and low voltages to a safe level, ensuring your equipment has reliable power and preserving the life of the battery. The pure sine wave output while on battery provides the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics. For added safety, this UPS can be attached to an Emergency Power Off (EPO) system for a safe shutdown in an emergency situation.

Power-Saving Green Mode Operates at High Efficiency
Operate efficiently with the Smart-UPS green mode, conserving energy when power quality is within optimal levels and power conditioning is not necessary. The UPS will enter and exit green mode automatically, ensuring you are always operating at the highest efficiency while saving power, reducing utility costs, and generating less heat. To help you monitor your energy usage, this UPS has an energy meter that provides actual kilowatt-hours of usage.

Battery Management Features Ensure Optimal Performance
For easy battery maintenance, this UPS provides you with a predictive date for when battery replacement is recommended. The periodic self-test and disconnected battery notification both ensure you detect any faulty batteries. To prolong battery life, the Smart-UPS regulates the charge voltage according to battery temperature.

Intuitive LCD Interface for Easy Configuration
Check utility status and adjust settings on the easy-to-use LCD interface. A bright display provides clear, accurate information in multiple language options, and intuitive navigation keys make it simple to configure settings. If you're away from the UPS, manage settings using the preinstalled network management card.

PowerChute Software Provides Safe System Shutdown
Designed for exceptional usability, PowerChute Business Edition software provides safe system shutdown in the event of an extended power outage while preventing potential data corruption. It's fast and easy to install, and you can tailor settings to meet your individual needs. Find cost savings by using PowerChute to monitor your equipment's energy consumption.

Product Type:   Line-interactive UPS

Technical Information

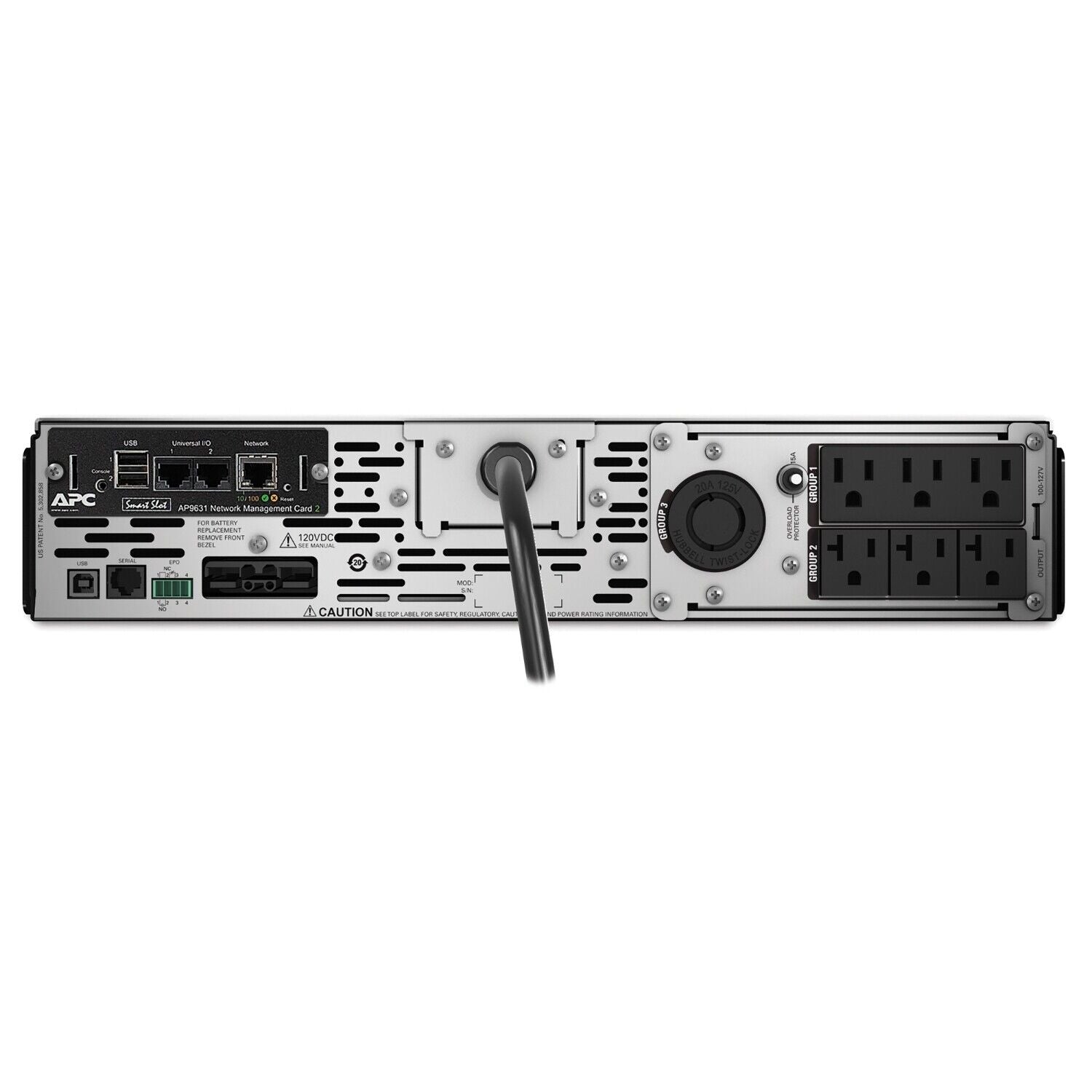

Plug/Connector Type:   NEMA 5-20P
Receptacle Type:   NEMA 5-15R
Receptacle Type:   NEMA 5-20R
Receptacle Type:   NEMA L5-20R
Receptacle Detail:   3 x NEMA 5-15R
Receptacle Detail:   1 x NEMA L5-20R
Receptacle Detail:   3 x NEMA 5-20R
Number of Battery & Surge Outlets:   7

Power Description
Load Capacity:   1920 VA/1800 W
Input Voltage:   110 V AC
Output Voltage:   120 V AC
Waveform Type:   Sine Wave

Interfaces/Ports
Serial Port:   Yes
Network (RJ-45):   Yes
USB:   Yes

Battery Information
Battery Characteristics:   Maintenance-free, Sealed, Spill-proof
Battery Chemistry:   Lead Acid
Backup/Run Time (Full Load):   11 Minute
Backup/Run Time (Half Load):   28 Minute
Typical Battery Recharge Time:   3 Hour
Hot Swappable:   Yes

Physical Characteristics
Product Color:   Black
Height:   3.4"
Width:   17"
Depth:   26.3"
Rack Height:   2U
Form Factor:   Rack-mountable

Miscellaneous
Package Contents:
Smart-UPS X 1920 VA Tower/Rack Mountable
CD with software
Documentation CD
Installation guide
Network management card
Rack mounting brackets
Rack mounting hardware
Rack mounting support rails
Smart UPS signalling RS-232 cable
USB cable

Certifications & Standards:
BSMI
CSA
EN 50091-2
EN 55022 Class A
FCC Part 15 Class A
NOM
TUV
UL 1778
VCCI Class A
UL 1449

Environmentally Friendly:   Yes
Environmental Certification:   REACH
Environmental Certification:   RoHS

Warranty
Limited Warranty:   3 Year - Direct from the Manufacturer
