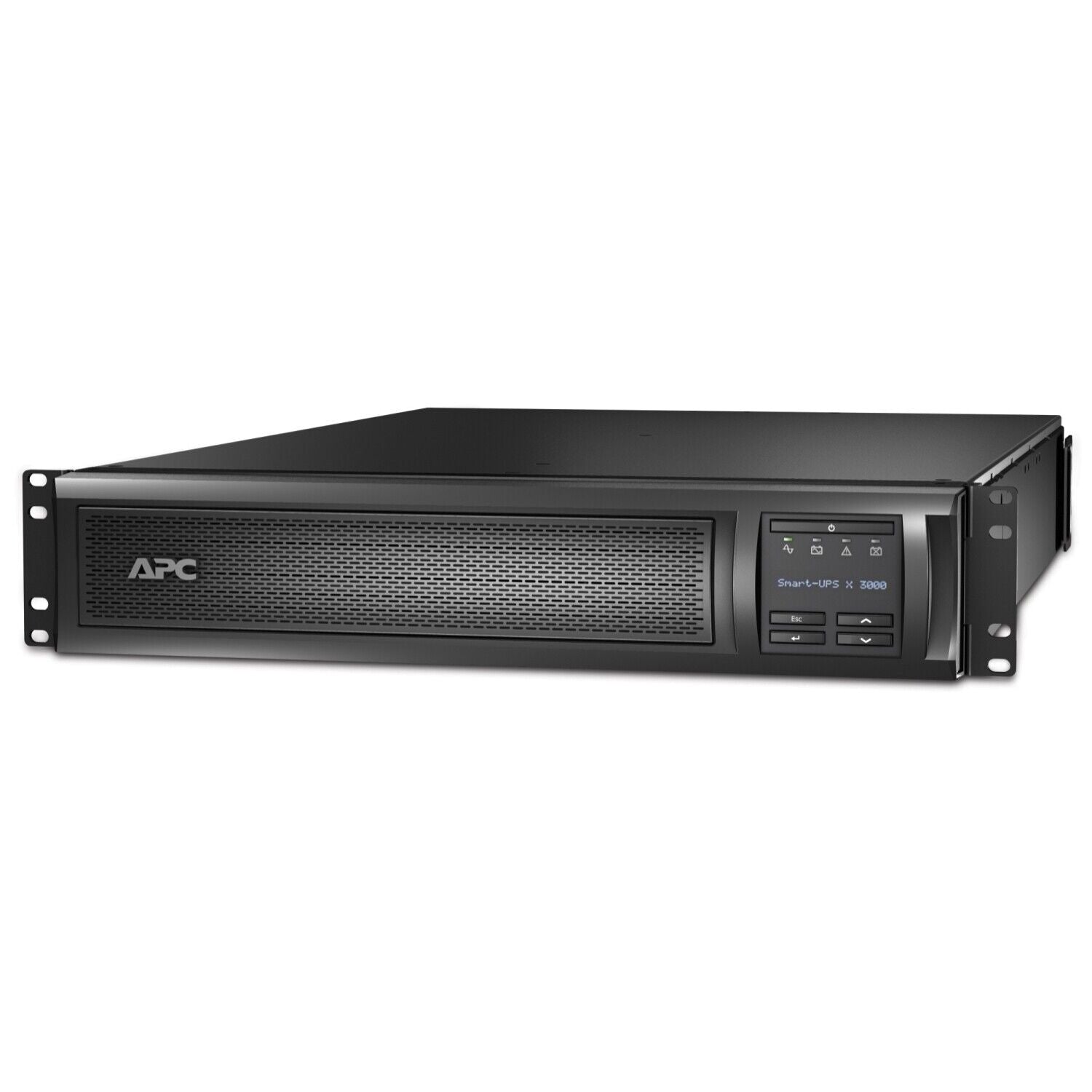

APC by Schneider Electric SMX3000RMLV2U Smart-UPS X 3000 VA Rack-mountable UPS

General Information

Manufacturer:   Schneider Electric SA
Brand Name:   APC by Schneider Electric
Manufacturer Part Number:   SMX3000RMLV2U
Product Line:   Smart-UPS
Product Series:   X
Product Model:   SMX3000RMLV2U
Product Name:   Smart-UPS X SMX3000RMLV2U 3000 VA Rack-mountable UPS

Marketing Information:
Overview

APC Smart-UPS Extended Run SMX3000RMLV2U
Instant backup battery power during an outage
Protects electronic equipment from harmful power conditions
Three switchable outlet groups for individual load management
Pure sine wave output while on battery
Ability to add external battery packs for extended runtime
Green mode reduces power consumption
Smart battery management for long battery life
LCD interface with intuitive navigation keys
SmartSlot for using a network management card

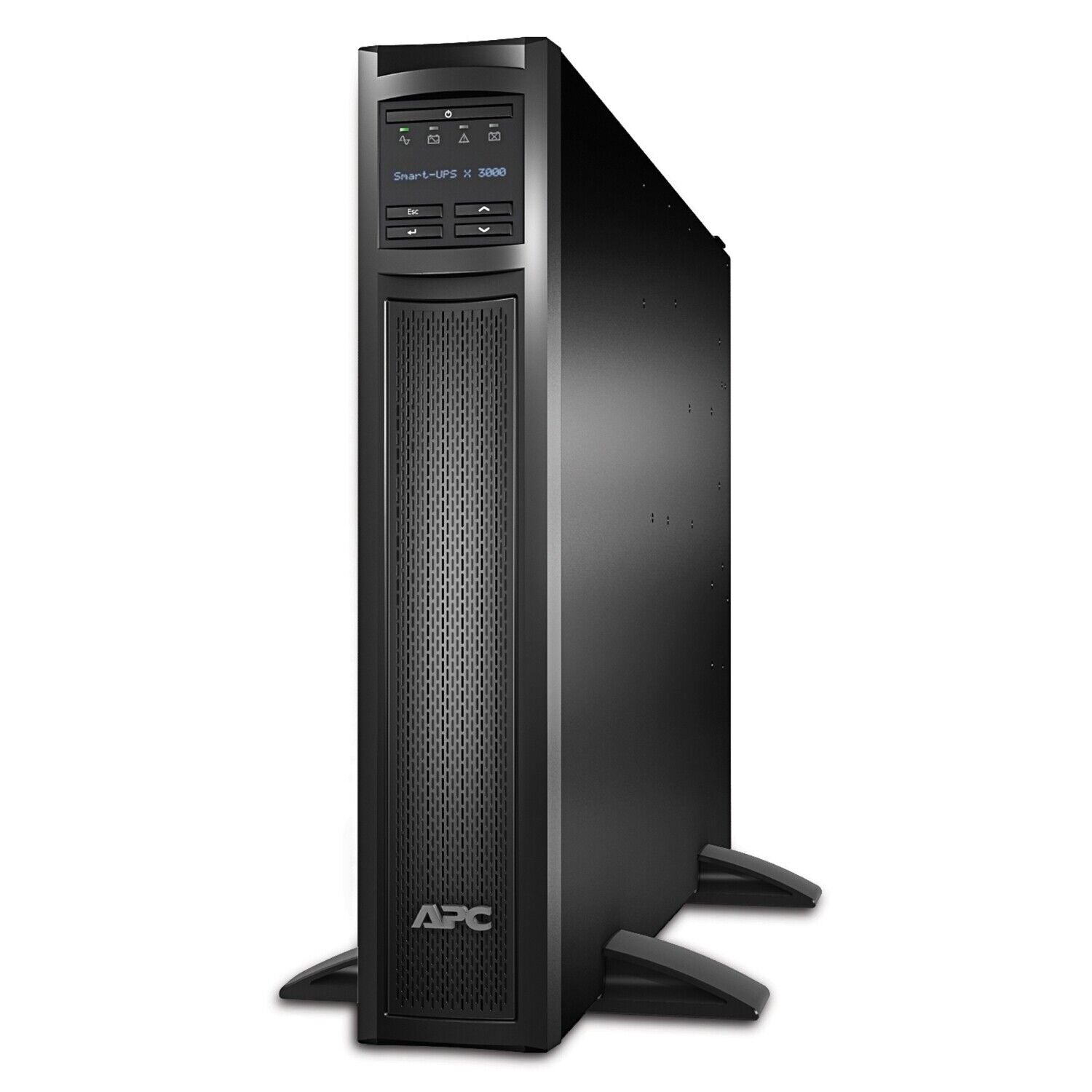

Converts from tower to rack mount for convenient installation
PowerChute software provides safe shutdown

Backup Battery Lets You Keep Working through Outages
Protect your servers, routers, and telecom equipment with the APC Smart-UPS SMX3000RMLV2U. This UPS provides backup battery power in the event of a power outage, monitoring and safeguarding your equipment from harmful power conditions, spikes and surges. An automatic green mode ensures you are operating at the highest level of efficiency while smart battery management maximizes performance. Use the intuitive LCD interface and PowerChute software to configure settings and monitor usage. This Smart-UPS has a 2,700-watt capacity, seven outlets, three switchable outlet groups, and the capability to add external battery packs to extend the runtime needed for network applications. This model converts between tower and rack-mount for convenient installation depending on your needs.

Protects Electronic Equipment from Power Disruptions
Keep your electronic equipment protected through blackouts, brownouts, and other power disturbances with APC Smart-UPS. The generous runtime while on battery with the option to extend the runtime with external battery packs lets you continue working during medium to extended-length power outages. If you need to add extra runtime during an outage, attach plug-and-play external batteries for clean, uninterrupted power.

Providing a greater level of control this UPS has one switchable outlet group that allows individual control separate from the UPS. Allowing the ability to reboot hung devices, program sequenced on and off and non-critical load shedding of equipment.

Automatic voltage regulation (AVR) adjusts high and low voltages to a safe level, ensuring your equipment has reliable power and preserving the life of the battery. The pure sine wave output while on battery provides the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics. For added safety, this UPS can be attached to an Emergency Power Off (EPO) system for a safe shutdown in an emergency situation.

Power-Saving Green Mode Operates at High Efficiency
Operate efficiently with the Smart-UPS green mode, conserving energy when power quality is within optimal levels and power conditioning is not necessary. The UPS will enter and exit green mode automatically, ensuring you are always operating at the highest efficiency while saving power, reducing utility costs, and generating less heat. To help you monitor your energy usage, this UPS has an energy meter that provides actual kilowatt-hours of usage.

Battery Management Features Ensure Optimal Performance
For easy battery maintenance, this UPS provides you with a predictive date for when battery replacement is recommended. The periodic self-test and disconnected battery notification both ensure you detect any faulty batteries. To prolong battery life, the Smart-UPS regulates the charge voltage according to battery temperature.

Intuitive LCD Interface for Easy Configuration
Check utility status and adjust settings on the easy-to-use LCD interface. A bright display provides clear, accurate information in multiple language options, and intuitive navigation keys make it simple to configure settings. Insert a network management card into the SmartSlot to customize UPS capabilities.

PowerChute Software Provides Safe System Shutdown
Designed for exceptional usability, PowerChute Business Edition software provides safe system shutdown in the event of an extended power outage while preventing potential data corruption. It's fast and easy to install, and you can tailor settings to meet your individual needs. Find cost savings by using PowerChute to monitor your equipment's energy consumption.

Product Type:   Line-interactive UPS

Technical Information

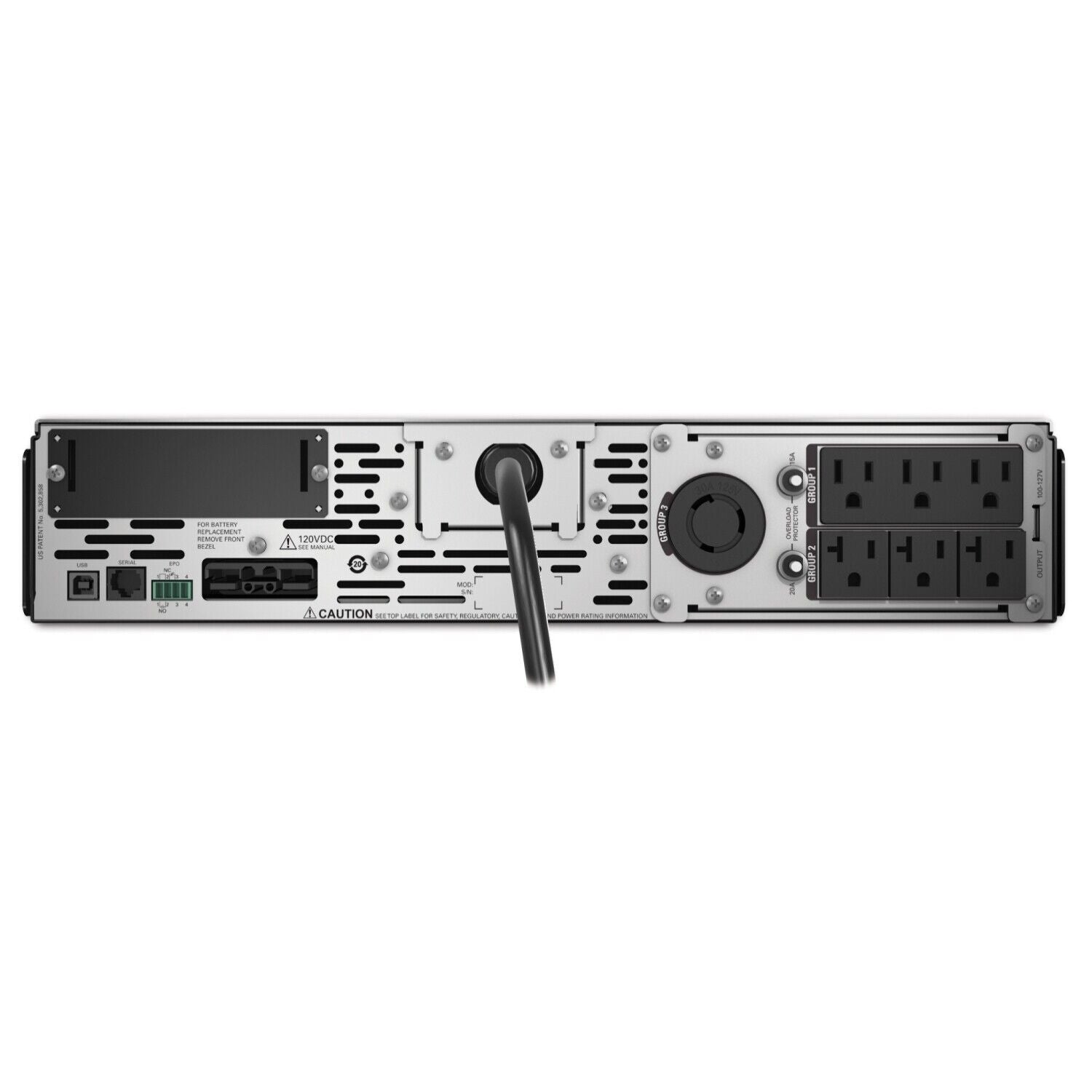

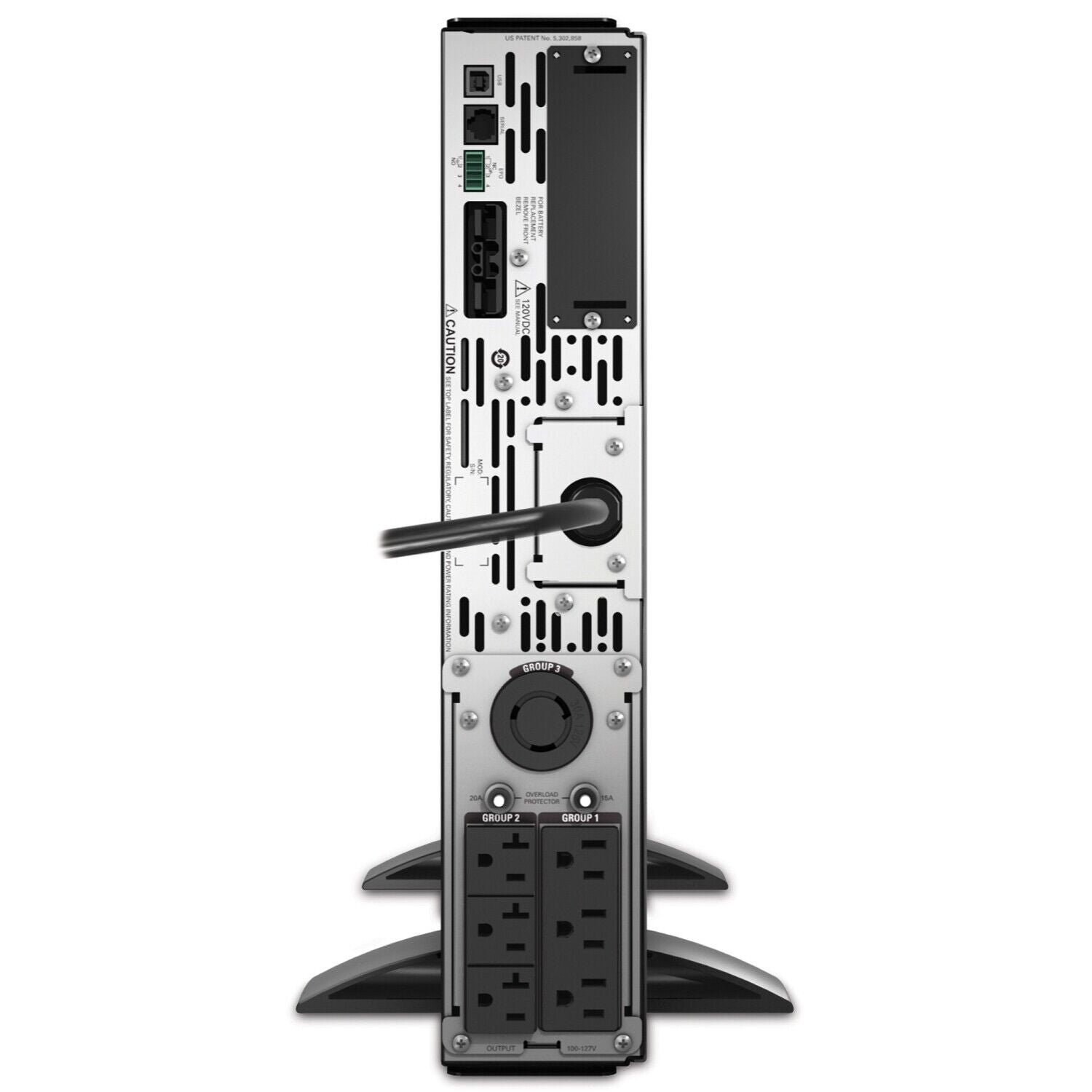

Plug/Connector Type:   NEMA L5-30P
Receptacle Type:   NEMA 5-20R
Receptacle Type:   NEMA 5-15R
Receptacle Type:   NEMA L5-30R
Receptacle Detail:   3 x NEMA 5-20R
Receptacle Detail:   1 x NEMA L5-30R
Receptacle Detail:   3 x NEMA 5-15R
Number of Battery & Surge Outlets:   7
Emergency Power OFF:   Yes
Transfer Time:   4 ms

Power Description
Load Capacity:   2880 VA/2700 W
Input Voltage:   110 V AC
Output Voltage:   120 V AC
Waveform Type:   Sine Wave

Interfaces/Ports
Serial Port:   Yes
USB:   Yes
Total Number of Expansion Slots:   1

Battery Information
Battery Characteristics:   Maintenance-free, Sealed, Spill-proof
Battery Chemistry:   Lead Acid
Backup/Run Time (Full Load):   6 Minute
Backup/Run Time (Half Load):   18 Minute
Typical Battery Recharge Time:   3 Hour
Hot Swappable:   Yes

Physical Characteristics
Product Color:   Black
Height:   3.3"
Width:   17"
Depth:   26.3"
Rack Height:   2U
Form Factor:   Rack-mountable
Weight (Approximate):   84.77 lb

Miscellaneous
Package Contents:
Smart-UPS X SMX3000RMLV2U 3000 VA Rack-mountable UPS
CD with software
Documentation CD
Installation guide
Rack mounting brackets
Rack mounting hardware
Rack mounting support rails
Removable support feet
Smart UPS signalling RS-232 cable
USB cable

Certifications & Standards:
BSMI
CSA
EN 50091-2
EN 55022 Class A
FCC Part 15 Class A
NOM
TUV
UL 1778
VCCI Class A
UL 1449

Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Environmental Certification:   REACH

Country of Origin:   Philippines

Warranty
Limited Warranty:   3 Year - Direct from the Manufacturer
