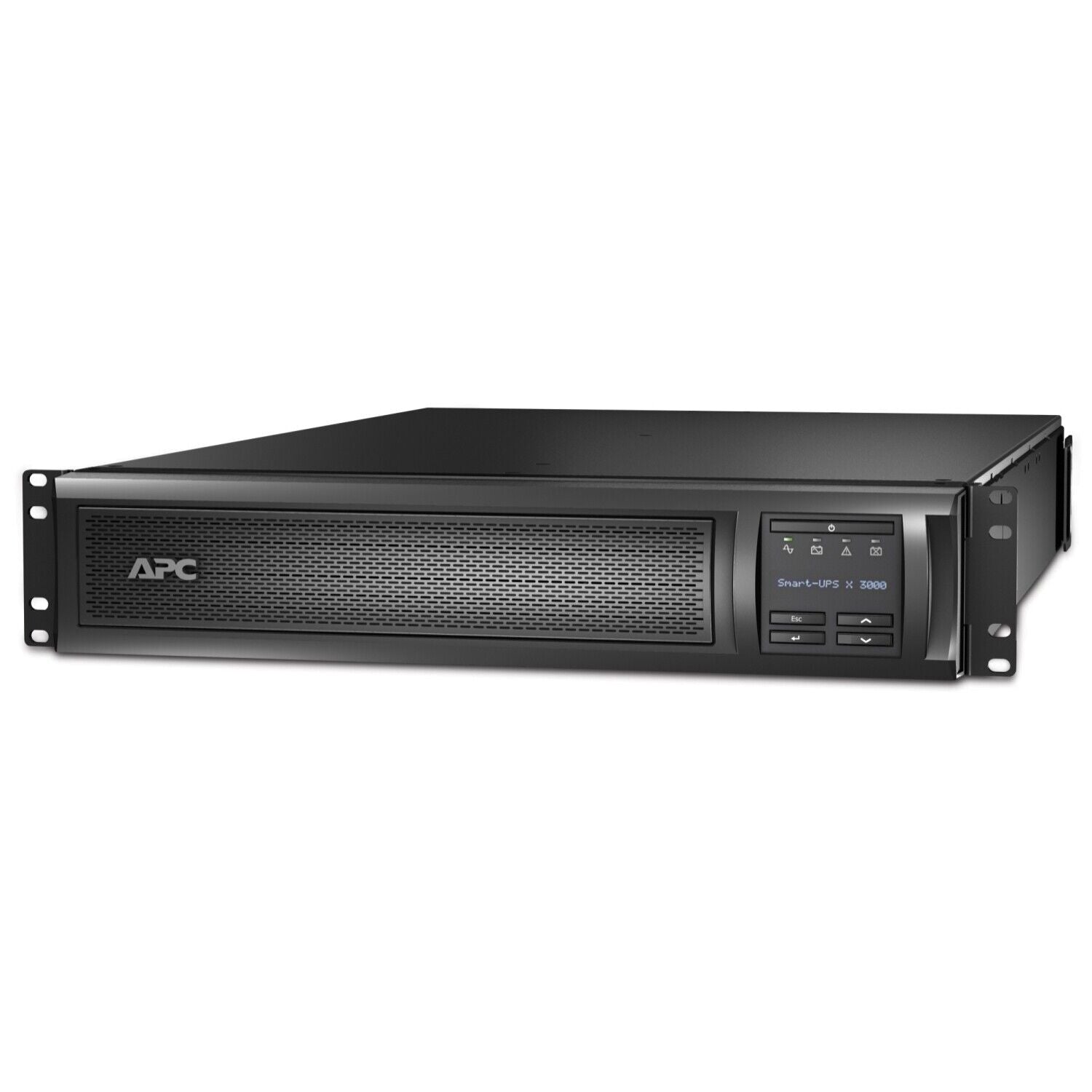

APC by Schneider Electric SMX3000RMLV2UNC Smart-UPS X 3000 VA Rack-mountable UPS

General Information

Manufacturer:   Schneider Electric SA
Brand Name:   APC by Schneider Electric
Manufacturer Part Number:   SMX3000RMLV2UNC
Product Line:   Smart-UPS
Product Series:   X
Product Model:   SMX3000RMLV2UNC
Product Name:   Smart-UPS X SMX3000RMLV2UNC 3000 VA Rack-mountable UPS

Marketing Information:
Overview

• APC Smart-UPS Extended Run SMX3000RMLV2UNC
• Instant backup battery power during an outage
• Protects electronic equipment from harmful power conditions
• Three switchable outlet groups for individual load management
• Pure sine wave output while on battery
• Ability to add external battery packs for extended runtime
• Green mode reduces power consumption
• Smart battery management for long battery life
• LCD interface with intuitive navigation keys
• Preinstalled Network Management Card to remote manage the UPS

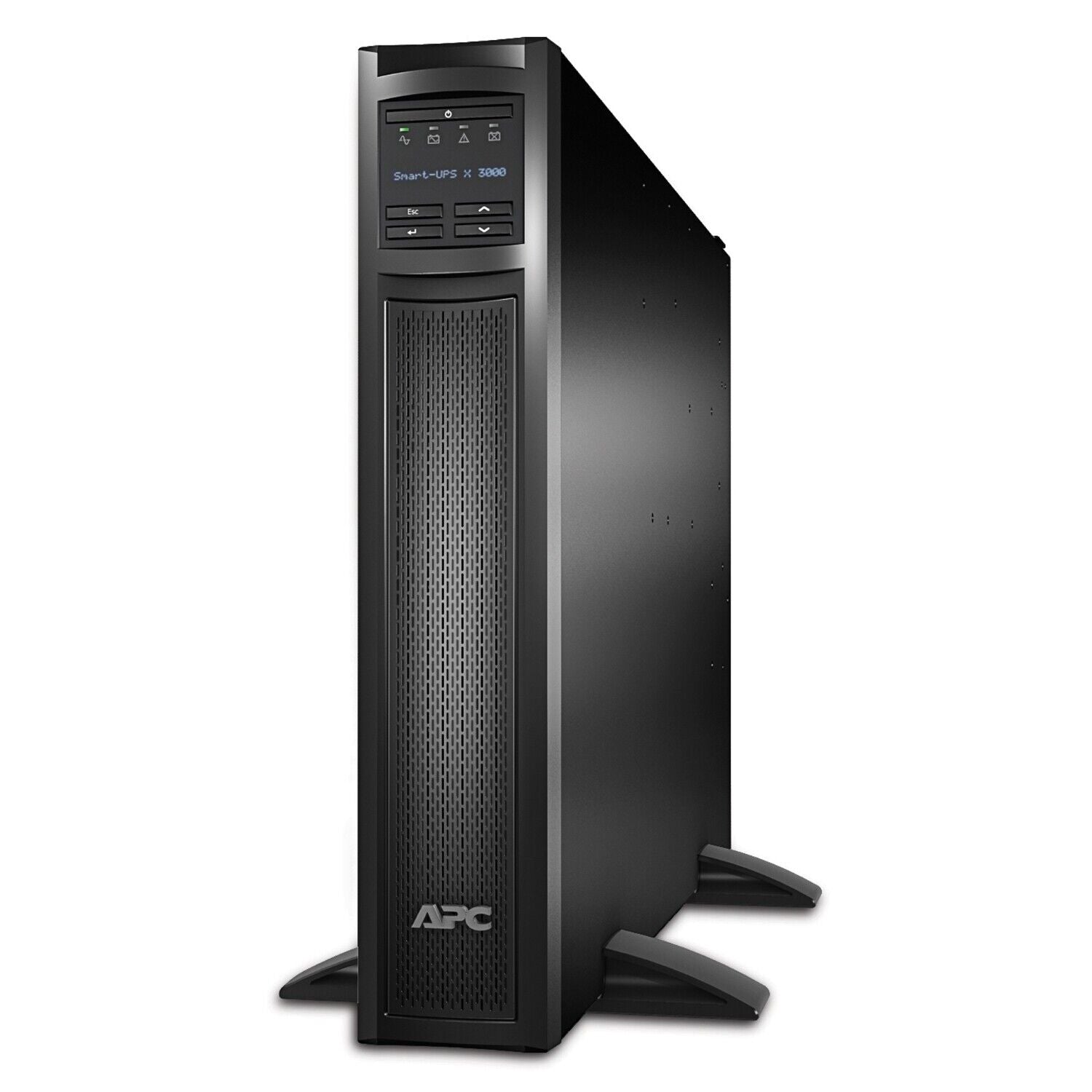

• Converts from tower to rack mount for convenient installation
• PowerChute software provides safe shutdown

Product Type:   Line-interactive UPS

Technical Information

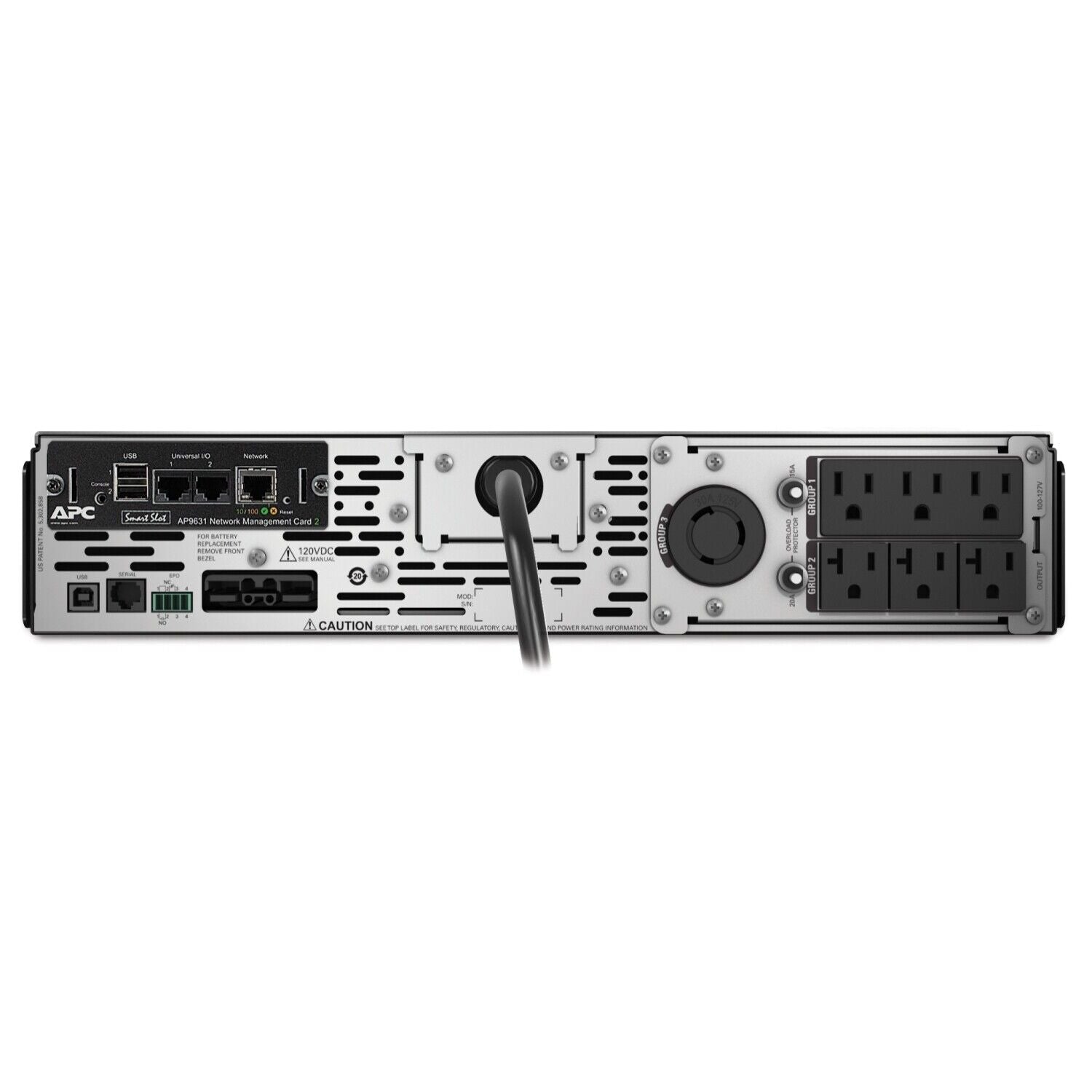

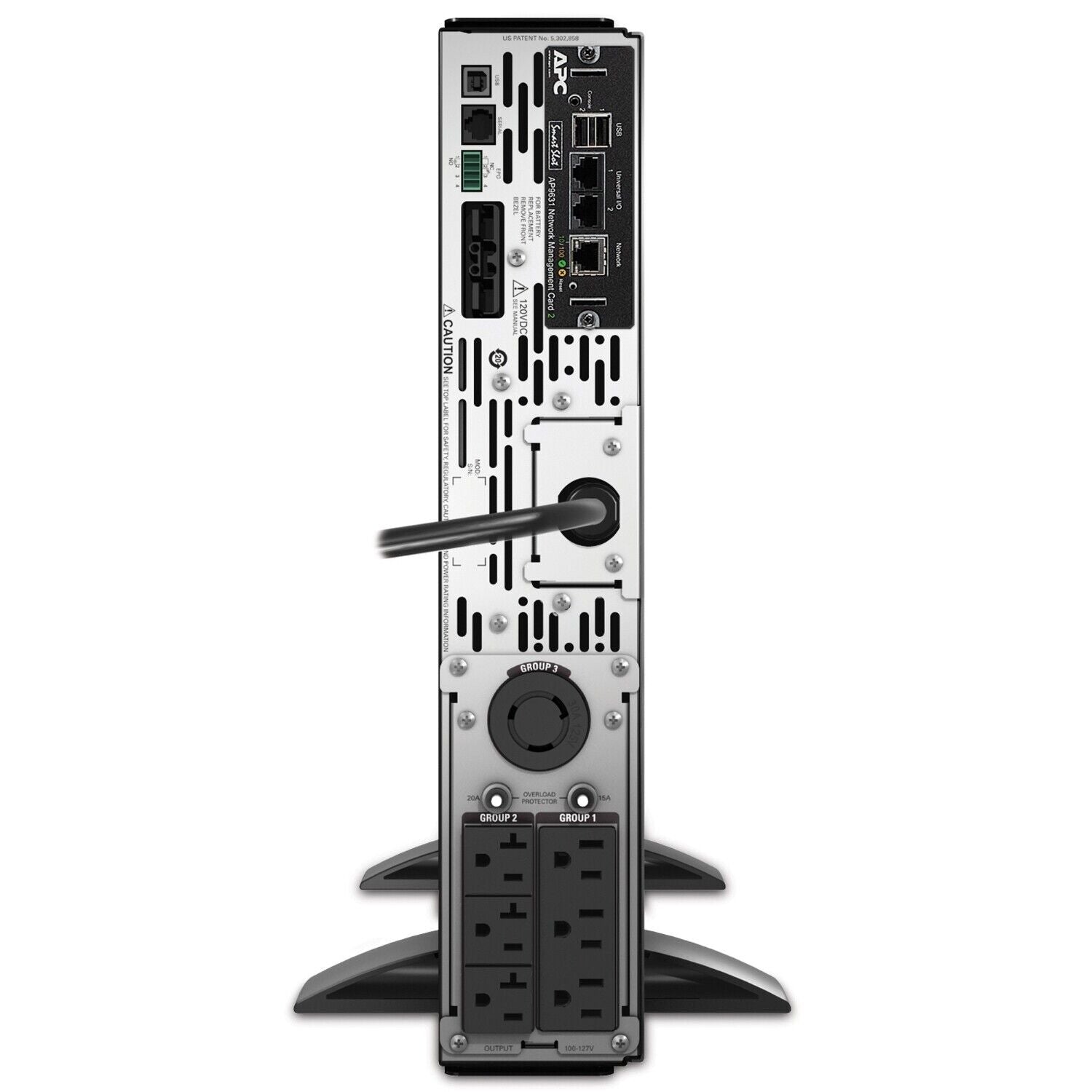

Plug/Connector Type:   NEMA L5-30P
Receptacle Type:   NEMA 5-20R
Receptacle Type:   NEMA 5-15R
Receptacle Type:   NEMA L5-30R
Receptacle Detail:   3 x NEMA 5-20R
Receptacle Detail:   1 x NEMA L5-30R
Receptacle Detail:   3 x NEMA 5-15R
Number of Battery & Surge Outlets:   7
Emergency Power OFF:   Yes
Transfer Time:   4 ms

Power Description
Load Capacity:   2880 VA/2700 W
Input Voltage:   110 V AC
Output Voltage:   120 V AC
Waveform Type:   Sine Wave

Management
Network Management:   SNMP Manageable

Interfaces/Ports
Serial Port:   Yes
USB:   Yes

Battery Information
Battery Characteristics:   Spill-proof, Maintenance-free
Battery Chemistry:   Lead Acid
Backup/Run Time (Full Load):   6 Minute
Backup/Run Time (Half Load):   18 Minute
Typical Battery Recharge Time:   3 Hour
Hot Swappable:   Yes

Physical Characteristics
Product Color:   Black
Height:   3.3"
Width:   17"
Depth:   26.3"
Rack Height:   2U
Form Factor:   Rack-mountable
Weight (Approximate):   84.77 lb

Miscellaneous
Package Contents:
Smart-UPS X SMX3000RMLV2UNC 3000 VA Rack-mountable UPS
CD with software
Documentation CD
Installation guide
Rack mounting brackets
Rack mounting hardware
Rack mounting support rails
Removable support feet
Smart UPS signalling RS-232 cable
USB cable
Web/SNMP management card

Certifications & Standards:
UL 1449
BSMI
CSA
EN 50091-2
EN 55022 Class A
FCC Part 15 Class A
NOM
TUV
UL 1778
VCCI Class A

Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Environmental Certification:   REACH

Warranty
Limited Warranty:   3 Year - Direct from the Manufacturer
