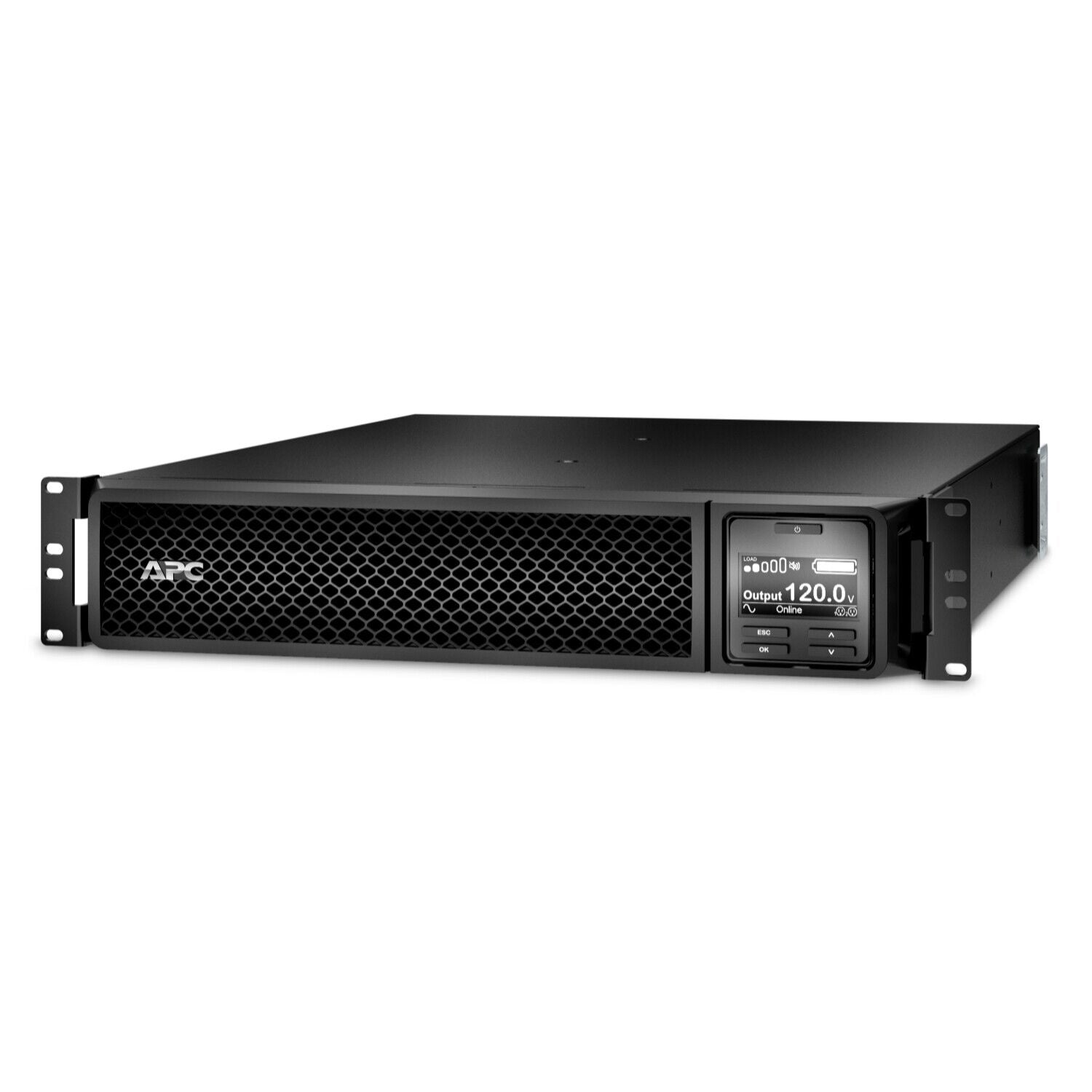

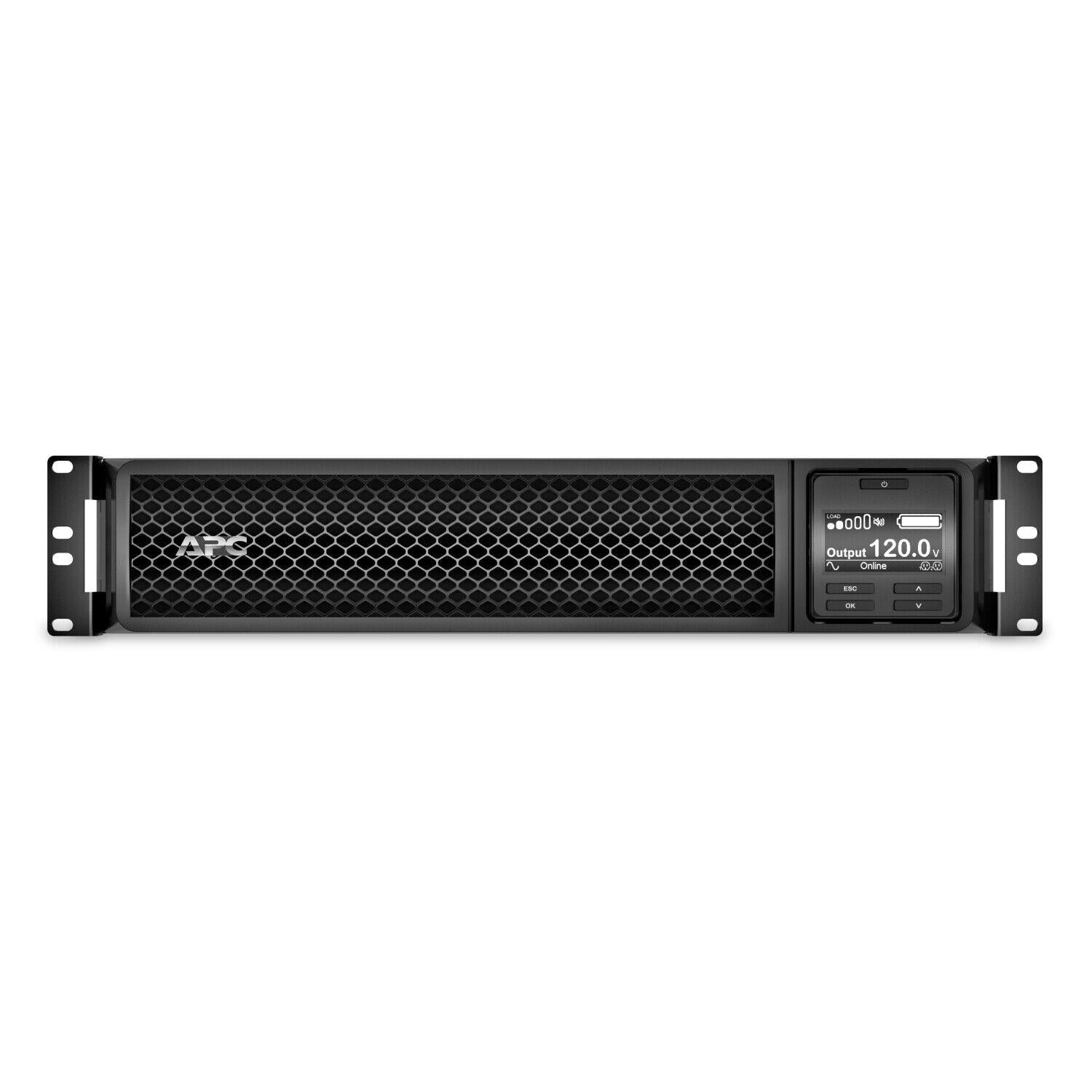

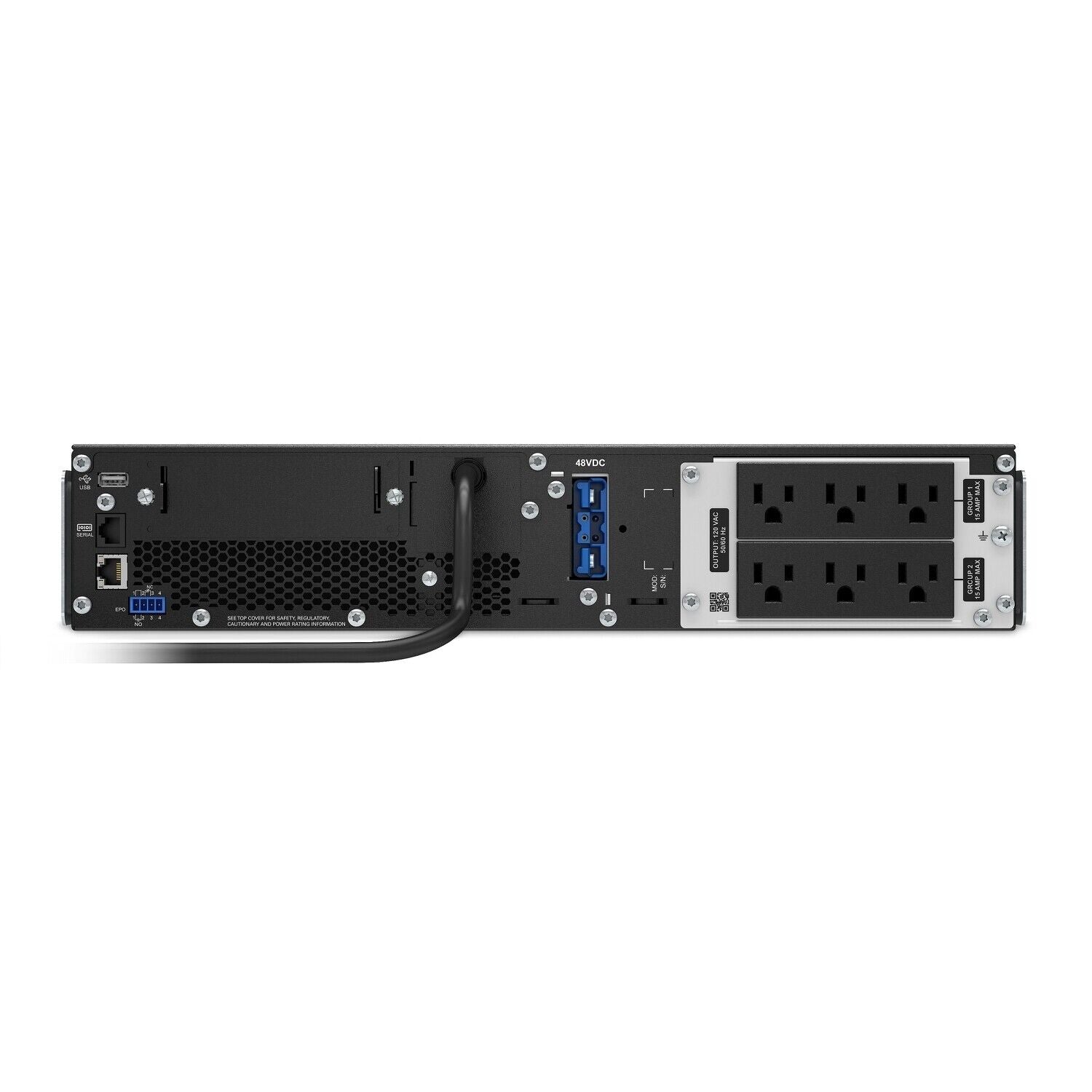

APC by Schneider Electric SRT1500RMXLA Smart-UPS SRT 1500VA RM 120V

General Information

Manufacturer:   Schneider Electric SA
Brand Name:   APC by Schneider Electric
Manufacturer Part Number:   SRT1500RMXLA
Product Line:   Smart-UPS SRT
Product Name:   Smart-UPS SRT 1500VA RM 120V

Marketing Information:
High density, double-conversion on-line power protection with scalable runtime

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Product Type:   Double Conversion Online UPS

Technical Information
Receptacle Type:   NEMA 5-15R
Receptacle Detail:   6 x NEMA 5-15R
Number of Battery & Surge Outlets:   6

Power Description
Load Capacity:   1500 VA/1350 W
Input Voltage:   120 V AC
Output Voltage:   120 V AC
Waveform Type:   Sine Wave

Interfaces/Ports
Network (RJ-45):   Yes

Battery Information
Battery Chemistry:   Lead Acid
Backup/Run Time (Full Load):   5 Minute
Typical Battery Recharge Time:   3 Hour

Physical Characteristics
Product Color:   Black
Height:   3.4"
Width:   17"
Depth:   20"
Rack Height:   2U
Form Factor:   Rack-mountable
Weight (Approximate):   48.50 lb

Miscellaneous
Package Contents:
Smart-UPS SRT 1500VA RM 120V
CD with software
Documentation CD
Installation guide
Rack mounting brackets
Rack mounting hardware
Rack mounting support rails
USB cable
Warranty card

Energy Star:   Yes
Environmentally Friendly:   Yes

Warranty
Limited Warranty:   3 Year - Direct from the Manufacturer
