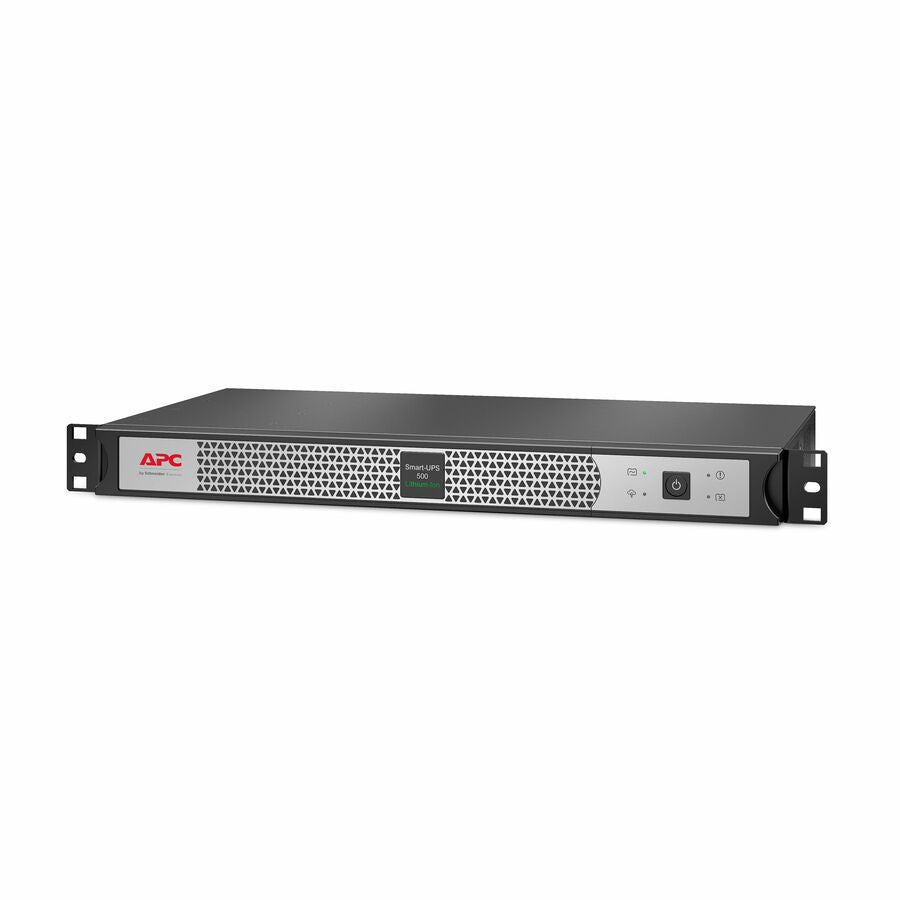

APC SCL500RM1UC Smart-UPS, Line Interactive, 500VA, Lithium-ion, Rackmount 1U

General Information

• Manufacturer: Schneider Electric SA
• Brand Name: APC by Schneider Electric
• Manufacturer Part Number: SCL500RM1UC
• Product Line: Smart-UPS
• Product Name: Smart-UPS 500VA Rack/Floor Mountable UPS

Marketing Information:

• This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 500VA line interactive 1U short depth rackmount UPS with Lithium-ion battery provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4 NEMA5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SCL UPS has a 5-year warranty on the UPS and Lithium-ion battery.

Packaged Quantity: 1 Each

• Product Type: Line-interactive UPS

Technical Information

• AVR: Yes
• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15P
• Receptacle Detail: 4 x NEMA 5-15R
• Number of Battery & Surge Outlets: 4
• Dataline Protection: RJ-45
• Cord Length: 6 ft
• Transfer Time: 10 ms

Application/Usage:

• Network
• Server
• POS Terminal
• Router
• Switch
• Network Hub
• Equipment
• Business
• Storage
• Security System
• Communication System
• Voice/Data Network

Power Description

• Load Capacity (VA): 500 VA
• Load Capacity (Watt): 400 W
• Input Voltage: 120 V
• Input Voltage Range: 92 V AC - 139 V AC
• Output Voltage: 120 V AC
• Input Frequency: 63 Hz
• Output Frequency: 60 Hz
• Waveform Type: Sine Wave
• Surge Energy Rating: 680 J

Management

Network Management: SmartConnect

Alarm:

• On Battery
• Low Battery
• Configurable Delay

Controls/Indicators

Status Indicators: LED Display

Interfaces/Ports

• Serial Port: Yes
• Network (RJ-45): Yes
• EPO Port: Yes
• USB (HID Compliant) Port: Yes

Battery Information

• Battery Characteristics: Valve-regulated
• Battery Chemistry: Lithium Ion (Li-Ion)
• Backup/Run Time (Full Load): 2.70 Minute
• Backup/Run Time (Half Load): 6.30 Minute
• Typical Battery Recharge Time: 3 Hour
• Hot Swappable: Yes
• Replaceable Battery: Yes

Environmental Conditions

• Maximum Operating Temperature: 104°F (40°C)
• Storage Temperature: 5°F (-15°C) - 113°F (45°C)
• Maximum Operating Elevation: 6561 ft
• Maximum Storage Elevation: 49212 ft
• Operating Humidity: 10% - 90%
• Storage Relative Humidity: 10% - 90%
• Sound Emission (A-Weighted): 45 dB(A)

Physical Characteristics

• Color Family: Dual Color
• Product Color: Black, Silver
• Height: 1.7"
• Width: 17"
• Depth: 9.1"
• Rack Height: 1U
• Form Factor: Rack-mountable
• Mounting Preference: No Preference
• Weight (Approximate): 9.22 lb

Miscellaneous

• Package Contents:
  • Smart-UPS 500VA Rack/Floor Mountable UPS
  • CD with software
  • Documentation CD
  • Installation guide
  • Rack mounting support rails
  • USB cable

Energy Star: Yes

Warranty

• Limited Warranty: 5 Year from APC
