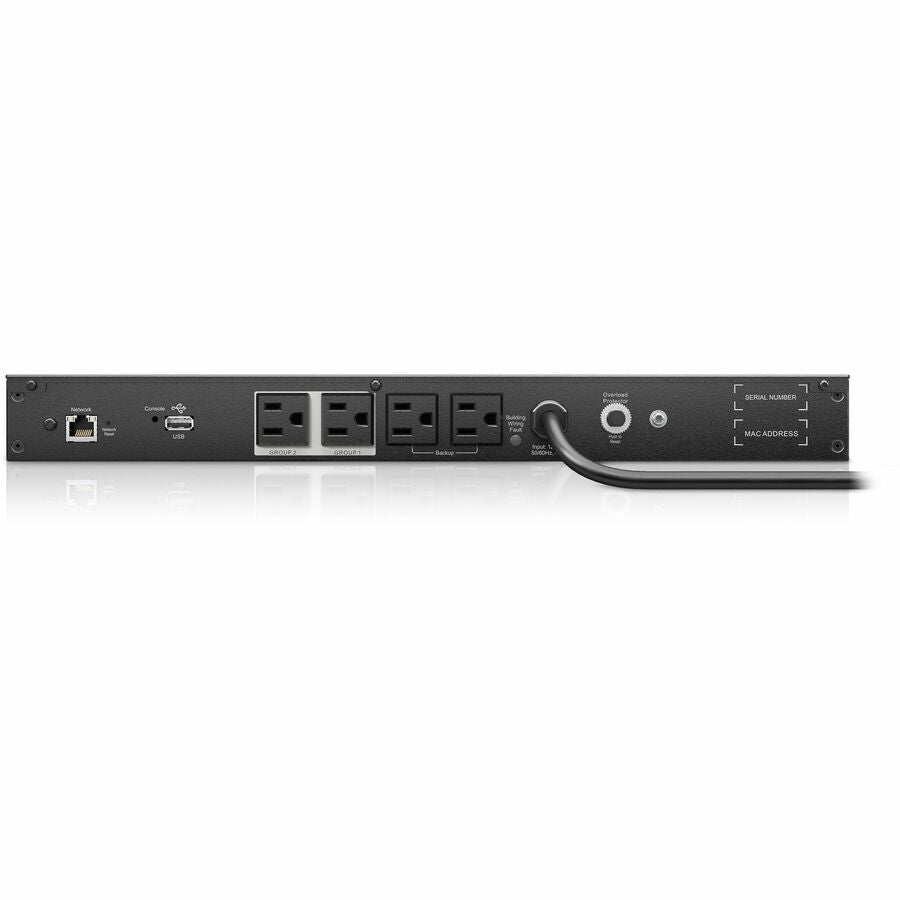

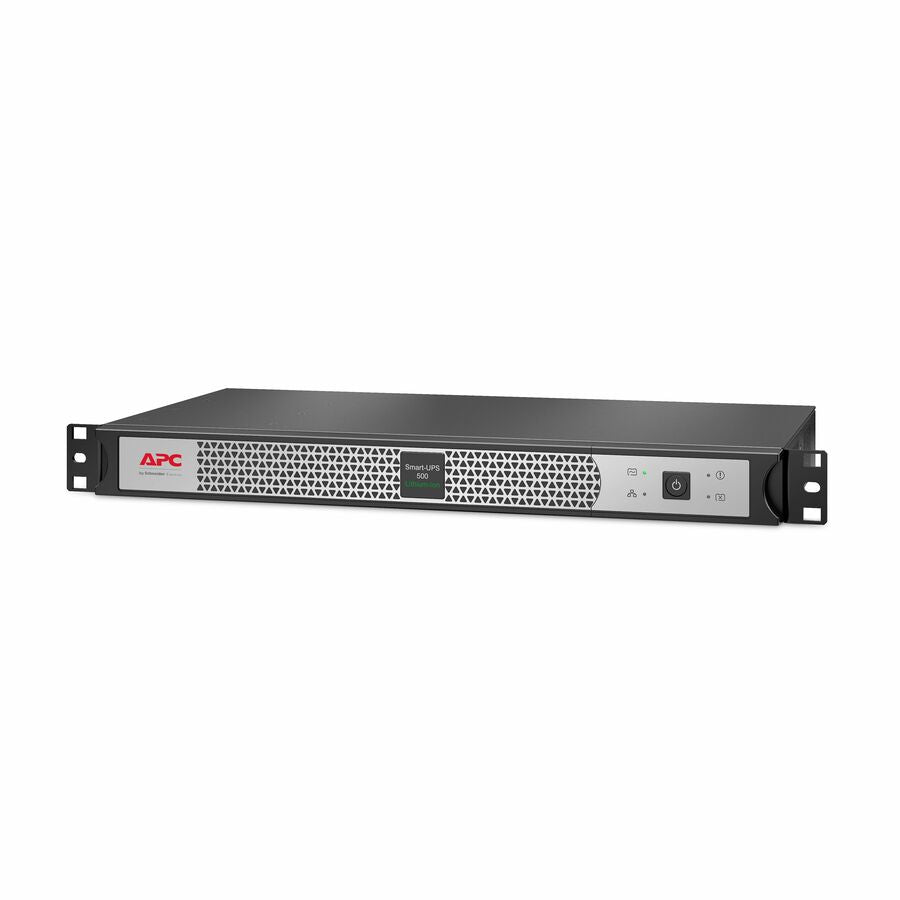

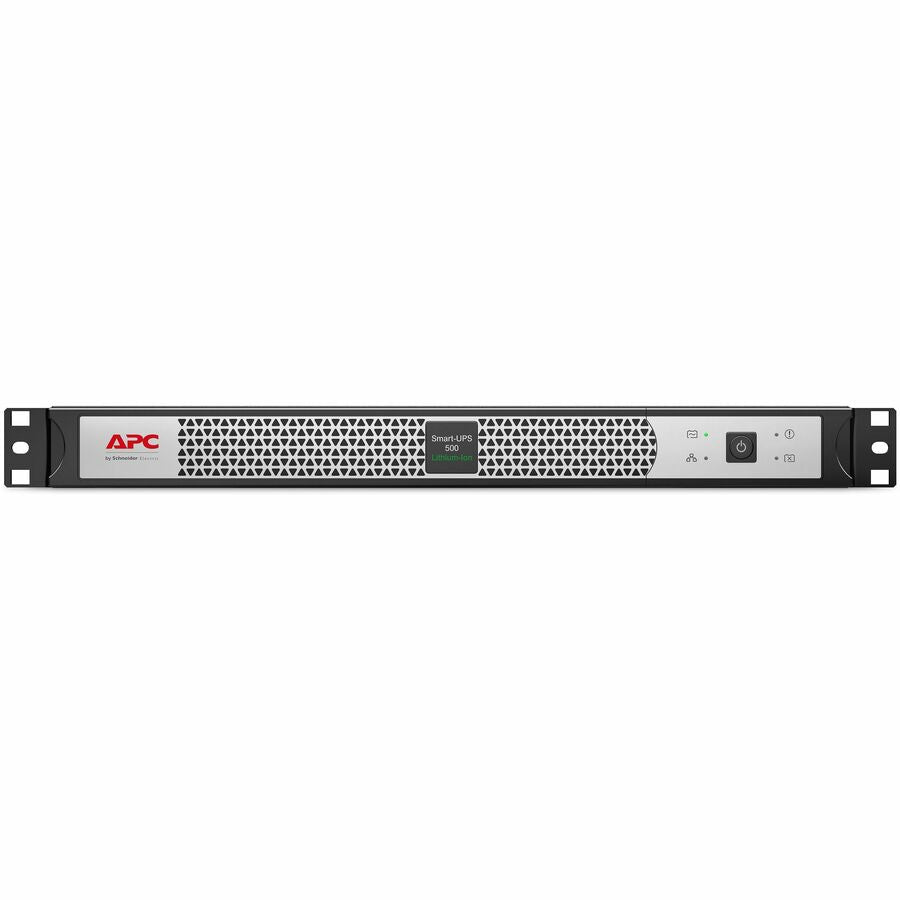

APC SCL500RM1UNC Smart-UPS, Line Interactive, 500VA, Lithium-ion, Rackmount 1U

General Information

• Manufacturer: Schneider Electric SA
• Brand Name: APC by Schneider Electric
• Manufacturer Part Number: SCL500RM1UNC
• Product Line: Smart-UPS
• Product Name: Smart-UPS 500VA Rack-mountable UPS

Marketing Information:

• This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 500VA line interactive 1U short depth rackmount UPS with Lithium-ion battery provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4 NEMA5-15R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SCL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
• Packaged Quantity: 1 Each

Product Type: Line-interactive UPS

Technical Information

• AVR: Yes
• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15P
• Receptacle Detail: 4 x NEMA 5-15R
• Number of Battery & Surge Outlets: 4
• Overload Protection: Yes
• Cord Length: 6 ft
• Transfer Time: 6 ms

Application/Usage:

• Server
• POS Terminal
• Router
• Switch
• Network Hub
• IT Equipment
• Network Device
• Business
• Storage System
• Critical System
• Security System
• Communication System

Power Description

• Load Capacity (VA): 500 VA
• Load Capacity (Watt): 400 W
• Input Voltage: 120 V
• Output Voltage: 120 V AC
• Input Frequency: 63 Hz
• Output Frequency: 60 Hz
• Waveform Type: Sine Wave
• Surge Energy Rating: 680 J

Management

Alarm:

• On Battery
• Low Battery
• Configurable Delay

Controls/Indicators

Status Indicators:

LED Status Display:

• On Battery
• On Line

Interfaces/Ports

• Serial Port: Yes
• USB (HID Compliant) Port: Yes

Battery Information

• Battery Chemistry: Lithium Ion (Li-Ion)
• Battery Energy: 108 kJ
• Backup/Run Time (Full Load): 2.70 Minute
• Backup/Run Time (Half Load): 6.30 Minute
• Typical Battery Recharge Time: 3 Hour
• Hot Swappable: Yes
• Replaceable Battery: Yes

Environmental Conditions

• Maximum Operating Temperature: 104°F (40°C)
• Storage Temperature: 5°F (-15°C) - 113°F (45°C)
• Maximum Operating Elevation: 6561 ft
• Maximum Storage Elevation: 49212 ft
• Sound Emission (A-Weighted): 45 dB(A)

Physical Characteristics

• Color Family: Dual Color
• Product Color: Black, Silver
• Height: 1.7"
• Width: 17"
• Depth: 9.1"
• Rack Height: 1U
• Form Factor: Rack-mountable
• Mounting Preference: No Preference

Miscellaneous

• Package Contents:
  • Smart-UPS 500VA Rack-mountable UPS
  • CD with software
  • Documentation CD
  • Installation guide
  • Rack mounting support rails
  • USB cable

Warranty

• Limited Warranty: 5 Year from APC

Shipping Notes:

All our products are normally shipped within 1-2 business days from any of our warehouse locations below:

• Monrovia, CA 91016 (Most usual)
• Fort Worth, TX 76155
• Carol Stream, IL 60188
• Moore, SC 29369
• Hazelton, PA 18202

International orders may take an additional 2 to 3 days.

California Prop 65 Warning. This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Visit www.P65Warnings.ca.gov

..JA
