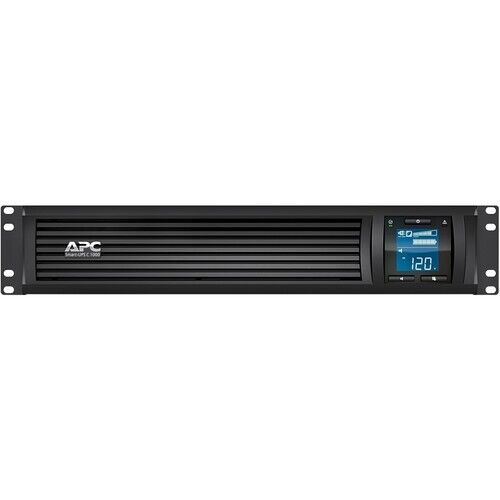

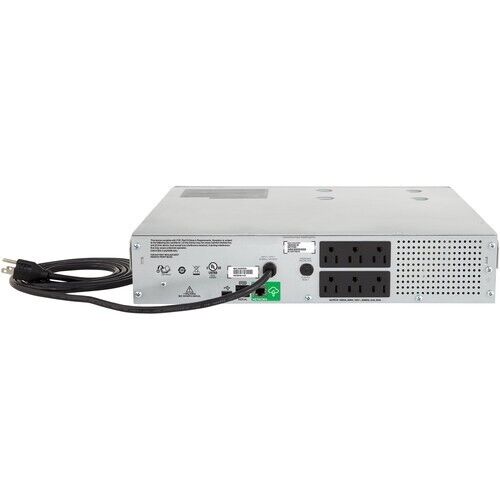

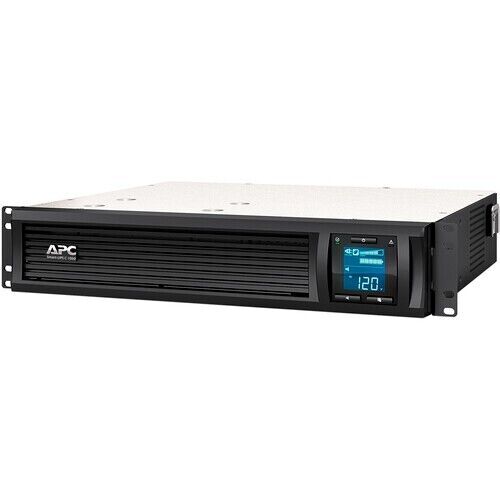

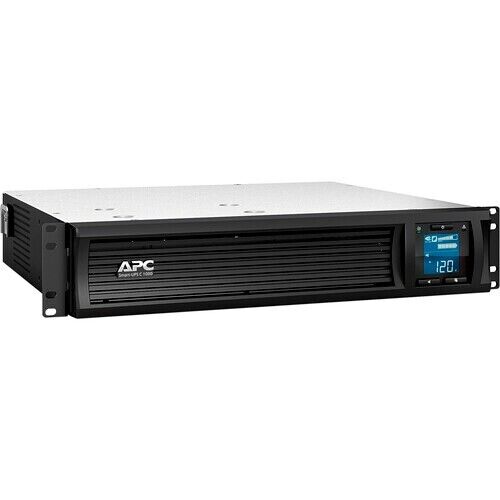

APC SMC1000-2UC Smart UPS C 6x NEMA 5-15R Outlets 1000VA 600W 680J AVR RJ45 USB

MARKETING INFORMATION:

This APC Smart-UPS is designed for small to medium business owners to maintain business uptime and continuity. This 1000VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. The UPS comes with NEMA 5-15P input and 6x NEMA 5-15R outlets. This UPS offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The Smart-UPS C has an intuitive graphic LCD interface. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. This line interactive UPS operates in green mode for high operating efficiency. Connect to either monitoring software using the Port on the back of the device. The SMC has a 2-year warranty, and comes with a built-in lead-acid battery. This UPS provides surge protection against lightning strikes, power sags, brownouts and surges. This is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. This 600 watt UPS offers a green mode to ensure you are operating at the highest level of efficiency while it's smart battery management maximizes performance. Automatic Voltage Regulation (AVR) adjusts voltages ensuring reliable power while preserving battery life. Predictive battery management provides an estimated date of when battery replacement is recommended. UPS, Documentation CD, Installation guide, Rack mounting brackets, USB cable.

GENERAL INFORMATION

• Manufacturer: Schneider Electric SA
• Manufacturer Part Number: SMC1000-2UC
• Brand Name: APC by Schneider Electric
• Product Line: Smart-UPS
• Product Name: Smart-UPS C 1000VA LCD RM 2U 120V with SmartConnect
• Packaged Quantity: 1
• Product Type: Line-interactive UPS

TECHNICAL INFORMATION

• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15P
• Receptacle Detail: 6 x NEMA 5-15R
• Number of Battery & Surge Outlets: 6
• Cord Length: 8 ft
• Transfer Time: 10 ms

APPLICATION/USAGE:

• Server
• Router
• Switch
• Network Hub
• Network Device
• POS Terminal

POWER DESCRIPTION

• Load Capacity (VA): 1000 VA
• Load Capacity (Watt): 600 W
• Input Voltage: 120 V
• Input Voltage Range: 93 V AC - 130 V AC
• Output Voltage: 120 V AC
• Waveform Type: Sine Wave
• Surge Energy Rating: 680 J

MANAGEMENT

• Network Management: SmartConnect
• INTERFACES/PORTS
• Network (RJ-45): Yes

BATTERY INFORMATION

• Battery Chemistry: Lead Acid
• Backup/Run Time (Full Load): 9.20 Minute
• Typical Battery Recharge Time: 3 Hour
• Hot Swappable: Yes

PHYSICAL CHARACTERISTICS

• Color Family: Black
• Product Color: Black
• Height: 3.4"
• Width: 17"
• Depth: 16"
• Rack Height: 2U
• Form Factor: Rack-mountable
• Mounting Preference: Lower
• Mounting Location: Front
• Weight (Approximate): 45.24 lb

PACKAGE CONTENTS:

• Smart-UPS C 1000VA LCD RM 2U 120V with SmartConnect
• Documentation CD
• Installation guide
• Rack mounting brackets
• USB cable

CERTIFICATIONS & STANDARDS:

• cULus|ENERGY STAR V2.0 (USA)
• Energy Star: Yes
• Optimized Energy Efficiency: Yes
• Product Take Back Program: Yes
• Mercury Free: Yes

Limited Warranty: 2 Year direct from APC
