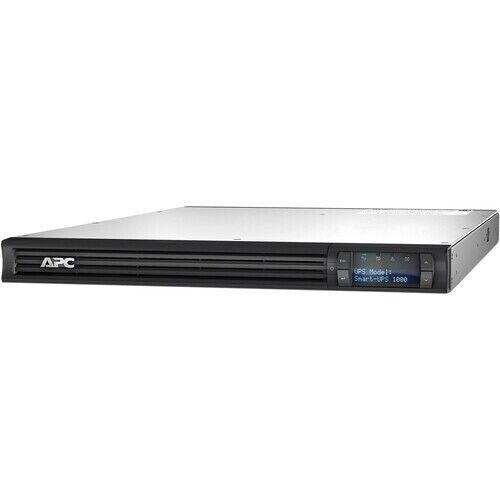

APC SMT1000RM1U Smart UPS 1U Rack 4x NEMA 5-15R Outlets 1000VA 800W 540J LCD

MARKETING INFORMATION:

This APC Smart-UPS is designed for small and medium businesses to maintain business uptime and continuity The 1000VA line interactive 1U rackmount provides pure sine wave power with a higher power factor to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4x NEMA 5-15R outlets. It comes with PowerChute Software, which provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It provides surge protection against lightning strikes, power sags, brownouts, and surges. The SMT UPS has a 3-year warranty, and the built-in lead acid battery has a 2-year warranty. This UPS includes intelligent battery management with replacement suggestions, temperature-adjusted charging, self-tests, and battery disconnect notifications.

GENERAL INFORMATION

Manufacturer: Schneider Electric SA

• Manufacturer Part Number: SMT1000RM1U
• Brand Name: APC by Schneider Electric
• Product Line: Smart-UPS
• Product Series: SMT
• Product Name: Smart-UPS SMT 1000VA Rack-mountable UPS
• Packaged Quantity: 1
• Product Type: Line-interactive UPS

TECHNICAL INFORMATION

• AVR: Yes
• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15P

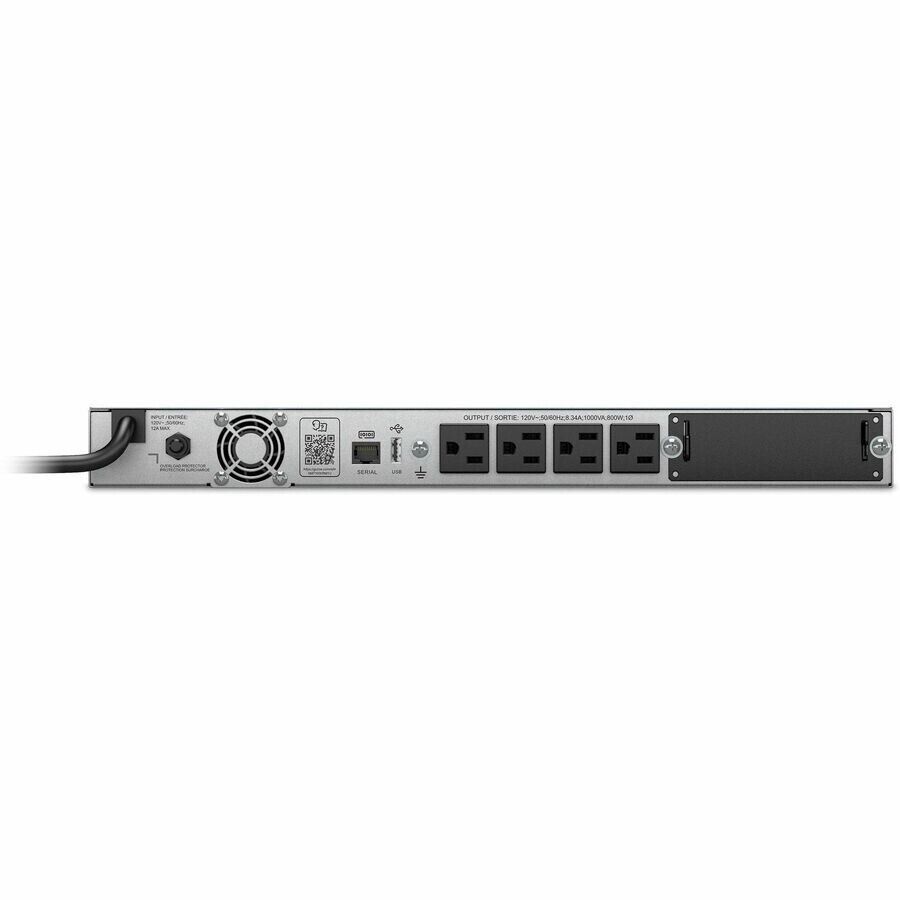

• Receptacle Detail: 4 x NEMA 5-15R
• Cord Length: 8 ft
• Transfer Time: 8 ms

APPLICATION/USAGE:

• Business
• Server
• Virtual Machine
• Hyperconverged Infrastructure (HCI)

POWER DESCRIPTION

• Load Capacity (VA): 1000 VA
• Load Capacity (Watt): 800 W
• Input Voltage: 120 V
• Input Current: 8.33 A
• Output Voltage: 120 V AC
• Input Frequency: 60 Hz
• Output Frequency: 60 Hz
• Waveform Type: Sine Wave
• Surge Energy Rating: 540 J

DISPLAY & GRAPHICS

• Display: LCD

MANAGEMENT / ALARM:

• On Battery
• Low Battery
• Configurable Delay

INTERFACES/PORTS

• USB: No

BATTERY INFORMATION

• Battery Chemistry: Lead Acid
• Battery Energy: 604.8 kJ
• Backup/Run Time (Full Load): 1.55 Minute
• Backup/Run Time (Half Load): 9.45 Minute
• Battery Life: 5 Year
• Typical Battery Recharge Time: 5 Hour
• Replaceable Battery: Yes

ENVIRONMENTAL CONDITIONS

• Maximum Operating Temperature: 104°F (40°C)
• Storage Temperature: 5°F (-15°C) - 113°F (45°C)
• Maximum Operating Elevation: 10000 ft
• Maximum Storage Elevation: 50000 ft
• Storage Relative Humidity: 95%
• Sound Emission (A-Weighted): 46 dB(A)
• Thermal Dissipation: 25.79 W

PHYSICAL CHARACTERISTICS

• Color Family: Black
• Product Color: Black

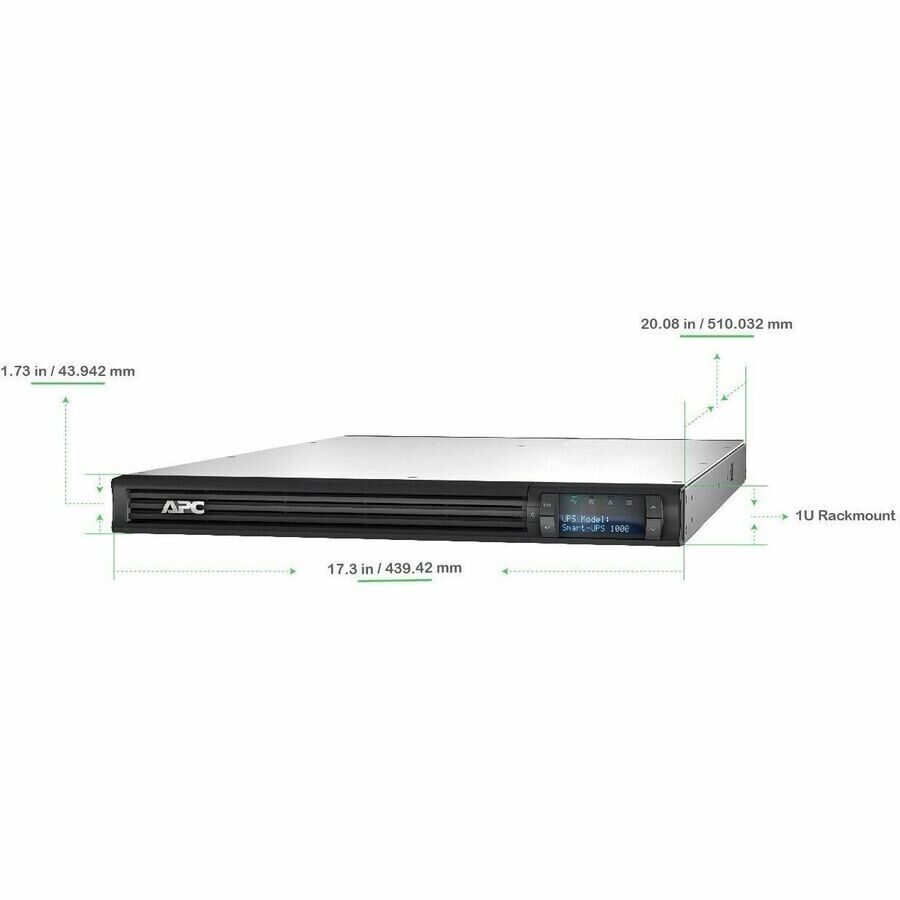

• Height: 1.7"
• Width: 17"
• Depth: 19.8"
• Rack Height: 1U
• Form Factor: Rack-mountable
• Mounting Preference: Lower
• Mounting Location: Front
• Weight (Approximate): 34.83 lb

PACKAGE CONTENTS:

• Smart-UPS SMT 1000VA Rack-mountable UPS
• User Manual

CERTIFICATIONS & STANDARDS:

• CSA
• Product Take Back Program: No
• Mercury Free: Yes

Limited Warranty: 3 Year direct from APC
